https://tehnoteka.rs

Uputstvo za upotrebu (EN)

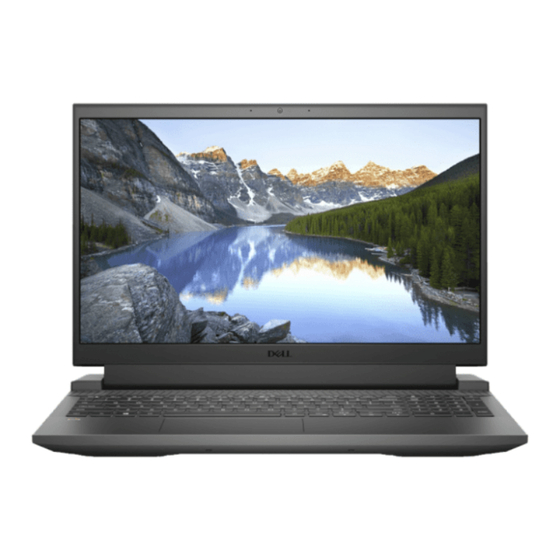

DELL laptop G15 5511 (NOT19472)

Tehnoteka je online destinacija za upoređivanje cena i karakteristika bele tehnike,

potrošačke elektronike i IT uređaja kod trgovinskih lanaca i internet prodavnica u Srbiji.

Naša stranica vam omogućava da istražite najnovije informacije, detaljne karakteristike

i konkurentne cene proizvoda.

Posetite nas i uživajte u ekskluzivnom iskustvu pametne kupovine klikom na link:

https://tehnoteka.rs/p/dell-laptop-g15-5511-not19472-akcija-cena/

Need help?

Do you have a question about the NOT19472 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dell NOT19472

Page 1 Uputstvo za upotrebu (EN) DELL laptop G15 5511 (NOT19472) Tehnoteka je online destinacija za upoređivanje cena i karakteristika bele tehnike, potrošačke elektronike i IT uređaja kod trgovinskih lanaca i internet prodavnica u Srbiji. Naša stranica vam omogućava da istražite najnovije informacije, detaljne karakteristike i konkurentne cene proizvoda.
Page 2 Dell G15 5511 Setup and Specifications Regulatory Model: P105F Regulatory Type: P105F005 April 2023 Rev. A010...
Page 3 A WARNING indicates a potential for property damage, personal injury, or death. © 2021-2023 Dell Inc. or its subsidiaries. All rights reserved. Dell Technologies, Dell, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
Page 4 Contents Chapter 1: Set up your Dell G15 5511....................4 Chapter 2: Views of Dell G15 5511....................6 Right....................................... 6 Left......................................7 Back......................................7 Display....................................8 Top......................................9 Bottom....................................10 Chapter 3: Specifications of Dell G15 5511..................11 Dimensions and weight..............................11 Processor....................................11 Chipset....................................12...
Page 5 2. Finish Windows setup. Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you: ● Connect to a network for Windows updates.
Page 6 Dell Update, search in the Knowledge Base Resource at www.dell.com/ support. Dell Digital Delivery Download software applications, which are purchased but not preinstalled on your computer. For more information on using Dell Digital Delivery, search in the Knowledge Base Resource at www.dell.com/support. Set up your Dell G15 5511...
Page 7 Views of Dell G15 5511 Right On computers shipped with NVIDIA GeForce RTX 3050, and NVIDIA GeForce RTX 3050 Ti 1. USB 2.0 port Connect devices such as external storage devices and printers. Provides data transfer speeds up to 480 Mbps.
Page 8 Connect a power adapter to provide power to your computer and charge the battery. On computers shipped with NVIDIA GeForce RTX 3060 1. Thunderbolt 4 / USB 3.2 Gen 1 Type-C port with DisplayPort with alt mode Views of Dell G15 5511...
Page 9 2. Camera Enables you to video chat, capture photos, and record videos. 3. Camera-status light Turns on when the camera is in use. 4. Right microphone Provides digital sound input for audio recording and voice calls. Views of Dell G15 5511...
Page 10 When the computer is turned on, press the power button to put the computer into sleep state; press and hold the power button for 10 seconds to force shut-down the computer. NOTE: You can customize the power-button behavior in Windows. For more information, see Me and My Dell at www.dell.com/support/manuals. Views of Dell G15 5511...
Page 11 1. Left speaker Provides audio output. 2. Service Tag label The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information. 3. Right speaker Provides audio output.
Page 12 Specifications of Dell G15 5511 Dimensions and weight The following table lists the height, width, depth, and weight of your Dell G15 5511. Table 2. Dimensions and weight Description Values Height: Front height 21.32 mm (0.84 in.) Rear height 25.33 mm (1 in.) Width 357.26 mm (14.07 in.)
Page 13 Chipset The following table lists the details of the chipset supported by your Dell G15 5511. Table 4. Chipset Description Values Chipset HM570 Processor 11th Generation Intel Core i5/i7 DRAM bus width 64-bit Flash EPROM 32 MB PCIe bus Up to Gen3...
Page 14 To learn more about the features of different types of M.2 cards, search in the Knowledge Base Resource at www.dell.com/support. Ethernet The following table lists the wired Ethernet Local Area Network (LAN) specifications of your Dell G15 5511. Table 8. Ethernet specifications Description Values Model number ●...
Page 15 RTX 3050 Ti) Transfer rate 10/100/1000/2500 (on Realtek controller only) Mbps Wireless module The following table lists the Wireless Local Area Network (WLAN) modules that are supported on your Dell G15 5511. Table 9. Wireless module specifications Description Option one...
Page 16 If you have ordered two solid-state drives, they can be upgraded to the solid-state drives of the same form factor respectively. NOTE: For more information about Dell qualified solid-state drives supported by your computer, see Parts & Accessories at https://www.dell.com/support. Table 11. Storage specifications...
Page 17 (F1–F12) changing Function Key Behavior in BIOS setup program. For more information, see Keyboard shortcuts. Camera The following table lists the camera specifications of your Dell G15 5511. Table 13. Camera specifications Description Values Number of cameras Camera type...
Page 18 For more information about touchpad gestures available on Windows, see the Microsoft knowledge base article at support.microsoft.com. Power adapter The following table lists the power adapter specifications of your Dell G15 5511. Table 15. Power adapter specifications Description Option one...
Page 19 NOTE: Dell recommends that you charge the battery regularly for optimal power consumption. If your battery charge is completely depleted, connect the power adapter, turn on your computer and then restart your computer to reduce the power consumption.
Page 20 Anti-glare vs glossy finish Anti-glare Anti-glare Anti-glare Touch options GPU—Integrated The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Dell G15 5511. Table 18. GPU—Integrated Controller Memory size Processor Intel UHD Graphics Shared system memory 11th Generation Intel Core i5/i7 GPU—Discrete...
Page 21 Operating and storage environment This table lists the operating and storage specifications of your Dell G15 5511. Airborne contaminant level: G1 as defined by ISA-S71.04-1985 Table 20. Computer environment Description Operating Storage Temperature range 0°C to 35°C (32°F to 95°F) -40°C to 65°C (-40°F to 149°F)
Page 22 Keyboard shortcuts NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations. Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions.
Page 23 Table 21. List of keyboard shortcuts (continued) Function key Redefined key (for multimedia Behavior control) Print screen Home The Fn key is also used with selected keys on the keyboard to invoke other secondary functions. Table 22. List of keyboard shortcuts Function key Behavior Turn off/on wireless...
Page 24 Low blue light WARNING: Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain, eye fatigue, or damage to the eyes. Blue light is a color in the light spectrum which has a short wavelength and high energy. Chronic exposure to blue light, particularly from digital sources, may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes.
Page 25 Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 23. Self-help resources Self-help resources Resource location Information about Dell products and services www.dell.com My Dell app...
Page 26 Ovaj dokument je originalno proizveden i objavljen od strane proizvođača, brenda Dell, i preuzet je sa njihove zvanične stranice. S obzirom na ovu činjenicu, Tehnoteka ističe da ne preuzima odgovornost za tačnost, celovitost ili pouzdanost informacija, podataka, mišljenja, saveta ili izjava sadržanih u ovom dokumentu.

This manual is also suitable for:

P105f G15 5511
