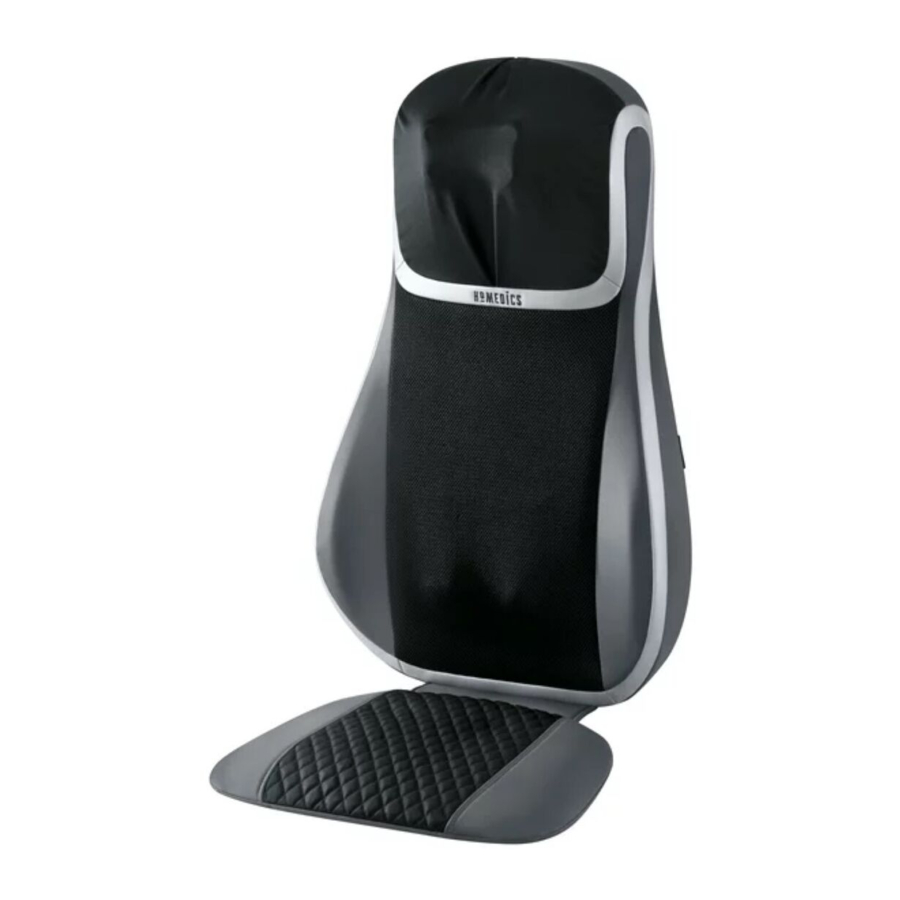

DEVICE OVERVIEW

INSTRUCTIONS FOR USE

The cushion comes with a screw located on the back of the unit to protect the massage mechanism during shipment, which must be removed before the first use to allow the unit to function properly. Use the provided allen wrench. Then, properly dispose of the screw.

Failure to remove screw may cause permanent damage to the massage cushion. DO NOT REINSTALL SCREW.

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

Untie cord strap, extend cord, and insert plug into 120-volt household electrical outlet to power unit.
Attach the cushion to most chairs for a luxurious massage as you read, rest, or even work. See instructions on the use of the hand control.

warning Note: The hand control comes with a clear, plastic film to protect the buttons before use. When you are ready to use your massage cushion, peel off the plastic film by lifting at one corner and pulling gently. Discard film.

STRAPPING SYSTEM

The cushion incorporates a unique strapping system that allows you to fasten it to almost any chair. Just slip the straps over the seat or chair and adjust fastening straps to secure. Your massager won't slip or slide away.

MAINTENANCE

TO STORE

Place massager in its box or in a safe, cool, dry place. Avoid contact with sharp edges or pointed objects that might cut or puncture the fabric surface. To avoid breakage, do not wrap the power cord around the unit. Do not hang the unit by the hand control cord.

TO CLEAN

Unplug the unit and allow it to cool before cleaning. Clean only with a soft, slightly damp sponge. Never allow water or any other liquids to come into contact with the unit.

DO NOT immerse in any liquid to clean.
NEVER use abrasive cleaners, brushes, gasoline, kerosene, glass/furniture polish, or paint thinner to clean.
DO NOT attempt to repair the cushion. There are no user-serviceable parts. For service, call the Consumer Relations telephone number listed in the Warranty section.

To avoid pinching, do not lean on the massage mechanism in the cushion when adjusting your body position.
Do not jam or force any part of your body into the moving massage mechanism.

warning Note: There is a 15-minute auto shut-off on the unit for your safety.

warning Note: Not recommended for use on wooden surfaces as the zipper may damage the wood. Caution is also recommended when using on upholstered furniture.

warning Note: Only gentle force should be exerted against the unit in order to eliminate any/all risk of injury. You may soften massage force by placing a towel between yourself and the unit.

BUTTONS DESCRIPTION

POWER BUTTON
To turn on the massage functions, first press the power button. The LED indicator will illuminate. To turn off the massage functions, press the button again. The LED indicator will blink while the massage mechanism returns to its lowest point, and then it will turn off.

NECK SPOT MASSAGE
You may adjust the kneading neck massage position by holding down either button until the desired spot is reached. The up arrow will move the mechanism upward and the down arrow will move it downward. Once you release the button, the mechanism will stop in that place.

TAPPING
Tapping is a fast, invigorating massage.
To activate tapping massage, press the "TAPPING" button once. To deactivate, press the button again. Tapping massage only travels up and down your back when combined with shiatsu massage. When used without shiatsu, adjust the position with the up and down spot massage buttons.

SPOT MASSAGE
While the unit is in shiatsu and tapping massage, press the "SPOT" button to focus the massage action in one place. Once the unit is operating in spot massage, you may adjust the mechanism position by holding the up or down arrow buttons until the desired position is reached. The up arrow will move the mechanism upward, and the down arrow will move it downward. To deactivate spot massage, press one of the massage zone buttons.

DEMO BUTTON
For a brief demonstration of the features of the massage cushion, press the "DEMO" button. The unit will briefly go through each function. Once completed, the unit automatically turns off. The LED will blink to indicate active function.

NECK & SHOULDER MASSAGE
To turn on the neck and shoulder massage, press the neck button. The 3D Trutouch neck and shoulder massage will begin with inward massage motion; the button will illuminate. To change to outward massage, press the button. The button will illuminate and the massage motion will change direction.

MASSAGE ZONES
Choose from 3 preset zones to enjoy a combined shiatsu and tapping massage. Choose full back, upper back, or lower back by pressing the corresponding button. The LED will illuminate to indicate active function. To deselect a massage zone, press the button again or press another button.

SHIATSU MASSAGE
Shiatsu is a deep-kneading massage. During this function, the massage nodes will rotate while traveling up and down your back, soothing tense muscles.

HEAT BUTTON
To activate soothing heat when massage is on, press the "HEAT" button, and the corresponding red LED light will illuminate. To deselect, press the button again, and the corresponding LED light will turn off. For your safety, heat can only be turned on while a massage program is running.

SERVICE & WARRANTY

For service in the USA
Email: cservice@homedics.com
1.800.466.3342
Monday-Friday 8:30am-7:00pm EST

For service in Canada
Email: cservice@homedicsgroup.ca
1.888.225.7378
Monday-Friday 8:30am-5:00pm EST

2-YEAR LIMITED WARRANTY
To obtain warranty service on your HoMedics product, contact a Consumer Relations representative for assistance. Please make sure to have the model number of the product available.

For more information regarding our product line in the USA, please visit: www.homedics.com;
For Canada, please visit: www.homedics.ca

REGISTER YOUR PRODUCT AT: www.homedics.com/register
Your valuable input regarding this product will help us create the products you will want in the future.

IMPORTANT SAFETY INSTRUCTIONS

WHEN USING ELECTRICAL PRODUCTS, ESPECIALLY WHEN CHILDREN ARE PRESENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING:

READ ALL INSTRUCTIONS BEFORE USING.

TO REDUCE THE RISK OF ELECTRIC SHOCK:

Always unplug this appliance from the electrical outlet immediately after using and before cleaning.
DO NOT reach for an appliance that has fallen into water. Unplug it immediately.
Never use pins or other metallic fasteners with this appliance.

TO REDUCE THE RISK OF BURNS, ELECTRIC SHOCK, FIRE, OR INJURY TO PERSONS:

An appliance should NEVER be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or taking off parts or attachments.
NOT for use by children.
Close supervision is necessary when this appliance is used by, on, or near children, invalids, or disabled persons.
Use this appliance only for its intended purpose as described in this manual. DO NOT use attachments not recommended by HoMedics; specifically, any attachments not provided with the unit.
NEVER operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the appliance to a HoMedics Service Center for examination and repair.
Use heated surfaces carefully. May cause serious burns. DO NOT use over insensitive skin areas or in the presence of poor circulation. The unattended use of heat by children or incapacitated persons may be dangerous.
Keep the cord away from heated surfaces.
NEVER drop or insert any object into any opening.
DO NOT use massager in close proximity to loose clothing or jewelry.
Keep long hair away from massager while in use.
DO NOT operate where aerosol (spray) products are being used or where oxygen is being administered.
DO NOT operate under a blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
DO NOT carry this appliance by supply cord or use cord as a handle.
To disconnect, turn all controls to the "off" position, then remove plug from outlet.
DO NOT use outdoors.
NEVER operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the like.

All servicing of this massager must be performed by authorized HoMedics service personnel only.

SAVE THESE INSTRUCTIONS

PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING.

Consult your doctor prior to using this product if:
- You are pregnant
- You have a pacemaker
- You have any concerns regarding your health
NOT recommended for use by diabetics.
NEVER leave the appliance unattended, especially if children are present.
DO NOT use this product for more than 15 minutes at a time.
Extensive use could lead to the product's excessive heating and shorter life. Should this occur, discontinue use and allow the unit to cool before operating.
NEVER use this product directly on swollen or inflamed areas or skin eruptions.
DO NOT use this product as a substitute for medical attention.
NEVER use this product while in bed.
This product should NEVER be used by any individual suffering from any physical ailment that would limit the user's capacity to operate the controls or who has sensory deficiencies in the lower half of their body.
NEVER use this product in automobiles.
This appliance is intended for household use only.
This appliance is designed for personal, non-professional use only.
