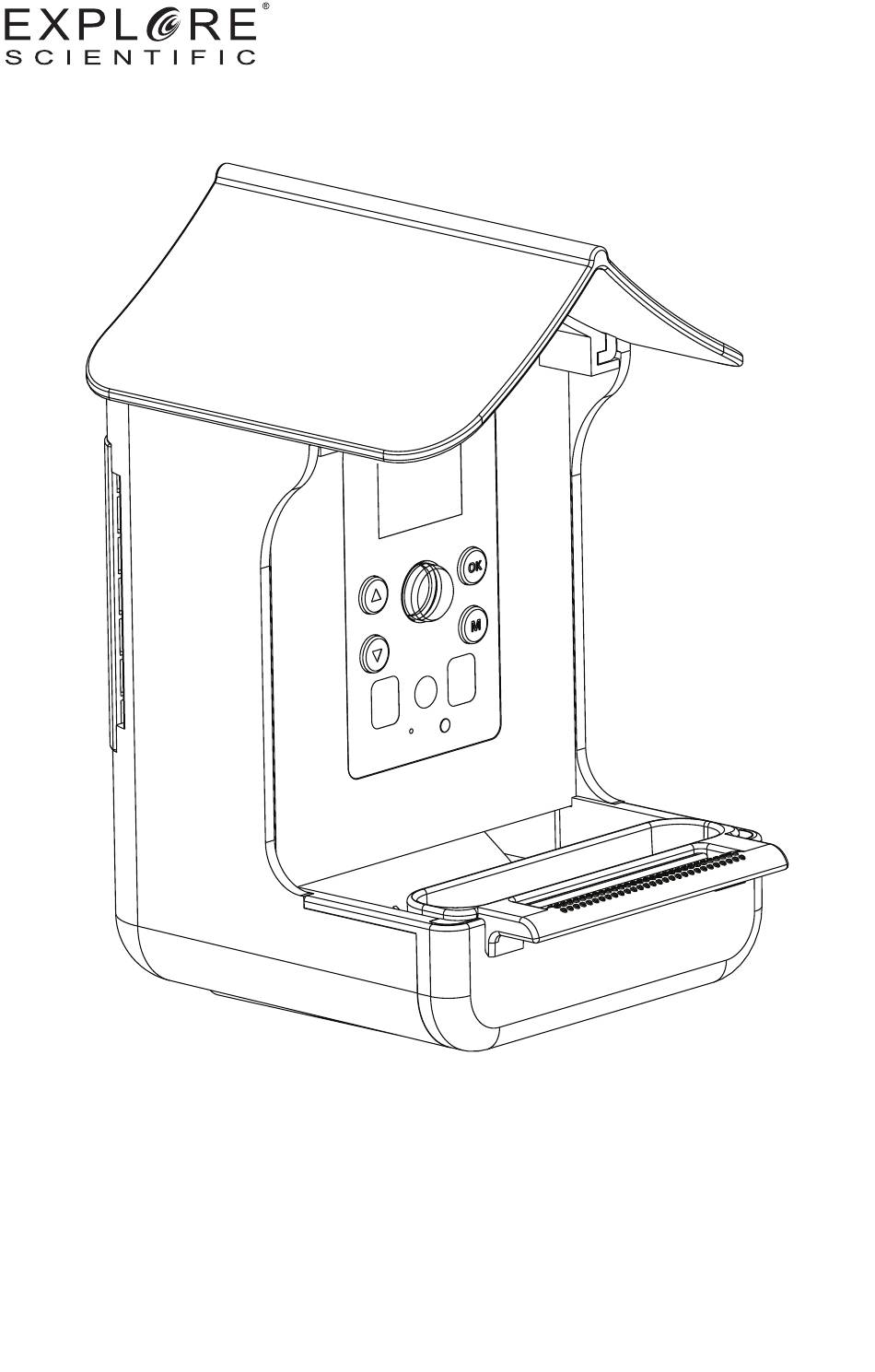

- Page 1 #88-40004 S O L A R P O W E R E D W I - F I C A M E R A WILD BIRD FEEDER I N S T R U C T I O N M A N UA L...
- Page 2 About this Instruction Manual Please read the safety instructions and the operating instructions carefully before use. Keep these instructions for renewed use at a later date. When the device is sold or given to someone else, the instruction manual must be provided to the new owner/user of the product. Read these safety instructions before using your device and store them for possible future reference.
- Page 3 28) Do not expose the unit to strong magnetic objects or strong radio waves. Strong magnetic fields may cause product malfunctions or damage to images and sounds. 29) If the unit has not been operated in a long time, check whether the camera operates normally or not before using the camera again.
- Page 4 Notes on Cleaning Turn off the camera. Clean the eyepieces and/or lenses only with a soft, lint-free cloth, (e.g. microfiber cloth). To avoid scratching the lenses, use only gentle pressure with the cleaning cloth. Only use a dry cloth to clean the exterior of the device.
- Page 5 Product Information: The smart bird feeder is equipped with a PIR pyroelectric infrared sensor with high sensitivity. When a human or an animal (such as a bird) moves and causes a change in the temperature change of the external environment, it will be triggered, and automatically capture pictures or record high-definition video.
- Page 6 Smart bird feeder structure: 10 11 12 1. Speaker 12. Light Sensor 2. Screen 13. Food Bin 3. OK / Capture 14. Water Sink 4. Mode 15. Bracket Screw Hole 5. PIR Sensing 16. Strap Place 6. Status Light 17. Bracket Screw Hole 7.
- Page 7 Using the Smart Bird Feeder: Insert the TF card before powering on 1. Open the silicone protective shell, to access the memory card slot. 2. Insert the memory card. Ensure that the metal contacts are inserted first. 3. Push the memory card down until you hear an audible click. The memory card can only be inserted in one way.
- Page 8 Feeder Use Cycle Modes: Press the button to cycle between Camera, Video, Camera+Video, Playback and Settings. Enter Mode: Press the OK button to enter the selected one. Exit Mode: Press the Mode button in Camera/Video/Camera+Video Mode to return to main menu and light up the screen; In Playback and Settings modes, press the Mode button once to return to the main menu.
- Page 9 Camera+Video Mode Select the “ “ function icon, and click the OK button to enter the camera+video mode. At this point, the feeder will Working: automatically turn off the screen. When Blue light flashes birds or other objects enter the PIR infrared sensing area, the indicator light will flash blue, and the feeder starts to work.
- Page 10 Settings Select “setting” using the button. Press the OK button to enter the “setting” sub-menu and press the Mode button to exit. Date Time Press the button to change the red-marked value. Press the OK button to switch to the next value. Camera will keep the change record if you press the OK button cycled all the value.
- Page 11 How to mount the Smart Bird Feeder Using the strap The first installation method is as follows: Step 1: Use the strap to across the strap place. Step 2: Fix the feeder to the tree trunk with the strap. Using supporter The second installation method is as follows: Adapter Step 1: There are Tripod Socket Holes on the...
- Page 12 How to add food Step 1: Pull the roof top door from back to front to open the food compartment cover. Step 2: Add the food into the food bin Step 3: Push the top door of the roof from front to back and close the food compartment cover.
- Page 13 Adding the Hummingbird Nectar Step 1: Fasten the mouth of the hummingbird down to the trough Step 2: Remove the cap of the hummingbird feeder, put nectar in the hummingbird feeder, and cover the top of the hummingbird feeder Hanging the food Tie the food with the rope and fix the other end of the rope on the feeder’s hanging hole.
- Page 14 Bird Feeder Wi-Fi Instructions This bird feeder camera has Wi-Fi capability that lets users quickly access recorded videos and photos as well as live views through an app on their own smart phone. To connect your smartphone to the camera and operate it, complete the following steps.
- Page 15 Charging the Smart Bird Feeder 1. The feeder comes with a solar panel that will continuously charge it. 2. If there is no sunlight for a long time, the solar panel will be unable to charge. Then you’ll need to charge the battery at home. Remove the silicone protective shell on the port and charge the feeder with the USB cable.
- Page 16 ©2023 Explore Scientific, LLC. 1010 S 48th Street, Springdale, AR 72762 explorescientificusa.com | 866.252.381 All rights reserved. Made in China. V032023...
