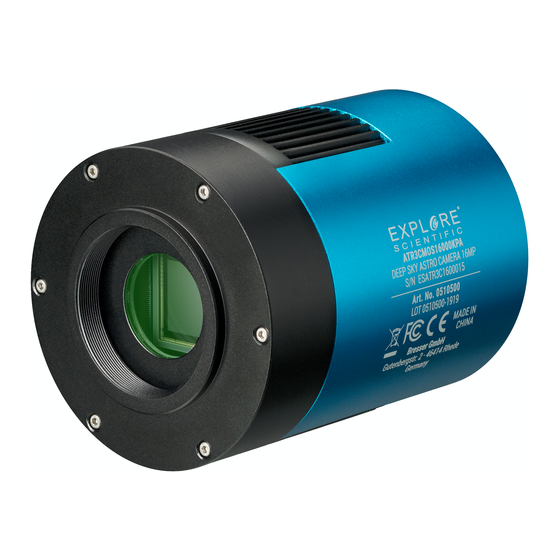

- Page 1 Digital camera · DeepSky Astro Camera Series Instruction manual...
- Page 2 Besuchen Sie unsere Website über den folgenden QR Code oder Weblink um weitere Informationen zu diesem Produkt oder die verfügbaren Übersetzungen dieser Anleitung zu finden. Visit our website via the following QR Code or web link to find further information on this product or the available translations of these instructions.
-
Page 3: Table Of Contents
Contents 1 Imprint ................................ 4 2 Validity information ............................ 4 3 About this Instruction Manual........................ 4 4 Intended use .............................. 4 5 General safety instructions ........................... 5 6 Parts overview and scope of delivery ...................... 7 7 Installing the software and drivers ....................... 8 8 Camera mounting on telescope ........................ 8 9 Using the internal USB HUB (USB 2.0)...................... 9 10 Camera mounting with optional autoguider .................... 9 11 Cleaning and maintenance .......................... 10... -
Page 4: Imprint
Please be aware that any requests or submissions sent directly to the manufacturer cannot be processed. Errors excepted. Subject to technical modifications. © 2019 Explore Scientific GmbH All rights reserved. Reproduction of this document, including extracts, in any form (photocopied, printed etc.) or the use and distribution of this document by electronic means (image file, website etc.) is not permitted without... -
Page 5: General Safety Instructions
5 General safety instructions DANGER Risk of electric shock This device has electronic parts operated via a power source (power supply and/or batteries). Im- proper use of this product can cause an electric shock. An electric shock can cause serious or poten- tially fatal injuries. - Page 6 NOTICE Risk of overheating! Always keep the ventilation slits of the thermoelectric cooling system free! Covering these slits will re- duce cooling performance and may cause overheating and damage to the camera. NOTICE Risk of material damage due to solar radiation! Do not expose the camera sensor to direct sunlight.
-
Page 7: Parts Overview And Scope Of Delivery

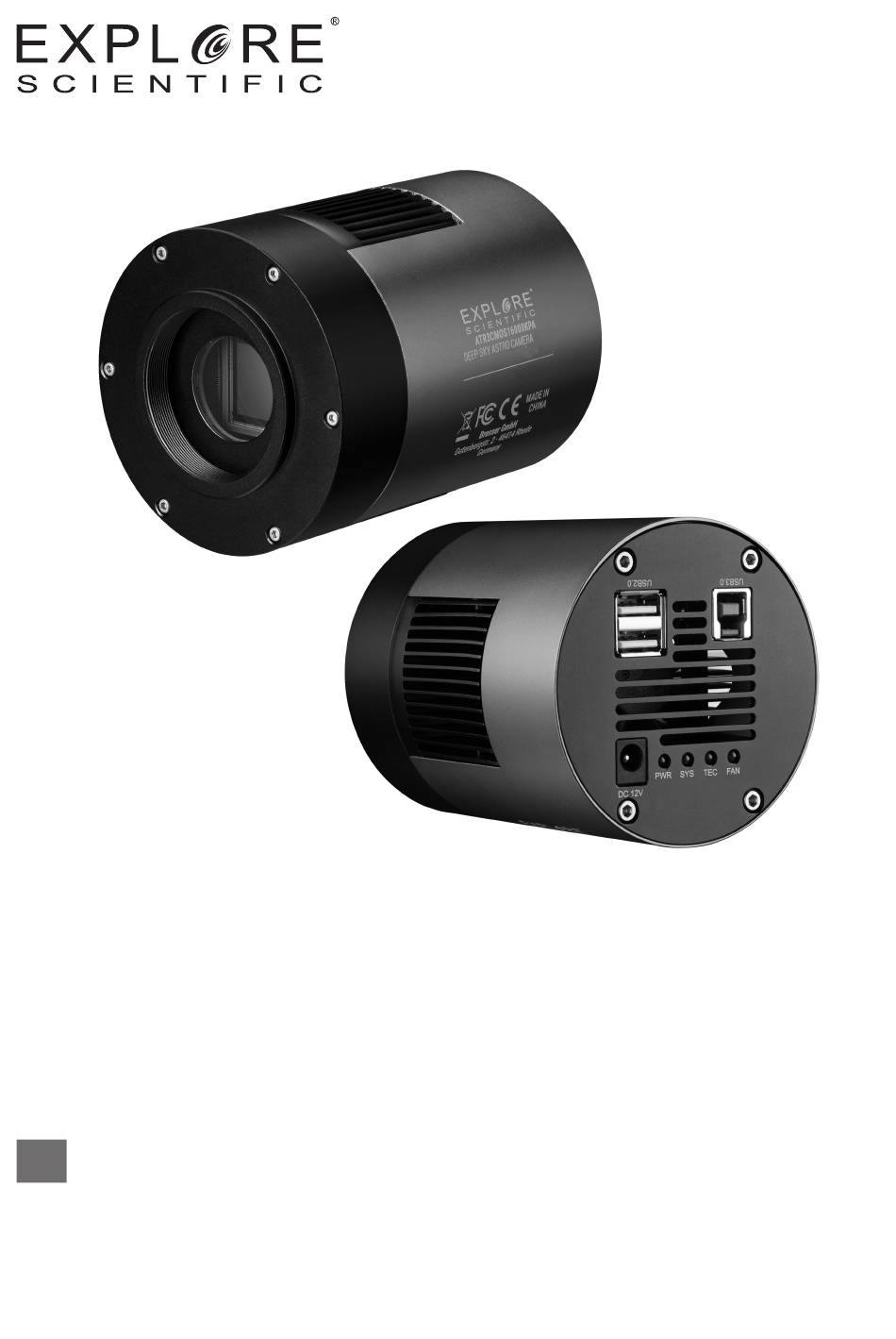

6 Parts overview and scope of delivery Illustration 1: All parts of the Astro camera with rear view (connection area) 1 Camera housing 2 Ventilation slits 3 Holding thread 4 USB 2.0 socket (2x USB HUB) 5 USB 3.0 socket (1x) 6 Connection socket for DC barrel con- nector 7 PWR function light (power supply of the... -
Page 8: Installing The Software And Drivers
Scope of delivery: Camera (A); ); T2 adapter (B); power adapter (C); power cable (D); power cable extension (E); USB 3.0 connection cable (F); software CD; hardcase Also required (not included): Computer running Windows 8/10 NOTICE! This is not a stand-alone camera. A computer with Windows operating system and free USB 3.0 interface is required for operation. -
Page 9: Using The Internal Usb Hub (Usb 2.0)
1 Camera housing 2 Holding thread 3 Connection thread 4 50.8mm (2") T2 adapter 5 50.8mm (2") eyepiece holder 6 Eyepiece extension 9 Using the internal USB HUB (USB 2.0) The camera is equipped with an built-in USB HUB with 2x USB 2.0 sockets at the rear. This can be used to connect additional components (e.g. -
Page 10: Cleaning And Maintenance
13 EC Declaration of Conformity Explore Scientific GmbH has issued a "Declaration of Conformity" in accordance with ap- plicable guidelines and corresponding standards. The full text of the EU declaration of con- formity is available at the following internet address: www.bresser.de/download/0510500... -
Page 11: Technical Data
14 Technical data Item no. 0510500 Item no. 0510510 Item no. 0510520 Camera type: ASTRO Camera Camera type: ASTRO Camera Camera type: ASTRO Camera 16.0MP ATR3CMOS16000KPA 1.7MP ATR3CMOS01700KPA 7.1MP ATR3CMOS07100KPA Data output: Images and video Data output: Images and video Data output: Images and video Image sensor: Panasonic Image sensor: SONY Exmor... - Page 12 Built-in USB hub with 2 x USB Built-in USB hub with 2 x USB Built-in USB hub with 2 x USB 2.0 sockets 2.0 sockets 2.0 sockets Power supply: Power adapter Power supply: Power adapter Power supply: Power adapter 12 Volt 3.0 Ampere included 12 Volt 3.0 Ampere included 12 Volt 3.0 Ampere included Software EXPLORE Capture...
