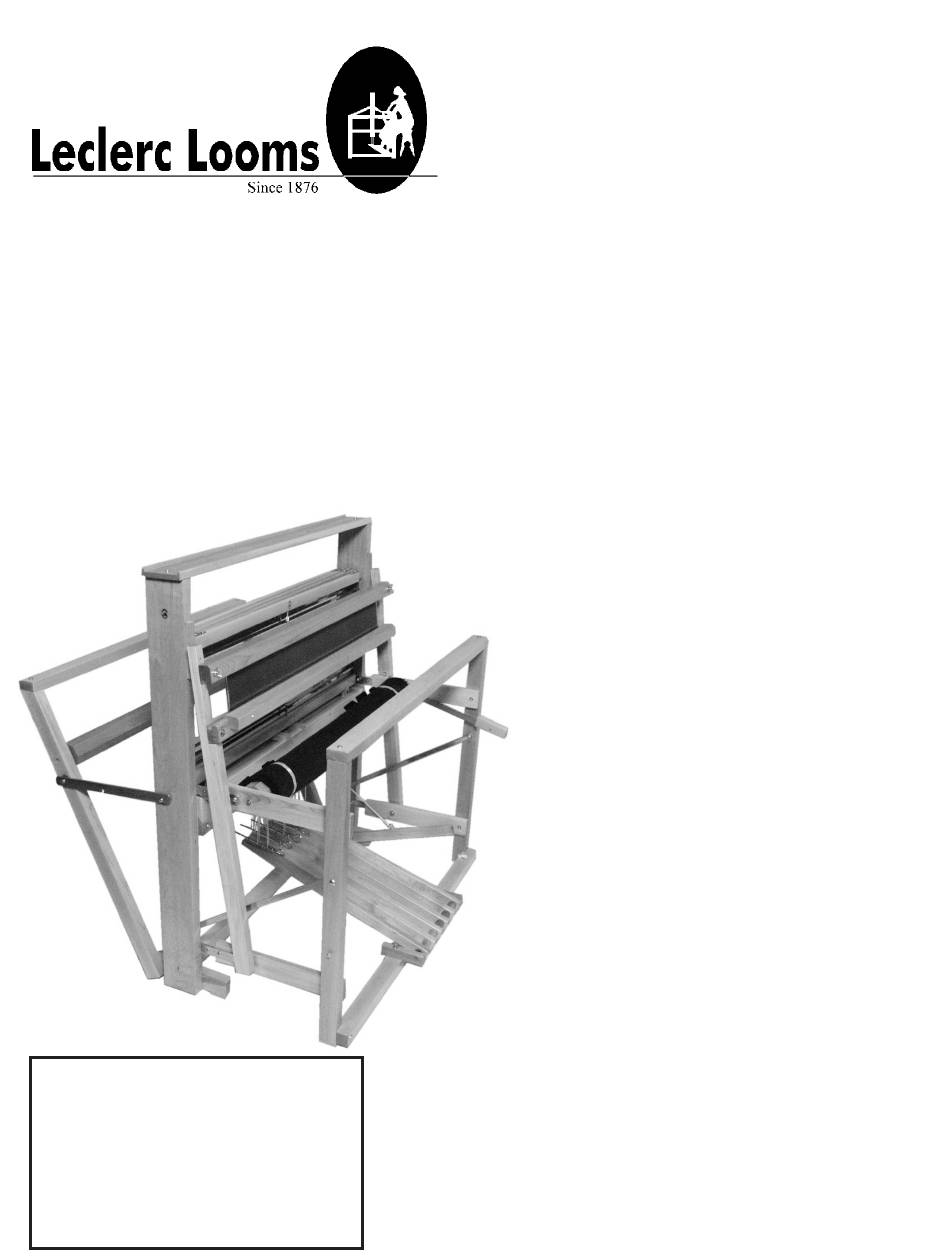

ARTISAT 36” JACK-TYPE 4 shaft loom 1573 Savoie 1009-0000 C. P . 4 Plessisville, Qc. G6L 2Y6 TEL: 819-362-7207 FAX: 819-362-2045 www.leclerclooms.com info@leclerclooms.com On receiving the loom, unpack and lay out the loom components. Do NOT discard any packing material until all parts are inventoried.
Page 2
PARTS LIST Note for Leclerc in French: Trous de bout avec mèche 3/16” Corde de frein en corde de coton 31” LEFT-HAND SIDE with base packed seperatly 1 RIGHT-HAND SIDE with base and brake treadle packed seperatly Note for Leclerc in French: Surveiller l’amanchement avec les pattes avant.
Page 3
1 PK. 10 YDS FOR BEAM STICK 1 PK 5 YDS FOR BEAMING AND LEASE STICK 1 SHUTTLE 1 DOZ. BOBINES 4" 1 CLOTH BEAM WITH RATCHET WHEEL (wood = 38 1/8") 1 WARP BEAM WITH BRAKE DRUM (wood = 38 7/8") 1 TAKE-UP MOTION HANDLE 1 BATTEN HANDTREE 1 BATTEN SLEY WITH SHUTTLE RACE...
Page 4
10.5" 4 SHAFT (harness) FRAMES 1 REED 2 LEASE STICKS 1 BEAM STICKS 3 WARP RODS 10.5" 1000 HEDDLES 1 HEDDLE AND REED HOOK 1 Black Screwdriver 1 Adjustment wrench 6 TREADLE HOOK 7" LONG 12 TREADLE CORDS 7” 1 CRANK FOR BACK BEAM...
Page 5
Machine bolts 1 X 7/16 X 3½" 1 X ¼" X 3" (lams) 1" 25 mm 2" 50 mm Carriage Bolts 2 - ¼" X 3½” (Front Cross-Member) 2 - ¼” X 3” (Treadle blocs) 2 - ¼” X 1¾” 4 - 5/16 X 2½”...
Page 6
Lay the left side on the floor with caution (you can put a piece ofcardboard on the floor). Remove the packing material and using three #14 round head screw 2½", affix the base to the left upright and the back post to the base. #14 round head screw 2½"...
Page 7
left side ATTENTION: Application of soap to the screws will make their insertion easier. Using a 2” (50-mm) round-headed screw no 14, affix lower middle cross-member B to the bottom of left-hand side A. The lower middle cross-member has a hole at either end; the narrow sides B1 must be above and under the cross-member and the wide faces B2 must be on the sides.
Page 8
Unfold the front section of left-hand side A. Using a ¼” x 1¾ (6mm x 45mm) carriage bolt and a ¼” (6mm) wing nut, affix metal hook C to left-hand side front post D. Using a ¼” x 1¾” (6mm x 45mm) carriage bolt and a ¼” (6mm) wing nut, affix metal hook C’...
Page 9
Place the take-up motion handle E, with a 9/16” steel washer, on the right-hand side end of cloth beam F. Note: The ratchet gear is on the right-hand side beam end. The ratchet pawl affixed to the take-up motion handle must be lifted up. Insert the end of cloth beam F into the holes in upper front cross-members G and G` The hole in lower middle cross-member B must be right beside the hole at the bottom of right-hand side A` Using a 2”...
Page 10
Using two 2” (50 mm) round-headed screws no. 14, affix one of the two breast beams to the top of the front posts B and B` The rounded edge must be towards the out- side of the loom.
Page 11
Insert two ¼” x 3” (6 mm x 75 mm) carriage bolts into the treadle-set cross-member. The bolt heads must be to the underside. The 2 center hole are for a 6 treadles set and the 2 outside one are for the 10 treadles set. Using two ¼”...
Page 12
Insert to the treadle rod (with push nut) 1 Treadle support One Washer 9/16” One treadle and one treadle spacer 5 times (9 times for the 8s loom) One treadle, One Washer 9/16” 1 Treadle support And one Push nut. Washer 9/16"...
Page 13
Unfold the back portion of the loom and lock it there with metal hook A...
Page 14
Slide jack box B along the middle posts A, from bottom to top, and affix it to blocks C using eight 1½” (40 mm) round-headed screws no. 12. Affix the metal place at the brake side to protect the back board when closing the back of the loom.
Page 15
Using a 1/4” x 3” machine bolt and one 1/4" octagonal nut, affix the four lams to the metal lam support of right-hand side main post...
Page 16
Castle cover Complete the assembly with securing the Castle cover with 4 #12 1½” flat screws. IMPORTANT: Make sure to screw into the pre-drilled holes of the castle.
Page 17
Install the treadle cords with the treadle hooks. Using the carriage bolts, steel washers and square nuts, attach the batten sley A (with shuttle race) to the batten swords B. Then affix the batten handtree C to the batten swords B. Install reed D in the slots of batten handtree C and batten sley A.
Page 18
If the batten does not touch the two bumper equally, loosen the bolts of the batten sley and batten handtree and exert pressure on the batten centering it in its proper place. Tighten the bolts again.
Page 19
Unhook brake treadle cord C from the brake release treadle. Hold circular wire brake shoe D up slightly to the rear of the loom. Insert one end of the warp beam (which has only a metal post) into the left-hand side back post.
Page 20
Insert the brake end of the warp beam into the hole of the right-hand side back-post. Install the 7/16” X 3½” machine bolt through the right-hand side back post and into the warp beam. Using crank E, tighten the machine bolt into the warp beam.
Page 21
Using two 2” round-headed screws no 14, affix the breast back beam to the back posts. Join the front “S” hook of the brake lever to the brake loop cord so the tension on the spring will be high enough to lock the warp beam while weaving. The warp beam should turn with some friction clockwise (while standing at the right side of the loom near the brake system) and this is the warping rotation.
Page 22
New control advance system: This system will eliminate excessive warp yarn advance when releasing the brake system at cloth take-up. This friction system is adjustable and have to be released when winding the warp on. Just screw in the wing screw to increase the friction or unscrew it to release.
Page 23
FIRST TREADLE TIE-UP Select any treadle and tie the Lams to the Treadles using the 7” cords supplied with the loom. Take the threading hook to help pass the cord through each hole of the lam. Threading Hook Slide the Treadle Hook through the Screw Eyes and Cord Loops.
Page 24
Thread the 10 yard (9 m) cord through the middle hole of beam stick A. Then pass the two ends (equal in length) of this cord through the middle holes of the warp beam. Continue threading the cord through the warp beam and beam stick A.
Page 25
Cut the 5-yard (4.5 m) cord in half. One half of this cord laces beam stick A to warp rod B Insert a metal rod into the apron of the cloth beam. Use the other half of the cord to lace this rod to the third metal rod. Screw eyes have been affixed to the inner side of the main post.
