Summary of Contents for EKF TZ-3 Series
- Page 1 TECHNICAL MANUAL Limit switch TZ-3 EKF...

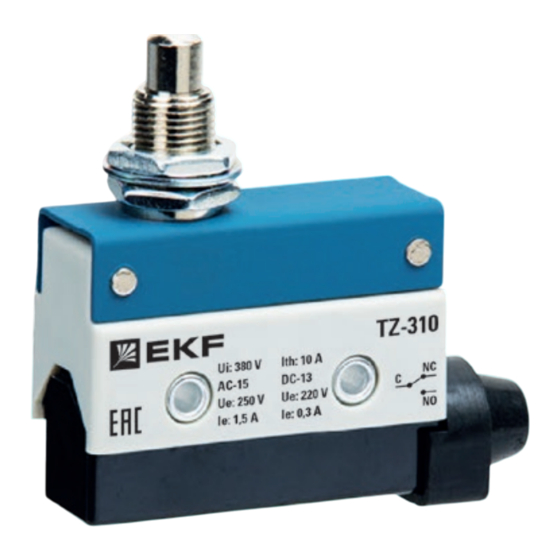

- Page 2 1 DESCRIPTION Limit switch TZ-3 EKF is an electromechanical device used to detect presence, passing, positioning, and end of travel of an object, by which motion it is operated. Limit switches TZ-3 EKF comply with IEC 60947-5-1:2016. TYPE CODE TZ-3 XX...
- Page 3 3 OVERALL DIMENSIONS Fig. 1 - TZ-310 overall dimensions Fig. 2 - TZ-311 overall dimensions...
- Page 4 TZ-3 casing protects the switch from ingress of foreign objects, and accidental contact with live parts. 5 DELIVERY SCOPE Limit switches TZ-3 EKF are supplied in a group package. For all available documentation, scan the QR-code on the insert or on the inside of the package.
- Page 5 Service life: 10 years. Manufacturer: for information, refer to the product package. Importer and EKF trademark service representative: EKF ELECTRICAL SOLUTION – FZCO, Dubai Silicon Oasis, DDP, Building A2, Dubai, United Arab Emirates. Importer and EKF trademark service representative on the territory of the Russian Federation: OOO «Electroresheniya», Otradnaya st.,...
