Summary of Contents for Philips NA15 Series

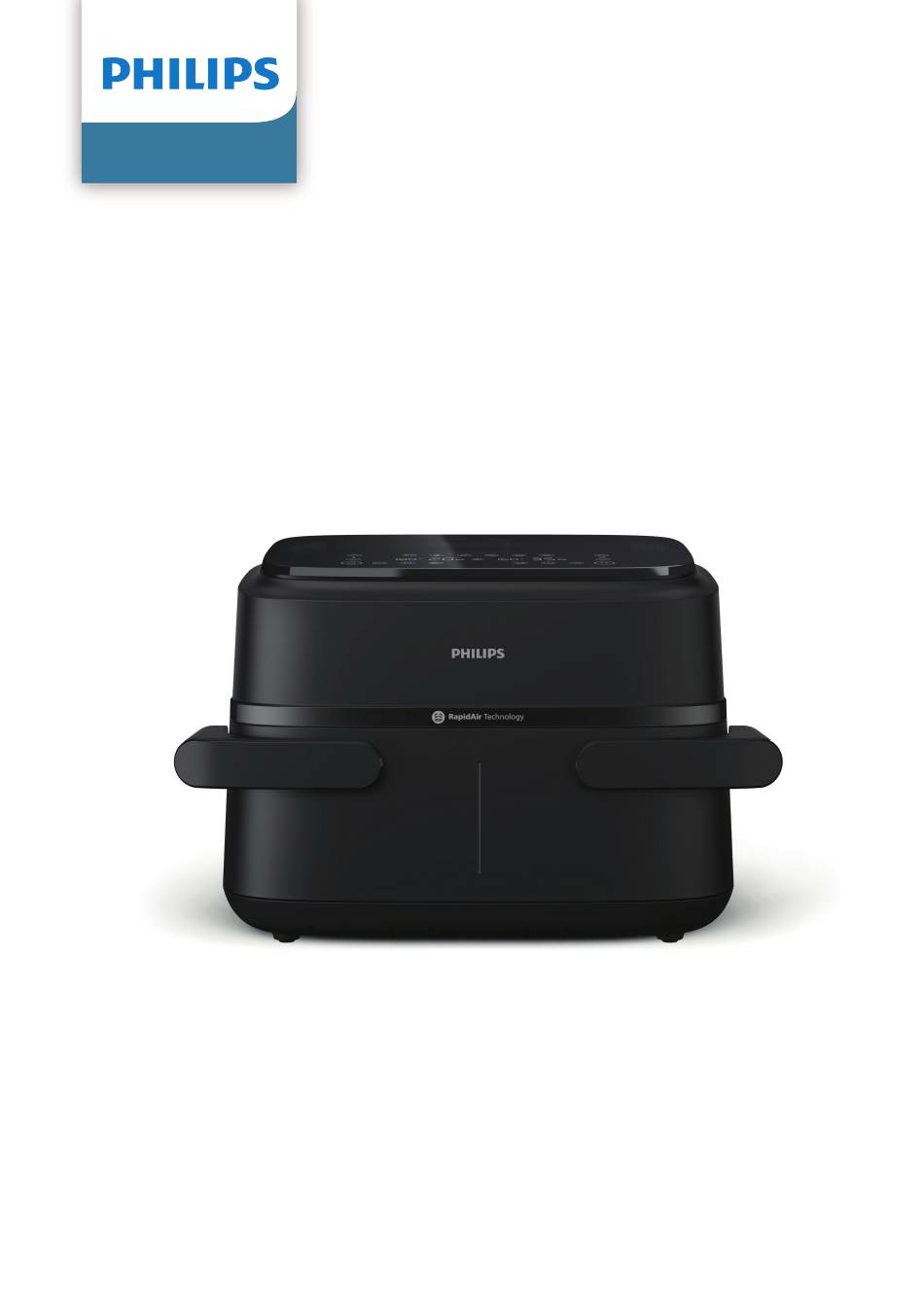

  • Page 1 NA15X...
  • Page 3 English 4...
  • Page 4 English Contents Important ________________________________________________________________________________ Danger ________________________________________________________________________________ Warning_______________________________________________________________________________ Caution _______________________________________________________________________________ Electromagnetic fields (EMF) _____________________________________________________________ Recycling _________________________________________________________________________________ Warranty and support _____________________________________________________________________ Introduction ______________________________________________________________________________ General description _______________________________________________________________________ Main parts _____________________________________________________________________________ Control panel description ________________________________________________________________ Description of functions ___________________________________________________________________ Before first use____________________________________________________________________________ Preparations before first use _______________________________________________________________ Using the appliance _______________________________________________________________________ Cooking in the XXL pan__________________________________________________________________ Cooking in dual pans ____________________________________________________________________...
  • Page 5 Warning If the supply cord is damaged, it must be replaced by Philips, its service agent or similarly qualified persons in order to avoid a hazard. Only connect the appliance to an earthed wall socket, protected by an earth leakage circuit breaker.
  • Page 6 Philips refuses any liability for damage caused. Always return the appliance to a service center authorized by Philips for examination or repair. Do not attempt to repair the appliance yourself, otherwise the guarantee becomes invalid.
  • Page 7 Our warranty does not affect your rights under law as a consumer. For more information or for invoking the warranty, please visit our website www.philips.com/support. Introduction...
  • Page 8 English General description Main parts 1 Control panel 2 Detachable divider 3 MAX indication for ingredients 4 MAX indication for frozen potato based snacks 5 7.1L XXL pan 6 Bottom plates 7 Cord holder 8 Power cord 9 Air Outlets...
  • Page 9 English Control panel description a Temperature up b Temperature down c On/off button d Copy function button e Left pan button Time function button g XXL pan button h Shaking reminder indication Shaking reminder button Right pan button k Back button Start/pause button m Time down button n Time up button...
  • Page 10 English Chicken Mixed Frozen fries Steak Cake/Muffin Reheat drumsticks vegetables XXL pan button You can cook in one 7.1L of XXL pan by removing the divider and pressing the XXL pan button. Back Button Use the back button if you mistakenly chose the wrong preset/function. Sound notifications Sometimes you hear a sound, for example when the appliance has finished cooking, or when there is an action required during cooking, e.g., shaking or...
  • Page 11 English This is an Airfryer that works on hot air. Do not fill the pan with oil, frying fat or any other liquid. Do not touch hot surfaces. Handle the hot pan with oven-safe gloves. This appliance is for household use only. This appliance may produce some smoke when you use it for the first time.
  • Page 12 English 3 Put the ingredients in the pan. Note The Airfryer can prepare a large range of ingredients. Consult the ‘Food table’ for the right quantities and approximate cooking times. Do not exceed the amount indicated in the ‘Food table’ section or overfill the pan beyond the ‘MAX’...
  • Page 13 English 8 Press the temperature up/down button and time up/down button to choose the needed time and temperature (please see food table). Some ingredients require shaking or turning halfway through the cooking time (see ‘Food table’). To remind you of shaking the ingredients, press the shaking reminder button "...
  • Page 14 English 12 Carefully remove the ingredients from the pan with barbecue tongs. Caution Do not tilt the pan when removing the ingredients, as the basket could fall out and oil may splash. After the cooking process, the pan, the basket, the interior housing and the ingredients are hot.
  • Page 15 English Cake 40-45 Use the baking accessory. The shape should be as flat as possible to avoid that the bread touches the heating element when rising, check the doneness before you take out the cake. Pre-baked bread/rolls 7 pieces 6-10 (around 60g/1.2oz) Homemade bread 40-45...
  • Page 16 English Meatballs with baked 2 kg 20-30 Meatballs are placed in gnocch pan and gnochi are placed together with sauce and cheese in the baking accessory; turn meatballs around halfway through the cooking Turkey roulade with 2 kg 45 -60 Shake/Turn everything veggies halfway through the...
  • Page 17 English Mixed Vegetables 1200g Roughly chopped,Shake, turn or stir halfway Cake/Muffin 500g Cake:Use the baking (around 50g/2oz) accessory,The shape should be as flat as possible to avoid that touches the heating element when rising,check the doneness before you take out the cake Muffin:Use muffin cup Reheat Adjust time according to your...
  • Page 18 English 4 Put the pan into the Airfryer. 5 Put the plug in the wall outlet. 6 Press the power On/Off button to switch on the appliance. 7 Select the left pan. The time and temperature indication on the left side starts blinking.
  • Page 19 English 9 Press the shaking reminder button to be reminded to shake your food during cooking process if ingredients require shaking or turning during the cooking (For more information, see Note column in Food Table.). 10 Select the right pan. The time and temperature indication on the right side starts blinking.
  • Page 20 English 14 Press the Start/Pause button to start the cooking process. To pause both pans, press the Start/Pause button. Press it again to continue cooking for both pans. To pause only one pan, select that pan first, then press the Start/Pause button.
  • Page 21 English 19 Hold the groove position of side handles to pull out the pan and check if the ingredients are ready, if not yet, simply slide the pan back into the Airfryer and add a few extra minutes. 20 Carefully remove the ingredients from the pan with barbecue tongs. Cooking with Copy function Copy function is used to cook a large amount of the same food or different food using the same temperature and time.
  • Page 22 English Cooking with food table 1 Put the bottom plates into the pan accordingly. Note It is normal to apply some force to place the bottom plates in the pan. 2 Put in the divider. 3 Put the ingredients in the left pan. Note Do not exceed the amount indicated in the ‘Food table’...
  • Page 23 English 6 Press the power On/Off button to switch on the appliance. 7 Select the left pan. The time and temperature indication on the left side starts blinking. Note Do not select “XXL pan” button for small single pan cooking with divider. It might result in overcooked effect and more energy consumption.
  • Page 24 English 11 When you hear the sound signal of the shaking reminder, pull out the pan by holding side handle with both hands. 12 Shake the pan over the sink. 13 Put the pan back into the appliance. 14 When you hear the timer bell, the cooking time has elapsed. 15 Hold the groove position of side handles to pull out the pan and check if the ingredients are ready.
  • Page 25 English 16 Carefully remove the ingredients from the pan with barbecue tongs. Caution Do not tilt the pan when removing the ingredients, as the basket could fall out and water may splash.Do not touch the pan or the basket during and for some time after use, as they get very hot. After the cooking process, the pan, the basket, the interior housing and the ingredients are hot.
  • Page 26 English Cake 300g 40-45 Use the baking accessory.The shape should be as flat as possible to avoid that the bread touches the heating element when rising,check the doneness before you take out the cake. Pre-baked bread/rolls 4 pieces 10-12 (around 60g/1.2oz) Cooking with presets 1 Follow steps 1 to 8 in chapter “Cooking with food table”.
  • Page 27 English Cake/Muffin 6 pieces Cake:Use the baking (around 50g/2oz) accessory,The shape should be as flat as possible to avoid that touches the heating element when rising,check the doneness before you take out the cake Muffin:Use muffin cup Reheat Adjust time according to your food type and food amount Tip:Keep Warm You can keep your food warm in the Airfryer by setting the temperature...
  • Page 28 English Clean the appliance after every use. Remove oil and fat from the bottom of the pan after every use. 1 Press the power On/Off button to switch off the appliance, remove the plug from the wall outlet and let the appliance cool down. Remove the pan and basket to let the Airfryer cool down faster.
  • Page 29 This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.
  • Page 30 English Problem Possible cause Solution The outside of the appliance The heat inside radiates to the This is normal. All handles and becomes hot during use. outside walls. knobs that you need to touch during use stay cool enough to touch.
  • Page 31 The screen on the Airfryer shows The device is broken / has defects. Call the Philips service hot line or "E1". contact the Consumer Care Center in your country. Your Airfryer might be stored in a The device is too cold.
  • Page 32 2024 © Versuni Holding B.V. PHILIPS and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license. This product has been manufactured by and is sold under the responsibility of Versuni Holding B.V., and Versuni Holding B.V.

This manual is also suitable for:

Na150/001000 series
