LaserPro C 180 I Maintenance Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Maintenance Manual
C 180 I &II
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the C 180 I and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LaserPro C 180 I

Summary of Contents for LaserPro C 180 I

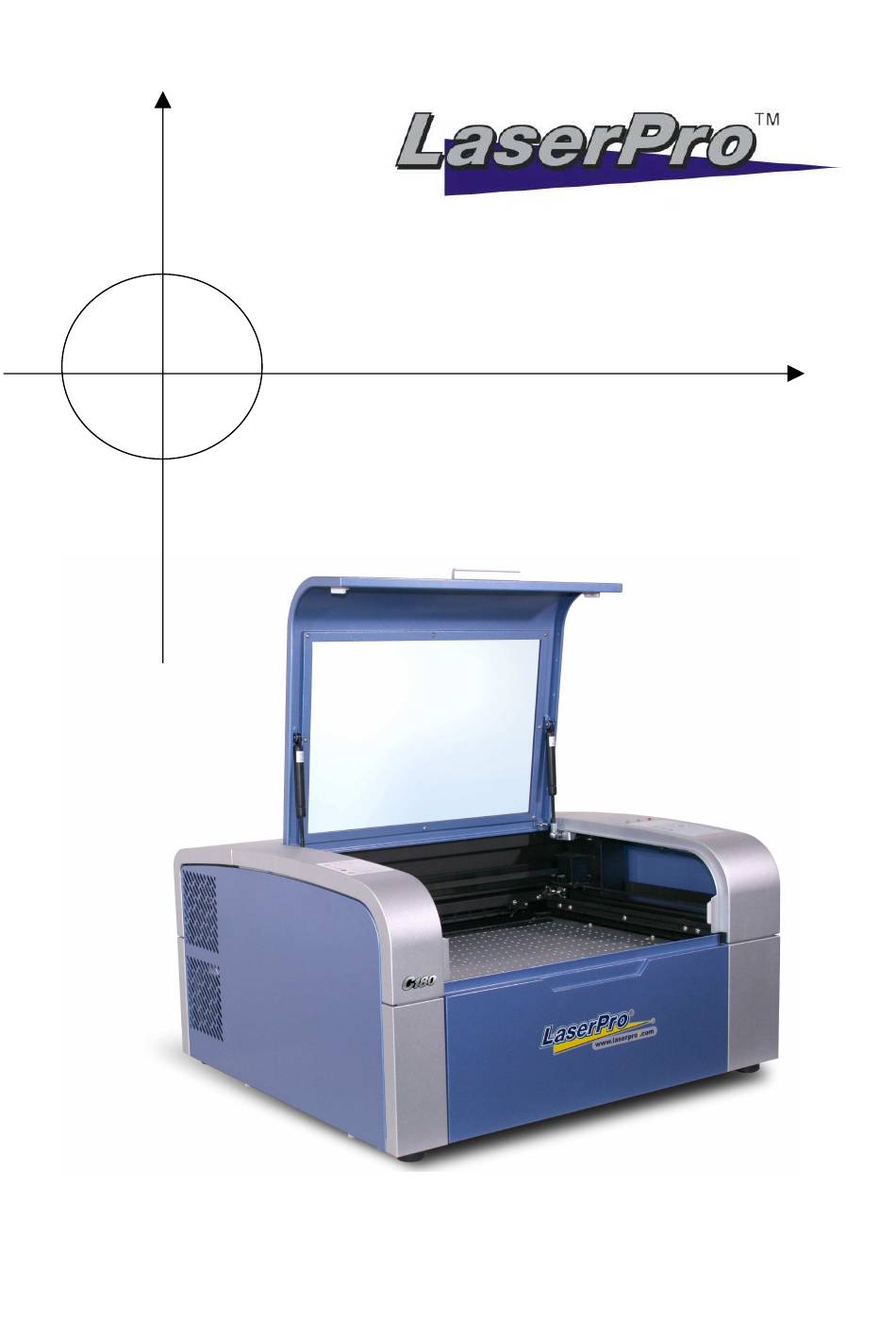

  • Page 1 Maintenance Manual C 180 I &II...
  • Page 2 C 180 Maintenance Manual Introduction. Serial number.…...…………………………………………………………..4 Safety Precautions…………………………………………………………..4 Chapter 1. Machine Overview Section 1. Mechanical System Overall…………………………………………………………………..5 Top Cover……………………………………………………………….8 X-axis Assembly………………………………………………………..12 Y-axis Assembly…………………………………………………..…...16 Lens carriage……………………………………………………………20 Z-platform……………………………………………………………..24 Control panel…………………………………………………………..26 Mirror 1 / Laser unit…………………………………………………...27 Section 2. Power System Power Supply...………………………………………………………..28 12w power layout diagrams…………………………………………..29 30w power layout diagrams…………………………………………..30 40w power layout diagrams…………………………………………..31...
  • Page 3 Section 5. Firmware How to upgrade Firmware?………………………………………………..40 Chapter 2. System Diagnostics Section 1. Hidden Diagnostics……………………………………………………….42 Chapter 3. Preventive Maintenance Section 1. Cleaning Lenses…………………………………………………………..44 Section 2. Changing the X rollers……………………………………………………45 Section 3. Changing the Y rollers…………………………………………………….48 Chapter 4. Trouble Shooting (Error messages) Section 1.
  • Page 4 Introduction 1. Serial Number. The Serial number of your machine is very important and unique. Please copy down the serial number and keep it for your records. Please include this serial number when you correspond with us for any kind of questions. Thank you. 2.
  • Page 5 Chapter 1. Machine Overview 1-1. Overall for C180 I...
  • Page 6 No. Item Description 1 20200167G main unit Assembly - C180 2 29005132G Top Cover asm. - C180 3 29004635G Right Y-axis Assembly - C180 4 29004643G Left Y-axis Assembly - C180 5 29004640G X-axis Assembly - C180 6 29004642G Y Transmit Shaft Assembly - C180 7 29004628G C180Y-AXIS SET 8 23100013G...
  • Page 7 1-2. Overall for C180 II...
  • Page 8 Item Description 202003180G main unit Assembly 24402246G 2" Wind pipe base 29005033G MAIN BOARD(CCD FUNCTION) 290076270G Z-axis Assembly 29004628G C180 Y-AXIS PCB SET 290076290G Y-axis Assembly 290076240G X-axis Assembly 290076230G Lens carriage Assembly 244045690G Motor Cover 290076160G Top Cover asm. 244045630G COVER TOP-REAR 244046020G...
  • Page 9 2-1. Top Cover for C180 I No. Item Description 1 22000045G Magnet MC-12 2 24402686G Door upper - C180 3 24402687G Frame window - C180 4 22802382G Window - C180 5 22802304G SHAFT 1 - C180 6 23300887G cylinder - C180 7 22802381G Shaft 3 - C180 8 23300928G...
  • Page 10 2-2. Top Cover for C180 II...
  • Page 11 Description Item 290076160G Top Cover asm. 244045640G Door upper bracket 244045610G Door upper 23301090G cylinder (14.5kg) 228032130G Window 24402687G Frame window 25700015G Magnetic Switch 22802381G Shaft 3 22802304G SHAFT 1 23300928G Spacer (WS1276420B) 244045990G air intake guides 23300956G handle (LG-02.105.01) 24900004G E-shape retaining ring.d4*D9*t 0.6 290076340G...
  • Page 12 3-1. X-axis assembly for C180 I...
  • Page 13 No. Item Description 1 29005135G Tension idle pulley asm. - C180 2 22802044G belt tuning bracket - C180 3 22801994G X Bearing track - C180 4 29004654G Lens Carriage Assembly - C180 5 23100048G Hansen (X16-32624-8)500CPR Motor - C180 6 29004655G A Wheel Assembly - C180 7 24402790G Prevention Cover - C180...
  • Page 14 3-2. X-axis assembly for C180 II...
  • Page 15 Description Item 290076240G X-axis Assembly 228034800G x axis slideway 244046010G X axis Tube Chain Holder 24400997G Stopper board 206001920G X axis belt(2GT-1296-10) 228034810G Tension pulley shaft 290076280G Tension idle pulley asm. 228034780G X axis transmission wheel set 20700037G Bearing (F697ZZ) 228034770G X-motor bracket 20700052G...
  • Page 16 4-1. Y-axis assembly for C180 I...
  • Page 17 No. Item Description 1 24402267G Y axis position block - C180 2 22801995G Y Bearing track - C180 3 22802057G Right base board - C180 4 29005358G Y axis Wheel Assembly - C180 5 29004638G Fixed Wheel Assembly - C180 6 29005214G Y axis detector - C180 7 24402265G...
  • Page 18 4-2. Y-axis assembly for C180 II...
  • Page 19 Description Item 206001930G Y axis belt( 2GT-902-10) Description 20700038G Bearing (698ZZ) 20700052G Description 21700009G Hex Screw M3*6 22000094G Description 22800917G Tension pulley shaft 22800928G 22800951G Description 4*11 small roller screw 22800952G Description 22801859G 22802060G X Axis pulley Description 22802062G Y axis Bearing support 22802835G Description 228034700G...
  • Page 20 5-1. Lens carriage for C180 I No. Item Description 1 29002547G Auto focus pin Assembly. 2 29002546G Auto focus seat Assembly. 3 22800955G carriage airflow valve-Spirit 4 22802084G Lens carriage front shingle - C180 5 22802117G air nozzle - C180 6 29004737G 2.0"...
  • Page 21 5-2. Lens carriage for C180 II...
  • Page 22 Description Item 22802972G Lens carriage base 22801996G Lens carriage Assembly-V2 29004278G Wheel spring Assembly(J) 22800951G 4*4.5 interval pillar 22801859G 4*9 unilateral Wheel(J) 20700038G Bearing 684ZZ. 22800952G 4*11 small roller screw 22800917G belt retainer 22802117G air nozzle 29004736G Carriage Reflector Hold 29004737G 2.0"...
  • Page 23 6-1. Z-platform for C180 I No. Item Description 1 22801998G Bearing seat - C180 2 20700034G Bearing 628ZZ 3 29002551G Z-axis pulley Assembly. 4 22802008G Z axis screw thread - C180 5 24402201G Working table Bracket - C180 6 22801997G Z-Axis Table Screw - C180 7 22800922G Z axis top stopper...
  • Page 24 6-2. Z-platform for C180 II...
  • Page 25 Description Item 20700034G Bearing 628ZZ 22800922G Z axis top stopper 22801997G Z-Axis Table Screw 22801998G Bearing seat 22802007G Z axis Platform 22802008G Z axis screw thread 22802022G X Ruler 22802023G Y Ruler 22802085G Engraving Table s Hold Plug 22802299G top Bearing seat 22802884G sides block the bits press board 228034720G...
  • Page 26 7-1. Control Panel for C180 I No. Item Description 1 23400025G C180 Control Panel - C180 2 25700015G Magnic Switch 3 24402566G COVER TOP-RIGHT - C180 4 290068470G Control panel assembly (C180) 5 24402625G CP COVER - C180...
  • Page 27 7-2. Control Panel for C180 II Description Item 244045660G COVER TOP-RIGHT 290068430G Control Panel Without Remote Function Set 24402625G CP COVER 25700015G Magnetic Switch 23400020G Control panel sticker. 24400991G plank hinge 244045620G translation board 26500210G Rubber Foot TNF-1 25700095G Emergency Switch (TN3BKR-2B)
  • Page 28 8. Mirror 1/ Red beam (Laser Diode) Red beam bracket Red beam (laser 22802185G diode) 23600028G Prism mount 20200185G...
  • Page 29 9. Power supply Power supply for 12w laser tube 24500042G, 320W-30V(SP-320-30V) Power supply for 30w laser tube 24500032G, 800W-30V (ALS-800-30C21) Power supply for 40w laser tube 24500064G, 1000W-48V ( RSP-1000-48)
  • Page 30 12W Power Cable Layout Diagram 20901485G C180 lever switch cable 25700002G lev er switch 20901621G Front Door switch cable FOR C180 Door sw CASE 20900054G 23100017G STEP motor Ground wire of AC outlet 20901707G cable for rotary Rotary motor 20901345G 21800012G USB CABLE BY B TYBE MOLEX 5Pin 2.54mm EMI FILTER TSC YB10A1...
  • Page 31 30W Power Cable Layout Diagram 20901485G C180 lever switch cable lev er switch 25700002G 20901621G Front Door switch cable FOR C180 Door sw CASE 20900054G 23100017G STEP motor Ground wire of AC outlet 20901707G cable for rotary Rotary motor 20901345G 21800012G USB CABLE BY B TYBE MOLEX 5Pin 2.54mm EMI FILTER TSC YB10A1...
  • Page 32 40W Power Cable Layout Diagram 20901485G C180 lever switch cable lev er switch 25700002G 20901621G Front Door switch cable FOR C180 Door sw CASE 20900054G 23100017G STEP motor Ground wire of AC outlet 20901707G cable for rotary Rotary motor 20901345G 21800012G USB CABLE BY B TYBE MOLEX 5Pin 2.54mm EMI FILTER TSC YB10A1...
  • Page 33 Section 3: Electrical System C180 MAINBOARD DIAGRAM Working Table Stepping Motor UV SENSOR AutoFocus PCB Door Switch X- Motor Y- Motor Rotary Attachment Control Panel Y-MOTOR PCB X-MOTOR PCB Power (40V/5V) Power FLASH Parallel Port SRAM Limit Switch USB Port Buzzer Control Laser Red...
  • Page 34 29005059G : DC12V Module 29004513G : X motor PCB...
  • Page 35 29004628G : Y motor PCB Control Panel...
  • Page 36 Dial for adjusting contrast. Load firmware button. (Button is at lower position at default.)
  • Page 37 Section 4: Laser System What is laser? Laser is an acronym from Light Amplification by Stimulated Emission of Radiation. How to measure the power output of a laser tube? In order to measure the power output of a laser tube, we need to use a power meter that will measure the heat generated and convert it to a power reading.
  • Page 38 Beam Alignment The laser beam is guided to the top of the working area by using 4 reflective mirrors. Therefore, these mirror adjustments are crucial to the proper functioning of the machine. If the laser beam is not aligned correctly, the beam path will be shifted or tilted and both rastering and vectoring quality will be affected.
  • Page 39 Dust prevention lens 29005134G Step 3: Place a masking tape on the opening before Mirror 3. Move the rail along the Y-axis so that Mirror 3 is close to Mirror 2 (or dust prevention lens). Fire the laser and see if the laser beam goes through the center of the circle.
  • Page 40 Dust prevention lens 29005134G Step 4: Place a masking tape on the opening before Mirror 4. Move the pen carriage to the upper left corner of the working area. Fire the laser and adjust Mirror 3 so the laser beam passes through the center of the opening.
  • Page 41 Section 5: Firmware How to upgrade the firmware? From www.gccworld.com website, you can logon with a distributor account and download an utility tool called “uploader.exe” With this utility tool you can upgrade the machine to the newest firmware or the firmware of your choice. 1.
  • Page 42 Chapter 2. System Diagnostics Section 1. Hidden Diagnostics To enter the hidden Diagnostics menu, hold down the Enter button and turn on the machine. There are 11 tests under the hidden diagnostics menu. LCM Key Test LCM Key test will test the functionality of the keys on the keypad. LCM Interface Test LCM Interface test will display a series of different shapes on the LCM to allow user to detect any malfunction on the display unit.
  • Page 43 Y motor test checks that the Y motor is functional by asking user to use the keys on the control panel to move the pen carriage along the Y axle. 10. Z motor test Z motor test checks that the Z motor is functional by asking user to use the keys on the control panel to move the platform up and down the Z axle.
  • Page 44 Chapter 3 Preventive Maintenance 1. Cleaning of optical lenses In order to prolong the usability of the optical lenses, it is recommended that we clean the optical lenses once every week or as required. Since these lenses are coated with a chemical substance that protects the lens itself from the intensive laser power, we have to take great care when cleaning the lenses so that we do not scratch or peel off the chemical substance.
  • Page 45 Slowly pull the wetted paper from one side to another. Make sure the lens is cleaned, dried and does not have any debris on the surface. Cleaning the focusing lens: First remove the lens from the pen carriage. To remove the focusing lens, release the three screws on the pen carriage as shown below and locate the focusing lens in the pen carriage.
  • Page 46 Make sure the lens is clean and dried before putting it back in the pen carriage unit.
  • Page 47 Parts Replacement: 1. Changing the X motor 1. Dismount two screw on the bottom of side panel (see red arrows below) 2. Dismount two screws of right-front cover(M3 *2)
  • Page 48 3. Dismount 4 screws of back cover(M3 *4) 4. Dismount right window cylinder...
  • Page 49 5. Dismount 4 screws of right top cover (where the control panel locates)
  • Page 50 6. Hanging the right top cover to the right side. 7. Dismount 4 screws of x motor cover(M3 *4)
  • Page 51 7-1. Dismount 4 screws of x motor(M4 *4)
  • Page 52 2. Changing the X rollers The estimated life of a set of rollers is about 500 working hours. To change rollers, simply remove the hex bolts using a size 3 Allen key as shown below.
  • Page 53 3. Changing the Y rollers. Remove the following screws to completely remove the Y rollers. Unscrew the following screws to remove the side rollers.
  • Page 54 4. Changing the Y motor & Y motor belt. 1. Dismount two screws on the bottom of side panel (see red arrows below) 2. Dismount two screws of right-front cover(M3 *2)
  • Page 55 3. Dismount 4 screws of back cover(M3 *4)
  • Page 56 4. Dismount right window cylinder 5. Dismount 4 screws of right top cover (where the control panel locates)
  • Page 57 6. Hanging the right top cover to the right side.
  • Page 58 7. Remove left side cover: first remove the two screws on the bottom (red circles) 8. Then remove the left two screws...
  • Page 59 9. Remove left-front two screws 10. Then remove the back panel. There are three screws on front...
  • Page 60 11. for back panel. There are three screws on top (from back side) 12. Then remove the working table. First remove two left screws...
  • Page 61 13. Then remove two right screws 14. Then remove the bottom tray. First remove four screws...
  • Page 62 15. Then remove the dust pipe by removing screw 16. Then remove the ground cable screws. The bottom tray can be removed now. 17. To remove the y axis synchronizer bar (the red arrows pointed) need to remove the screws of synchronizer bar holders and they are at the bottom (the yellow arrow pointed).
  • Page 63 18. The dust guide pipe screws are two more screws on bottom (red circles). It is not easy to take photo for both screws together. 19. The screws of synchronizer bar holders (below picture only show four screws. They are 10 screws in total)
  • Page 64 20, To move up the y axis synchronizer bar, the y axis belt need to be remove or loosen. To remove the left y axis belt will be easier by loosen the two screws of belt retainer (the red circle).
  • Page 65 21. Now the whole y axis synchronizer bar can be move up a little. So the y motor belt is loosen also and can be removed. 22. The y motor belt can move cross the synchronizer bar and holders. The y motor belt can be removed or changed new one.
  • Page 66 5. Changing power supply. 1. Dismount four screws on the top back panel (see red arrows below) 2. Loosen the screws and remove the two power supply AC side cable (red arrow)
  • Page 67 3. Remove the DC side 3 cables (see red screws)
  • Page 68 6. Changing main board 1. Dismount two screws on the bottom of side panel (see red arrows below) 2. Dismount 7 screws (see red arrows below) and remove all cables connecting to main board and can change new main board.
  • Page 69 7. Changing control panel 1. Dismount two screws on the bottom of side panel (see red arrows below) 2. Dismount two screws of right-front cover(M3 *2)
  • Page 70 3. Dismount 4 screws of back cover(M3 *4) 4. Dismount right window cylinder...
  • Page 71 5. Dismount 4 screws of right top cover (where the control panel locates)
  • Page 72 6. Hanging the right top cover to the right side. 7. Dismount 5 screws for cover of control panel and ground cable screw...
  • Page 73 8. After control panel cover is removed, there are 4 screws needs to be removed and the four cables (in the red circle). Then the control panel can be removed and changed new one.
  • Page 74 8. Changing laser tube & cooling fans 1. Dismount 7 screws of back covers (back top and back bottom cover) 2. Remove left side cover: first remove the two screws on the bottom (red circles)
  • Page 75 3. Then loosen screw and remove for the second mirror dust cover 4. There are two screws for dust prevention pipe. The top screw(red arrow) can be reached easily, but the bottom screw (blue arrow) will be blocked by mirror 2 bracket...
  • Page 76 5. The mirror 2 bracket has two screws. Loosen one screw and remove one screw can let mirror 2 bracket rotate some angle and let the Allen key reach the bottom screw of mirror 2 bracket (the blue arrow) 6. Remove the red beam mirror cable (see red circle) and remove the screw of mirror 1 dust cover(see red arrow).
  • Page 77 8. Remove the two screws of laser tube bracket on right side (see red arrows)
  • Page 78 9. Loosen the two screws (red arrows) and remove the laser tube power cable. 10. When replace new laser tube and send back laser tube for repair, the front bracket need to be removed (remove four screws that red arrows pointed) and do not send back this bracket.
  • Page 79 11. Remove the three screws (red arrows) from laser tube bottom bracket. Then the laser tube changing process is finished 12. For changing bottom cooling fans, the laser tube need to be removed first and then the screws driver can reach the fan screws...
  • Page 80 13. When four screws of cooling fans are removed, the cooling fan cable also needs to be disconnected (see red circle). 14. For changing top cooling fans, there are 6 screws need to be removed. See red arrows on below two pictures.
  • Page 81 15. Then remove the 4 screws of that defective fan and then also remove the cable of those defective fans.
  • Page 82 9. Fire alarm installation process Remove back-top cover by removing four screws (see red circles below). Remove shield cover by removing 6 screws. 3 screws on top and 3 screws inside (see below red circles). Fire Alarm (or called Smart Guard) is mounted on the four screws(see red circles below).
  • Page 83 After mounted, it looks like picture below.
  • Page 84 For signal cable, it can pass through hole A (old version C180 only has A hole) or hole B(new version C180 has this hole). Put the signal cable on y axis board (See the red circle). Mount all the screws of shield cover and back-top cover.
  • Page 85 Chapter 4. Troubleshooting Section 1. Error messages Error Message What does it mean? What to do? "Laser Tube Error Laser This means that the laser 1. Turn off the machine to allow the tube is over heat please tube’s temperature is too laser tube to cool off.
  • Page 86 "No Language Data The file that contains the 1. Set the language back to English. Display in English Please Language data is missing. 2. Upload the missing language file to download language data the machine. first" 3. Set the language mode to the desired language again.
  • Page 87 Section 2. Error lights Identifying problems by looking at the lights on the mainboard. The LED circled in green is the 5V light. This light should always be “ON“ showing that there is a 5V supplied to the mainboard. Check that the power supply next to the mainboard that provides the 5V power is working properly if it is not “on”.
  • Page 88 The LED circled in yellow is the initialization light. This light turns on when the machine is turned on. It will turn off after the initialization process. If it stays on, then mainboard is damaged. The LEDs circled in purple are the door sensor lights. When all doors are closed, all three LEDs will stay “on”.
  • Page 89 When the third LED from the left turns “ON”, either the laser head or the RF cable is bad. When the fifth LED from the left turns “ON”, the RF power supply has gone over temperature. For 30W models: Only the two right most LEDs are used for 30W models. Under normal condition, all LEDs will not turn “ON”.
  • Page 90 When the last LED from the left turns “ON”, the incoming voltage to the laser source is incorrect. Check that the output voltage to the laser source is correct. Note: If the electrical circuit in the laser source has been damaged then the signals shown may not reflect the exact problem.
