Installation and Maintenance Instructions

Gas fired condensing regular boiler

Greenstar 8000+

GR8701iW 30 R | GR8701iW 35 R | GR8701iW 40 R | GR8701iW 45 R | GR8701iW 50 R

Need help?

Do you have a question about the Greenstar 8000+ and is the answer not in the manual?

Questions and answers

Summary of Contents for Worcester Greenstar 8000+

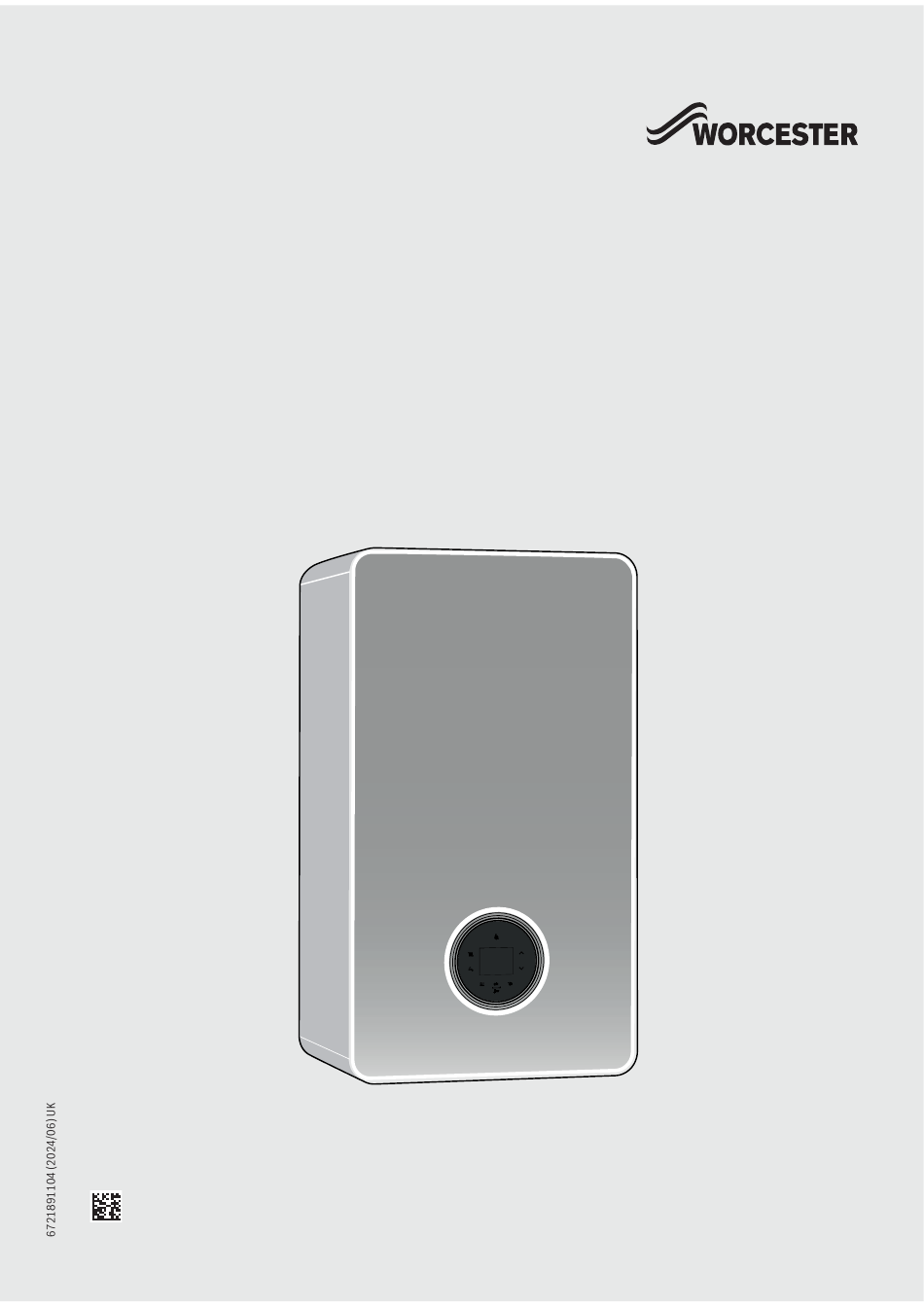

Page 1 Installation and Maintenance Instructions Gas fired condensing regular boiler Greenstar 8000+ GR8701iW 30 R | GR8701iW 35 R | GR8701iW 40 R | GR8701iW 45 R | GR8701iW 50 R...
Page 2 Table of contents Appliance connections ......36 Table of contents Hanging the appliance ......37 Flue turret/adaptor installation.
Page 3 Table of contents Component access......60 Fan pressure test ......60 Check working gas inlet pressure .
Page 4 Gas Safe registered engineer including a British Gas engineer. Failure to install correctly could lead to prosecution. Explanation of symbols • If you are in any doubt, contact the Worcester, Bosch Group help line (0330 123 3366). Warnings •...
Page 5 HFitting and modification Refer to the manufacturer’s information when installing non Worcester components and systems to the Worcester appliance. Fitting the appliance and any controls to the appliance may only be carried out by a competent engineer in accordance with the current Gas HHandover to the user Safety (Installation and Use) Regulations.
Page 6 Product Information For dwellings with a floor area over 150m , separate time and Product Information temperature control for each zone is required. It is best practice to fit Thermostatic Radiator Valves (TRV's) to all radiators except the area About the appliance where the room thermostat is sited.
Page 7 Product Information Scope of delivery Simplified UK/EU Declaration of conformity regarding radio equipment Bosch Thermotechnik GmbH hereby declares, that the product Greenstar 8000+ described in these instructions complies with the Directive UK S.I. 2017/1206 (UK) 2014/53/EU. You can request the complete text of the UK/EU Declaration of Conformity from the UK address indicated in this document.
Page 8 Product Information Pipework positions and flue outlet 0010024432-001 Fig. 2 Pipe and flue outlet dimensions Description Dimensions (mm) Appliance width Appliance height Appliance depth W Flue centre from appliance left side D Flue centre from rear of appliance Table 3 Appliance and flue outlet dimensions Function From left Diameter of pipe...
Page 9 Product Information Product overview 0010036150-002 Fig. 3 Product overview Regular boilers, combustion cover removed Key accessory housing slot (wireless Gateway) [15] Heating block temperature limiter Condensate trap [16] Flow temperature sensor at heating block Data plate 1 [17] Inspection cover Venturi (sealed) [18] Condensate sump [19] Gas valve...
Page 10 Pre-Installation • Drain cocks are required at all the lowest points on the system. Pre-Installation • Air vents are required at all high points on the system. Primary system considerations - Regular appliances NOTICE Open vent Risk of damage to system or appliance! •...
Page 11 Pre-Installation Fig. 5 Cylinder and 2 x heating zones Fig. 7 Cylinder and heating zone Appliance Appliance Zone valves Zone valves Domestic hot water cylinder Domestic hot water cylinder Circulation pump Circulation pump Feed and expansion tank Sealed system kit •...
Page 12 Pre-Installation Converted to sealed primary system - 3-way valve, cylinder and External filling loop central heating zone: Typical Y-Plan example • The cylinder return must be the last connection on the common return pipe to prevent reverse circulation. Fig. 10 External filling loop system fill example Cold mains inlet pipe Stop valve Check valve...
Page 13 Pre-Installation Mains supply Natural Gas (NG): Discharge rates for copper tube with 1mbar differential pressure 4.2.1 Electrical supply between the ends for Natural Gas. • Supply: Single phase, 230V AC - 50 Hz • The power supply and wiring for the appliance must comply with the Discharge rates for Natural Gas (m /hr) current applicable national and regional regulations as well as all...
Page 14 Pre-Installation Appliance location and clearances NOTICE 4.3.1 Appliance location Damage to appliance: • Follow local regulations for the location within the property that the Extreme temperatures may cause damage to the heating system. appliance is to be installed. Ensure the appliance location’s ambient temperature is above 0 °C •...
Page 15 Pre-Installation • Check the IP rating of any control units to be used on this appliance. • Appliance protection rating - IPX4D • Figures 12 and 13 are for guidance only. – An appliance fitted with a control unit rated to IPX4D can be installed in zone 2.
Page 16 Pre-Installation 4.3.4 Appliance clearances • The following details cover the installation, service and maintenance clearances for the appliance. CAUTION Risk of damage to appliance or property The appliance will overheat if the clearance space around the appliance is restricted by objects. Do not restrict this space with the addition of cupboards, shelves etc.
Page 17 Pre-Installation Reduced front maintenance minimum clearances The front servicing clearance for this appliance can be reduced to 450mm. For installations with a front servicing clearance less than 600mm (minimum of 450mm), the following additional criteria must be achieved. • The bottom of the appliance case must be between 1000mm and 1500mm from the floor.
Page 18 Inspection hatches should be located at changes of direction. If this is not possible, bends should be viewable from both directions. Refer to the manual supplied with the Worcester, Bosch Group flue kit for complete installation instructions. Flue kit part numbers Part number Flue Ø...
Page 19 Pre-Installation Horizontal maximum flue lengths Telescopic horizontal flue assembly Flue length [L] Flue length 60/100 mm 60/100 [A] 350 mm - 570 mm [B] 570 mm - 790 mm 80/125 Output No plume + 500mm + 4500mm of No plume management of plume plume...
Page 20 Pre-Installation • Flue length [L] (adaptor bend included in length calculation) High level horizontal flue with additional 90° elbows – Maximum flue length as stated in Table 10 "Maximum flue lengths - Horizontal flues" minus the 90° bend equivalent straight flue length as stated in Table 12 "Effective length of bends".
Page 21 Pre-Installation Vertical balanced flue with 45° elbow offset WARNING Minimum plume management length: The minimum distance of 500mm must be maintained between air inlet and exhaust. Do not terminate the plume management inside the terminal exclusion zone (shaded area) shown in figure 32. 100mm A = 300 mm B = 500 mm...
Page 22 Pre-Installation Vertical flue terminal positions RIDGE VENT RIDGE FLUE 1500 1500 1500 1500 2000 1500 1200 1500 BOUNDARY LINE BOUNDARIES Fig. 33 Vertical flue terminal positions Key to figure 33: centre line of any adjacent routes or waterways e.g. paths, streets, rights of way, canals, rivers or railways.
Page 23 Pre-Installation Horizontal flue terminal positions BOUNDARY LINE DORMER SKYLIGHT OPENING OPPOSITE 2000 1500 1200 1500 1200 1000 BOUNDARY LINE BELOW GROUND OPEN LIGHT WELL <1000 BOUNDARIES 25 100 25 100 0010021442-004 Fig. 34 Horizontal flue terminal positions Greenstar 8000+ – 6721891104 (2024/06)
Page 24 Pre-Installation Key to figure 34: securing it to the elbow, the terminal section will not require a supporting bracket. 200mm below eaves and 75mm below gutters, pipe and drains. [11] 300mm above, below and either side of an opening door, air vent The dimension below eaves, gutters, pipes and drains can be or opening window.
Page 25 Pre-Installation ±45° 180° ≥140 1,500 ≥ 5 ≥ 5 0 0 5 0 0 ±80° ±80° EXCLUSION ZONE EXCLUSION ZONE EXCLUSION ZONE 1500 1200 BOUNDARY LINE OPENING FLUE TERMINAL GUARD OPPOSITE 7 716 191 176 2000 BOUNDARY LINE Fig. 35 Plume re-direct and plume management terminal positions Greenstar 8000+ –...
Page 26 Pre-Installation Key to figure 35 the carport. If the exhaust terminal is extended at least 300mm beyond the - Plume re-direct terminal positions: footprint of the carport then the distance from the terminal to an opening within the carport can be reduced to 600mm. This feature allows some basic plume re-direction options on a The exhaust terminal can also be routed though the roof of the standard telescopic horizontal flue terminal.
Page 27 Pre-Installation • The condensate pipework shall be run in standard drainpipe material, e.g. polyvinyl chloride (PVC), unplasticised poly vinyl chloride (PVC-U), acrylonitrilebutadiene.styrene (ABS), polypropylene (PP) or chlorinated poly vinyl chloride (PVC.C). 4.5.1 Condensate pipework NOTICE General consideration Where a new or replacement appliance is being installed, access to an internal “gravity discharge”...
Page 28 Pre-Installation NOTICE Max. Condensate waste disposal Care should be taken when siting a soak-away to avoid causing damage to existing services and building footings. If no other discharge method is possible then the use of an externally run condensate drainage pipe terminating at a suitable foul water discharge Min.
Page 29 Pre-Installation 0010026770-002 Fig. 39 Additional protection for transition through a wall Internal face sealed (32mm pipe sealed to sleeve) 40mm sleeve External face sealed (32mm pipe sealed to sleeve) Insulation recessed into the wall Condensate discharge pipe Good Practice The following guidance indicates the good practices that must be maintained for the Installation and Maintenance of a product.
Page 30 Pre-Installation Condensate soak away considerations Before deciding to use a purpose-made soak away the history of the locality and the ability of the surrounding area to disperse the condensate should be taken into account, e.g. areas prone to flooding 400mm min. and ground with a high clay content can result in poor drainage with an 25mm min.
Page 31 Pre-Installation Large capacity condensate trap or CondenseSure fitted to the appliance: • External pipework exceeding three metres in length or an installation with increased risk of freezing due to environmental factors: – Additional protection of insulating the entire run of the condensate pipework [2] should be carried out.
Page 32 Heating systems may lose small amounts of water over time. In cases Mark the position of the lockshield valves and open them fully. where all attempts to find a system micro leak have failed, Worcester, Bosch Group supports the use of Fernox F4 leak sealer.
Page 33 Installation Ensure the flue system is correctly installed in accordance to the flue installation instructions. Ensure you carry out a flue integrity check when commissioning the appliance. NOTICE Risk of damage to appliance or accessories. All the previous pre-installation sections must be read and requirements met before starting the appliance or flue installations.
Page 34 Installation Preparatory work implement is used in such a way so that it may not cause personal injury. Important handling instructions • All sharp objects must be covered or the blade retracted after use • It is advised that two people are used to carry the carton from the and put away in a safe place.
Page 35 Installation Additional requirements for roof space installations Figure 46 • The unpacked appliance can now be moved into the loft space The appliance wall mounting template shows the relative positions of the • Two sets of steps should be used. flue and the top and bottom fixings of the wall mounting frame.
Page 36 Installation Make sure that the gas type specified on the data plate is the same as the gas type supplied. Make sure that the installation location is in the country of destination specified on the data plate. Fasten the wall mounting plate to the wall using 4 screws and wall plugs.
Page 37 Installation If exiting through the wall, to run externally, the pipe must have a 3° fall and be increased to a 32mm. External condensate pipework or internal pipe runs in unheated areas such as lofts, basements and garages exposed to prolonged cold temperatures should be protected ( chapter 4.5).
Page 38 Installation 0010025673-001 0010025672-002 Fig. 53 Condensate connection Fig. 52 Hanging the boiler Filling the condensate trap Make connections between the boiler and the pre-plumbing manifold DANGER and the pre-plumbing manifold and the system pipes. Connect the CH flow pipes to the boiler‘s 22mm compression Danger to life from poisoning! connections.
Page 39 Installation The three inner flue tube retaining screws [1] are, re-used for the flue turret and replacement retaining screws [4] supplied with the adaptor kit are used to secure turret/adaptor to the appliance. Apply silicone lubricant to sealing surfaces, to ease assembly of flue components.
Page 40 Installation Open the cover. Cable routing Route cables through support guides and retaining clips. Run power cables separately from signal cables. Interference from power cables can induce spurious faults on signal cables, ensure that there is at least 100mm separation from each other. Ensure the cables are of sufficient length to allow the control box to be moved to the service position.
Page 41 Pre-wired cable (Live and Neutral) No functionality; not used 230V External control system with EMS bus control, Worcester intelligent wall mounted controls. 230V mains output to external controls/wiring centre Connect 2 core cable. 230V If required: connect power supply for external Table 15 Low voltage (signal cables) terminal strip for external controls.
Page 42 Commissioning Power supply (power cables), example figure 62 Commissioning Ensure the conductors (C) can reach the appropriate terminal connection and that the protective conductor (PE) is longer than the Safety instructions other wires. – Power cables connected to the appliance my have different DANGER conductor lengths depending on the termination point.
Page 43 In cases where all attempts to find a system micro leak have failed, Worcester, Bosch Group supports the use of Fernox F4 leak sealer. 6.3.1 Filling the appliance and adding Inhibitor 5 sec...
Page 44 Commissioning The siphon filling mode is activated automatically in the following cases: Combustion casing removal • The appliance is switched on using the fuse spur. Remove the combustion cover. • The burner was not in use for at least 28 days. •...
Page 45 Commissioning Checking gas inlet pressure Check for gas tightness. 6.7.1 Checking the gas supply pressure Switch off the appliance and close the gas isolator. Unscrew the screw on the test point for the gas supply pressure and connect a pressure gauge. 0010023566-001 Fig.
Page 46 Commissioning Checking the gas rate Description Gas Type Natural Gas 40kW: 1.5 40kW: 1.5 Across appliance permitted The appliance must be running at maximum output rate when pressure drop [D] (mbar) > 40kW: 2.5 > 40kW: 2.5 performing the gas rate check, ( chapter 6.5).
Page 47 Check and zero the analyser in fresh air as specified by the manufacturer. The air/gas ratio valve is factory set and must not be adjusted during commissioning unless this action is recommended following contact with the Worcester, Bosch Group help line 0330 123 3366. START HERE Natural Gas/LPG 20.6% Set appliance to Calibrate the analyser in fresh air.
Page 48 Commissioning 6.11 Checking flue integrity Flue integrity check The combustion casing must be fitted whilst this test is carried out. Refit the test point plugs after the test has been completed. The integrity of the flue system and performance of the appliance can be checked via the flue turret/adaptor sample points.
Page 49 Show the customer how to safely isolate the appliance. Advise the customer where they can find information on the Worcester, Bosch Group website www.worcester-bosch.co.uk. Ensure that all documentation, is left with the appliance or homeowner. – Appliance documentation.
Page 50 Settings in the service menu Settings in the service menu Many appliance functions can be set and checked in the service menu. It includes: • Info: viewing information • Settings: general and appliance-specific settings • Function check: settings for function checks and start of function checks •...
Page 51 Settings in the service menu 7.2.1 Overview of the service menu – Mx.heat.outp % Benchmark – Standby time – Anticyc. temp. off – Flow temp. – Anticycle temp. on – DHW flow rate – Hot water – Hot water temp. –...
Page 52 Settings in the service menu – Ignition – Fan – Pump – Cyl. prim. pump – 3-way valve – HC1 pump – DHW circ. pump – Ionisat.oscill. – Solar pump Reset – Default setting – Fault history – Hidden menu: Reset Maintenance Landlord Demo mode Greenstar 8000+ –...
Page 53 Settings in the service menu 7.2.2 Benchmark and Info menu Menu item Comment/restriction Flow temp. Flow temperature in °C DHW flow rate Hot water flow rate in l/min Hot water temp. Outlet temperature in °C Table 20 Benchmark menu Menu item Comment/restriction Current status Current fault...
Page 54 Settings in the service menu 7.2.3 Settings menu The menu is adapted to your system automatically. Some menu items are only available if the system has been set up accordingly. The menu The factory settings are highlighted in the following table. items are only displayed in systems in which the corresponding system components are installed, e.g.
Page 55 Settings in the service menu Menu item Settings/adjustment range Comment/restriction Pump Pump ctr. mode • Energy saving • Saving energy: intelligent heating pump stop in heating systems with weather-compensated • Heat demand controller. The heating pump is only switched on when needed.
Page 56 Settings in the service menu Menu item Settings/adjustment range Comment/restriction Min. boiler outp. • "Minimum rated output" … "maximum rated Minimum heat output depending on code plug Max output output" = 50% Heating curve Enable • Off When connecting a weather-compensated control unit, no adjustment to the appliance is required.
Page 57 Frost protection when the appliance is switched off. HSwitching off the appliance - Anti-seizing function Mix Worcester approved anti-freeze into the heating water ( The anti-seizing function prevents the heating pump and the 3-way valve Chapter Cleaning primary systems, page 31) and drain the DHW from seizing up following long periods of inactivity.
Page 58 Inspection and maintenance HDanger to life through electric shock! Final Decommissioning Touching live parts can result in an electric shock. Decommission the appliance. Before carrying out work on electrical components, isolate them WARNING from the power supply (230 V AC) and secure against unintentional reconnection.
Page 59 If a gas component is dismantled, the seals must be replaced with new building structure. seals supplied by Worcester. • Floor boarding must be fit for purpose and properly installed. Do not repair, manipulate or deactivate the elements necessary for –...
Page 60 Inspection and maintenance Component access Removing bottom panel 1. Push in the clip securing the bottom panel. 2. Pull bottom panel sidewards to release from service position and remove. 0010019013-001 Fig. 75 Removing outer case Fan pressure test Fan pressure check Remove the cap from the test nipple, and connect a pressure gauge.
Page 61 The gas valve and venturi are factory set and should not need to be adjusted, if found to be out of tolerance and when all other possible NOTICE causes have been checked, please contact the Worcester Bosch Group Helpline 0330 123 3366. Gas inlet pressure Do not continue with the other checks if the correct gas inlet pressure 9.11...
Page 62 Inspection and maintenance 9.11.1 Checking the burner Remove the combustion cover ( Fig. 66). Remove the burner cover. 0 mm 0 mm min. 90° min. 90° 0010033962-002 Fig. 77 Removing the burner cover Remove the burner and clean its components. 0010036122-001 Fig.
Page 63 Inspection and maintenance 2. Check the non-return valve for contamination and cracks. Remove fan. 0010018136-002 Fig. 81 Non-return valve in the air-gas manifold Install the non-return valve. Install the air-gas manifold. 9.11.3 Fan removal 0010024436-001 Undo connection of venturi. Fig. 83 Fan removal Remove venturi and move pipe to the far right.
Page 64 Inspection and maintenance Remove the cleaning access cover [1] and seal [2]. Using the brush, clean the heat exchanger from top to bottom. 0010023710-001 0 010 007 128-001 Fig. 84 Access cover removal Fig. 86 Cleaning brush Using the cleaning blade, working from the bottom to the top, to Use the handle of the brush to remove debris from the condensate loosen any deposits in the heat exchanger.
Page 65 Inspection and maintenance Ensure the screws are fully tightened. 0010026738-001 Fig. 90 Installing electrode set Check integrity of seal of electrode set. NOTICE 0 010 007 129-001 To check the electrode seal, use either a mirror or a temperature Fig. 88 Cleaning debris probe: Refit the cleaning access cover assembly in reverse order the new Maintain a distance of about 10mm between the electrode seal and the...
Page 66 Inspection and maintenance Press on the gasket in the required order. When the gasket is correctly inserted, the pin is visible in the recess and is flush with the top edge of the gasket. Damages resulting from an insufficiently cleaned condensate trap are excluded from the warranty.
Page 67 The gas valve and venturi are factory set and should not need to be adjusted if found to be out of tolerance and when all other possible causes have been checked, please contact the Worcester Bosch Group Helpline 0330 123 3366.
Page 68 Fan pressure. Flue gas analysis. 4 mm Only use Worcester, Bosch Group original spare parts with this appliance. Non Worcester, Bosch Group original spare parts will invalidate the guarantee (if applicable) and any warranty. A comprehensive list of appliance spares can be found on the website www.worcester-bosch.co.uk/spares...
Page 69 Replacement parts 10.2 Overheat thermostat removal 2. Unscrew the union nut. Remove two electrical connectors from thermostat. Unscrew [1] the sensor [2]. 0010017781-001 Fig. 102 Unplugging the electrical connection and unscrewing the union 1. Remove the 2 screws. 2. Remove the air/gas ratio control valve. 0010019116-001 Fig.
Page 70 On completion of the Service/Fault-Finding task which has required the breaking and remaking of electrical connections, check: This fault finding information is for guidance only. Worcester cannot be Earth continuity, held responsible for costs incurred by persons not deemed to be Short circuit check, competent.
Page 71 Fault finding and diagnosis Description Remedy 227 V No flame signal after ignition Tip: Check the ceramic insulator is not damaged, this can cause the spark to earth, twist and pull the ceramic insulator to ensure it is not broken. 1.
Page 72 Fault finding and diagnosis Description Remedy 238 V Boiler electronics faulty 1. Check the gas supply to the property and the inlet on the gas valve (check drop on inlet). 2. Check the connections on the gas valve and the board (loose connection). 3.
Page 73 Fault finding and diagnosis Description Remedy 362 V Boiler identification module or boiler 1. Wrong code plug is inserted. electronics faulty 2. Check the code plug is not damaged. 3. Replace the code plug if required. 363 V System fault boiler electronics / basic 1.
Page 74 Fault finding and diagnosis Description Remedy 1076 W Heat exchanger temp sensor disconnected 1. Replace the temperature sensor plug is connected. 2. Check the resistance of sensor and replace if required. 3. Check the continuity of harness and replace if required. 4.
Page 75 Fault finding and diagnosis Description Remedy 2952 V Internal fault when testing the ionisation 1. Restart the appliance to see if the problem re-occurs. signal 2. If the fault remains after resetting: the burner controller (PCB) is defective. 2955 B Boiler does not support the parameters set Verify that the following settings are correct.
Page 76 Fault finding and diagnosis 11.1.3 Faults that are not displayed Appliance faults Remedy Combustion noises too loud; rumbling noises Check the gas type. Check the gas supply pressure. Check the flue system; clean or repair if required. Check the gas/air ratio. Check the air/gas ratio control valve;...
Page 77 Fault finding and diagnosis System gassing CAUTION WARNING If system pressure is repeatedly increasing, even when the If you suspect the heating system is gassing, you must exercise appliance is not operating, you should first check that the filling link caution when carrying out testing or remedial work as the gasses is fully closed and confirm that it is not passing.
Page 78 Environmental protection and disposal Environmental protection and disposal Environmental protection is a fundamental corporate strategy of the Bosch Group. The quality of our products, their economy and environmental safety are all of equal importance to us and all environmental protection legislation and regulations are strictly observed.
Page 79 Technical Specifications/Logs standards, the declared space heating efficiency, useful efficiency and Technical Specifications/Logs values efficiency for this range rated boiler are not measured at the maximum output. To achieve the published efficiency and NO values, 13.1 Technical data the gas rate should be reduced. The new boiler is set at the maximum output and should be adjusted when it is installed and commissioned.
Page 80 Technical Specifications/Logs Greenstar 8000+ GR8701iW 30 GR8701iW 35 GR8701iW 40 GR8701iW 45 GR8701iW 50 R LPG R LPG R LPG R LPG R LPG Description Unit Gas flow maximum rate - 10 minutes from lighting Gas inlet pressure (nominal) mbar 37.0 37.0 37.0...
Page 81 Technical Specifications/Logs 13.2 Ionisation current 13.4 Code plug When the burner is running at a Type Gas type Number minimum rated heat GR8701iW 30 NG Natural Gas 20677 Type Gas type Faulty GR8701iW 35 NG Natural Gas 20679 GR8701iW 30 <...
Page 82 Technical Specifications/Logs Heat output Display Heat input Gas volume Heat output Display Heat input Gas volume [kW] [kW] (NG-G20) [kW] [kW] (NG-G20) [l/min] [l/min] 31.0 31.6 33.0 33.6 32.0 32.7 33.8 34.4 33.0 33.7 Table 41 GR8701iW 45 33.7 34.4 Range rated value for efficiency and NO .
Page 83 Technical Specifications/Logs 13.6 Electrical wiring ON/OFF 230V 230V 230V 11 18 12 8 0010055898-001 Fig. 104 Electrical wiring Pressure sensor [15] Display Air/gas ratio control valve [16] Code plug Hot water temperature sensor [17] Terminal strip for external accessories ( terminal assignment Flow temperature sensor at heating block Tab.
Page 84 GAS BOILER SYSTEM COMMISSIONING CHECKLIST & WARRANTY VALIDATION RECORD Address: Boiler make and model: Boiler serial number: Commissioned by (PRINT NAME): Gas Safe registration number: Company name: Telephone number: Company email: Company address: Commissioning date: Heating and hot water system complies with the appropriate Building Regulations? Time, temperature control and boiler interlock provided for central heating and hot water Boiler Plus requirements (tick the appropriate box(s)) Weather compensation...
Page 85 Technical Specifications/Logs 13.8 Inspection and maintenance checklist ________________________ ___________________ ________________________ ___________________ ________________________ ___________________ ________________________ ___________________ ________________________ ___________________ ________________________ ___________________ ________________________ ___________________ ________________________ ___________________ ________________________ ___________________ ________________________ ___________________ ________________________ ___________________ ________________________ ___________________ ________________________ ___________________ ________________________ ___________________ ________________________ ___________________ Table 43 Inspection and maintenance checklist Greenstar 8000+ –...
Page 86 SERVICE & INTERIM BOILER WORK RECORD It is recommended that your boiler and heating system are regularly serviced and maintained, in line with manufacturers’ instructions, and that the appropriate service / interim work record is completed. Service provider When completing a service record (as below), please ensure you have carried out the service as described in the manufacturers’ instructions. Always use the manufacturers’...
Page 87 SERVICE & INTERIM BOILER WORK RECORD It is recommended that your boiler and heating system are regularly serviced and maintained, in line with manufacturers’ instructions, and that the appropriate service / interim work record is completed. Service provider When completing a service record (as below), please ensure you have carried out the service as described in the manufacturers’ instructions. Always use the manufacturers’...
Page 88 Data Protection Notice 13.10 Data Protection Notice Data Protection Notice We, Bosch Thermotechnology Ltd., Cotswold Way, Warndon, Worcester WR4 9SW, United Kingdom process product and installation information, technical and connection data, communication data, product registration and client history data to provide product functionality (art.
Page 89 Statement of Compliance Product Type Worcester 1000 Boiler range / Worcester Greenstar 2000 Boiler range / Worcester Greenstar 4000 Boiler range / Worcester Greenstar CDI Compact ErP Boiler range / Worcester Greenstar I Compact ErP Boiler range / Worcester Greenstar RI...
Page 92 CONTROLS AND CONNECTIVITY TEAM: 0330 123 3641 APPOINTMENTS: 0330 123 9339 SPARES: 0330 123 9779 LITERATURE: 0330 123 9119 TRAINING: 0330 123 0166 SALES: 0330 123 9669 Bosch Thermotechnology Ltd. Cotswold Way, Warndon Worcester WR4 9SW United Kingdom Tel. 0330 123 9559 worcester-bosch.co.uk...
