Homedics MCS-510H Manual

Overview

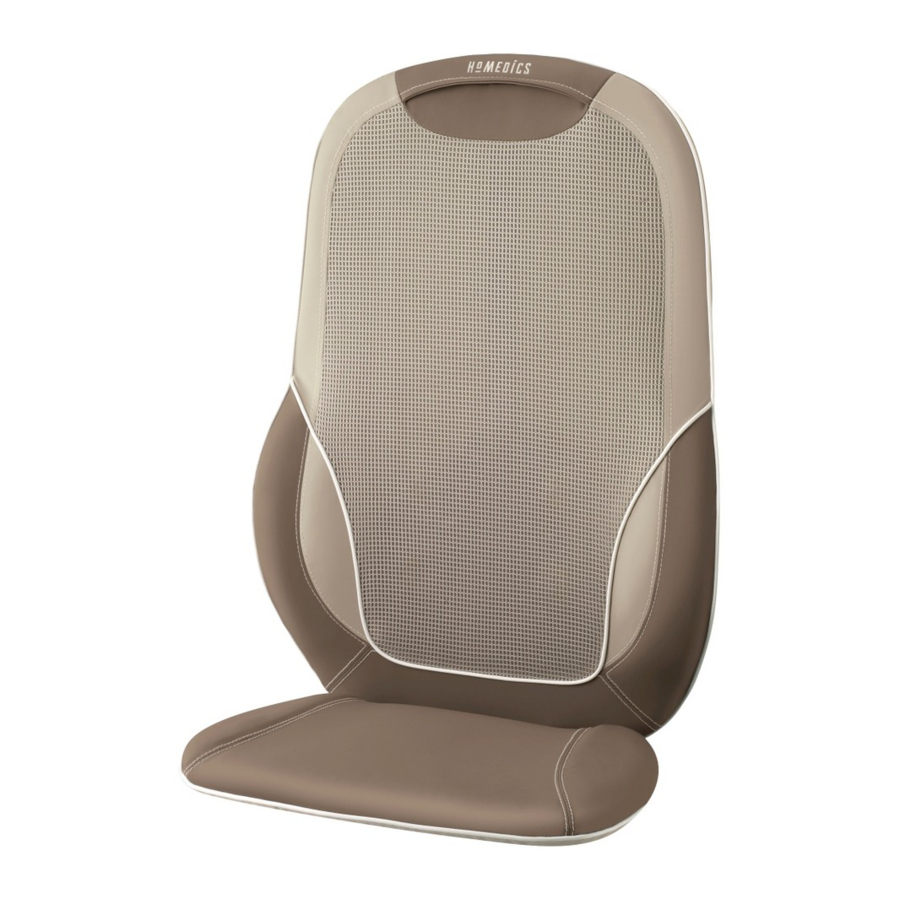

Total Back + Shoulder Shiatsu Cushion with Heat

The actual product materials and fabrics may vary from the picture shown.

Power Button
To turn on the massage functions, first press the POWER button. The L.E.D. indicator will illuminate and confirm your selection. To turn off the massage functions, simply press the button again. The L.E.D. indicator will blink while the massage mechanism returns to its lowest point and then it will turn off.
Kneading Massage
Kneading is a deep massage.
Kneading Programs
Choose from 4 preset programs where the Kneading massage travels up and down in a specific area of the back. To select a program, simply press the button and the L.E.D. will illuminate. To deselect, press the button again or press another button.
Spot Massage Feature
While the unit is in Kneading massage, press either button to stop and focus the massage action in one place. Once the feature is operating, you may adjust the mechanism position by holding down either button until the desired position is reached. The Up Arrow will move the mechanism upwards and the Down Arrow will move it down. Once you release the button, the mechanism will stop in that place.
Demo Button
For a brief demonstration of the features of the Massage Cushion, press the Demo button. The unit will briefly go through each function. Once completed, the unit automatically turns off. The L.E.D. light will blink to indicate active function.
Rolling Massage
Rolling is like two hands working slowly up and down your back.
Rolling Programs
Choose from 4 preset programs where the Rolling massage travels up and down in a specific area of the back. To select a program, simply press the button and the L.E.D. will illuminate. To deselect, press the button again or press another button.
Width Adjustment
While the unit is in Rolling massage, press this button to adjust the distance or width between the massage heads. With each press, the massage heads will move to the next available position.
Heat Button
For soothing heat, when massage is on, simply press the heat button and the corresponding red L.E.D. light will illuminate. To deselect, press the button again and the corresponding L.E.D. light will turn off. For your safety, heat cannot be turned on if no massage program is selected.
NOTE: There is a 15-minute auto shut off on the unit for your safety.
NOTE: When "POWER" button is pressed for first-time use, the moving mechanism will automatically move to the lowest position before starting a massage program. After initial use, mechanism will always park at lowest position. See note below regarding parking.
NOTE: The moving massage mechanism always "parks" or finishes in its lowest position. It will continue to this position after the power has been turned off. If the electrical supply is interrupted, when power is restored, the mechanism will "park" or move to its lowest position.

Instructions for Use

The Cushion comes with a screw located on the back of the unit to protect the massage mechanism during shipment, which must be removed before the first use to allow the unit to function properly. Use the provided allen wrench. Then, properly dispose of the screw.

Failure to remove screw may cause permanent damage to the massage cushion.
To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

1. Un-tie cord strap, extend cord and insert plug into 120-volt household electrical outlet to power unit.
2. Attach the cushion to most chairs for a luxurious massage as you read, rest or even work.

Removable Cover

The cushion includes a removable cover that when used, will customize the intensity of your massage. The cushion may be operated with or without the removable cover. Just use the included Velcro strip at the top of the cover to attach or remove the cover from the cushion.

Strapping System

The Cushion incorporates a unique strapping system which allows you to fasten it to almost any chair. Just slip the straps over the seat or chair and adjust fastening straps to secure. Your massager won't slip or slide away.

Do not use Spot Massage feature with heat in one area for more than 3 minutes.
Note:
There is a 15-minute auto shut off on the unit for your safety.
Note:
Not recommended for use on wooden surfaces as the zipper may damage the wood. Caution is also recommended when using on upholstered furniture.

Maintenance

To Store

Place massager in its box or in a safe, dry, cool place. Avoid contact with sharp edges or pointed objects which might cut or puncture the fabric surface. To avoid breakage, do not wrap the power cord around the unit. Do not hang the unit by the hand control cord.

To Clean

Unplug the unit and allow it to cool before cleaning. Clean only with a soft, slightly damp sponge. Never allow water or any other liquids to come into contact with the unit.

• DO NOT immerse in any liquid to clean.
• NEVER use abrasive cleaners, brushes, gasoline, kerosene, glass / furniture polish or paint thinner to clean.
• DO NOT attempt to repair the Cushion. There are no user serviceable parts. For service, call the Consumer Relations telephone number.

Note:
Only gentle force should be exerted against the unit in order to eliminate any/all risk of injury. You may soften massage force by placing a towel between yourself and the unit.

IMPORTANT SAFEGUARDS

WHEN USING ELECTRICAL PRODUCTS, ESPECIALLY WHEN CHILDREN ARE PRESENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS BEFORE USING

TO REDUCE THE RISK OF ELECTRIC SHOCK:

• Always unplug the appliance from the electrical outlet immediately after using and before cleaning.
• DO NOT reach for an appliance that has fallen into water. Unplug it immediately.

TO REDUCE THE RISK OF BURNS, ELECTRIC SHOCK, FIRE OR INJURY TO PERSONS:

• An appliance should NEVER be left unattended when plugged in. Unplug from outlet when not in use and before putting on or taking off parts or attachments.
• Close supervision is necessary when this appliance is used by, on or near children, invalids, or disabled persons.
• Use this appliance only for its intended use as described in this manual. DO NOT use attachments not recommended by HoMedics; specifically, any attachments not provided with the unit.
• NEVER operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return it to HoMedics Service Center for examination and repair.
• Use heated surfaces carefully. May cause serious burns. DO NOT use on insensitive skin areas or in the presence of poor circulation. The unattended use of heat by children or incapacitated persons may be dangerous.
• Keep cord away from heated surfaces.
• NEVER drop or insert any object into any opening.
• DO NOT operate where aerosol (spray) products are being used or where oxygen is being administered.
• DO NOT operate under a blanket or pillow. Excessive heating can occur and cause fire, electric shock or injury to persons.
• DO NOT carry this appliance by power cord or use cord as handle.
• To disconnect, turn all controls to the "off" position, then remove plug from outlet.
• This appliance is designed for personal, non-professional use only.
• DO NOT use outdoors.
• NEVER operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the like.

All servicing of this massager must be performed by authorized HoMedics service personnel only.

PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING.

• This product is not intended for medical use. It is intended only to provide a luxurious massage.
• Consult your doctor prior to using this product, if
  • You are pregnant
  • You have a pacemaker
  • You have any concerns regarding your health
• NOT recommended for use by Diabetics.
• NEVER leave the appliance unattended, especially if children are present.
• NEVER cover the appliance when it is in operation.
• DO NOT use this product for more than 15 minutes at a time.
• Extensive use could lead to the product's excessive heating and shorter life. Should this occur, discontinue use and allow the unit to cool before operating.
• NEVER use this product directly on swollen or inflamed areas or skin eruptions.
• DO NOT use this product as a substitute for medical attention.
• DO NOT use this product before bed. The massage has a stimulating effect and can delay sleep.
• NEVER use this product while in bed.
• This product should NEVER be used by any individual suffering from any physical ailment that would limit the user's capacity to operate the controls or who has sensory deficiencies in the lower half of their body.
• NEVER use this product in automobiles.
• This appliance is intended for household use only.

To avoid pinching do not lean on the massage mechanism in the cushion when adjusting your body position.
Do not jam or force any part of your body in the moving massage mechanism.

Register Your Product At: www.homedics.com/register
For more information regarding our product line in the USA, please visit: www.homedics.com
Email: cservice@homedics.com
Monday – Friday
8:30am – 7:00pm (EST )
1.800.466.3342
