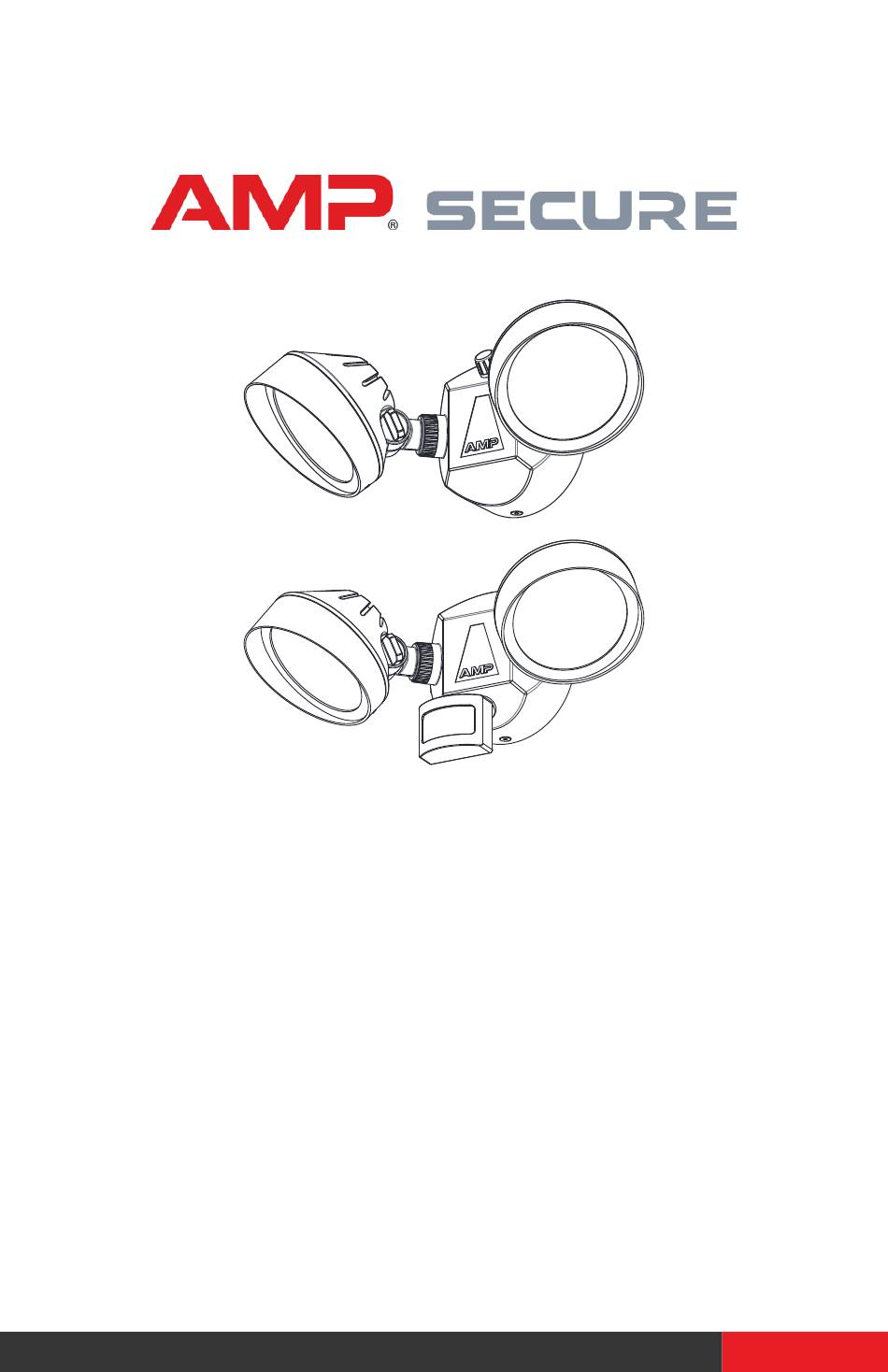

- Page 1 SECURE Twin Wall Flood Light ® ITEM: AFL-4037-30S-LI-S & AFL-4038-30S-MS-LI-S SAVE THESE INSTRUCTIONS - 1 -...
- Page 2 INSTALLATION & MAINTENANCE GUIDE SECURE Twin Wall Flood Light ® AFL-4037-30S-LI-S & AFL-4038-30S-MS-LI-S IMPORTANT: PLEASE READ BEFORE INSTALLATION READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. Fixtures must be wired in accordance with all local codes and the National Electrical Code.
- Page 3 PACKAGE CONTENTS (1) Luminaire (2) Outlet Box Screws (3) P4 Connectors (2) P2 Connectors (1) Clear Cap PRODUCT DIMENSIONS 4.12” 5.3” 4.23” 4.1” 2.1” AFL-4037-30S-LI-S Photocell 4.12” 5.3” 4.23” 4.1” 2.1” 2.08” AFL-4038-30S-MS-LI-S Motion Sensor...
- Page 4 INSTALLATION & MAINTENANCE GUIDE SECURE Twin Wall Flood Light ® AFL-4037-30S-LI-S & AFL-4038-30S-MS-LI-S MOUNTING PLATE INSTALLATION Loosen the set screw until Allen Wrench the mounting plate (not included) disengages. Mounting Plate Mounting Screw Coverplate Mounting Screw MOUNTING PLATE INSTALLATION Junction Box...
- Page 5 TETHER Secure the Tether Ball Ball into the mounting plate Tether notch to help with hands- free wiring. Notch Tether Notch CONNECT THE LUMINAIRE WIRES TO THE SUPPLY WIRES P4 Wire Connector P2 Wire Connector Junction Box Mounting Plate Supply Wires Fixture Wires Feed the Supply Wires through the mounting plate.
- Page 6 Apply weatherproof silicone sealant around the edge of Coverplate the wallplate. Do NOT apply the sealant to the bottom of the wallplate. Leave a space at the bottom of th wall plate the size of the AMP LOGO for potential drainage.
- Page 7 COLOR TEMPERATURE (CCT) & POWER SELECT SWITCHES Coverplate Coverplate 30W Max: Color Temperature Power Selection Switch Selection Switch 15W, 30W 5000K – 4000K – 3000K The switches are located to the right and left of the coverplate. Select the desired color temperature and desired wattage.
- Page 8 INSTALLATION & MAINTENANCE GUIDE SECURE Twin Wall Flood Light ® AFL-4037-30S-LI-S & AFL-4038-30S-MS-LI-S ADJUST MOTION SENSOR The detection angle of the Motion Sensor is 120°. To adjust, loosen the Thumb Screw and aim. Tighten the Thumb Screw. Thumb Screw Motion Sensor Motion Sensor Max.
- Page 9 ADJUST LUMINAIRE ANGLE Coverplate Loosen the thumb screw and adjust the angle of Thumb Screw the luminaire. Tighten the Thumb Screw thumb screw. CAUTION: ENSURE THE NUT IS ADEQUATELY TIGHTENED TO FIX THE LAMP HEAD AND PREVENT TURNING.
- Page 10 INSTALLATION & MAINTENANCE GUIDE SECURE Twin Wall Flood Light ® AFL-4037-30S-LI-S & AFL-4038-30S-MS-LI-S...
- Page 12 1-813-978-3700 • Mon-Fri 9am-6pm (ET) Specifications and product details subject to change without notice. © Copyright 2024, AMP® Lighting, Lutz FL USA 33549 • All rights reserved. customersupport@amplighting.com • amplighting.com...
