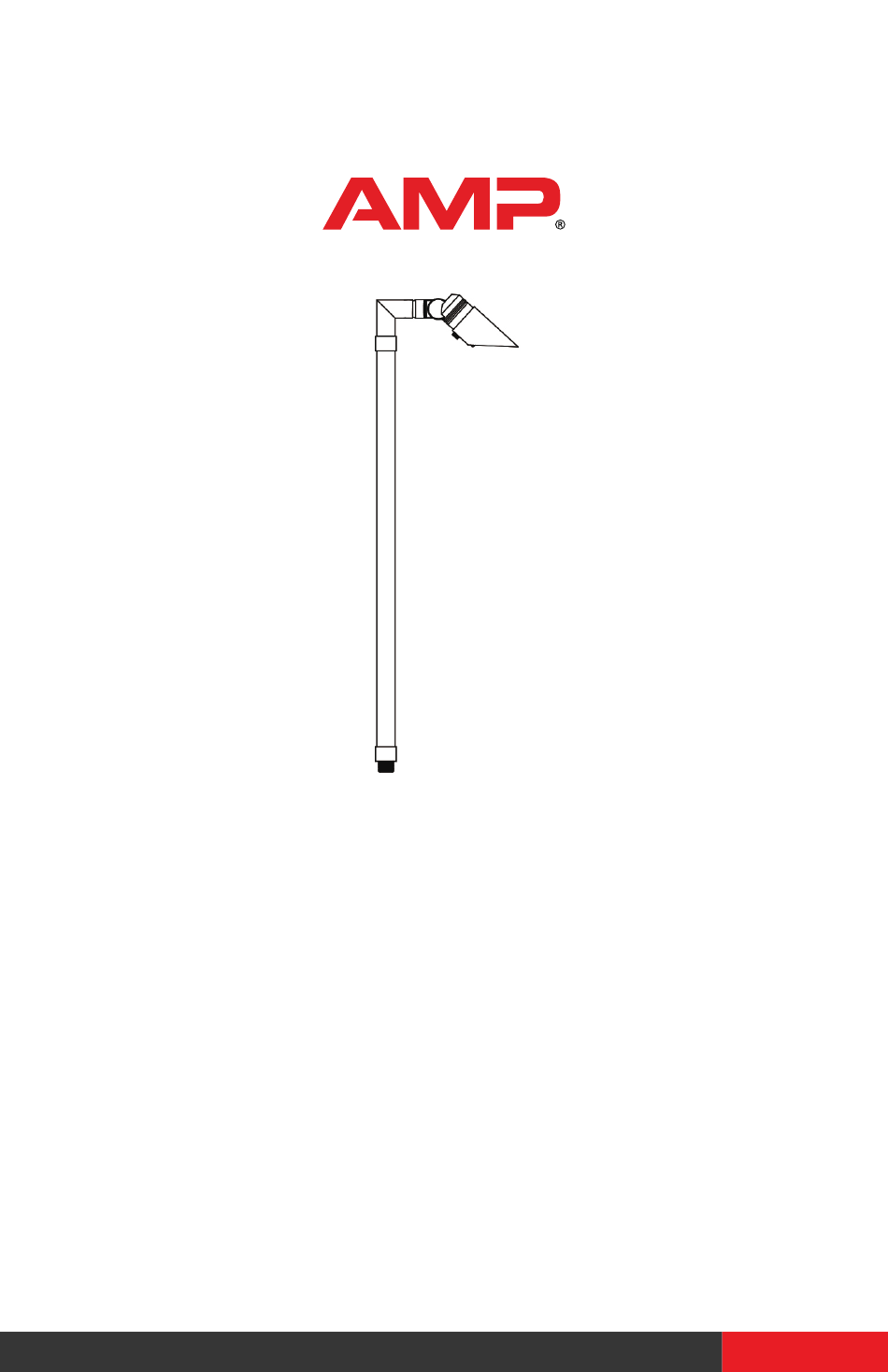

- Page 1 INSTALLATION & MAINTENANCE GUIDE LOW VOLTAGE LANDSCAPE LIGHTING ® ® Mini PinnaclePro Black Path & Area Light ITEM: APL-3017-4-B-BK 1-813-978-3900 • Mon-Fri 9am-6pm (EST) - 1 -...
- Page 2 INSTALLATION & MAINTENANCE GUIDE Mini PinnaclePro Black Path & Area Light - APL-3017-4-B-BK ® IMPORTANT SAFETY INSTRUCTIONS: READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 PACKAGE CONTENTS A. (1) Stem C. (1) Stake B. (1) Fixture Body PRODUCT DIMENSIONS A. (1) MR11 Bulb PRODUCT DIMENSIONS 7.5” 4.5” 3.2” 2.7” 26.2” 813.978.3900 • customersupport@amplighting.com • www.amplighting.com...
- Page 4 INSTALLATION & MAINTENANCE GUIDE Mini PinnaclePro Black Path & Area Light - APL-3017-4-B-BK ® REMOVE LENS AND GLARE GUARD Loosen the set screw and Fixture Body remove the glare guard from the lens. Remove the lens Lens from the fixtu e body.
- Page 5 INSTALL LENS AND GLARE GUARD Place the shield over the bulb Fixture Body and thread onto the fixtu e. Attach the glare guard back Lens onto the shield and secure with the set screw. Set Screw Glare Guard INSTALL STAKE Determine the desired location Board for mounting the fixtu e.
- Page 6 INSTALLATION & MAINTENANCE GUIDE Mini PinnaclePro Black Path & Area Light - APL-3017-4-B-BK ® INSTALL FIXTURE Clear away an area in the ground at the wireway slot on top of the stake. Lay the luminaire pigtail into the wireway slot and attach the fixtu e onto the stake.
- Page 7 ADJUST ANGLE OF FIXTURE Using an Allen Wrench, loosen the Allen Wrench adjustment screws and modify the fixtu e body to the desired angle. Then tighten the adjustment screws. Adjustment Screw INSTALL/REPLACE LAMP Remove the glare guard and the lens to expose the MR11 lamp and replace it with the correct wattage and type marked on the fixtu e label.
- Page 8 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, AMP® Lighting, Lutz FL USA 33549 • All rights reserved. customersupport@amplighting.com • amplighting.com...
