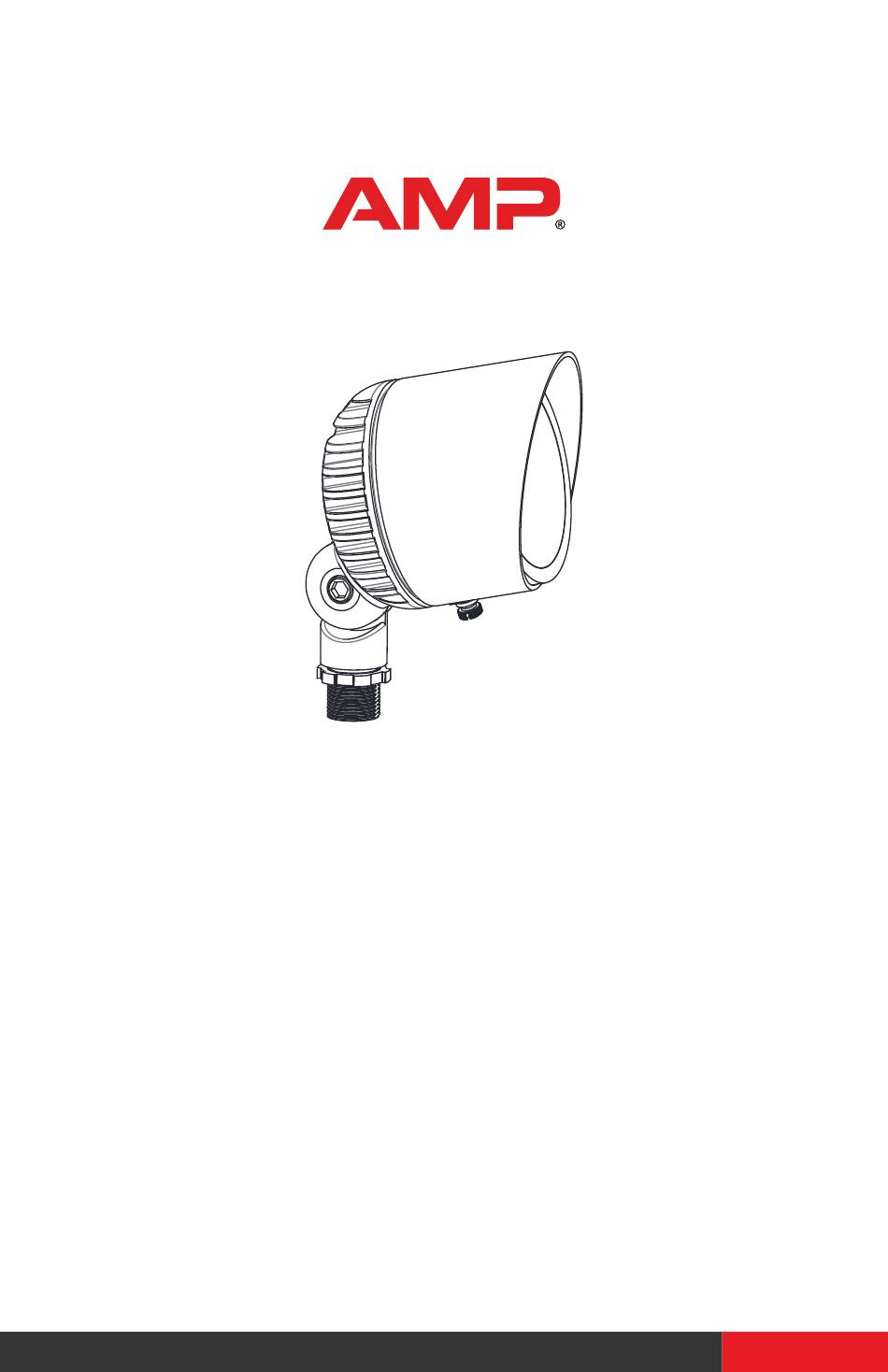

- Page 1 INSTALLATION & MAINTENANCE GUIDE LOW VOLTAGE LANDSCAPE LIGHTING ® RGBCW or CW RF Spot Light ® ITEM: AAL-1054 & AAL-1055 & AAL-1056 1-813-978-3900 • Mon-Fri 9am-6pm (EST) - 1 -...
- Page 2 INSTALLATION & MAINTENANCE GUIDE RGBCW or CW RF Spot Light ® AAL-1054 & AAL-1055 & AAL-1056 IMPORTANT SAFETY INSTRUCTIONS: READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 PACKAGE CONTENTS A. (1) Fixture Body C. (1) Allen Wrench B. (1) 60° Lens PARTS REQUIRED (SOLD SEPARATELY) A. (1) Mounting Accessory B. (1) RF Remote Controller (Part #: VAC-REMOTE-RF1) PRODUCT DIMENSIONS 3.77” 3.35” 1.9” 3.2” 1.86” 2.76” NOTE: The RGBCW or CW LED module may or may not included.
- Page 4 INSTALLATION & MAINTENANCE GUIDE INSTALL FIXTURE BODY TO STAKE Pass the supply wires of the Fixture Body fixture body through the wireway slot on the stake. Thread the fixture body onto the stake. Wireway Slot Supply Wires INSERT STAKE INTO GROUND...
- Page 5 ADJUST FIXTURE DIRECTION Fixture Using the Allen wrench, loosen the screw at the ROTATE joint and adjust the Allen fixture to the desired Wrench direction. Once the desired direction is achieved, tighten the Screw screw. Please refer to the “REMOTE CONTROL INSTRUCTIONS” for the remote functions.
- Page 6 INSTALLATION & MAINTENANCE GUIDE RGBCW or CW RF Spot Light ® AAL-1054 & AAL-1055 & AAL-1056 REPLACE LENS Twist the cover to remove it from the LED module. Cover 2. Remove the existing lens. 3. Check to make sure the Lens gasket is installed in place.
- Page 7 INSTALL GLARE GUARD Glare Guard Install the glare guard back onto the fixture body and secure with the previously removed set screw. Set Screw Fixture Body HOW TO INSTALL LED MODULE REMOVE GLARE GUARD Loosen the set screw and Glare Guard remove the glare guard from the fixture body.
- Page 8 INSTALLATION & MAINTENANCE GUIDE RGBCW or CW RF Spot Light ® AAL-1054 & AAL-1055 & AAL-1056 CONNECT LED MODULE Strip both leads from LED Module fixture wire inside of the fixture body. Terminal Block 2. Open the lever above the free port on one Lever terminal block.
- Page 9 INSTALL TOP Thread the top back onto the fixture body. Fixture Body INSTALL GLARE GUARD Install the glare guard back Glare Guard onto the fixture body and secure with the previously removed set screw. Screw Fixture Body 813.978.3900 • customersupport@amplighting.com • www.amplighting.com...
- Page 10 INSTALLATION & MAINTENANCE GUIDE RGBCW or CW RF Spot Light ® AAL-1054 & AAL-1055 & AAL-1056 REMOTE CONTROLLER INSTRUCTIONS Note: The RGB color wheel on the remote will only control the RGBCW RF LED module. If you use the RGB color wheel with the CW RF LED module the module will turn off.
- Page 11 INSTALL AAA BATTERIES Open the battery cover, install two AAA 1.5V batteries into the battery compartment. Pay attention to the “+”/“-” polarities Back of Remote of the battery when installing. Controller Always reinstall the battery cover after installing AAA 1.5V batteries. Battery Compartment AAA Battery...
- Page 12 INSTALLATION & MAINTENANCE GUIDE RGBCW or CW RF Spot Light ® AAL-1054 & AAL-1055 & AAL-1056 PAIR CODES TO REMOTE CONTROL (CONTINUED) fixture is paired successfully with the zone. The light(s) will turn to warm white light (2200K). 4. Using the same process you can pair additional fixtures to the same or different zones.
- Page 13 ADJUST BRIGHTNESS 1. Select the desired lights by ALL OFF ALL ON pressing the zone to which they have been assigned. 2. Press the brightness increase button to increase the light Brightness Brightness brightness, or press the Increase Decrease brightness decrease button to decrease the light brightness.
- Page 14 INSTALLATION & MAINTENANCE GUIDE RGBCW or CW RF Spot Light ® AAL-1054 & AAL-1055 & AAL-1056 QUICK COLOR TEMPERATURE ADJUSTMENT The preset color temperatures of the ALL OFF ALL ON CCT button are 2200K, 27000K, 3000K and 4000K. 1. Select the lights by pressing the zone they are in.
- Page 15 CONTROL BY GROUP 1. To control lights by group, Select ALL ON ALL OFF ALL ON ALL OFF the lights by pressing the zone they are in. And then press respective function buttons to adjust the lights. ZONE ZONE UNPAIR LIGHTS If you need to re-pair the light(s) that have already been paired to a different zone, ALL ON...
- Page 16 1-813-978-3700 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2024, AMP® Lighting, Lutz FL USA 33549 • All rights reserved. customersupport@amplighting.com • amplighting.com...
