Summary of Contents for Barska BQ14028

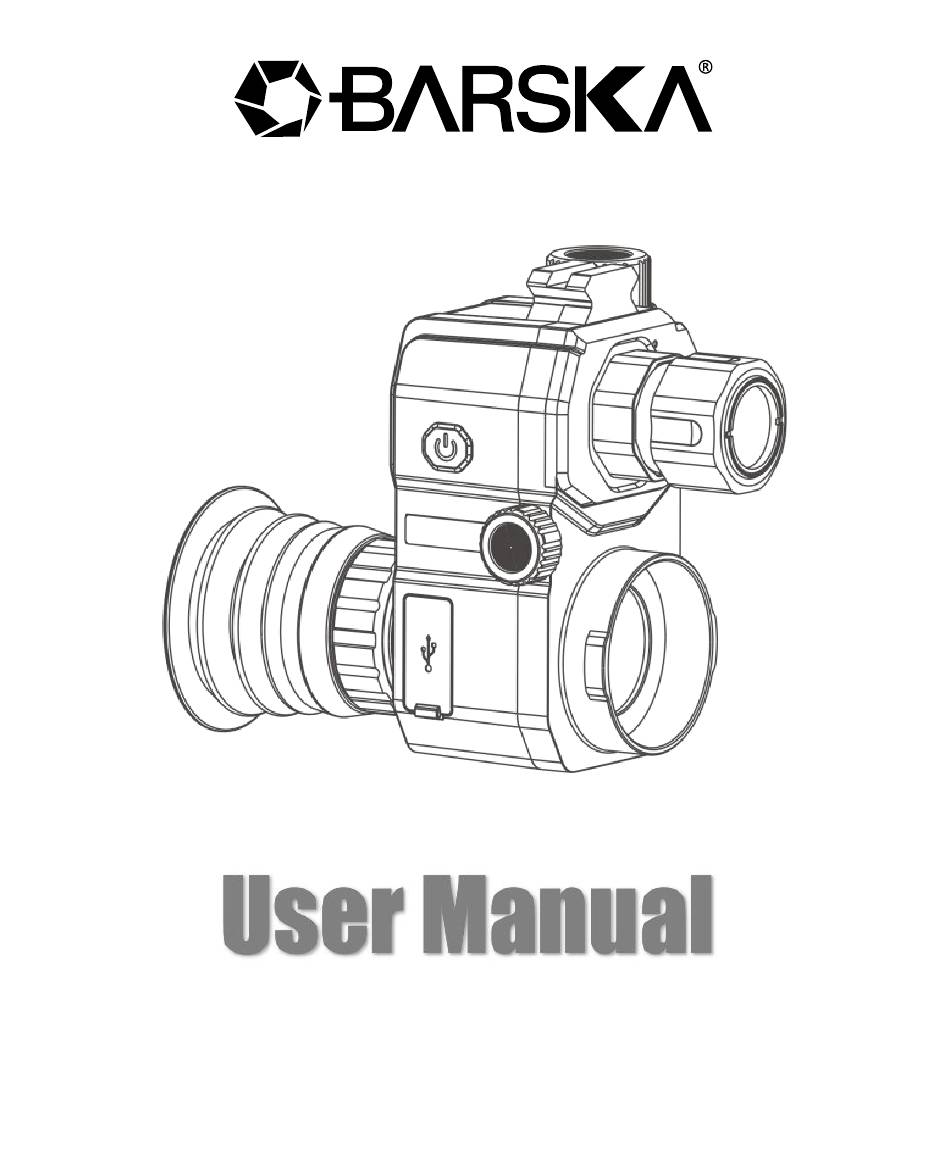

  • Page 1 12/24 BC812...
  • Page 2 300 meters. BQ14028 is a rear clip-on model. The built-in WiFi module allows users to record and share videos, and comes with a Type-C interface for external power supply and data copying at the same time.
  • Page 3 Interfaces Front View A. Picatinny rails, used for the installation of another IR flashlight B. Photosensitive sensor, detects the brightness of external ambient light, and automatically switches between day or night mode C. Laser red dot for fast positioning of targets at close range D.
  • Page 4 Back View Upward / IR Illuminator / WiFi switch Video/Laser red dot switch/Leftward Menu/Photo/Rightward OK button Downward/Zoom(+) or Zoom (-)/ Black & White or Color mode Switch Eyepiece lens - 3 -...
  • Page 5 Left View Power button, power on/off the scope Eyepiece lens diopter adjustment ring Objective lens focusing adjustment knob TF card slot / HDMI interface/ Type-C power & data interface - 4 -...
  • Page 6 Instructions for Shortcut Button Operation Button Short press(<1s) to entry or exit the menu option, and long press (>1s) to take a photo. Button Short press(<1s) to do item select. Button Firstly, long press the button (>1s) to switch to Black & White mode, then short press(<1s) the button to adjust the IR Illuminator (IR1-3/Off) long press (>1s) to turn on &...
  • Page 7 Working Principle The BQ14028 digital day & night vision scope collects external light through the objective lens, and then converts the optical signal into electrical signal through the digital CMOS sensor module. This signal is then transmitted to the CPU chipset for processing in the format of MIPI signals.
  • Page 8 2. Battery Installation (1) Rotate the battery cap counterclockwise and remove it； (2) Place the battery into the battery compartment as shown. Note that the positive electrode should be facing downwards； (3) Put the battery cap back and tighten it. 3.
  • Page 9 (2) Insert the eyepiece of the riflescope into the adapter, ensuring that the edge of the eyepiece aligns with the edge of the shim inside the adapter. The bulge on top of the adapter should be positioned facing directly upwards to prevent any misalignment of the reticle once the night vision device is installed.
  • Page 10 4. Connect the night vision scope to the riflescope (1) Align the two bulge of the night vision scope with the two grooves in the adapter, insert and rotate clockwise the scope, and after hearing a "click", the installation is finished; Note: How to separate? Pull the latch backwards, and then rotate the night vision scope counterclockwise, then remove the scope.
  • Page 11 Focusing Adjustment (2) Turn on the scope by long press the power button on the left side of the scope and check the image quality. You may need to adjust the eyepiece and objective lens to make the image clearer. Please follow the steps below： If you can't see the electronic icons on the screen clearly, rotate the diopter adjustment ring to suit your eyesight.
  • Page 12 Menu Operation Instructions Reticle Center Position Adjustment Press the button, and press the button to select the "Reticle Center Position Adjustment" option, long press the button (3s) and then pop up with Reset/Save two options, select the "Reset" and adjust the XY coordinate position of the center of the reticle.
  • Page 13 Press the button first and press the button to select the option "Picture in Picture", and press the button to enter the "PIP" option, then pop up with options such as "Off/2x/4x/6x". You can choose 2x/4x/6x magnification according to the actual observation requirements, or turn off this function. This function is turned off by default.
  • Page 14 Press the button first and press the button to select the option "Default Color", and press the button to enter the sub-menu. Users can choose the color according to actual needs. LCD Brightness Press the button first and press the button to select the "LCD Brightness"...
  • Page 15 Exposure Press the button first and press the button to select the "Exposure" option, and press the button to enter the sub-menu, then select "+2/3" or "+1/3", "+0. 0", "-1/3"or other parameters on the pop-up sub-menu. After confirmation, the system can realize the corresponding exposure compensation intensity.
  • Page 16 Playback Press the button first and press the button to select the "Playback" option, and then press the button to enter the album. Press ， ， ， to select the file you want to check or delete, and short press the button.
  • Page 17 WiFi Press the button first and press the button to select the "WiFi" option, and press the button to enter the sub-menu, then press the button to select "On" or "Off" on the sub-menu. After confirmation, the system can turn On or Off the WiFi. Note: WiFi starts with "Ten Rings"...
  • Page 18 Press the button first and press the button to select "Format" option, and press the button to enter the sub-menu, and then press the button to select "TF Card" on the pop-up sub-menu. After confirmation, "Cancel" and "OK" options will pop up, press the button again to select "OK"...
  • Page 19 6. Do not walk, run, or use any form of transportation (bicycle, motorcycle, car etc. )when viewing through BQ14028. Doing so may prevent you from fully understanding your surroundings, including any potential obstacles or other...
  • Page 20 2. Always store the device in a suitcase in a dry, well-ventilated space with a temperature above +15'C (60°F) and below +48'C (118°F). Do not store near heating equipment, in direct sunlight or high humidity (above 70%). 3. Clean the optical lens with camera lens cleaning products, and clean the outside of the device with a clean soft cloth.
  • Page 21 (1) Reinstall the battery and ensure that the polarity(+/- terminal) direction is correct. Please refer to the silkscreen instructions on the battery installation direction on the cover. (2) Replace the battery. (3) Clean the battery compartment, especially the contact points. 2.
  • Page 22 Technical Specifications Product Model BQ14028 Product Name Digital Day & Night Vision scope Sensor Resolution(pixel) 1920×1080 Sensitivity(lux) 0. 001 Pixel Size(µm) Frame Rate(fps) Optics Magnification(x) 2~10 (5x zoom) Focal Length(mm) 16(fixed focus) Objective Lens Size Φ16 Field of View(H*V) 22°x16°...
  • Page 23 IR Illuminator Installation Built-in, support additional flashlight Max. Power(W) Illuminating Level 3 levels Detection Range(m) Wavelength(nm) 850/940 Power Supply Power Supply Mode 18650 Li-ion battery Output Voltage(V) 3. 7 Working Time with Battery(h) ≤8 External Power Supply USB Type-C, 5V, 2A Display Type OLED...
  • Page 24 Video Format . MP4 Photo Resolution(pixel) 3072 x 1728 Photo Format . JPG Internal RAM Storage Type TF Card (support 4G~128G) Reticle Shape Auto Recording Loop Recording Audio Recording WiFi TenRings Shots Exposure Compensation Geomagnetism 3-axis Gyroscope Picture-in-Picture Playback Pitch Angel Chinese/English/Spanish/Portugue-se/ Language French/German/Italian/Polish/Tu-rkish/...
  • Page 25 Russian Mean Time Between Failures ＞50000h Interface USB Type-C Battery Charge and Data Transfer HDMI output Video Transmission Connection Adapter Size(mm) Material Aluminium Alloy General Dimensions (L*W*H)(mm) 143*82*113 Housing Plastic & Aluminium Alloy Body Color Black Net Weight(g) Protection IP67 Operating Temperature(℃) -25~50 Storage Temperature(℃)
  • Page 26 - 25 -...
