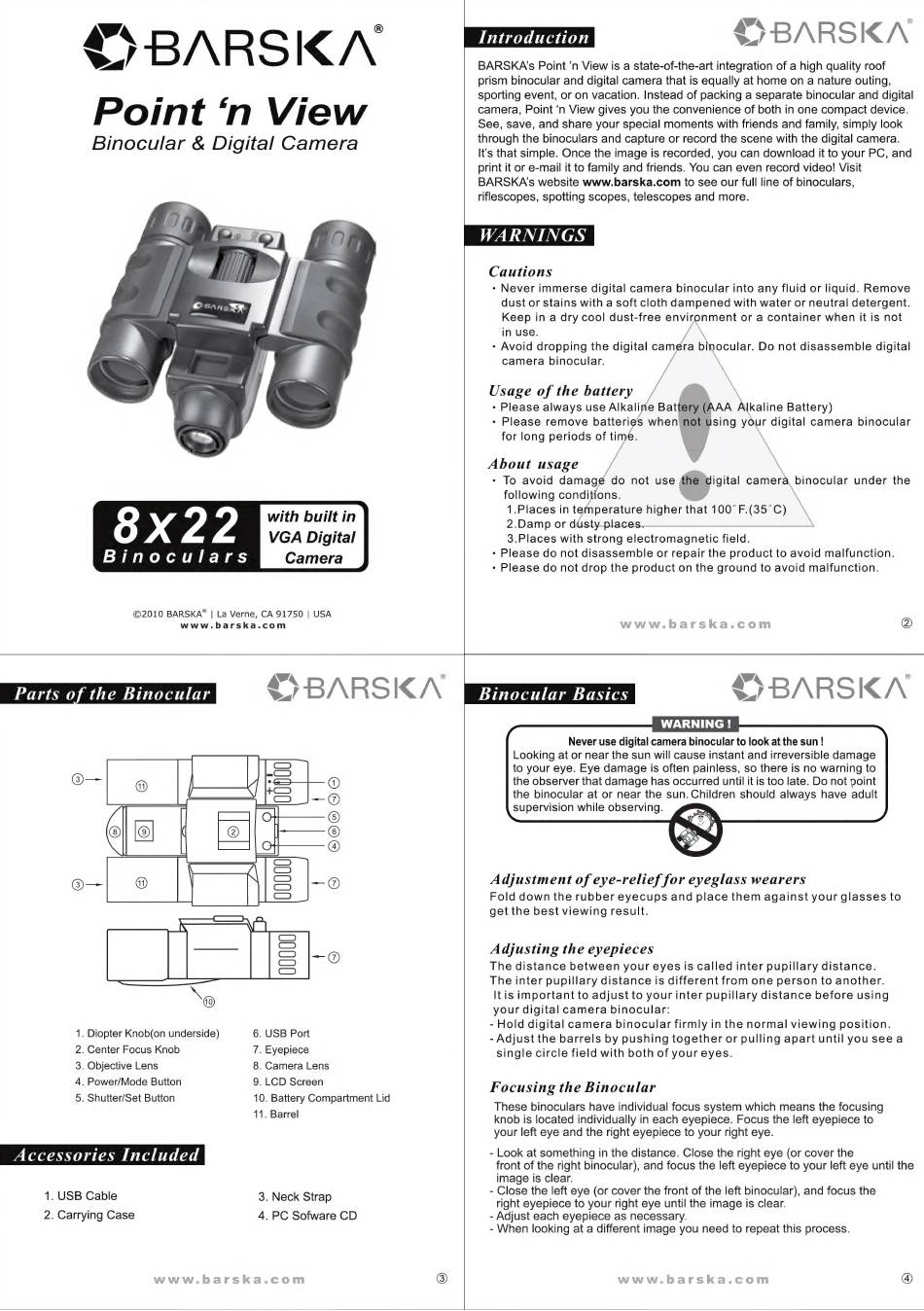

Barska Point 'n View Instructions

Binoculars
Point 'n View
Binocular & Digital Camera
with built in
VGA Digital
Camera
©2010 BARSKA® | La Verne, CA 91750 | USA
www.barska.com
"BARSKA
BARSKA's Point 'n View is a state-of-the-art integration of a high quality roof
prism binocular and digital camera that is equally at home on a nature outing,
sporting event, or on vacation. Instead of packing a separate binocular and digital
camera, Point 'n View gives you the convenience of both in one compact device.
See, save, and share your special moments with friends and family, simply look
through the binoculars and capture or record the scene with the digital camera.
It's that simple. Once the image is recorded, you can download it to your PC, and
print it or e-mail it to family and friends. You can even record video! Visit
BARSKA's website www.barska.com to see our full line of binoculars,
riflescopes, spotting scopes, telescopes and more.
WARNINGS
Cautions
e Never immerse digital camera binocular into any fluid or liquid. Remove
dust or stains with a soft cloth dampened with water or neutral detergent.
Keep in a dry cool dust-free environment or a container when it is not
in use.
e Avoid dropping the digital caméra binocular. Do not disassemble digital
camera binocular.
Usage of the battery
- Please always use Alkaline Battery (AAA Alkaline Battery)
- Please remove batteries when not using your digital camera binocular
for long periods of time.
About usage
- To avoid damage do not use the digital camera binocular under the
following conditions.
1.Places in temperature higher that 100° F.(35°C)
2.Damp or dusty_places.
3.Places with strong electromagnetic field.
- Please do not disassemble or repair the product to avoid malfunction.
- Please do not drop the product on the ground to avoid malfunction.
Parts of the Binocular
1. Diopter Knob(on underside)
2. Center Focus Knob
3. Objective Lens
4. Power/Mode Button
5. Shutter/Set Button
Accessories Included
1. USB Cable
2. Carrying Case
S$ B/ARSI
6. USB Port
7. Eyepiece
8. Camera Lens
9. LCD Screen
10. Battery Compartment Lid
11. Barrel
3. Neck Strap
4. PC Sofware CD
NN ©
BARSKA
WARNING !
Never use digital camera binocular to look at the sun !
Looking at or near the sun will cause instant and irreversible damage
to your eye. Eye damage is often painless, so there is no warning to
the observer that damage has occurred until it is too late. Do not point
the binocular at or near the sun. Children should always have adult
supervision while observing.
Adjustment of eye-relief for eyeglass wearers
Fold down the rubber eyecups and place them against your glasses to
get the best viewing result.
Adjusting the eyepieces
The distance between your eyes is called inter pupillary distance.
The inter pupillary distance is different from one person to another.
Itis important to adjust to your inter pupillary distance before using
your digital camera binocular:
- Hold digital camera binocular firmly in the normal viewing position.
- Adjust the barrels by pushing together or pulling apart until you see a
single circle field with both of your eyes.
Focusing the Binocular
These binoculars have individual focus system which means the focusing
knob is located individually in each eyepiece. Focus the left eyepiece to
your left eye and the right eyepiece to your right eye.
- Look at something in the distance. Close the right eye (or cover the
front of the right binocular), and focus the left eyepiece to your left eye until the
image is clear.
- Close the left eye (or cover the front of the left binocular), and focus the
right eyepiece to your right eye until the image is clear.
- Adjust each eyepiece as necessary.
- When looking at a different image you need to repeat this process.
