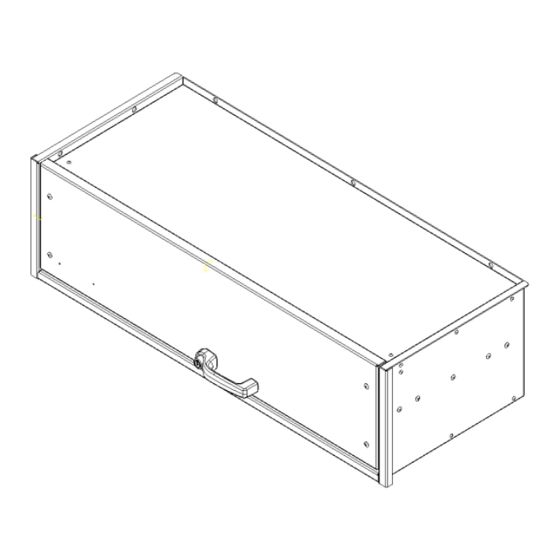

- Page 1 INSTALLATION GUIDE WSD47UINT20 WEAPON STORAGE DRAWER ASBD47UINT20 ALUMINUM STORAGE DRAWER 2020+ FORD INTERCEPTOR UTILITY pro-gard.com 800.480.6680 Released 01.27.2020...
- Page 2 THESE COMPONENTS ARE REQUIRED TO INSTALL THE STORAGE DRAWER ASBD47UINT13 WSD47UINT13 4WSK472000 The following tools will be required to complete the installation of the drawer storage systems in conjunction with the Pro-gard Cargo Barrier 7/16” Deep Well Socket C. 15mm Deep Well Socket E.
- Page 3 WSD47UINT13 ASBD47UINT13 4BAR472001 3WSD472010 3WSD472009 Fig. 1 3WSD472006 3WSD472005 IV. Install Front Brackets and Storage Drawer A. Use 5/32” Allen wrench to remove (2) screws from the barrier’s bottom on driver’s side. B. Place [3WSD472010] Front Driver’s Side WSD Bracket over the holes left from Step A (as shown in figure 2) and re-attach using [3X75] screws.
- Page 4 4WSK472000 (Used with Pro-gard Cargo Barrier) 4WSK472000 (Used with Pro-gard Barrier) pro-gard.com 800.480.6680...
