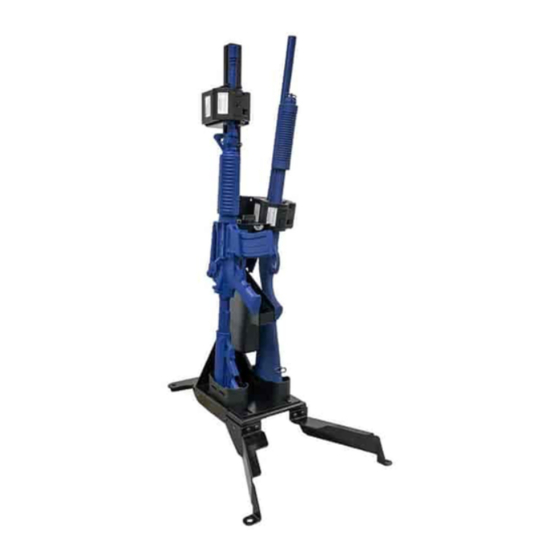

- Page 1 INSTALLATION GUIDE G V M 5 4 1 9 X - X S E L F S U P P O R T I N G B A S E F O R 2 0 1 9 - 1 / 2 - C U R R E N T C H E V R O L E T S I LV E R A D O pro-gard.com 800.480.6680...
- Page 2 THESE COMPONENTS ARE REQUIRED TO INSTALL THE PRO-GARD SELF SUPPORTING STAND AND TRI-LOCK GUN RACK Tri-Lock Gun Rack GVPMXXXX 4G5419 MOUNT BASE I. Refer to the diagram above to verify all parts were received. II. The following tools will be required to complete the installation: A.
- Page 3 3X119 3X310 3X311 3X120 Figure 2. NOTE: Locate all wiring, fuel lines, brake lines, and /or cooling lines before drilling holes or installing any fasteners. G. Drill the holes using a 3/8” drill bit making sure to remove any possible burrs. H.
- Page 4 VI. Installing the Tri-Lock gun rack (Requires Pro-gard self-supporting mounting base) A. Place the intended guns into the gun rack and make adjustments to fit. This will allow more access than when the rack is in the vehicle, but the rack can be adjusted after installed inside the vehicle as well. B.
- Page 5 VII. Self-Supporting Installation A. For self-supporting installations, remove the four bolts that secure the butt plates to the base of the gun rack. Then rest the gun rack to the self supporting stand, loosely attach the gun rack and adjust it and the butt plates as necessary from front to back.
- Page 6 IX. Gun lock switch and timer installation. A. We suggest mounting the momentary release button in a concealed location that can be easily reached by the officer, but would be hidden in case an unathorized entry occurs. B. Connect the gun lock wiring as shown in the diagram below. NOTE: Pro-gard requires the use of a 10 AMP fuse between the power source and gun lock circuit or the warranty will be voided!
- Page 7 Self-Supporting Mounting Base pro-gard.com 800.480.6680...
- Page 8 Tri-Lock Gun Rack PARTS LIST ITEM PART NUMBER DESCRIPTION 1515-LITE-BLACK 80/20 INC 1.5" X 1.5" LOT T SLOTTED 38" 203001-PLAIN END CAP W/O FASTNER PLAIN 3G135 R LOCK BARREL MOUNT BRACKET 3G4962-002 BUTT PLATE BLACK NYLON 3G4963-002 RUBBER BUTT PLATE PAD 3G5078R BLACK FELT (NOT SHOWN) 3G5078R-01...
