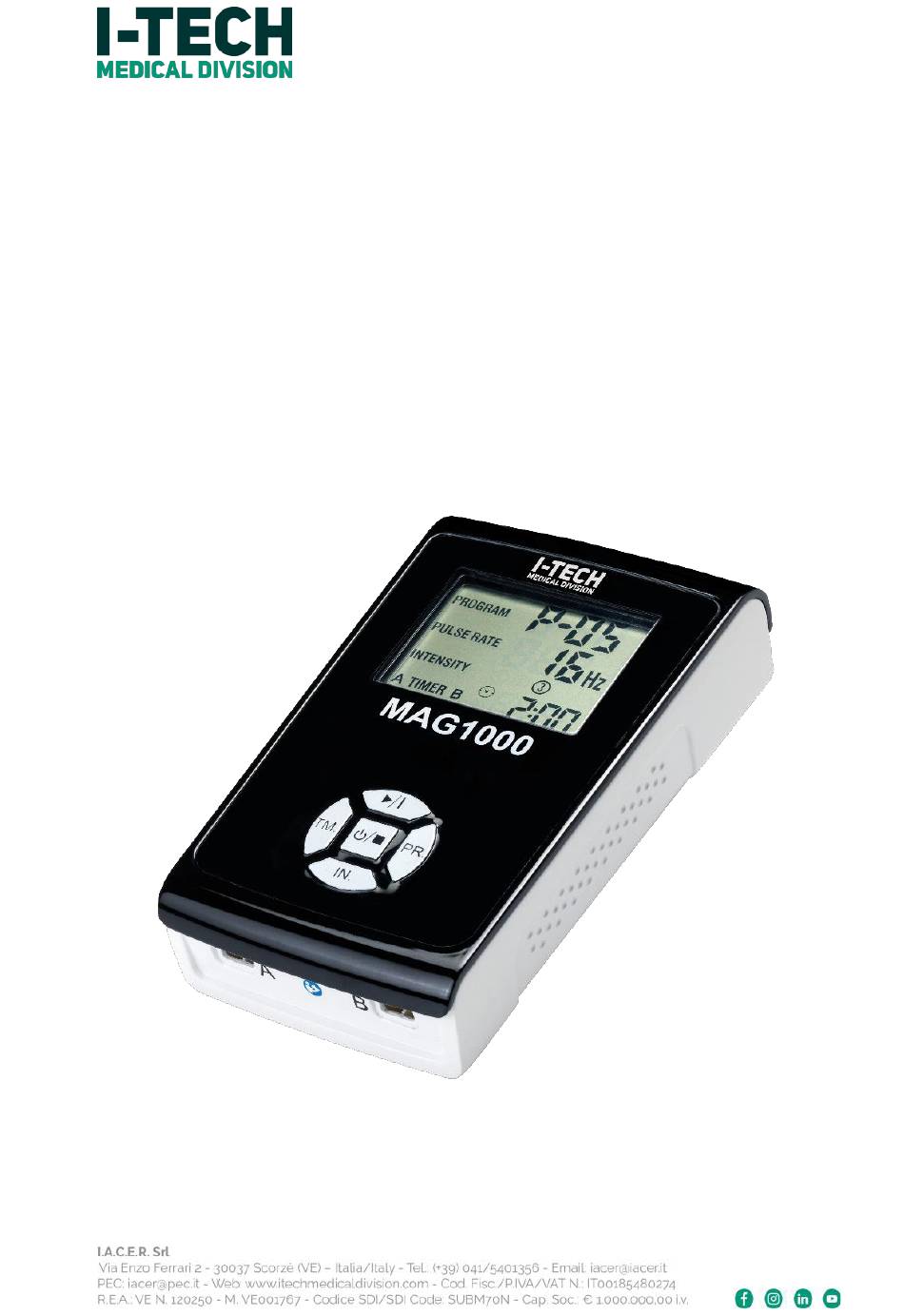

  • Page 1 MAG1000...
  • Page 2 USER MANUAL Magnetotherapy model NEW MAG1000 MAG1000...
  • Page 3 Summary SUMMARY ................XXVII TECHNICAL SPECIFICATIONS ............28 ................... 28 ANUFACTURER ..............28 ECLARATION OF CONFORMITY ..................28 LASSIFICATIONS ................29 URPOSE AND SCOPE ................30 ECHINICAL FEATURES ............31 EVICE AND COMMANDS DESCRIPTION .................... 32 ABELLING Package content ................. 34 HOW TO USE ................
  • Page 4 Floor 1-2, No.3 Building, Fanshen Xusheng Industrial Estate Xilixiaobaimang 518108 Nanshan District, Shenzhen P.R. China herewith declares under its own responsibility, that the product Model: NEW MAG1000 Name: MAG1000 has been designed and manufactured according to the European Medical Device Directive 93/42/EEC (transposed in Italy by the D.Lgs. 46/97), as modified by the Directive 2007/47/EC (D.Lgs.37/2010) and further...
  • Page 5 Annex II (excluding point 4) of the Directive 93/42/EEC. Classifications From now on, for the sake of simplicity, in this user manual, reference will be made to the device MAG1000 meaning the device model NEW MAG1000, name MAG1000. MAG1000 has the following specifications: •...
  • Page 6 • tendonitis MAG1000 is particularly suitable for the treatment and the care of the osteoporosis and all the pathologies on bony tissue. MAG1000 is a device intended for both the professional user (physician, therapist, etc.) and the patient at home. In case of home therapy, the use of the device is recommended only on indication of the physician/therapist.
  • Page 7 Characteristics Specification operation Relative humidity From 30% to 80% From 500 to Pressure 1060hPa Temperature From -10° to +55°C Transport and storage Relative humidity From 10% to 90% conditions From 500 to Pressure 1060hPa Expected lifetime: 3 years. Device and commands description Label (retro) ON/OFF Key...
  • Page 8 Battery status indication PROGRAM P-01 Selected program for therapy PULSE RATE 8Hz Selected pulse rate Magnetic field intensity level selected: INTENSITY 1 - low, 2 - medium, 3 - high TIMER 45’00’’ Therapy time (minutes and seconds) Working channel: A - channel1, B- channel2 Labelling The label on the side is placed on the back...
  • Page 9 Symbol Description Importer logo Certification of the product issued by the notified body N° 0197. Manufacturer Authorised representative. Importer. Manufacturing date Attention, consult operating instructions. Product subject to WEEE regulations concerning separate waste collection of electronic equipment. Class II equipment. Applied part type BF.
  • Page 10 Symbol Description Power supply (DC 6.8V / 0.3A). A / B (CH1 / CH2) channel 1/2. Non ionizing Package content The Mag1000 package contains: • n°1 MAG1000 device; • n°1 elastic therapeutic belt; • n°1 battery pack (inside the device);...
  • Page 11 (PEMF, carrying frequency from 20 to 30 MHz, with frequencies up to 5.000 Hz). The MAG1000 has been designed to exploit these fields, in fact it generates an electric signal with a carrier frequency of 27mhz, which is modulated with specific frequencies and therefore is able to soothe the anatomical site affected by pain.
  • Page 12 Controindications Patient in pregnancy, tuberculosis, juvenile diabetes, viral (in acute phase) illnesses, mycosis, cardiopathic subjects, serious arrhythmias or pacemaker carriers, children, metallic prosthesis carriers, acute infections, epileptics (different medical prescriptions excepted). The functioning of some electric implantable devices, such as pacemakers, could be compromised during a treatment with a short-wave therapy device.
  • Page 13 WARNING! During therapy it is possible to hear a light hiss coming from MAG1000: such operation is normal and must not arouse worry. The manufacturer shall be deemed to be responsible for the performance, reliability, and safety of the appliance only if: •...
  • Page 14 23 hours and 55 minutes. It’s possible to quickly scroll time list pressing TM. key 6) MAG1000 is now ready for use: the display shows information about the program in use, the working frequency (not adjustable), the adjusted therapy time and field intensity (adjustable during the treatment).
  • Page 15 9) To end the therapy, press key : MAG1000 will show again the selected program and adjusted therapy time. To switch off MAG1000, press again key 10) A sound signal informs of the end of the program, and the display will show the flashing icons 0’00’’;...
  • Page 16 The manufacturer suggests the therapy time as shown on the table and pre- setted on MAG1000. However, the user can adjust the time as he prefers. MAG1000 uses therapy time values, working frequency values and field intensity values coming from scientific and medical literature, as result of well-known sperimentations and clinical evaluations (Barker - Lunt 1983, Bassett –...
  • Page 17 Precaution for the transportation There is no particular precaution to be taken during transportation of the device, since MAG1000 is a portable device. In any case it is recommended to store MAG1000 and its accessories in the supplied carrying bag after each treatment.
  • Page 18 500 to 1060hPa Troubleshooting Any type of work on MAG1000 must be carried out exclusively by IACER Srl or by an authorized dealer. In any event, any presumed malfunction of MAG1000 must be verified before sending the device to IACER Srl.
  • Page 19 • Contact IACER Srl or authorized dealer for original spare part; • Open the battery compartment on the back side of MAG1000, disconnect the red/black wire from connector and remove the exhausted battery; •...
  • Page 20 Warranty IACER Srl guarantees a warranty period from the purchasing date for MAG1000 device, unless information contained in this manual regarding installation, use and maintenance is strictly adhered. The wearing parts (batteries) are not included in the warranty, unless of visible manufacturing defects.
  • Page 21 IACER Srl (also consult the Warnings paragraph). Interference and elctromagnetic compatibility tables The MAG1000 equipment has been designed and manufactured according to the TECHNICAL STANDARD on ELECTROMAGNETIC COMPATIBILITY legislation EN 60601-1-2 with the aim of providing adequate protection from harmful interference when installed in homes and health establishments.
  • Page 22 For more details consult the compatibility tables in Italian/English at the end of the manual. MAG1000. All rights reserved. MAG1000 and logos are owned by IACER and are registered. Edition: MNPG552-00 of the April 30...
  • Page 23 Il cliente o l’utilizzatore di tale dispositivo deve garantire che esso venga usato in tale ambiente. The MAG1000 device is expected to operate in the electromagnetic environment below specified. The customer or user of the MAG1000 device must ensure that it is used in such an environment. Ambiente elettromagnetico – Guida Prova di emissione Conformità...
  • Page 24 Il cliente o l’utilizzatore di tale dispositivo deve garantire che venga usato in tale ambiente. MAG1000 is intended for use in the electromagnetic environment specified below. The user or operator of MAG1000 should assure that is used in such environment. Ambiente elettromagnetico –...
  • Page 25 Il cliente o l’utilizzatore di tale dispositivo deve garantire che venga usato in tale ambiente. MAG1000 is intended for use in the electromagnetic environment specified below. The user or operator of MAG1000 should assure that is used in such environment. Ambiente elettromagnetico –...
  • Page 26 Il cliente o l’utilizzatore di tale dispositivo deve garantire che venga usato in tale ambiente. MAG1000 is intended for use in the electromagnetic environment specified below. The user or operator of MAG1000 should assure that is used in such environment. Ambiente elettromagnetico –...
  • Page 27 Il cliente o l’utilizzatore di tale dispositivo deve garantire che venga usato in tale ambiente. MAG1000 is intended for use in the electromagnetic environment specified below. The user or operator of MAG1000 should assure that is used in such environment. Livello di Ambiente elettromagnetico –...
  • Page 28 MAG2000. Se si notano prestazioni anormali, possono essere necessarie misure aggiuntive come un diverso orientamento o posizione del MAG1000 / Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy.
  • Page 29 MAG1000 is intended for the use in an electromagnetic environment in which radiated RF disturbances are controlled. The user or the operator of MAG1000 can help prevent electromagnetic interferences by maintaining a minimum distance between portable...
  • Page 30 Edition: MNPG550-00 of the April 30 , 2024...
