DSE DSEGenset DSEG8660 Operator's Manual

Hide thumbs Also See for DSEGenset DSEG8660:

Advertisement

Quick Links

Download this manual

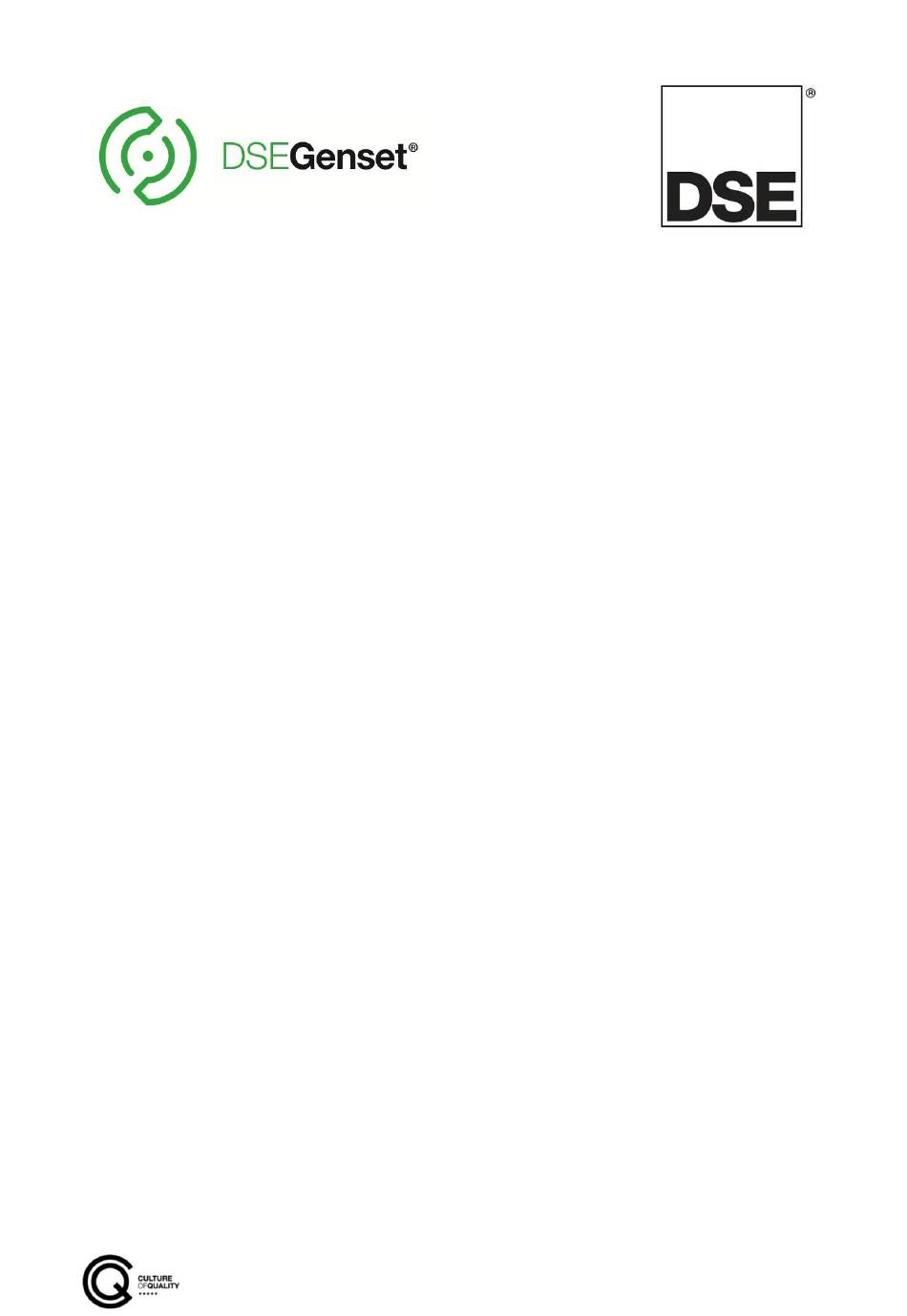

DEEP SEA ELECTRONICS
DSEG8660 Operator Manual
Document Number: 057-325
Author: Ian Roberts
Page 1 of 207
057-325 ISSUE: 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DSEGenset DSEG8660 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DSE DSEGenset DSEG8660

Summary of Contents for DSE DSEGenset DSEG8660

  • Page 1 DEEP SEA ELECTRONICS DSEG8660 Operator Manual Document Number: 057-325 Author: Ian Roberts Page 1 of 207 057-325 ISSUE: 1...
  • Page 2 Applications for the copyright holder’s written permission to reproduce any part of this publication must be addressed to Deep Sea Electronics Ltd at the address above. ® ® ® ® The DSE logo and the names DSEGenset DSEATS DSEPower DSEControl are UK registered trademarks of Deep Sea Electronics Ltd.
  • Page 3 DSEG8660 Operator Manual TABLE OF CONTENTS Section Page INTRODUCTION ....................8 CLARIFICATION OF NOTATION .................... 9 GLOSSARY OF TERMS ......................9 BIBLIOGRAPHY ........................11 1.3.1 INSTALLATION INSTRUCTIONS ................... 11 1.3.2 MANUALS ........................12 1.3.3 TRAINING GUIDES ......................13 1.3.4 THIRD PARTY DOCUMENTS ..................13 MAINS PARALLEL CONTROLLER (MPC) AND GROUP CONTROLLER (GC) APPLICATION SELECTION MENU ................
  • Page 4 DSEG8660 Operator Manual 3.13.4.1 CABLE TIE FIXING POINTS ................... 39 3.13.5 SEALING GASKET ......................39 3.14 APPLICABLE STANDARDS ..................... 40 3.14.1 ENCLOSURE CLASSIFICATIONS ................. 42 3.14.1.1 IP CLASSIFICATIONS ..................... 42 3.14.1.2 NEMA CLASSIFICATIONS ..................42 INSTALLATION ....................43 USER CONNECTIONS ......................43 CONNECTION DESCRIPTIONS ...................
  • Page 5 DSEG8660 Operator Manual 5.3.3 MAINS (MAINS PARALLEL) ................... 89 5.3.4 GROUP ........................... 90 5.3.5 ALARMS .......................... 91 5.3.5.1 MODULE ALARMS ....................91 5.3.5.2 ALARM RESET ......................92 5.3.5.3 EVENT LOG ......................93 5.3.6 COMMUNICATIONS ....................... 95 5.3.6.1 RS485 SERIAL PORTS 1&2..................95 5.3.6.2 LINK QUALITY RS485 MODBUS RTU DIAGNOSTICS .........
  • Page 6 ‘RUNNING’ CONFIGURATION EDITOR PARAMETERS ..........187 9.2.4 COMMISSIONING ..................188 10.1 BASIC CHECKS ....................... 188 10.2 DSE 4 STEPS TO SUCCESSFUL SYNCHRONISING ............ 189 10.2.1 CONTROL (DSEG8600) ....................190 10.2.1.1 DETERMINING CONNECTIONS AND SETTINGS FOR GOVERNORS ..... 190 10.2.1.2 DETERMINING CONNECTIONS AND SETTINGS FOR AVRS ......192 10.2.2...
  • Page 7 11.5 SYNCHRONISING & LOAD SHARING ................203 11.6 MISCELLANEOUS ......................203 MAINTENANCE, SPARES, REPAIR AND SERVICING ......204 12.1 PURCHASING ADDITIONAL CONNECTOR PLUGS FROM DSE ......... 204 12.1.1 PACK OF PLUGS ......................204 12.1.2 INDIVIDUAL PLUGS ..................... 204 12.1.3 PURCHASING ADDITIONAL FIXING CLIPS FROM DSE ........... 204 ®...
  • Page 8 This is not a controlled document. DSE do not automatically inform on updates. Any future updates of this document are included on the DSE website at www.deepseaelectronics.com The DSEG8660 module is designed to provide differing levels of functionality across a common platform.
  • Page 9 Introduction 1.1 CLARIFICATION OF NOTATION Clarification of notation used within this publication. Highlights an essential element of a procedure to ensure correctness. NOTE: Indicates a procedure or practice, which, if not strictly observed, could CAUTION! result in damage or destruction of equipment. Indicates a procedure or practice, which could result in injury to WARNING! personnel or loss of life if not followed correctly.
  • Page 10 Introduction Term Description Light Emitting Diode Media Access Control Address. A MAC address is a hardware identification number that uniquely identifies each device on a network. Magnetic Pickup Unit Multi-Set Communication NAPT Network Address and Port Translation Neutral Voltage Displacement Original Equipment Manufacturer Peripheral Component Interface PIN number...
  • Page 11 Introduction 1.3 BIBLIOGRAPHY This document refers to, and is referred by the following DSE publications which are obtained from the DSE website: www.deepseaelectronics.com or by contacting DSE technical support: support@deepseaelectronics.com. 1.3.1 INSTALLATION INSTRUCTIONS Installation instructions are obtained from the DSE website: www.deepseaelectronics.com or by contacting DSE technical support: support@deepseaelectronic.com and are intended as a ‘quick...
  • Page 12 Introduction 1.3.2 MANUALS Product manuals are obtained from the DSE website: www.deepseaelectronics.com or by contacting DSE technical support: support@deepseaelectronics.com. DSE Part Description DSEGencomm (MODBUS protocol for DSE controllers) Guide to Synchronising and Load Sharing Part 1 057-045 (Usage of DSE Load Share Controllers in synchronisation / load sharing systems.) 057-046 Guide to Synchronising and Load Sharing Part 2 (Governor &...
  • Page 13 Training guides are provided as ‘hand-out’ sheets on specific subjects during training sessions and contain specific information regarding to that subject. DSE Part Description 056-001 Four Steps To Synchronising 056-005 Using CTs With DSE Products 056-006 Introduction to Comms 056-007 Advantages of Bus/Load CT 056-010 Over Current Protection...
  • Page 14 Introduction 2 MAINS PARALLEL CONTROLLER (MPC) AND GROUP CONTROLLER (GC) APPLICATION SELECTION MENU NOTE: Care must be taken when updating the module’s firmware as this resets the configuration files for the Mains Parallel (MP) and the Group Controller (GC) software applications back to their factory defaults.
  • Page 15 Specification 3 SPECIFICATION 3.1 OPERATING TEMPERATURE Module Specification DSE8660 -30 ºC +70 ºC (-22 ºF +158 ºF) Display Heater -40 ºC +70 ºC (-40 ºF +158 ºF) 3.1.1 SCREEN HEATER OPERATION The heater operates on a sliding power output to maintain good visibility from 0ºC. 3.2 REQUIREMENTS FOR UL WARNING!: More than one live circuit exists, refer to section 4.2.11 entitled Typical Wiring Diagrams.
  • Page 16 Specification 3.3 TERMINAL SPECIFICATION Description Specification Two-part connector. Male part fitted to module Connection Type Female part supplied in module packing case - Screw terminal, rising clamp, no internal spring. Minimum Cable Size 0.5 mm² (AWG 24) Example showing cable entry and Maximum Cable Size 2.5 mm²...
  • Page 17 Specification 3.5 VOLTAGE & FREQUENCY SENSING Description Specification Measurement Type True RMS conversion Sample Rate 40 kHz Harmonics Up to 21 or better Input Impedance 450 k phase to neutral 15 V (minimum required for sensing frequency) to 415 V AC (absolute maximum) Phase To Neutral Suitable for 345 V AC nominal...
  • Page 18 Specification 3.6.1 VA RATING OF THE CTS NOTE: Details for 4 mm² cables are shown for reference only. The connectors on the DSE modules are only suitable for cables up to 2.5 mm². The VA burden of the module on the CTs is 0.5 VA. However, depending upon the type and length of cabling between the CTs and the module, CTs with a greater VA rating than the module are required.
  • Page 19 3.6.3 CT PHASING Take particular care that the CTs are connected to the correct phases. For instance, ensure that the CT on phase 1 is connected to the terminal on the DSE module intended for connection to the CT for phase 1.
  • Page 20 Specification accuracy required. The DSE module is accurate to better than 1% of the full-scale current reading. To maintain this accuracy, fit a Class 0.5 or Class 1 CT. Check with the CT manufacturer for further advice on selecting CTs.
  • Page 21 Specification 3.7 INPUTS 3.7.1 DIGITAL INPUTS Description Specification 12 configurable digital inputs Number (16 when Analogue Inputs are configured as digital inputs) Arrangement Contact between terminal and ground Low Level Threshold 2.1 V minimum High Level Threshold 6.6 V maximum Maximum Input Voltage +50 V DC with respect to plant supply negative Minimum Input Voltage...
  • Page 22 Ethernet Auto detecting 10/100 Mbit Ethernet port. NOTE: For additional length, the DSE124 CAN Extender is available. For more information, refer to DSE Publication: 057-116 DSE124 Operator Manual Standard implementation of ‘Slow mode’, up to 250 kbits/s Data connection 2 wire + common...
  • Page 23 3.10 COMMUNICATION PORT USAGE 3.10.1 USB SLAVE PORT (PC CONFIGURATION) NOTE: DSE stock 2 m (6.5 feet) USB type A to type B cable, DSE Part Number: 016-125. Alternatively, they are purchased from any PC or IT store. NOTE: The DC supply must be connected to the module for configuration by PC.
  • Page 24 Comms” to act as a master and read from the module(s) configured to “Gencomm”. For details on how to configure the PLC Editor to read via its RS485, refer to DSE Publication: 057-314 Advanced PLC Software Manual which is found on our website: www.deepseaelectronics.com...
  • Page 25 Specification 3.10.3.1 RECOMMENDED PC RS485 SERIAL PORT ADD-ONS NOTE: DSE have no business tie to Brainboxes. Over many years, our own engineers have used these products and are happy to recommend them. NOTE: For further details of setting up the devices below, refer to the manufacture whose details are below.
  • Page 26 Network) connection for remote connection via an internet connection. This allows for a large distance between the module and a PC running the DSE Configuration Suite software or any external device. The operator is then able to control the module, starting or stopping the engine, selecting operating modes, etc through various means.
  • Page 27 An example of the available SNMP TRAP messages is shown below. Additionally, the DSE module responds to GET / SET messages from the SNMP manager to allow the operating mode of the DSE module to be changed, or instrumentation values to be retrieved. The SNMP manager knows how to communicate to the DSE module by using the .MIB file provided by...
  • Page 28 PC with Ethernet port Network Cable Ethernet Cable Wiring Detail NOTE: DSE stock 2 m (6.5 feet) Ethernet Cable, DSE Part Number: 016-137. Alternatively, they can be purchased from any PC or IT store. Connection 1 (T568A) Connection 2 (T568B)
  • Page 29 Cable Ethernet Router or ADSL Router Ethernet Cable Wiring Detail NOTE: DSE stock 2 m (6.5 feet) Ethernet Cable, DSE Part Number: 016-137. Alternatively, they can be purchased from any PC or IT store. Connection 1 (T568A) Connection 2 (T568A)
  • Page 30 ADSL Router Sockets Ethernet Cable Ethernet Cable Wiring Detail NOTE: DSE stock 2 m (6.5 feet) Ethernet Cable, DSE Part Number: 016-137. Alternatively, they can be purchased from any PC or IT store. Connection 1 (T568A) Connection 2 (T568A) white/green...
  • Page 31 Specification 3.10.4.7 CONNECTION TO THE INTERNET Requirements • Ethernet cable (see below) • Working Ethernet (company or home network) • Working Internet connection (ADSL or DSL recommended) DSL or ADSL Router Ethernet INTERNET Cable The DSL/ADSL router routes external network traffic DSL or ADSL Router...
  • Page 32 NOTE: For further details of module configuration, refer to DSE Publication: 057-324 DSEG8660 Configuration Suite Software Manual. As modem/routers differ enormously in their configuration, it is not possible for DSE to give a complete guide to their use with the module. However, it is possible to give a description of the requirements in generic terms.
  • Page 33 For connection details, refer to section 4.2.12 entitled Typical Arrangement of AMSC Link. NOTE: DSE recommend Belden 9841 (or equivalent) cable for AMSC communication. This is rated to a maximum cable length of 250 m. DSE Stock Belden 9841 cable, DSE Part Number: 016-030.
  • Page 34 For connection details, refer to section 4.2.12 entitled Typical Arrangement of AMSC Link. NOTE: DSE recommend Belden 9841 (or equivalent) cable for AMSC communication. This is rated to a maximum cable length of 250 m. DSE Stock Belden 9841 cable, DSE Part Number: 016-030.
  • Page 35 DSENet ® NOTE: DSE recommend Belden 9841 (or equivalent) cable for DSENet communication. This is rated to a maximum cable length of 1.2 km. DSE Stock Belden 9841 cable, DSE Part Number: 016-030. ® DSENet is the interconnection cable between the host controller and the expansion module(s) and must not be connected to any device other than DSE equipment designed for connection to the ®...
  • Page 36 64 db at 1 m 3.11.1 ADDING AN EXTERNAL SOUNDER If an external alarm or indicator is required, this can be achieved by using the DSE Configuration Suite PC software to configure an auxiliary output for Audible Alarm, and by configuring an auxiliary input for Alarm Mute (if required).
  • Page 37 Specification 3.13 DIMENSIONS AND MOUNTING 3.13.1 DIMENSIONS 248 mm x 182.6 mm x 45.2 mm (9.76” x 7.18 ” x 1.77 ”) 3.13.2 PANEL CUTOUT 220 mm x 160 mm (8.66” x 6.29”) 3.13.3 WEIGHT 0.76 kg (1.67 lb) Page 37 of 207 057-325 ISSUE: 1...
  • Page 38 Specification 3.13.4 FIXING CLIPS NOTE: In conditions of excessive vibration, mount the module on suitable anti-vibration mountings. The module is held into the panel fascia using the supplied fixing clips: • Withdraw the fixing clip screw (turn anticlockwise) until only the pointed end is protruding from the clip.
  • Page 39 Specification 3.13.4.1 CABLE TIE FIXING POINTS Cable tie fixing points are included on the rear of the module’s case to aid wiring. This additionally provides strain relief to the cable loom by removing the weight of the loom from the screw connectors, reducing the chance of future connection failures.
  • Page 40 Specification 3.14 APPLICABLE STANDARDS Standard Description BS EN 60068-2-1 -30 C (-22 F) (Minimum temperature) BS EN 60068-2-2 +70 C (158 F) (Maximum temperature) BS EN 60068-2-6 Ten sweeps in each of three major axes (Vibration) 5 Hz to 8 Hz at ± 7.5 mm 8 Hz to 500 Hz at 2 gn BS EN 60068-2-27 Three shocks in each of three major axes...
  • Page 41 Specification Standard Description Continued… IEEE C37.2 (Standard Electrical 26 – Apparatus thermal device Power System Device 27AC – AC undervoltage relay Function Numbers and 27DC – DC undervoltage relay Contact Designations) 29 – Isolating contactor or switch 30 – Annunciator relay 37 –...
  • Page 42 Specification 3.14.1 ENCLOSURE CLASSIFICATIONS 3.14.1.1 IP CLASSIFICATIONS The modules specification under BS EN 60529 Degrees of protection provided by enclosures IP65 (Front of module when module is installed into the control panel). First Digit Second Digit Protection against contact and ingress of solid objects Protection against ingress of water No protection No protection...
  • Page 43 Installation 4 INSTALLATION The module is designed to be mounted on the panel fascia. For dimension and mounting details, see the section 3.13 entitled Dimension and Mounting. 4.1 USER CONNECTIONS NOTE: Availability of some terminals depends upon module version. Full details are given in the section 4.2 entitled Connection Descriptions.
  • Page 44 Start output requirements may be different. For further details on connection to electronic engines, refer to DSE Publication: 057-004 Electronic Engines And DSE Wiring NOTE: For further details of module configuration, refer to DSE Publication: 057-324 DSEG8660 Configuration Suite PC Software Manual.
  • Page 45 NOTE: Screened 120  impedance cable specified for use with CAN must be used for the CAN & AMSC links. DSE stock and supply Belden cable 9841 which is a high quality 120  impedance cable suitable for CAN use (DSE part number 016-030)
  • Page 46 NOTE: Screened 120  impedance cable specified for use with CAN must be used for the AMSC link. DSE stock and supply Belden cable 9841 which is a high quality 120  impedance cable suitable for CAN use (DSE part number 016-030) NOTE: As a termination resistor is internally fitted to the controller, the controller must be the ‘first’...
  • Page 47 Installation 4.2.4 OUTPUT C & D & V1 (MAINS) VOLTAGE & FREQUENCY SENSING NOTE: The below table describes connections to a three phase, four wire supply. For alternative wiring topologies, see section 4.3 entitled Typical Wiring Diagrams. Cable Description Notes Size 1.0mm²...
  • Page 48 Installation 4.2.6 CURRENT TRANSFORMERS WARNING!: Do not disconnect this plug when the CTs are carrying current. Disconnection will open circuit the secondary of the C.T.’s and dangerous voltages may then develop. Always ensure the CTs are not carrying current and the CTs are short circuit connected before making or breaking connections to the module.
  • Page 49 Installation or not enough load transferred, and the generator(s) may be shock loaded/unloaded as the bus disconnect from the mains. Page 49 of 207 057-325 ISSUE: 1...
  • Page 50 L is the primary of the CT that ‘points’ towards the Load s1 is the secondary of the CT that connects to the DSE Module’s input for the CT measuring s2 is the secondary of the CT that is connected with other common s2 connections of all the other CTs and connected to the CT common terminal of the module.
  • Page 51 NOTE: For further details of module configuration, refer to DSE Publication: 057-324 DSEG8660 Configuration Suite PC Software Manual. NOTE: A 120 Ω termination resistor must be fitted across terminals A and B if the DSE module is the first or last device on the R485 link.
  • Page 52 Typically, they extend USB up to 50 m. The supply and support of this type of equipment is outside the scope of Deep Sea Electronics. NOTE: For further details of module configuration, refer to DSE Publication: 057-324 DSEG8660 Configuration Suite PC Software Manual.
  • Page 53 NOTE: Screened 120  impedance cable specified for use with CAN must be used for the ® DSENet (RS485) connection. DSE stock and supply Belden cable 9841 which is a high quality 120 impedance cable ® suitable for DSENet use (DSE part number 016-030) ®...
  • Page 54 NOTE: Screened 120  impedance cable specified for use with CAN must be used for the AMSC link connection. DSE stock and supply Belden cable 9841 which is a high quality 120  impedance cable suitable for AMSC link (DSE part number 016-030) NOTE: A termination resistor MUST be fitted to the first and last unit on the AMSC link.
  • Page 55 DSEG86xx modules. The AMSC link is the interconnection cable between all DSE synchronising controllers and must not be connected to any device other than DSE equipment designed for connection to the AMSC link. Upon the main AMSC link failing for any reason, the user can configure the DSEG86xx modules to revert to the Redundant AMSC Link connection using the CAN Port connection.
  • Page 56 (the battery negative connects to Earth). 4.3.1.2 POSITIVE EARTH When using a DSE module with a Positive Earth System (the battery positive connects to Earth), the following points must be followed: Follow the typical wiring diagram as normal for all sections except the earth points.
  • Page 57 Installation 4.4 MAINS PARALLEL ALTERNATE TOPOLOGY WIRING DIAGRAMS NOTE: For further details of module configuration, refer to DSE Publication: 057-324 DSEG8660 Configuration Software Manual. NOTE: The Bus/Load CT is NOT REQUIRED in a system including only one DSEG8660 controller. For further information regarding the advantages of a Bus/Load CT, refer to section 6.8.2 entitled Bus/Load Current Transformer, or refer to DSE Publication: 056-007 Advantages...
  • Page 58 NOTE: The Bus/Load CT is NOT REQUIRED in a system including only one DSEG8660 controller. For further information regarding the advantages of a Bus/Load CT, refer to section 6.8.2 entitled Bus/Load Current Transformer, or refer to DSE Publication: 056-007 Advantages of Bus/Load CT.
  • Page 59 Installation 4.4.2 SINGLE PHASE (L1 & N) 2 WIRE WITH A BUS CT Page 59 of 207 057-325 ISSUE: 1...
  • Page 60 Installation 4.4.3 SINGLE PHASE 4 WIRE DELTA WITH A BUS CT 057-325 ISSUE: 1 Page 60 of 207...
  • Page 61 Installation 4.4.4 2 PHASE (L1 & L2) 3 WIRE WITH A BUS CT Page 61 of 207 057-325 ISSUE: 1...
  • Page 62 Installation 4.4.5 2 PHASE (L1 & L3) 3 WIRE WITH A BUS CT 057-325 ISSUE: 1 Page 62 of 207...
  • Page 63 Installation 4.4.6 3 PHASE 3 WIRE DELTA WITH A BUS CT Page 63 of 207 057-325 ISSUE: 1...
  • Page 64 Star, 3 Phase 4 Wire Delta L1-N-L2, 3 Phase 4 Wire Delta L1-N-L3 and 3 Phase 4 Wire Delta L2-N-L3. For further details of module configuration to suit these different topologies, refer to DSE Publication: 057-324 DSEG8660 Configuration Suite Software Manual. 057-325 ISSUE: 1...
  • Page 65 L2-N-L3. For further details of module configuration to suit these different topologies, refer to DSE Publication: 057-324 DSEG8660 Configuration Suite Software Manual. This example shows the Bus/Load CT in the common load feed for a three phase four wire system,...
  • Page 66 Installation 4.5 GROUP CONTROLLER ALTERNATIVE TOPOLOGY DIAGRAMS NOTE: For further details of module configuration, refer to DSE Publication: 057-324 DSEG8660 Configuration Software Manual. CAUTION!: Switching the application to Group Controller forces the mains breaker to be closed without synchronising checks.
  • Page 67 Installation 4.5.2 3 PHASE (L1,L2,L3 & N) 4 WIRE Page 67 of 207 057-325 ISSUE: 1...
  • Page 68 Installation 4.5.3 3 PHASE (L1,L2,L3) 3 WIRE 057-325 ISSUE: 1 Page 68 of 207...
  • Page 69 Installation 4.5.4 2 PHASE (L1,L3 & N) 3 WIRE Page 69 of 207 057-325 ISSUE: 1...
  • Page 70 Installation 4.5.5 2 PHASE (L1,L2 & N) 3 WIRE 057-325 ISSUE: 1 Page 70 of 207...
  • Page 71 Installation 4.5.6 SINGLE PHASE (L1 & N) 2 WIRE Page 71 of 207 057-325 ISSUE: 1...
  • Page 72 Installation 4.5.7 3 PHASE (L1,L2 ,L3 & N) 4 WIRE 057-325 ISSUE: 1 Page 72 of 207...
  • Page 73 Operation 5 DESCRIPTION OF CONTROLS CAUTION: The module may instruct breaker transitions events due to external influences. Therefore, it is possible for breaker transitions to happen at any time without warning. Prior to performing any maintenance on the system, it is recommended that steps are taken to remove the battery and isolate supplies.
  • Page 74 Operation 5.1 CONTROL PUSH BUTTONS NOTE: For further details, see section 5.3.17.7 entitled Operation. Icon Description Mode Button In the G8660 the mode button is used to select Auto Mode, Test Mode, or Manual Mode. Pressing the button cycles through Auto mode > (Test mode) >...
  • Page 75 Operation 5.2 DISPLAY SCREEN When an event or user interaction happens, this may be represented on the display graphically. There are three sections on the display namely the Status, Configurable Instrumentation Display and Application Mode section which help the user identify what operating state the module is in. Home 18.30 Status...
  • Page 76 Operation Configurable Instrumentation Display Section The middle section of the display shows any configured instrumentation. Home 18.30 Mains on load Bus Frequency 0.00 Scroll bar Bus kW Total 0.0% Bus kvar Total 0 kvar Configurable Instrumentation Display Section Application Mode Section The bottom of the display screen will show two different types of graphics depending on which application mode has been selected.
  • Page 77 Operation 5.3 VIEWING THE INSTRUMENT PAGES NOTE: Depending upon the module’s configuration, some display screens may be disabled. For further details of module configuration, refer to DSE Publication: 057- 324 DSEG8660 Configuration Suite PC Software Manual. Selecting Pages To navigate to different pages or sub-pages the following sequence must be observed.
  • Page 78 Operation Enabling/Disabling Items Selecting an item on a page can be achieved by repeatably pressing the Tick button to cycle through each item and then using the Next Page button to make the selection. Example Data Logging 18.30 Logging Destination Internal Memory Logging Status Disabled...
  • Page 79 Operation Using Slider Controls Press the Tick button and using the Next or Previous Page buttons adjust the slider. Once the selection has been made press the Tick button again to save the setting. Display Settings 18.30 Contrast Making Selections Press the Tick button to highlight and use the Scroll buttons to change the selection.
  • Page 80 Operation Configuring Timers The LCD Page timers are configurable using the DSE Configuration Suite Software or by using the Front Panel Editor. The screenshot shows the factory settings for the timers, taken from the DSE Configuration Suite PC Software. Alternatively, to scroll manually through all instruments on the currently selected page, press the Scroll buttons.
  • Page 81 NOTE: Press the Scroll buttons on the Home Page to view other Configurable Status Screens if configured. For further details of module configuration, refer to DSE Publication: 057- 324 DSEG8660 Configuration Suite PC Software Manual. This is the ‘Home’ page, the page that is displayed when no other page has been selected, and the page that is automatically displayed after a period of inactivity (LCD Page Timer) of the module control buttons.
  • Page 82 Operation 5.3.1.1 ELECTRICAL TRIP NOTE: For further details of module configuration, refer to DSE Publication: 057-324 DSEG8660 Configuration Suite PC Software Manual. Home 18.30 Electrical trip Bus Frequency Mains failed 0.00 Electrical Trip Alarm on the module. Press the Next or Previous Page button to scroll to the alarms page to investigate.
  • Page 83 Operation 5.3.1.2 CONFIGURABLE INSTRUMENT DISPLAY The contents of the Home Page may vary depending upon configuration by the generator manufacturer or supplier. Below is an example of the Home Page being changed to show bus instrumentation. The configured instruments are displayed on the Home Page Other instruments can be configured to be shown,...
  • Page 84 Operation 5.3.2 BUS Contains electrical values of the Bus, measured, or derived from the module’s voltage and current inputs. Press the Scroll buttons scroll through the Bus parameters. 18.30 Instrumentation Commissioning AMSC Synchroscope 5.3.2.1 INSTRUMENTATION Settings 18.30 Bus L1 0.0 V Bus L2 0.0 V Bus L3...
  • Page 85 Operation 5.3.2.2 COMMISSIONING NOTE: Some of the items may be removed from the commissioning screens if they are not applicable to the module configuration. Commissioning screens are available to both aid the commissioning process and to give additional information about the synchronising and load sharing process. These screens are enabled and disabled in the module’s display editor.
  • Page 86 ID is assigned to the configured AMSC ID value when the module is powered up. Take note to enable this option in all the DSE modules if to be used, ensuring that each DSE module has a unique AMSC 057-325 ISSUE: 1...
  • Page 87 Operation This display screen shows this module’s AMSC ID and shows which AMSC IDs are currently communicating on the AMSC link by the number 1 indication. AMSC IDs that are currently not communicating or not connected are indicated by the number 0. If the AMSC ID for each module is known, this display screen can be used to determine which module is not communicating on the AMSC link.
  • Page 88 Operation 5.3.2.4 SYNCHROSCOPE Once the mains and bus supplies are in sync, the module initiates a breaker close signal to the generator load switch closing the generator onto the mains. Synchroscope 18.30 0.2 Hz 0.2 V   0.0 kW 0.0% Ramp 5.0%...
  • Page 89 Operation 5.3.3 MAINS (MAINS PARALLEL) Contains electrical values of the Mains (utility), measured, or derived from the module’s (that controls the mains (utility) switch) voltage and current inputs. Press the Scroll buttons to scroll through the Mains parameters. Mains 18.30 Mains L1-N 0.0 V Mains L2-N...
  • Page 90 Operation 5.3.4 GROUP Contains electrical values of the Group (utility), measured, or derived from the module’s (that controls the Group (utility) switch) voltage and current inputs. Press the Scroll buttons to scroll through the Group parameters. Mains 18.30 Group L1-N 0.0 V Group L2-N 0.0 V...
  • Page 91 Operation 5.3.5 ALARMS When an alarm is active, the Internal Audible Alarm sounds and the alarm LED next to the Stop button, flashes for a warning and is steady on for a trip. Common Alarm LED, if configured, illuminates. The audible alarm is silenced by pressing the Alarm Mute / Lamp Test button.
  • Page 92 Operation 5.3.5.2 ALARM RESET Alarm Reset 18.30 Mains Decoupling Reset Electrical Trip Reset Active DTC Reset Inactive DTC Reset Mains Fail Reset The parameters are: • Mains Decoupling Reset • Electrical Trip Reset • Active DTC Reset • Inactive DTC Reset •...
  • Page 93 Operation 5.3.5.3 EVENT LOG NOTE: For further details of module configuration, refer to DSE Publication: 057-324 DSEG8660 Configuration Suite PC Software Manual. The module maintains a log of past alarms and/or selected status changes. Under default factory settings, the event log is configured to include all possible options; however, this is configurable by the system designer using the DSE Configuration Suite software.
  • Page 94 Operation Press the Scroll Down button to view the next most recent event. Continuing to press the Scroll Down button cycles through the past events after which, the display shows the most recent alarm, and the cycle begins again. To exit the event log and return to viewing the instruments, press the Previous Page button to select the next instrumentation page.
  • Page 95 2 seconds. The DSE MODBUS document containing register mappings inside the DSE module is available upon request from support@deepseaelectronics.com. Email the request along with the serial number of the DSE module to ensure the correct information is sent.
  • Page 96 Operation 5.3.6.2 LINK QUALITY RS485 MODBUS RTU DIAGNOSTICS RS485 MODBUS RTU diagnostic screens are included; press the Scroll Down button when viewing the RS485 Serial Port instruments to cycle to the available screens. If experiencing RS485 MODBUS RTU communication problems, this information aids troubleshooting. Link Quality 18.30 Shows the state of the RS485...
  • Page 97 Whilst in the Communication section, press the Scroll Down button to access more information about the network settings. Network settings are configured using DSE Configuration Suite PC Software. The module must be rebooted for the changes to take effect. IP Address:...
  • Page 98 NOTE: For further details on the operation of the inbuilt scheduler feature, refer to section entitled Scheduler in the Operation section of this document. NOTE: For further details of module configuration, refer to DSE Publication: 057-324 DSEG8660 Configuration Suite PC Software Manual.
  • Page 99 Item 1 Duration more items 1- the scheduled run. Example Screen capture from DSE Configuration Suite Software showing the configuration of the Exercise Scheduler. In this example the start request is made on Monday in the First Week of each month at 09:00 am and lasts for 5...
  • Page 100 Operation • If the module is in Stop/Reset Mode or Manual Mode when a scheduled run begins, the start request is not given. However, if the module is moved into Auto Mode during a scheduled run, the start request is given. •...
  • Page 101 NOTE: Depending upon the module’s configuration, some display screens may be disabled. The PLC Instrument screen is visible once watched variables have been written to the module using the PLC Editor. For further details of module configuration, refer to DSE Publication: 057-314 Advanced PLC Programming Guide for DSE Modules.
  • Page 102 Operation Counter Var Example Timer Var 18.30 New Counter 1: The name of the Register Example: counter as configured in the PLC. New Counter 1 000022 Actual: The number the counter has currently reached. Set Point: The number at which Store Example: the counter stops incrementing 057-325 ISSUE: 1...
  • Page 103 Operation 5.3.13 DATA LOGGING Whilst on the Data Logging page use the Scroll buttons to access more information about the Data logging settings. Logging Logging Status: If data Destination: logging is Displays either Data Logging 18.30 Enabled or internal Disabled module Logging Destination Internal Memory...
  • Page 104 Operation 5.3.14 ABOUT Contains important information about the module and the firmware versions. This information may be asked for when contacting DSE Technical Support Department for advice. Use the Scroll buttons to access more information about the module. Variant: Mains...
  • Page 105 Operation 5.3.15 VIRTUAL I/O NOTE: Virtual I/O is configured using the DSE Configuration Suite Software. For further details, refer to DSE Publication: 057-324 G8660 Configuration Suite PC Software Manual. This page displays the inputs and outputs configured using the Configuration Suite PC Software using the Virtual Input and Virtual LEDs pages.
  • Page 106 Operation Outputs The LED outputs are configured in the Virtual LED section of Config Suite. Once the LED is configured in the LED Configuration, it will show on the Outputs page below. Outputs 18.30 LED 1 LED 2 LED 3 057-325 ISSUE: 1 Page 106 of 207...
  • Page 107 Operation 5.3.16 RUNNING EDITOR Use the Next or Previous Page buttons to select. Press the Tick button to confirm selection. Running Editor 18.30 Synchronising Display Settings Load Control 5.3.16.1 DISPLAY SETTINGS The list of parameters are: Contrast Press the Tick button and using the Next or Previous Page buttons adjust the slider.
  • Page 108 Operation Language Press the Tick button and press the Next Page followed by the Scroll buttons to change the selection. Display Settings 18.30 Language English 057-325 ISSUE: 1 Page 108 of 207...
  • Page 109 Operation Alarm Pop Up Press the Tick button and then using the Next Page button to enable/disable the selection. Display Settings 18.30 Alarm Pop Up Disabled Page 109 of 207 057-325 ISSUE: 1...
  • Page 110 Operation 5.3.16.2 SYNCHRONISING Commissioning & Override Starting Alarms Press the Tick button and press the Next Page button to change the selection to change selection from Enabled to Disabled or vice-versa. Synchronising 18.30 Commissioning screen Press the Scroll Down Enabled Override Starting Alarms button to access...
  • Page 111 Operation Frequency Adjust Press the Tick button and using the Next or Previous Page buttons adjust the slider. Once the selection has been made press the Tick button again to save the setting. Synchronising 18.30 Frequency Adjust 280.0 % 0.0 Hz 0 RPM Page 111 of 207 057-325 ISSUE: 1...
  • Page 112 Control curves. For details on how to test the Simulation Injection on the DSE module refer to DSE Publication: 056-123 Simulation Injection Testing document. The Injection Port must be enabled in the DSE module from the Running Editor to be able to accept the injecting control.
  • Page 113 Operation Power Control Mode Press the Tick button and press the Next Page button followed by the Scroll button to change the selection. Load Control 18.30 Power Control Mode The Power Control Modes Const Power are: Constant Power Frequency Power Voltage Power kVar Control Mode Press the Tick...
  • Page 114 Operation Load Parallel Power Press the Tick button and using the Next or Previous Page buttons adjust the slider. Once the selection has been made press the Tick button again to save the setting. Load Control 18.30 Load Parallel Power 172 kW 057-325 ISSUE: 1 Page 114 of 207...
  • Page 115 Operation Load Parallel kvars Press the Tick button and using the Next or Previous Page buttons adjust the slider. Once the selection has been made press the Tick button again to save the setting. Load Control 18.30 Load Parallel kvars 1.00 0 kvar Load Parallel PF...
  • Page 116 5.3.17 EDITOR NOTE: Depending upon the module’s configuration, some display screens may be disabled. For further details of module configuration, refer to DSE Publication: 057-324 DSEG8660 Configuration Suite PC Software Manual. Contains a selection of parameters selected by the operator that may be edited from the facia without having to enter the module’s Front Panel Editor.
  • Page 117 Operation 5.3.17.1 DISPLAY SETTINGS Language Press the Tick button and using the Next or Previous Page buttons adjust the contrast Press the Tick button again to save the setting Display Settings 18.30 Select Language Language using drop down English menu. Current Date &...
  • Page 118 Operation Platform Mode The current platform is displayed. Press the Tick button to highlight and use the Scroll button to change the selection. Once a selection has been made press the Tick button to confirm. Config 18.30 Platform Mode Mains Parallel Group Controller 057-325 ISSUE: 1 Page 118 of 207...
  • Page 119 Operation 5.3.17.2 AMSC AMSC 18.30 AMSC ID AMSC ID of the module. AMSC Group Primary ID Group AMSC ID of the Primary Bus. 18.30 AMSC AMSC Group Secondary ID Group AMSC ID of the Secondary Bus. AMSC Segment Number 1 AMSC Bus Segment Number 1...
  • Page 120 Operation AMSC 18.30 AMSC Secondary AMSC Segment Group Secondary Segment Group number. User Priority AMSC User Priority Master Arbitration number. Lowest number has highest priority. AMSC 18.30 Calling for Less Sets The kW load level at which the module decides that generator is disconnected from the...
  • Page 121 Operation 5.3.17.3 GROUP (GROUP CONTROLLER) The Group page gives an overview of the instrumentation group parameters. Group 18.30 AC System 3 Phase, 4 Wire CT Primary 184V Press the Tick button and then using the Next Page button to reveal the other AC topologies.
  • Page 122 Operation Select the Group parameters from the following list: • • Positive Sequence Alarm Delay AMSC Segment Number 1 • • Negative Sequence Alarm AMSC Segment Number 2 • • Negative Sequence Alarm Trip AMSC Segment Bank Primary • • Negative Sequence Alarm Delay AMSC Segment Bank Secondary •...
  • Page 123 Operation 5.3.17.4 BUS 18.30 Zero Sequence Enable Disabled Zero Sequence Trip 23.0 V The list of available parameters are: • Zero Sequence Enable • Positive Sequence Enable • Negative Sequence Enable • Asymmetry Enable Page 123 of 207 057-325 ISSUE: 1...
  • Page 124 Operation 5.3.17.5 MAINS (MAINS PARALLEL) Contains electrical values of the Mains (utility), measured, or derived from the module’s (that controls the mains (utility) switch) voltage and current inputs. Mains 18.30 Under Voltage Trip 184 V Over Voltage Pre-Alarm Return 276 V Press the Tick button and then using the Next or Previous buttons adjust the...
  • Page 125 Operation 5.3.17.6 TIMERS The timers page allows adjustment of various Start Delay and Start Timers. Timers 18.30 Remote Start Off Load 0h 0m 5 s Remote Start On Load 0h 0m 5 s • Remote Start Off Load • Remote Start On Load •...
  • Page 126 NOTE: For further details on the operation of the inbuilt scheduler feature, refer to section entitled Scheduler in the Operation section of this document. NOTE: For further details of module configuration, refer to DSE Publication: 057-324 DSEG8660 Configuration Suite PC Software Manual.
  • Page 127 Operation Indicates which bank and schedule entry is being Bank 1 18.30 displayed Period Press the Weekly Indicates if the Scroll Down Monthly scheduled action occurs Item 1 Week button weekly. to access more pages. Week 4 Bank 1 18.30 Press the Tick Item 1 Week button to highlight.
  • Page 128 Operation Bank 1 18.30 Item 1 Duration Specify the Duration. 00:00 Item 2 Week Week 4 057-325 ISSUE: 1 Page 128 of 207...
  • Page 129 Operation 6 OPERATION NOTE: The following descriptions detail the sequences followed by a module containing the standard ‘factory configuration’. Always refer to your configuration source for the exact sequences and timers observed by any module in the field. 6.1 QUICKSTART GUIDE This section provides a quick start guide to the module’s operation.
  • Page 130 Operation 6.1.2 STOPPING THE GENERATOR(S) Select the Stop/Reset mode button to stop the generator. Select Stop/Reset mode. The generator is stopped 057-325 ISSUE: 1 Page 130 of 207...
  • Page 131 (if the bus breaker is open and not be synchronising or ramping) from DSE Configuration Suite PC software and to enter the Front Panel Editor to change parameters. Any latched alarms that have been cleared are reset when Stop/Reset Mode is entered.
  • Page 132 6.3.1 STARTING SEQUENCE NOTE: There is no Start Delay in this mode of operation. NOTE: For further details of module configuration, refer to DSE Publication: 057-324 DSEG8660 Configuration Suite Software Manual. A start request is sent to all the DSEG8600 (Multi Set) modules and Group controllers on the AMSC link.
  • Page 133 Operation 6.3.2 LOADING GENERATOR BUS Once the generator(s) closes its load switch, the generator bus is seen as available and the generator bus LED illuminates. the generator bus load switch is not closed until a ‘loading request’ is In Manual Mode , made.
  • Page 134 Operation 6.3.3 UNLOADING GENERATOR BUS Once the generator bus has been placed on load, it is not automatically removed. To instruct the generator bus to ramp its load off and open its load switch, ensure none of the loading requests are active or have Manual Breaker Control enabled and either: •...
  • Page 135 6.4.1 STARTING SEQUENCE NOTE: There is no Start Delay in this mode of operation. NOTE: For further details of module configuration, refer to DSE Publication: 057-324 DSEG8660 Configuration Suite Software Manual. A start request is sent to all the DSEG8660 modules on the AMSC link. The type of start request sent from the DSEG8660 is dependent upon module configuration.
  • Page 136 Operation 6.4.2 LOADING GENERATOR BUS Once the generator(s) closes its load switch, the generator bus is seen as available and the generator bus LED illuminates. TEST In Test Mode , the generator bus load switch is closed automatically when the generator bus is seen as available.
  • Page 137 Operation 6.5 AUTOMATIC MODE NOTE: If a digital input configured to Panel Lock is active on either module, changing modes on both modules is not possible. Viewing the instruments and event logs is NOT affected by panel lock. Auto Mode is activated by pressing the Mode button.
  • Page 138 Operation 6.5.3 LOADING GENERATOR BUS Once the generator closes its load switch, the generator bus is seen as available and the generator bus LED illuminates. In Auto Mode , the generator bus load switch is closed automatically (if instructed too) when the generator bus is seen as available.
  • Page 139 Operation 6.6 ISLAND OPERATION (LOAD SHARE) NOTE: For further details on the DSE Load Demand Scheme (the automatic starting/stopping of generators based on load demand), refer to DSE Publication: 056-013 Load Demand Scheme. NOTE: If there is more than one Mains Parallel Controller in island operation in a steady state then all controllers will have the same priority.
  • Page 140 Operation In the example below, the mains has failed so is not supplying any power to the load. One generator is twice the size of the other though both generators are instructed to produce 80 % of their kW rating and 40 % of their kvar rating.
  • Page 141 Operation 6.7 CONTINOUS PARRALLEL OPERATION 6.7.1 BUS MODE (FIXED EXPORT / BASE LOAD) During specified times of the day, the generator bus can be started and parallel to the mains using the Remote Start on Load input to the DSEG8660 or the Scheduler. When the DSEG8660 is set to Bus Mode, this causes the generator bus to produce a fixed (base) level of power against the mains, synchronising to the mains before closing the generator bus breaker.
  • Page 142 Operation When the generator bus is paralleled to the mains, the DSEG8660 instructs all the DSEG8600 controllers to instruct their generator to produce the same pre-set percentage of the generators rating. This pre-set percentage is changeable whilst the generator is running via a multitude of different interfaces.
  • Page 143 Constant Active Power Mode (Default) This is the default mode of exporting power to the mains (utility); where the DSE load share controller holds the amount of active power produced at a constant level. The amount of active power produced by the generator is irrespective of the load level or any other parameter.
  • Page 144 VOLTAGE AND REACTIVE (KVAR) POWER CONTROL Constant Reactive Power Mode (Default) This is the default mode of exporting power to the mains (utility); where the DSE load share controller holds the amount of reactive power produced at a constant level. The amount of reactive power produced by the generator is irrespective of the load level or any other parameter.
  • Page 145 NOTE: For further details about the Simulation Injection Testing, refer to DSE Publication: 056-123 Simulation Injection Testing. The Simulation Injection Testing enables the user to override the DSE module’s measurements of the bus generator(s) voltage and frequency. This is provided so the various Power Modes for mains parallel can be tested without having to alter the main’s actual voltage and frequency.
  • Page 146 Operation 6.7.3 MAINS MODE (PEAK LOPPING/SHAVING) During specified times of the day, the generator bus can be started and paralleled to the mains using the Remote Start on Load input to the DSEG8660 or the Scheduler. When the DSEG8660 is set to Mains Mode, this causes the generator bus to only start and synchronise to the mains when the load level rises above a pre-defined mains load level.
  • Page 147 Operation When the generator bus is paralleled to the mains, the DSEG8660 instructs all the DSEG8600 controllers to instruct their generator to produce an equal percentage of the generators rating to maintain the mains at the pre-set percentage. This pre-set percentage is changeable whilst the generator is running via a multitude of different interfaces.
  • Page 148 Operation 6.8 MULTIPLE MAINS OPERATION NOTE: At no time are the generators paralleled with more than one mains supply. Paralleling with mains supplies is always taken in turn. In a multiple mains system, the generator bus is controlled by more than one DSEG8660 mains controller and used to provide power to multiple loads.
  • Page 149 Operation 6.8.1 DSEG8660 PRIORITY NOTE: If a DSEG8660 requests to control the generator bus (either automatically or manually) it will not be allowed to do so until the higher priority DSEG8660 and DSE8680 controllers have relinquished control over the generator bus. Where more than one DSEG8660 controller is present, they determine which one is to take control over the generator bus.
  • Page 150 Island mode or Manual mode when the mains switchgear is open. In this instance the user must configure the Bus Voltage Adjust and the Bus Frequency Adjust functions to the desired levels in the DSE module’s LC, which then act on certain conditions such as digital inputs activation.
  • Page 151 The solution to this is a longstanding one, having being used for many decades. However modern digital communications such as the DSE AMSC link has vastly improved the control and hence safety of the system operation. The solution is called Dead Bus Synchronising. Using Dead Bus Synchronising, any number of generators can be online and in parallel potentially within 15 seconds, depending upon applications and hardware used.
  • Page 152 Protections 7 LOAD DEMAND SCHEME TOPOLOGIES 7.1 LOAD DEMAND/PRIMARY (G8660 AS A GROUP CONTROLLER) From a load share perspective, a G8660 in Group Controller mode appears as a single Generator, transmitting a Fast Share and Arbitration Broadcast message, Slow Share and Bus Arbitration Broadcast message and Config Broadcast message like any other single Generator.
  • Page 153 Protections 7.2 GROUP CONTROLLERS SECONDARY LOAD DEMAND SCHEME 1. A Group Controller can operate a load demand scheme on its secondary bus, allowing it to reduce the number of Generators being run though at the expense of these being more heavily loaded than they would be if all Generators on the Group were run.
  • Page 154 Protections Interaction between Primary AMSC and Secondary AMSC Group Controller Primary Load Demand Scheme will call for more group controllers at threshold of 50% Example Calling for more sets at 60% 1. Each generator will join the bus once the load is above the “calling for less sets” threshold of 70% in the Secondary Load Demand Scheme.
  • Page 155 Protections 3. Group Controller P1 will then gradually drop down (3 sets) to balance with Group Controller 4. It the load increases this will continue with the next Group Controller and the load will continue to balance out with all previous Group controllers. Page 155 of 207 057-325 ISSUE: 1...
  • Page 156 Protections 7.3 DUAL MAINS, DUAL LOAD, GROUP OF GENERATORS SHARED BETWEEN THE MAINS CONTROLLERS 1. Only Generator, Mains and Group Controllers can be configured to this topology. 2. In this topology there are two mains supplies and two loads. One or more Generators are on a bus.
  • Page 157 Protections 7.4 BUS SEGMENT AND LOAD SEGMENT NUMBERS The Bus Segment and Load Segment numbers are used to identify Bus and Load segments. WARNING! : The Bus Segment number and Load Segment numbers cannot be the same! This is critical for safe control! If the Bus tie controller Hint: is closed then Bus Segment...
  • Page 158 Protections 8 PROTECTIONS 8.1 ALARMS When an alarm is active, the Internal Audible Alarm sounds and the Common Alarm output if configured, activates. A pop-up screen will also be displayed in-front of the Home menu. Example Module Alarms 18.30 ALARM Mains Failed to Close Warning Pressing the Tick...
  • Page 159 Protections Example: Module Alarms 18.30 Mains Failed to Close Shutdown [001/001] Page 159 of 207 057-325 ISSUE: 1...
  • Page 160 Indications are non-critical and often status conditions which activate digital outputs. The internal PLC allows the system designer to add functionality to the DSE module where such functions do not already exist, and this can be used to provide indication.
  • Page 161 NOTE: Due to module configuration the alarm message that appears on the display may be different. For further 2130 ID 1 to 4 Analogue details of module configuration, refer to DSE Publication: 057- Input 324 DSEG8660 Configuration Suite PC Software Manual.
  • Page 162 NOTE: Due to module configuration the alarm message that appears on the display may be different. For further 2131 ID 1 to 4 Analogue details of module configuration, refer to DSE Publication: 057- Input 324 DSEG8660 Configuration Suite PC Software Manual.
  • Page 163 Mains High Current alarm. NOTE: Due to module configuration the alarm message that appears on the display may be different. For further details of module configuration, refer to DSE Publication: 057- Charger ID 0 to 3 Common 324 DSEG8660 Configuration Suite Software Manual.
  • Page 164 Description NOTE: Due to module configuration the alarm message that appears on the display may be different. For further details of module configuration, refer to DSE Publication: 057- 324 DSEG8660 Configuration Suite PC Software Manual. Digital Input A to L...
  • Page 165 Protections Fault Description The module detected that an input configured for AMSC Alarms AMSC Alarms Inhibited Inhibit had become active disabling all the AMSC alarms. That module detected that the AMSC and Redudant AMSC AMSC 1 and 2 Failure communication failed, most likely caused by it being disconnected. The module detected that data on the AMSC link had become AMSC 1 Data Error corrupt, possibly caused by incorrect wiring or faulty cabling.
  • Page 166 NOTE: Due to module configuration the alarm message that appears on the display may be different. For further 2130 ID 1 to 4 Analogue details of module configuration, refer to DSE Publication: 057- Input 324 DSEG8660 Configuration Suite PC Software Manual.
  • Page 167 NOTE: Due to module configuration the alarm message that appears on the display may be different. For further 2131 ID 1 to 4 Analogue details of module configuration, refer to DSE Publication: 057- Input 324 DSEG8660 Configuration Suite PC Software Manual.
  • Page 168 Trip level for the configured delay timer. NOTE: Due to module configuration the alarm message that appears on the display may be different. For further details of module configuration, refer to DSE Publication: 057- Charger ID 0 to 3 Common 324 DSEG8660 Configuration Suite Software Manual.
  • Page 169 Check all the module firmware version numbers (under About | Application Number on the modules’ displays) and Invalid Units on AMSC ensure all are the latest version firmware. Use the DSE Configuration Suite Software to upgrade the firmware (Tools | Update Firmware) of the older modules.
  • Page 170 Protections Fault Description NOTE: For further details, refer to DSE Publication: 056-047 Out of Sync and Failed to Close Training Document. Out of Sync Mains If the module detects that the mains supply is not sync when the breaker is closed. The LCD indicates Out Of Sync Mains.
  • Page 171 Protections 8.5 MAINS DECOUPLING ALARMS NOTE: These protections only operate only when the mains and generator bus are in parallel, it is disabled at all other times. When the mains (utility) and the generator bus supplies are in parallel, the module monitors for a Mains failure by detecting ROCOF, Vector Shift or UV / OV /UF / OF stage 1 and 2 fault which are set in the module’s configuration.
  • Page 172 Protections 8.6 BUS SEQUENCE ALARMS NOTE: For further details of module configuration, refer to DSE Publication: 057-324 DSEG8660 Configuration Suite PC Software Manual. Zero Sequence Alarm The alarm activates when the difference in potential between the Earth and the calculated Neutral position of a 3-wire delta exceeds the configured Zero Sequence Alarm Trip level for the configured Delay time.
  • Page 173 Protections 8.7 OUT OF SYNC MAINS An Out of Sync Mains alarm means that the DSEG8660 module has detected that the supplies either side of the mains breaker are not in sync when the mains breaker is closed. This is normally caused by the mains load switching device not closing quickly enough or not at all or tripping on a fault.
  • Page 174 Protections 8.8 MAINS SEQUENCE ALARMS NOTE: For further details of module configuration, refer to DSE Publication: 057-324 DSEG8660 Configuration Suite PC Software Manual. When the mains (utility) is available, the DSEG8660 module monitors the mains supply to detect a Mains Asymmetry High, or Mains Over Negative Sequence, or Mains Zero Over Sequence, or Mains Under Positive Sequence fault which are set in the module’s configuration.
  • Page 175 Protections 8.9 MAINS VOLTAGE ALARMS NOTE: For further details of module configuration, refer to DSE Publication: 057-324 DSEG8660 Configuration Suite PC Software Manual. When the mains (utility) is available, the DSEG8660 module monitors the mains supply to detect a Mains Under Frequency or Mains Over Voltage in the event of the Mains Voltage falling below or above the configured level.
  • Page 176 Protections 8.10 MAINS FREQUENCY ALARMS NOTE: For further details of module configuration, refer to DSE Publication: 057-324 DSEG8660 Configuration Suite PC Software Manual. When the mains (utility) is available, the DSEG8660 module monitors the mains supply to detect a Mains Under Frequency or Mains Over Frequency in the event of the Mains frequency falling below or above the configured Trip value.
  • Page 177 Protections 8.11 CURRENT ALARMS NOTE: For further details of module configuration, refer to DSE Publication: 057-324 DSEG8660 Configuration Suite PC Software Manual. Overcurrent Alarm The overcurrent alarm combines a simple warning trip level combined with a fully functioning IDMT curve for thermal protection.
  • Page 178 NOTE: Depending on module configuration, Fault Ride Through function operates when the generators are in parallel with the mains or when they are running in island. For further details of module configuration, refer to DSE Publication: 057-324 DSEG8660 Configuration Suite PC Software Manual.
  • Page 179 The module increments this counter every time it activates the Fault Ride Through feature. This counter is accessed using the SCADA section of the DSE Configuration Suite Software, under the Bus section’s Fault Ride Through. The Fault Ride Through Events counter is resettable from the Accumulated Instrumentation in the SCADA’s Maintenance section.
  • Page 180 This configuration mode allows the operator to fully configure the module through its display without the use of the DSE Configuration Suite PC Software. Use the module’s facia buttons to traverse the menu and make value changes to the parameters:...
  • Page 181 Editor page. 9.1.2 ENTERING PIN NOTE: The PIN is not set by DSE when the module leaves the factory. If the module has a PIN code set, the generator supplier has entered this. Contact the generator supplier if the code is required.
  • Page 182 Front Panel Configuration • button, the first ‘#’ changes to ‘0’. Press the Up or Down Press the Tick buttons to adjust it to the correct value. • Press the Right button when the first digit is correctly entered. The digit previously entered now shows as ‘#’...
  • Page 183 Front Panel Configuration 9.1.4 EXITING THE FRONT PANEL EDITOR NOTE: The editor automatically exits after 5 minutes of inactivity to ensure security. • Press the Right or Left buttons to select Yes or No • Press and hold the Tick button to exit the editor and save the changes.
  • Page 184 Front Panel Configuration 9.1.5 MAIN CONFIGURATION EDITOR PARAMETERS Section Parameter As Shown On Display Values Display Contrast Language English, Other. Current Date and Time DD:MM:YY, hh:mm:ss Alt Config Default Config Default Config / Alternative Config Start Delay On Load 0 h 0 m 0 s Battery Under Voltage Warning Active / Inactive Battery Under Voltage Warning Delay...
  • Page 185 Front Panel Configuration Section Parameter As Shown On Display Values Mains Under Voltage Trip Over Voltage Trip Under Frequency Trip 0 Hz Over Frequency Trip 0 Hz Transient Delay 0.0 s CT Primary Power Cycle After Exit CT Secondary Power Cycle After Exit Full kW Rating 0 kW Full kVar Rating...
  • Page 186 9.2 ‘RUNNING’ CONFIGURATION EDITOR 9.2.1 ACCESSING THE ‘RUNNING’ CONFIGURATION EDITOR NOTE: Depending upon module configuration, some parameters in the ‘Running’ Editor may not be available. For more information refer to DSE publication 057-324 DSEG8660 Configuration Suite PC Software Manual available from www.deepseaelectronics.com •...
  • Page 187 Front Panel Configuration 9.2.3 EXITING THE ‘RUNNING’ CONFIGURATION EDITOR NOTE: The editor automatically exits after 5 minutes of inactivity to ensure security. • Press the Previous Page button to exit the editor and save the changes. ‘RUNNING’ CONFIGURATION EDITOR PARAMETERS 9.2.4 Section Parameter As Shown On Display...
  • Page 188 The unit DC supply is fused and connected to the battery and that it is of the correct polarity. Check the operation of the AMSC Link. Use the DSE Configuration Suite to check this in the SCADA | BUS | AMSC Link page. Verify the number of Set On The Bus is equal to that of the number of DSEG8600 (Multi Set) modules.
  • Page 189 Synchronising and load sharing is often considered to be a complex subject. In fact, it is very simple when broken down into smaller steps. After following the Commissioning section of this manual, the DSE 4 Steps must be followed before any parallel operation is attempted.
  • Page 190 Ensure that the generator is connected to a DEAD BUS BAR WITH NO LOADS connected. With the generator breaker open, set the generator to run at the Nominal Frequency without the DSE module connected to the Governor. To achieve this, you will have to adjust the settings on the governor.
  • Page 191 Commissioning Adjustment of Governor SW2 Increase the setting of the Nominal Frequency by 2.5 Hz (52.5 Hz or 62.5 Hz) Start the generator. With the breaker open the generator will run at setting of SW1 (50 Hz or 60 Hz). 10.
  • Page 192 Ensure that the generator is connected to a DEAD BUS BAR WITH NO LOADS connected. With the generator breaker open, set the generator to run at the Nominal Voltage without the DSE module connected to the AVR. To achieve this, you will have to adjust the settings on the AVR.
  • Page 193 Commissioning Adjustment of AVR SW2 Increase the setting of the Nominal Voltage by 10% (230 v to 253 V for example) Start the generator. With the breaker open the generator will run at setting of SW1 (230V for example). 10. Close the generator breaker onto a DEAD BUS BAR WITH NO LOADS connected. The generator voltage shall start to increase towards the new Nominal Voltage setting (253V for example) however it may not achieve this.
  • Page 194 10.2.2.1 CTS ON THE RIGHT PHASE Check to ensure that the CTs on L1, L2 & L3 are connected to their respective connection on the DSE module. This is tested by loading the mains with a purely resistive load (around 10% of the main’s size) across the three phases.
  • Page 195 Redundant AMSC (if used). This is tested by connecting the DSE module to a PC with the DSE Configuration Suite PC Software installed and going to the SCADA | Bus | AMSC Link section. The information shown in this section changes dynamically depending on whether the AMSC Link or Redundant AMSC Link is in use.
  • Page 196 Failing to perform such tests may lead to the DSE module sensing both sides of the breaker as in sync This is tested by starting the generator bus with the DSEG8660 module and ensuring the generator bus load switch is left open (activate an input configured for Bus Load Inhibit).
  • Page 197 Commissioning 10.2.4.1 INCORRECTLY WIRED BREAKER When the DSE module’s synchroscope shows the two supplies in sync, if the voltage meter shows a voltage difference the breaker is wired incorrectly. This is shown in the example below. Synchroscope 18.30 -0.2V 0.2Hz ...
  • Page 198 Commissioning 10.2.4.2 CORRECTLY WIRED BREAKER When the DSE module’s synchroscope shows the two supplies in sync, if the voltage meter shows no voltage difference the breaker is wired correctly. This is shown in the example below. Synchroscope 18.30 -0.2V 0.2Hz ...
  • Page 199 Commissioning 10.3 SEGMENTATION OF THE BUS The G Series allows the system to act locally and allows each isolated section to work either independently or as part of combined system. For this to be safe it is vitally important that the segmentation is set up correctly.
  • Page 200 Fault Finding 11 FAULT FINDING NOTE: The below fault finding is provided as a guide checklist only. As the module can be configured to provide a wide range of different features, always refer to the source of the module configuration if in doubt. 11.1 STARTING Symptom Possible Remedy...
  • Page 201 Commissioning 11.2 INSTRUMENTS Symptom Possible Remedy Check: • That the CT primary, CT secondary and VT ratio settings are correct for the application. • That the CTs are wired correctly with regards to the direction of current flow (p1,p2 and s1,s2) and additionally ensure that CTs are connected to the correct phase (errors occur if CT1 is connected to phase 2).
  • Page 202 Check : • Ethernet rated cable is used Ethernet comms direct to PC • Check the IP address of the DSE controller is correct inoperative • Check the PC is not set to obtain IP address automatically • Check PC firewall allows traffic on the configured port.
  • Page 203 Check Synchronising is enabled in the configuration suite software Generator, Synchronising section Generator does not Ensure that all the DSE Four Steps to Synchronising have been loadshare correctly completed. Check kW Share & kvar Share are enabled, check generator rating is correctly configured in the DSE configuration suite PC Software and check the AMSC link is connected correctly.
  • Page 204 The controller is Fit and Forget. As such, there are no user serviceable parts within the controller. In the case of malfunction, contact your original equipment manufacturer (OEM). 12.1 PURCHASING ADDITIONAL CONNECTOR PLUGS FROM DSE If you require additional plugs from DSE, please contact our Sales department using the part numbers below. 12.1.1 PACK OF PLUGS...
  • Page 205 NOTE: DSENet utilises an RS485 connection. Using Belden 9841 (or equivalent) cable allows for the expansion cable to be extended to a maximum of 1.2 km. DSE Stock and supply Belden 9841 cable. DSE Part Number 016-030. DSE Part Numbers Model Max No.
  • Page 206 Warranty 13 WARRANTY DSE Provides limited warranty to the equipment purchaser at the point of sale. For full details of any applicable warranty, refer to the original equipment supplier (OEM) 14 DISPOSAL 14.1 WEEE (WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT) If you use electrical and electronic equipment you must store, collect, treat, recycle,...
  • Page 207 This Page is Intentionally Blank Page 207 of 207 057-325 ISSUE: 1...
