DSEG8680 Installation Instructions
This document details the installation and operation requirements of
the DSEG8680 module and is part of the DSEGenset® range of
products.

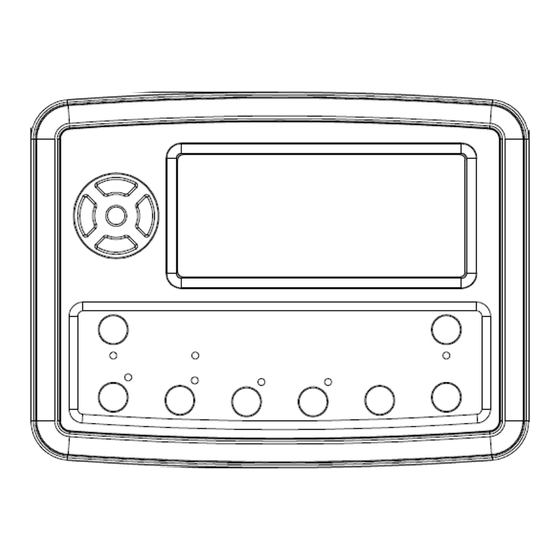

The DSE8680 module is a bus tie controller designed to control a
Bus Tie. A bus tie controller separates two halves of a generator
common bus. The DSE8680 manages the synchronising and check
synch and automatically controls the DSE AMSC (Advanced Multi
Set Communications) Link when opening/closing the bus tie.

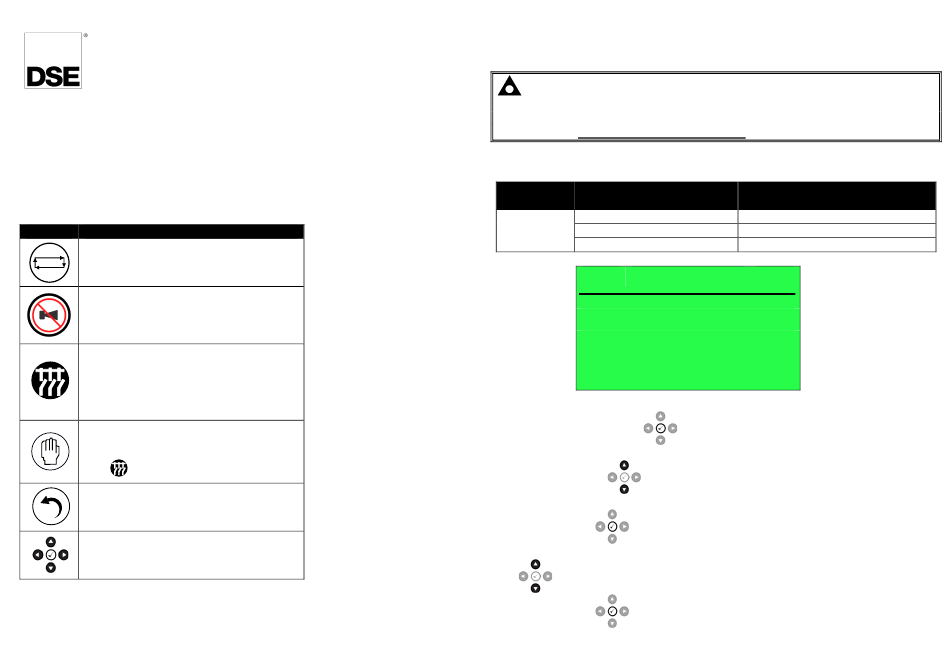

CONTROL BUTTONS

Icon Description
Auto Button
In the G8680 the auto button is used to select Auto Mode.
Alarm Mute / Lamp Test
This button silences the audible alarm in the controller,
de-activates the Audible Alarm output (if configured) and
illuminates all of the LEDs on the module's facia as a lamp
test function.
Open Close Bus Breaker
There are two controller buttons (left and right) which
provide various control options for the breaker:
This button opens and closes the breaker.
Manual
This mode allows manual control of the functions. Once in
Manual mode the module will respond to the breaker
button , toggling the bus breaker.
Reset
Resets any alarms that have been detected by the
controller.
Menu Navigation
Used for navigating the instrumentation, event log and
configuration screens.
053-254
ISSUE 1
ACCESSING THE 'RUNNING' CONFIGURATION EDITOR
NOTE: Depending upon module configuration, some parameters in the
'Running' Editor may not be available. For more information refer to DSE
publication 057-326 DSEG8680 Configuration Suite PC Software Manual
available from www.deepseaelectronics.com
RUNNING' CONFIGURATION EDITOR PARAMETERS
Parameter As Shown On
Section
Display
Contrast
Display
Language
Settings
Commissioning Screens
Contrast

EDITING A PARAMETER

•
Press and hold the Tick
•
Press the Scroll
•
Press the Tick
buttons
•
Press the Tick
Values
0-100 %
English, Other
Active, Inactive
Editor
Display
53%
button for 5 seconds to access the editor.
buttons to select parameter.
button to adjust the value (flashing) using the .Scroll
button save the changes.
