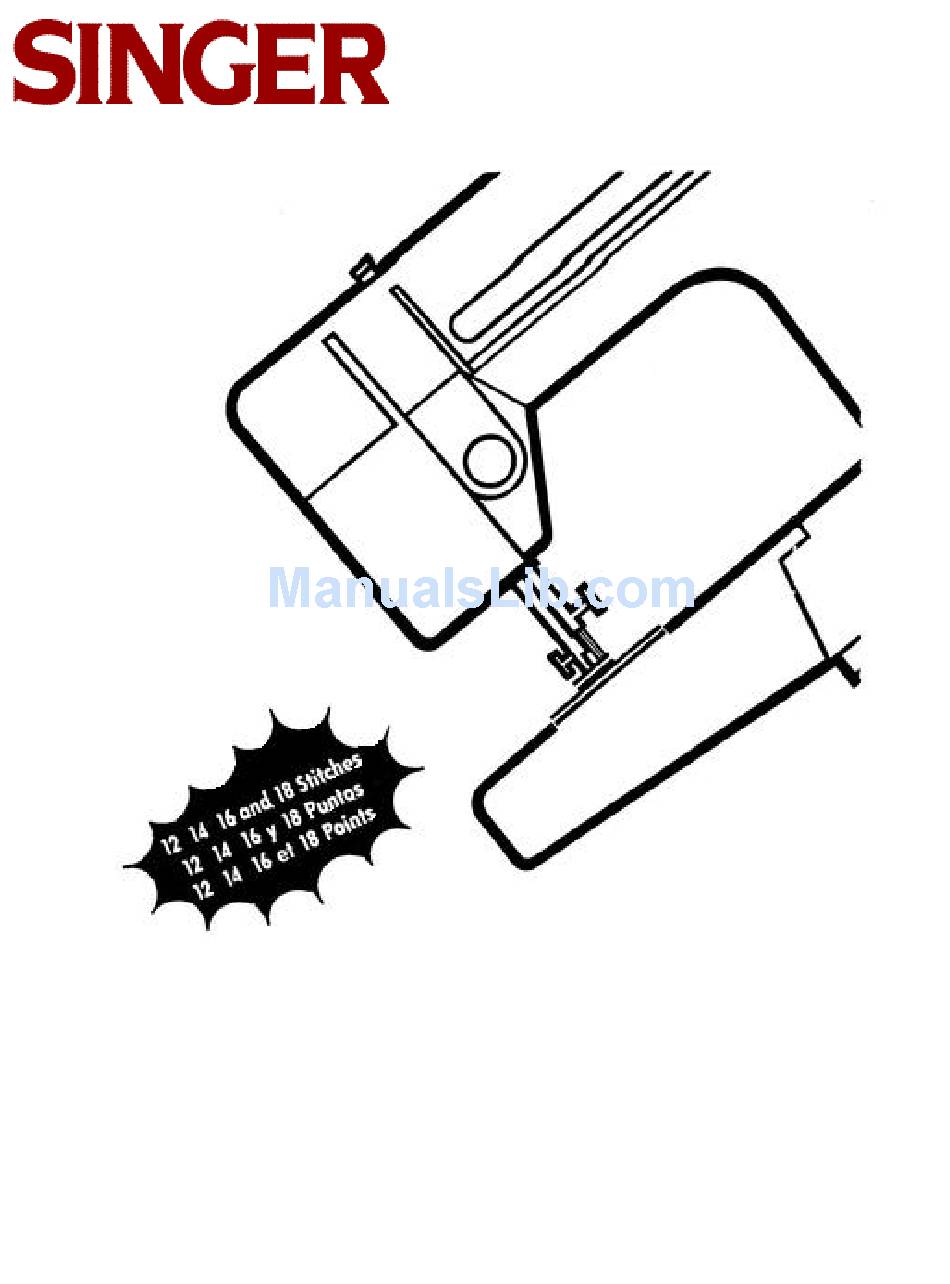

- Page 1 4830 & 4832 INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
4830 & 4832 Table of contents Important safety instructions Darning Getting to know your machine Inserting a zipper Principal parts Zig-Zag Stitching Accessories Needle position selector Connecting the machine Stitch width Selector Running the machine Adjusting stitch length Choosing and changing the needle... - Page 3 4830 & 4832 Congratulations As the owner of a new Singer sewing Dear Customer, machine. you are about to begin an exciting adventure in creativity. from the moment you We recommend that for future reference you first use your machine you will know you are...
-
Page 4: Important Safety Instructions
4830 & 4832 For European Territories: WARNING To reduce the risk of burns. tire, electric This product is suppressed for radio and tele- shock or injury to persons: vision interference with the international Electrotechnical Commission requirements of • Be sure that the electrical voltage of the the CISPR. - Page 5 4830 & 4832 WARNING continued... • Never operate the machine if it has a damaged cord or plug, If it Is not working • Do not attempt to adjust the motor belt. properly, If it has been dropped or dam- Contact Your nearest Service Center age;...
-
Page 6: Getting To Know Your Machine
4830 & 4832 Getting to know your machine Principal parts 1. Hand wheel 2. Bobbin winder 3. Horizontal spool pin and holder 4. Thread guide 5. Bobbin winder tension disc 6. Snap-in thread guide 7. Take up lever 8. Face plate 9. -
Page 7: Accessories
4830 & 4832 Accessories The following accessories furnished with your sewing machine are designed to simplify your sewing projects and increase the versatility of your machine. The letter in a circle adjacent to the Illustrated part is reproduced on the part itself to help you select the correct attachment for the type of work you are doing. -
Page 8: Connecting The Machine
4830 & 4832 Connecting the machine Push plug into the receptacle (1) at the right end of the machine. Then connect plug (2) to your socket outlet. Running the machine To turn on machine and sewing light, press upper portion of power switch. To turn off machine and light, press lower portion "D"... -
Page 9: Changing The Needle Plate
4830 & 4832 Choosing and changing needles • Raise needle to its highest position. • Loosen needle clamp screw and remove needle. • With flat side of needle to the back, insert new needle up into clamp as far as it will •... -
Page 10: Attaching The Bed Cover
4830 & 4832 Attaching the feed cover (F) The feed cover is used to keep the feed from moving the fabric when attaching a button, darning or sewing free motion embroidery. To attach it, follow the directions below: • Raise needle and presser foot. -
Page 11: Fabric Thread And Needle Table
4830 & 4832 Fabric, thread and needle table The needle and thread you choose will depend upon the fabric being sewn, the table below is a practical guide to needle and thread selection. Always refer to it before beginning a sewing project. -
Page 12: Inserting A Bobbin
4830 & 4832 Inserting a bobbin • Raise presser foot. • Turn hand wheel toward you until needle is in its highest position. • Open slide plate and remove empty bob- bin. 1. Pull 4" (10 cm) of thread from replacement bobbin and insert bobbin into case as shown. -
Page 13: Winding A Bobbin
4830 & 4832 Winding a bobbin Winding a bobbin is quick and easy when you follow the directions below. Always wind the bobbin, before threading the machine and needle. • Push in indent (1) on hand wheel disc. This will stop the needle from moving. -
Page 14: Threading The Machine
4830 & 4832 Threading the machine • Raise take-up lever to highest posi- tion by turning hand wheel toward you. • Raise presser foot to release thread tension. • Place spool of thread on spool pin. • Slide spool cap firmly over rim of spool to prevent thread tangling. -
Page 15: Raising The Bobbin Thread
4830 & 4832 Raising the bobbin thread 1. Hold needle thread loosely with left hand. • Turn hand wheel slowly toward you, lowering needle into hole in plate. 2. Continue to do this until needle rises above needle plate. • Pull gently on needle thread and bring up bobbin thread in a loop. -
Page 16: Adjusting Thread Tension
4830 & 4832 Adjusting thread tension (For straight stitching) A perfect, well balanced stitch (1), will have the needle and bobbin threads locked between the two layers of fabric with no loops on top or bottom and no puckering. Too much tension will produce a tight stitch which will cause the fabric to pucker. -
Page 17: Sewing A Seam
4830 & 4832 Sewing a seam You can sew seams easily and accurately when you follow the suggestions below. Placing fabric under foot Most fabrics can be placed under the foot by raising the presser foot lifter (1) to its normal "Up"... -
Page 18: Starting A Seam
4830 & 4832 Keeping seams straight To keep seams straight, use one of the guide- lines on the needle plate. • The most commonly used line (1), the 5/8 Inch (1.6 cm) seam allowance, is extended onto the slide plate. -
Page 19: Straight Stitching
4830 & 4832 Straight stitching Stitch width selector Before you move the selectors to set your machine for straight stitching, turn the hand wheel toward you until needle is at its highest point. Straight stitching can be performed with pat- tern selector in any position;... -
Page 20: Darning
4830 & 4832 Applications with straight stitching Darning Recommended settings Stitch Selection: Straight Stitch Needle Position: Stitch Width: Stitch length: 2-5 Foot: General Purpose (B) Needle Plate: General Purpose (A) Attach feed cover plate (F) Reverse stitch button The reverse stitch button, with the (... -
Page 21: Inserting A Zipper
4830 & 4832 Inserting a zipper Preparation Pattern: Needle position: Stitch width: Stitch length: 2-5 Foot: Zipper (E) Needle plate: General Purpose (A) Adjusting the zipper foot When the zipper teeth are to the left of the needle (A): • Slide the adjusting block, (1) which slides on the pin, across to the right. -
Page 22: Zig-Zag Stitching
4830 & 4832 Zig zag stitching Before moving selector, make sure needle is fully raised. Needle position selector Most of your zig-zag stitching will be done with the needle In the centre ( ) position. Left ( ) and right ( ) settings are used for special stitch placement. -
Page 23: Pattern Groups Selection
4830 & 4832 Pattern groups selection • The dial localized on panel on your machine, lets you choose pattern groups. • Raise the needle to its highest position. • Adjust the stitch width selector to straight position ( ). • This will see to it that the stitch pattern dial moves far easier. -
Page 24: Flexi-Stitch Patterns
4830 & 4832 Flexi stitch patterns Note: The pattern groups selection, needle position selection on and stitch width selec- tion are similar to zig-zag stitching. These stitch patterns are used for sewing knits and other stretch fabrics. Flexi Stitch patterns are made by the side to side move- ment of the needle along with the backward and forward movement of the feed. -
Page 25: Balancing Flexi-Stitches
4830 & 4832 Balancing flexi-stitches You may need to adjust the Flexi-stitch Balance selector when using a flexi-stitch pat- tern in order to achieve the correct pattern appearance. Before you move the stitch balance dial from its neutral position, make a test sample using... -
Page 26: Decorative Stitch Patterns
4830 & 4832 Decorative stitch patterns Needle Stitch Stitch Needle Foot Application Pattern position width length plate Straight stitch 1 General General General setting purpose purpose sewing Zig-zag stitch General General Stretch sewing setting purpose purpose and embroidery Blind hem stitch... -
Page 27: Flexi-Stitch Patterns
4830 & 4832 Flexi-stitch patterns Needle Stitch Stitch Needle Foot Application Pattern position width length plate Straight stitch 1 Special General Ideal for plain purpose purpose seams that stretch Ric-rac stitch Heavy-duty Special General general purpose purpose purpose sewing Slant overedge... -
Page 28: Attaching A Button
4830 & 4832 Attaching a button Recommended settings: Stitch Selection: Zig-Zag Stitch Needle Position: Stitch Width: To suit Button Sewing (H) (Additional Accessory) Needle Plate: General Purpose (A) Attach Feed Cover (F) Note: Before you can attach a button, the bobbin thread must be brought up through the hole in the feed cover. -
Page 29: Free-Arm Sewing
4830 & 4832 Free-arm sewing Removing the extension table To change machine for free arm sewing, lift right edge (1) of extension table. Slide it to the left and off the machine (2). To replace the extension table, slide it to the right keeping it even with the free-arm, until the tabs on the right lock into place. -
Page 30: Four-Step Buttonhole
4830 & 4832 Bar tacks • Bar tacks reinforce areas of strain and can be applied to ready-made garments, as well as to those sewn at home. Use the free-arm surface to avoid fabric bulk around the needle when you apply bar tacks to pockets, pleats and waistlines. - Page 31 4830 & 4832 Buttonholes Recommended settings: Stitch Selection: Buttonhole Stitch Stitch Width: Pre-set Foot: Buttonhole (L) Needle Plate: General Purpose (A) Step 1 • Raise presser foot. • Place fabric under foot • Centre 3 red guidelines (1) of foot around beginning line of buttonhole.
- Page 32 4830 & 4832 Step 3 • Raise needle out of fabric. • Turn buttonhole dial to the buttonhole sym- bol (3) for the third step. • Stitch up to point (5). Step 4 • Raise needle out of fabric. • Turn buttonhole dial to the buttonhole sym- bol (4) for the fourth step.
- Page 33 4830 & 4832 Balancing the buttonhole On some kinds of fabrics, there may be a dif- ference in the density of the stitches on the right or the left side of the buttonhole. This is easily adjusted by turning the balance knob (1), in the center of the stitch length dial to balance the density of the stitching.
-
Page 34: Twin Needle Sewing
4830 & 4832 Twin needle sewing Procedure Additional accessory • Turn the machine off. Caution: Make sure not to use a stitch width • Insert the twin needle with the flat side of greater than that what is recommended when the shank toward the rear of the machine. - Page 35 4830 & 4832 Additional accessories Additional Accessories for your sewing machine are available for purchase at your SINGER stockist. 1. Straight stitch presser foot (D) and needle plate (C) are used together when straight stitching lightweight fabric or when your fabric or sewing procedure requires close control.
-
Page 36: Caring For Your Machine
4830 & 4832 Caring for your machine Removing and replacing bobbin case Caution: Before cleaning or adjusting the machine, remove plug from the socket outlet. • Raise presser foot and needle. • Open slide plate, remove bobbin and remove needle plate. -
Page 37: Cleaning The Machine
• Take up lever and thread guide. • Presser and needle bars. • Bobbin case and needle plate areas. Your machine should be periodically checked by your local SINGER dealer for wear. -
Page 38: Lubricating The Machine
To determine which connections move and need lubrication, turn the handwheel slowly, by hand, while face plate is removed. When lubricating, apply only SINGER oil at the points shown. SINGER oil is specially prepared and does not contain harmful deposits that can interfere with the smooth... -
Page 39: Changing The Light Bulb
4830 & 4832 Changing the light bulb Caution: Before changing light bulb, make sure you have removed plug from socket out- let and remove face plate which covers the light bulb. Be sure to replace the face plate which covers me light bulb before operating the machine. -
Page 40: Performance Checklist
4830 & 4832 Performance Checklist When sewing difficulties occur, look back Upper thread breaks through this manual to make sure you are Is machine properly threaded? correctly following the instructions. If you still Is thread freely unwinding from spool? have a problem, the reminders below may Is proper spool cap being used? help you to correct it.
Need help?
Do you have a question about the 4830 and is the answer not in the manual?
Questions and answers
Changing the tension dial does not seem to have any effect on my too loose stitches
If changing the tension dial does not fix too loose stitches on a Singer 4830 sewing machine, check the following:
1. Threading: Ensure the machine is threaded correctly, including the bobbin and needle threads.
2. Bobbin placement: Make sure the bobbin is inserted properly and the thread is feeding in the correct direction.
3. Needle: Check that the needle is not bent or dull, and is properly installed.
4. Presser foot: Confirm it is lowered before sewing to apply correct pressure.
5. Thread quality: Use good quality thread suitable for the fabric.
6. Fabric type: Adjust handling for stretchy or slippery fabrics as they may affect stitch formation.
If all these are correct and the issue persists, the machine may need servicing.
This answer is automatically generated
How do I install a regular foot (B) on my Singer 4830 C sewing machine. It currently has the quilting walking foot attached.
The provided context does not contain specific instructions for installing a regular foot (B) on a Singer 4830C sewing machine. However, general steps for installing a presser foot on a sewing machine typically include:
1. Turn off the sewing machine for safety.
2. Raise the presser foot using the presser foot lever.
3. Remove the current presser foot by pressing the release lever or unscrewing the foot holder.
4. Align the regular foot (B) under the presser foot holder.
5. Lower the presser foot holder until the foot snaps into place or screw it securely if needed.
6. Ensure the foot is firmly attached before starting to sew.
If further details are needed, refer to the machine's manual.
This answer is automatically generated
