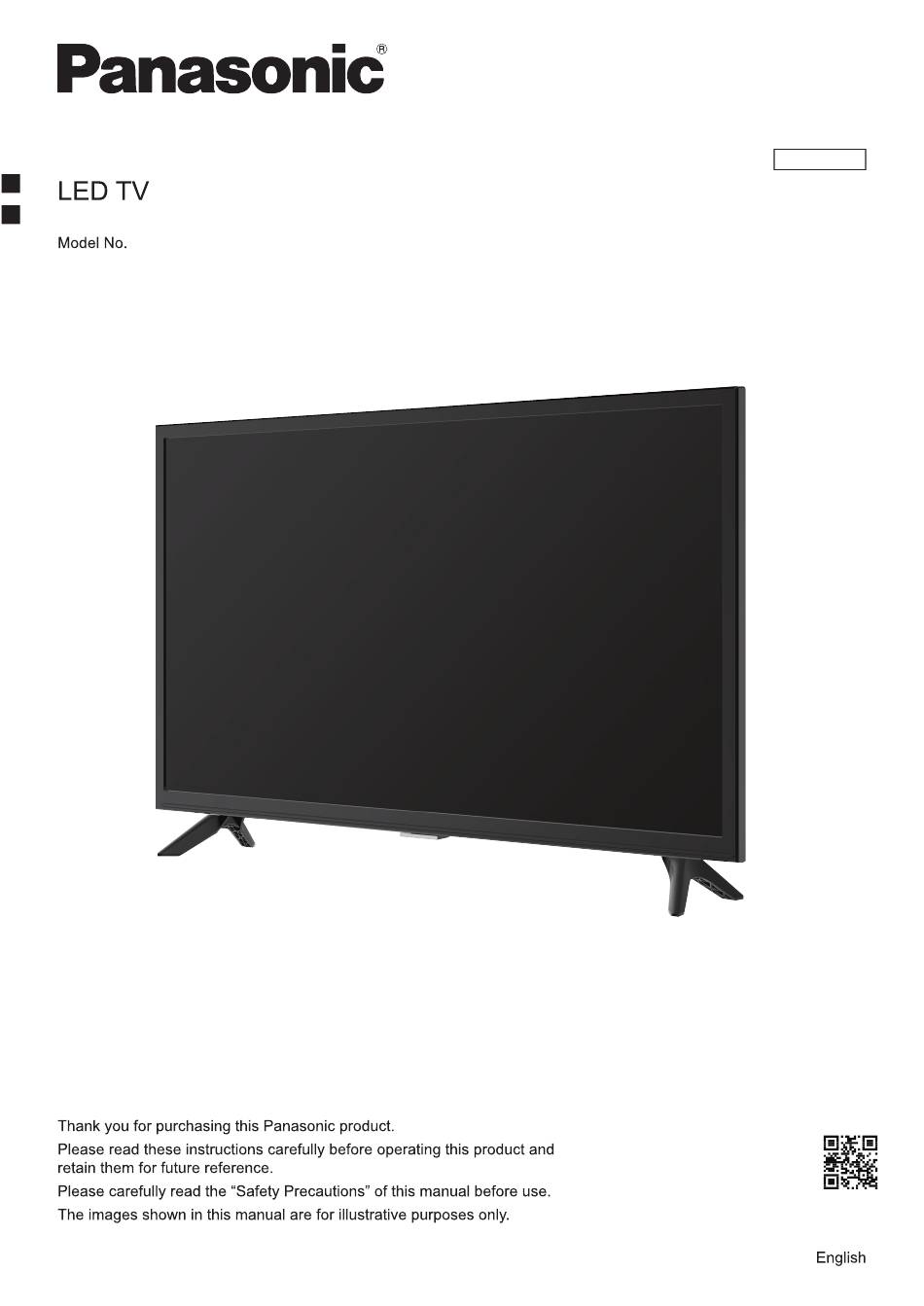

- Page 1 Operating Instructions English TH-24M400H TH-32M400H (image: TH-24M400H) 72-M400HK-E69Z1...
- Page 2 Panasonic accepts no responsibility for the loss, etc., of data caused by disasters. External devices separately prepared by the customer are not covered by the warranty.
- Page 3 ■ Take care Safety Precautions Warning ■ Mains plug and lead Warning Note 100-240 V, Warning...
- Page 4 ■ Ventilation To prevent the Caution spread of fire, keep candles or other open flames away from this product at all times ■ Suffocation / Choking Hazard Note Warning TV stand is for explanation only, not match with actual design. ■...
- Page 5 Setting Up the TV Attaching the pedestal Supplied accessories Operating Instructions Remote Control RC200PS002 (p. 9) Batteries (AAA) × 2 Removing the pedestal from the TV (p. 5) Be sure to remove the pedestal in the following way when using the wall-hanging bracket or repacking the Pedestal Lay the TV on a foam mat or thick soft cloth on a (p.
- Page 6 Connecting the TV Wall mounting the TV (optional) Please contact your local Panasonic dealer to purchase the Please ensure the TV is disconnected from the recommended wall-hanging bracket. mains socket/ power point before attaching or disconnecting any RF/ AV leads.
- Page 7 Aerial Aerial RF cable Use HDMI 2 to connect to an extension with ARC(Audio return channel) capability the sound. Enjoy the sound of external devices in multichannel sound (e.g. Dolby digital) 5.1CH), connect the device to the loudspeaker. For connections, see the device and the instructions for the loudspeaker.
- Page 8 DTV + ATV Program(s) Program(s) Radio Program(s) DS-35 85% (DTV) Skip Exit AC100 - 240 V, 50 / 60 Hz Select Tune Type. OSD Labguage English Tune Type DTV+ATV View Environment Home Exit Enter Reset...
- Page 9 Operating the TV Return Return to last watched channel (Only available in ATV or DTV mode) Using the remote control Menu Displays [Main Menu] Confirms selections. Press after selecting channel positions to quickly change channel. Displays the [Channel List]. Return Returns to the previous menu / page Switches to TV input mode.
- Page 10 Operating the TV Indicators on the TV INPUT...
- Page 11 Select the Photo and press OK to enter. Select the image file on your USB device, Press OK to open. Select the appropriate directory and press OK to enter. If there are playable images in the directory file, can be directly displayed, press Up/Down/Left/Right keys to select, press OK key to play.
- Page 12 Press OK to bring up the operation interface: Select the Music and press OK to enter. Select the music file on your USB device, press OK to open. Play/Pause: Pause or play the current music. FB/FF: x2, X4, X8, X16, X32 are available. Select the appropriate music file and press OK to play.
- Page 13 Picture Mode [User] MENU [User]: [Hue] RETURN [Colour Temp.] [Standard] [Aspect Ratio] Choose the right image proportions. [16:9] / [Zoom 1] / [Zoom 2] / [4:3] / [Auto] (Only available in DTV and USB) / [Full] (Only available in DTV/ATV and HDMI) / [Point To Point] (Only available in HDMI)) [DNR] Select the image dynamic noise reduction mode.
- Page 14 [Dynamic Backlight] [Sports] : Improve the sound quality of watching sports, Select On, the internal chip automatically adjusts the sports, etc. backlight brightness according to the input screen content, so as to achieve optimize picture quality and [User] : When the voice mode is user, the high pitch can reduce power consumption.
- Page 15 [ATV Manual Tuning] [Set Password] ATV Manual Tuning Current CH Please enter old password Color Sys. Sound Sys. Please enter new password Fine Tune 168.25 MHz Confirm new password Search Clear Cancel Return Exit [Channel Edit] Setting [Reset] (P14) will erases the PIN number and all settings.
- Page 16 [Full] Additional Displays 16:9 full screen image. [Point To Point] Information Displays the actual input signal image size. Signal name HDMI Auto power standby function 525 (480) / 60i 60p 625 (576) / 50i 50p 750 (720) / 60p 50p 1,125 (1,080) / 60i 50i 1,125 (1,080) / 60p 50p 24p Information banner...
- Page 17 ■ Applicable HDMI features Troubleshooting “Input signal that can be displayed” (p. 16) HDMI 1 ■ Screen DVI connection Red, blue, green or black spots on the screen. Note Chaotic image, noisy. No image is displayed. USB Flash Memory Blurry or distorted image. (p.
- Page 18 Maintenance General The TV goes into Standby mode. First, remove the mains plug from the socket outlet. Regular care The remote control does not work or is intermittent. For stubborn dirt Parts of the TV become hot. Caution The TV panel moves slightly when it is pushed with a finger.
- Page 19 Connection terminals Specifications AV1 IN (VIDEO) VIDEO Model no. 1.0 V [p-p] TH-24M400H AUDIO L - R TH-32M400H 0.5 V [rms] HDMI 1 / 2 input Power source AC 100 - 240 V, 50 / 60 Hz Power consumption (Rated power / Standby power) VIDEO OUT : 40 W / 0.50 W...
- Page 20 Receiving channels (Analogue TV) Note VHF BAND TH-24M400H and TH-32M400H comply with China Terrestrial Television National Standard UHF BAND CATV Aerial input Operating conditions Temperature Humidity...
- Page 21 Information on Disposal in other Countries Customer’s Record outside the European Union Model Number Serial Number Panasonic Entertainment & Communication Co., Ltd. © Panasonic Entertainment & Communication Co., Ltd. 2023...
