LG LK72B Simple Manual

SIMPLE MANUAL

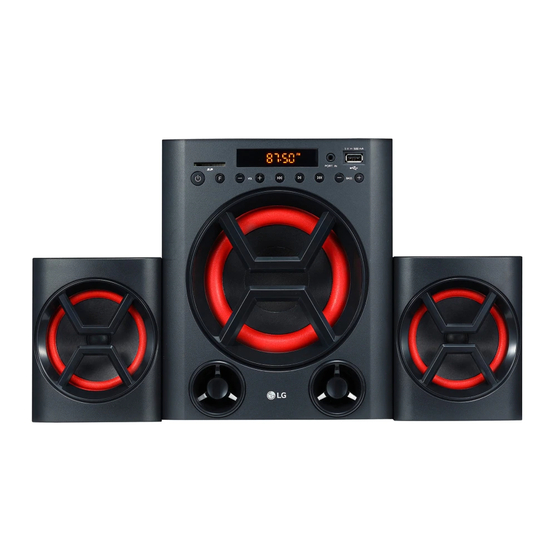

Multimedia
Speaker System
Please read this manual carefully before operating your set and retain it for future reference.
To view the instructions of advanced features, visit http://www.lg.com and then download Owner' s
Manual. Some of the content in this manual may differ from your unit.
MODEL
LK72B
MFL70506142 Copyright © 2020 LG Electronics Inc. All Rights Reserved.
LK72B-F.EEGYLLF_SIM_ENG_ARA_MFL70506142.indd 4
Front Panel
a
b
c
a Remote sensor e USB port
You can play sound files by connecting the USB device.
b SD card slot
You can play sound files by connecting the SD card. PORT. (Portable) IN
Connect a portable device.
c 1 (Standby)
Turns the power on or off. f Display window
F (Function)
Selects the function and input source.
d VOL (Volume) -/+
Adjusts speaker volume.
C/V (Skip/Search)
- Skips backward or forwards.
- Searches for a section within a file.
- Selects the radio stations.
N (Play/Pause)
Starts or pauses playback.
BASS -/+
Adjusts bass level.
www.lg.com
1805_Rev01
Rear Panel
f
e
a
d
d
b
c
a AUX IN (L/R)
Connect an auxiliary device.
b FRONT SPEAKERS (FL/FR) connector
c POWER IN
d FM ANTENNA
Speaker Connection Additional information
LED Display table
LED displays and descriptions are as belows.
LED Display Description
HELLO
BYE
USB
SD
AUX
PORTABLE
Left
Right BT
RADIO
(Displays current radio
frequency)
READ
PAUSE
ONE
ALL
RANDOM
DEL ALL
DELETED ALL
NO USB
NO SD
NO SONG
NOT SUPPORT
Specifications
Refer to the main label on
Power Requirements
the unit.
Refer to the main label on
Power Consumption
the unit.
Approx.
Dimensions (W x H x D) 196.0 mm x 239.0 mm x
205.0 mm
5 V 0 500 mA
Bus Power Supply (USB)
Amplifier
40 W RMS
(Total RMS output power)
Design and specifications are subject to change without
notice.
Replacement of battery
