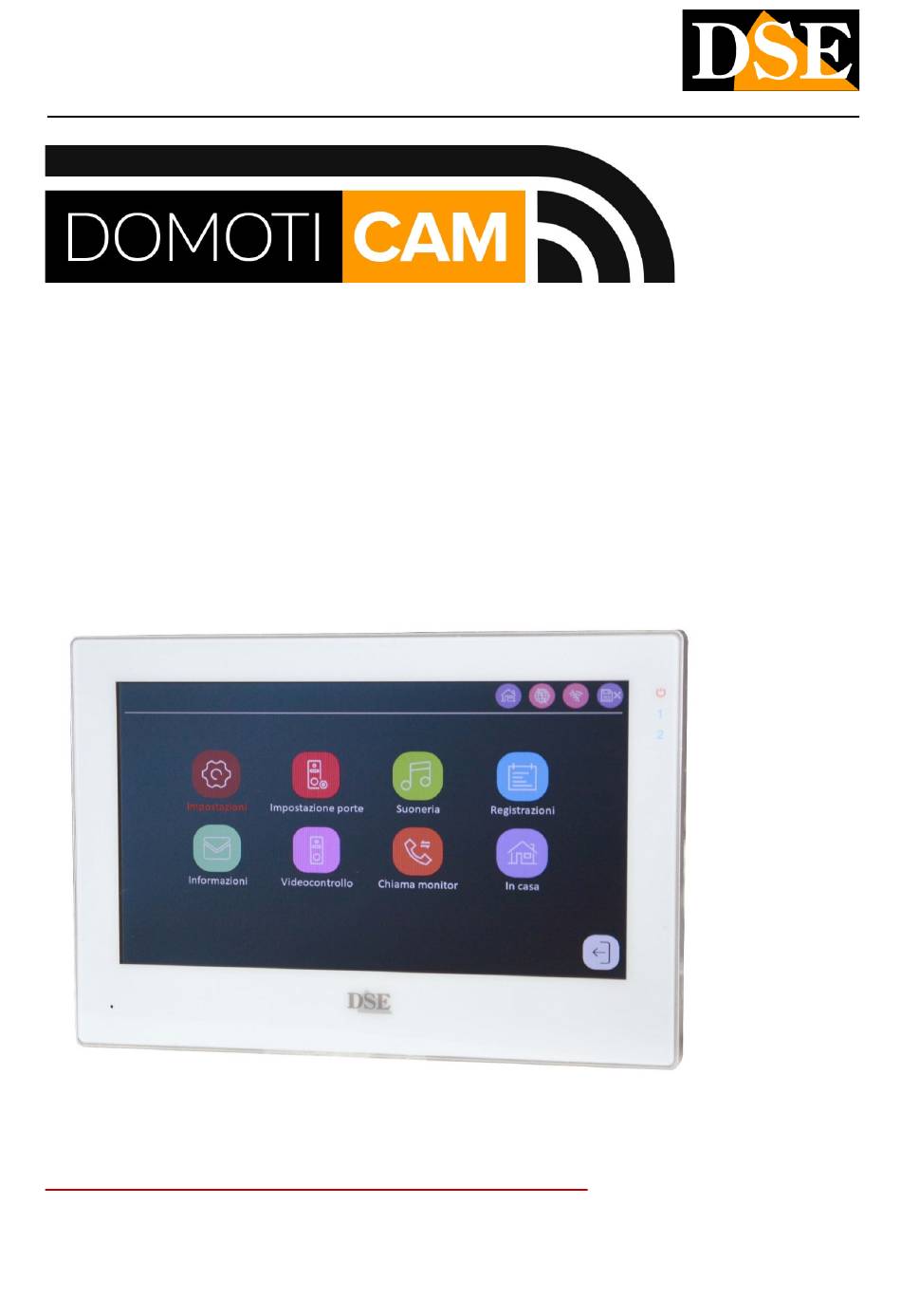

- Page 1 CONFIGURATION MANUAL 2-wire video intercoms DMC Series Page:1 2-wire Video Intercom Systems Smart Home DMC Series User and configuration manual How to use and configure two-wire video intercoms DSE SRL – ITALY – WWW.DSE.EU...
- Page 2 This manual shows how to use the DMC Series video intercom systems and how to configure their functions. If you have not yet installed and connected the system components, it is advisable to first read the Installation Manual DSE SRL – ITALY – WWW.DSE.EU...
- Page 3 6 – Opens the LOCK1 door opener in the calling keypad 7 – Opens the LOCK2 door opener in the calling keypad 8 – Exits and turns off the camera DSE SRL – ITALY – WWW.DSE.EU...
- Page 4 Tuya App Connection Enabled, Not Enabled Access to the WiFi network done or not done SD card status, present, not present Visitor Call Video Memory (Number indicates unseen calls) Messages left by visitors (number indicates unseen messages) DSE SRL – ITALY – WWW.DSE.EU...
- Page 5 The configuration is very important to assign each element its correct function in the system. The setup and usage menu consists of 8 buttons which will be explained one by one below. DSE SRL – ITALY – WWW.DSE.EU...
- Page 6 (SETTINGS) which takes you to the general settings. The first section is the System Settings. The second item is INTERNAL SETTINGS INTERNAL SETTINGS – Clicking the gear icon opens this window which allows you to match monitors to the various families. DSE SRL – ITALY – WWW.DSE.EU...
- Page 7 Device ID 1 The secondary monitor of family 3 is set to Floor 2 and Device ID 2 With this setting, pressing call button 1 will ring monitors 1 and 2 of family 1. DSE SRL – ITALY – WWW.DSE.EU...
- Page 8 CONFIGURATION MANUAL 2-wire video intercoms DMC Series Page:8 DSE SRL – ITALY – WWW.DSE.EU...
- Page 9 1,2,3,4 (families) is fixed. Button 1 on the push-button panels (the lowest one) always and only calls floor 1, button 2 calls floor 2 and so on. It is not possible to change this association because this would lead to greater complexity in the configuration and no real advantage. DSE SRL – ITALY – WWW.DSE.EU...
- Page 10 The first button of the monitors' on-screen menu (SETTINGS) takes you to the general monitor settings. Each monitor can be configured independently. SYSTEM INTERIOR SETTINGS – See previous chapters STYLE – Choose the aesthetics of the configuration menu: STANDARD WINDOWS ANDROID DSE SRL – ITALY – WWW.DSE.EU...
- Page 11 SPACE – If the SD card is present and formatted, here you can see the free and total memory capacity. DATE AND TIME AUTOMATIC – If enabled, the date and time are automatically adjusted via the Internet DSE SRL – ITALY – WWW.DSE.EU...
- Page 12 SSID – Shows the name of the wifi network the monitor is connected to WEATHER – If you enable this function, the monitor retrieves weather information from the Internet and displays it as an overlay during standby. DSE SRL – ITALY – WWW.DSE.EU...
- Page 13 You can load photos in JPG format (horizontal shot) and with a maximum resolution of 2526x1576. INTERVAL – You can choose the duration of each slide The slideshow automatically activates after 10 seconds of monitor inactivity DSE SRL – ITALY – WWW.DSE.EU...
- Page 14 OPENING TIME – Sets the duration of the lock opening pulse (from 1 to 10 seconds). Check the lock indications. Normally, electric locks are activated with pulses from 1 to 3 seconds. BADGE/PW OPENING – Each keypad can manage 2 locks. Here you choose which locks DSE SRL – ITALY – WWW.DSE.EU...
- Page 15 QUALITY – Defines the quality of the video. The higher the quality, the more space occupied in the recording BITRATE – Defines the number of frames in the video. A higher bitrate gives smoother images but takes up more space in the recording. DSE SRL – ITALY – WWW.DSE.EU...
- Page 16 The factory setting is medium. In a quiet environment it is advisable to use a low volume, for example 2-3. DSE SRL – ITALY – WWW.DSE.EU...
- Page 17 The list shows all the recordings in memory. In the window you can filter by date and time. You can also filter a specific keypad (CHANNEL) and an event type (CALL or LEFT MESSAGE) Tap a file to play it DSE SRL – ITALY – WWW.DSE.EU...
- Page 18 The fifth button provides information about the system System information. Of particular note is the TUYA SERVER item which certifies whether or not the monitor has been connected to an account in the Tuya Smartlife app DSE SRL – ITALY – WWW.DSE.EU...
- Page 19 CONFIGURATION MANUAL 2-wire video intercoms DMC Series Page:19 Video surveillance The sixth button allows you to activate communication with a keypad or keyboard manually, in the absence of a call. DSE SRL – ITALY – WWW.DSE.EU...
- Page 20 2-wire video intercoms DMC Series Page:20 Call monitor The seventh button allows you to make a call, audio only, to another monitor. You can only make calls between monitors that are part of the same floor. DSE SRL – ITALY – WWW.DSE.EU...
- Page 21 NOT AT HOME – In case of a call the visitor is always invited to leave a message DO NOT DISTURB – In case of a call the monitor shows the camera and records the images, but does not ring The mode set on one monitor affects all monitors in the plan (family). DSE SRL – ITALY – WWW.DSE.EU...
