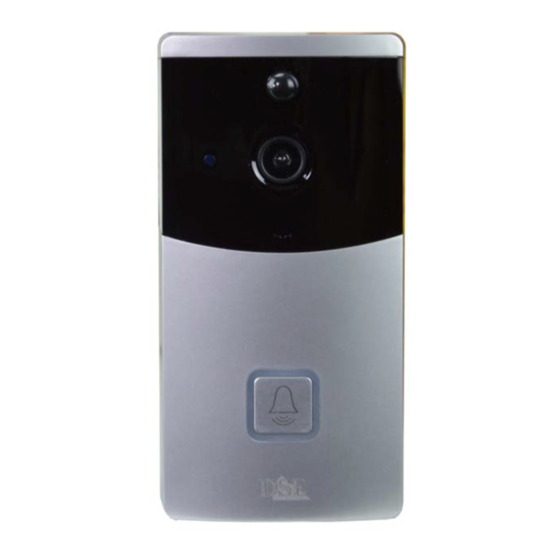

DSE DM Series Installation Manual
Smart home video intercoms
Hide thumbs
Also See for DM Series:
- Installation manual (21 pages) ,
- Installation manual (16 pages) ,
- Installation manual (30 pages)
Related Manuals for DSE DM Series
Summary of Contents for DSE DM Series
- Page 1 INSTALLATION MANUAL DM Series video door phones Page: 1 Smart Home video intercoms DM series Installation manual How to install Smart-Home video door phones DSE SRL - ITALY - WWW.DSE.EU...
- Page 2 WiFi network and then control them as you wish with the Smart Life home automation app, even via the Internet. With the Smart Life app you also control our remote controls and our cameras of this DM series that allow you to create your own smart home This manual explains how to install and configure intercoms.
- Page 3 INSTALLATION MANUAL DM Series video door phones Page: 3 9 - Contacts for mains power supply with 8-24VAC power supply (not included) 10 - Reset button 11 - Micro USB port for battery charging 12 - Battery and SD card compartment...
- Page 4 INSTALLATION MANUAL DM Series video door phones Page: 4 13 - Slide contacts 14 - Holes for plugs 15 - Connection screws for 8-24VAC power supply. 16 - Video door entry units DSE SRL - ITALY - WWW.DSE.EU...
-
Page 5: Assembly And Operation
INSTALLATION MANUAL DM Series video door phones Page: 5 Assembly and operation These battery-powered video door phones can operate without any electrical connection, thanks to their internal battery. They work normally in stand-by condition, consuming very little battery. If the call button is pressed, they are activated to record video and to send notifications. -
Page 6: Mains Power Supply
INSTALLATION MANUAL DM Series video door phones Page: 6 Mains power supply If you want to carry out a fixed installation, the video door entry unit also supports mains power that you can supply by connecting an 8..24VAC power supply (not included) to the two terminals in the fixing base. - Page 7 INSTALLATION MANUAL DM Series video door phones Page: 7 DSE SRL - ITALY - WWW.DSE.EU...
- Page 8 INSTALLATION MANUAL DM Series video door phones Page: 8 Check the WIFI coverage Before placing the product in its final location, remember that this device must connect to your wifi network in order to function. You should therefore check with your mobile phone that the point where you want to put it there is good coverage of your wifi network. If you see that the signal is poor you should intervene on your wifi network, perhaps enhancing it with a repeater.
- Page 9 INSTALLATION MANUAL DM Series video door phones Page: 9 Download the Smart Life app In order to use the camera with your mobile you must first connect the device to your wifi network. To do this you need the APP Smart Life which you can download for free from Google Play or Apple Store.
- Page 10 INSTALLATION MANUAL DM Series video door phones Page: 10 Configure the video door entry unit In order to use the video door entry unit with your mobile phone you must first connect the device to your wifi network. It is a very easy operation to perform, thanks to the APP you just downloaded.
- Page 11 INSTALLATION MANUAL DM Series video door phones Page: 11 3 - Now check that the front blue LED flashes and press NEXT DSE SRL - ITALY - WWW.DSE.EU...
- Page 12 INSTALLATION MANUAL DM Series video door phones Page: 12 4 - Now you have to choose your wifi hot spot to connect to and enter the access password. If you have networks with different frequencies, remember that the device only supports 2.4 GHz WiFi networks. Select the network and enter the password to access your...
- Page 13 INSTALLATION MANUAL DM Series video door phones Page: 13 FINISHED! Now the video door entry unit is configured and ready to be used. If you do something wrong and the procedure doesn't go through you can press the internal reset button and start over.
- Page 14 INSTALLATION MANUAL DM Series video door phones Page: 14 Use the video intercom Now that you have configured your video door entry unit you can control it with the app. Thanks to the P2P cloud server you can control it not only within your network, but also through the Internet. Like all our battery-powered Smart Home devices, this device also normally remains in stand-by, consuming very little battery, to “wake up”...
- Page 15 INSTALLATION MANUAL DM Series video door phones Page: 15 device searching for them by date PHOTO ALBUM - Here you can browse the photos and videos recorded with the PHOTOGRAPH and RECORD buttons If the call button is pressed, the video door entry unit emits a local sound and sends a push notification to your mobile phone. If the...
- Page 16 INSTALLATION MANUAL DM Series video door phones Page: 16 DSE SRL - ITALY - WWW.DSE.EU...
- Page 17 INSTALLATION MANUAL DM Series video door phones Page: 17 Settings From the device control page you can access some advanced options by pressing the edit icon (pencil) at the top right DEVICE INFO - Show camera information INSTANT SCENE - Not used THIRD PARTY CONTROL - You can connect your Smart Home devices with voice control devices.
- Page 18 INSTALLATION MANUAL DM Series video door phones Page: 18 OF THE SCREEN, the TIME OVERLAP and the type of AUDIO UNI and BI DIRECTIONAL. PIR SWITCH - The video door entry unit is equipped with a PIR sensor to detect the presence of people and send notifications. Here you can set the detection sensitivity.
-
Page 19: Device Management
INSTALLATION MANUAL DM Series video door phones Page: 19 Device management Smart Home means being able to manage the whole house with your mobile phone. Smart Life is the ideal app. You can add all our DM Series devices: our Smart Home cameras, our remote controls and our intercoms and manage them all from the same app. - Page 20 Smart Life integrates seamlessly with Amazon Alexa. Just download the SMART LIFE skills using the Amazon Alexa app to link Alexa to your Smart Life account. Through the Smart Life skill you can control all our DM Series devices with Alexa voice commands.
- Page 21 INSTALLATION MANUAL DM Series video door phones Page: 21 Google Home integration Smart Life integrates seamlessly with Google Home You need to download Google Home and connect Smart Life by entering your account credentials. To view the cameras you then need a device suitable for viewing for Google Home, such as Chromecast.
- Page 22 INSTALLATION MANUAL DM Series video door phones Page: 22 DSE SRL - ITALY - WWW.DSE.EU...
-
Page 23: Computer Connection
INSTALLATION MANUAL DM Series video door phones Page: 23 Computer connection If you want you can control your Smart Home cameras from a computer through the site https://ipc.ismartlife.me/ which supports all common browsers No credentials are required to log into the site, you just need a mobile phone. Open the Smartlife app, tap add device and press the scan button at the top right. - Page 24 INSTALLATION MANUAL DM Series video door phones Page: 24 DSE SRL - ITALY - WWW.DSE.EU...
