Label.
Features.
Advantages.
Flash setting by easy-to-operate clamping lever in the
handle.
Ergonomically shaped, non-slip adjustment element
with thumb recess and optimised ball handle for
fatigue-free working.

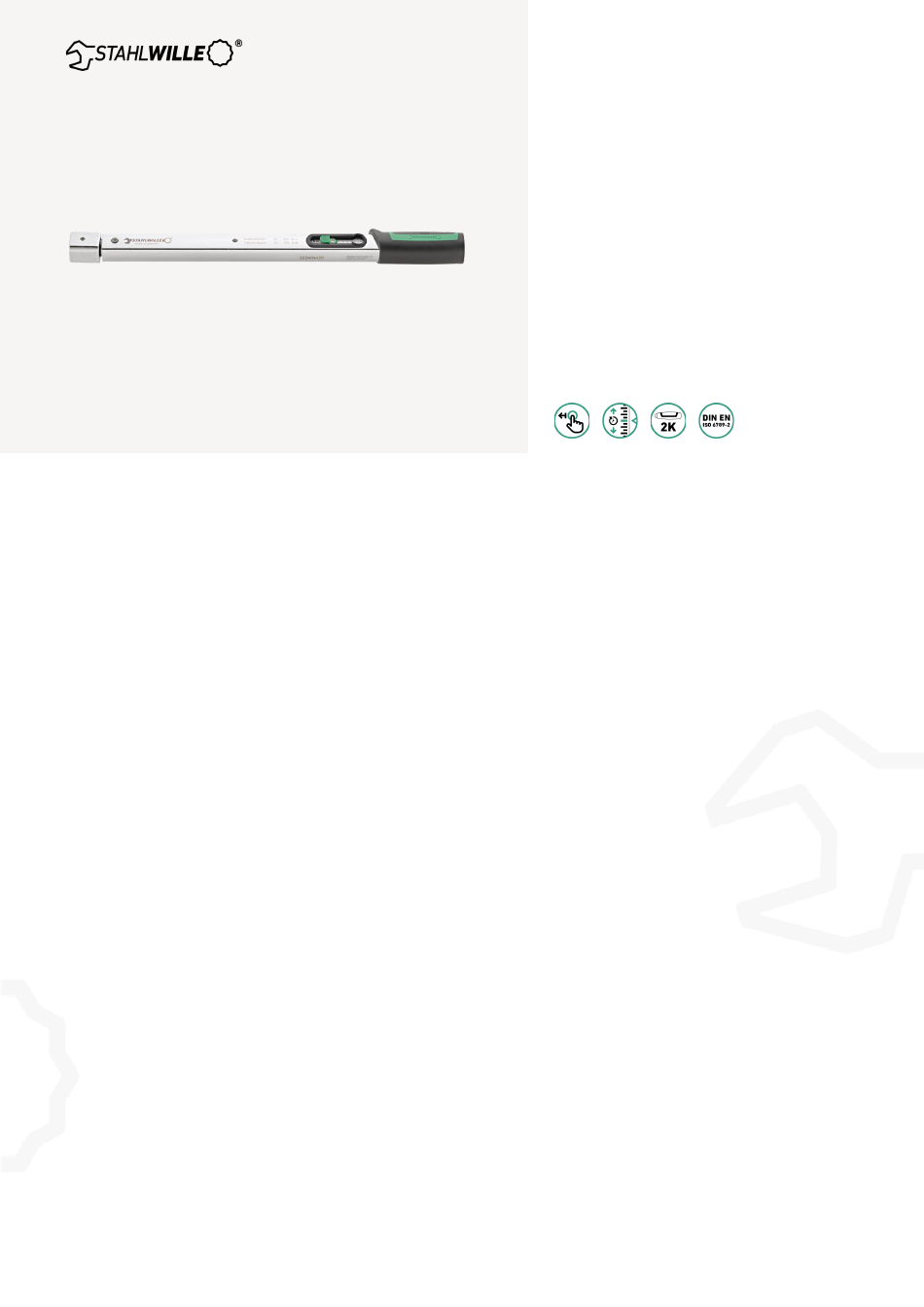

Torque wrench service MANOSKOP® 730 Quick 40-200N·m 14 x 18 mm L. 455mm
• click-type
• the measuring element is only under load while force is being applied, no need for
manual reset to zero
• mount for interchangeable insert/shell tools
• QuickRelease safety lock (sizes 5–65)
• rapid setting thanks to easy-action locking lever in the handle (sizes 5–65)
• ergonomically designed, non-slip adjuster with a thumb recess
• optimised convex handle for strain-free working
• dual stop signal
• twin scales N·m/ft·lb and N·m/in·lb (sizes 5–80)
• on request also available as an N·m-only version without twin scale (sizes 5-65)
• can be applied for either clockwise or anticlockwise tightening by turning the
inserts over
• any force applied to the tool after the 'click' or applied in the opposite direction to
the current function – e.g. forcible loosening of a jammed screw - does not act on
the trigger mechanism and cannot cause damage to it
• calibration using perfectControl® calibrating unit No 7794 or calibration system
No 7706. Readjustment does not require disassembly
• certificate in accordance with DIN EN ISO 6789-2:2017
• display deviation value ± 4%
Efficient. No resetting to "0" necessary, as measuring
element is only loaded during the tightening process.
Releasing torque wrench with receptacle for
exchangeable plug-in tools, double stop signal (can be
felt and heard), left-hand tightening by turning over the
plug-in tools.
Torque wrench service MANOSKOP®
(N·m/ft·lb)
730 Quick
Product no. 50184020
GTIN 4018754268870
Model 730/20 QUICK
Product data sheet
19.12.2024
