macromatic ATP Series Installation Instructions

installation instructions
ATP Triplex Alternating Relays
December 2020, Rev A
READ INSTRUCTIONS BEFORE INSTALLING OR OPERATING THIS DEVICE. KEEP
FOR FUTURE REFERENCE.
Potentially hazardous voltages are present. Turn off all power
supplying this equipment before connecting or disconnecting wiring.
Installation & Wiring
1. Mount the appropriate 8 or 12 pin socket in an enclosure.

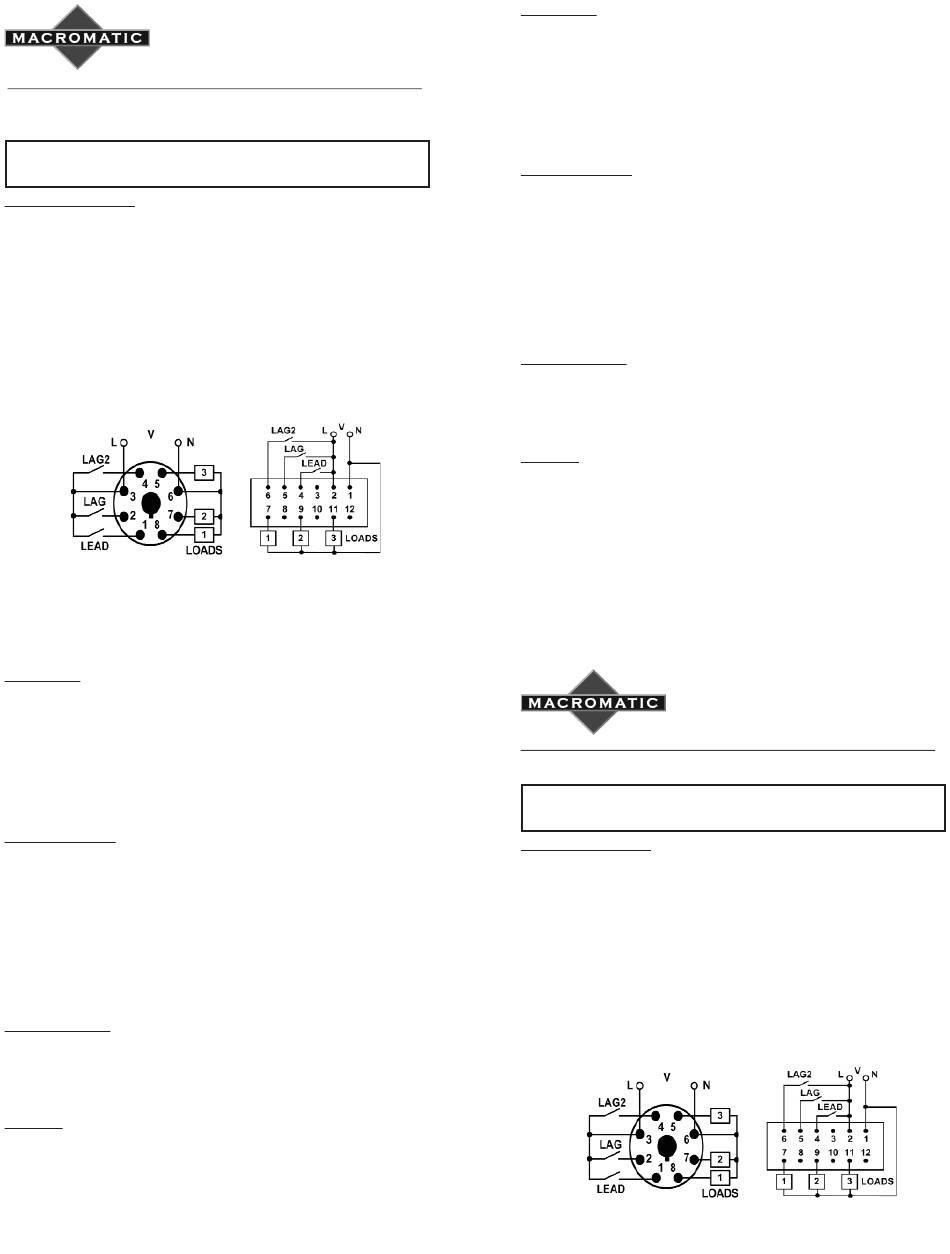

2. Wire the socket per one of the diagrams below corresponding to
your product or as shown on the side of the product.
3. (No "R" suffix) Products without the 8-position rotary switch will
operate as a normal Triplexor with three inputs.
4. ("R" suffix) Products with the optional 8-position rotary switch can
be used as either: (a) a standard Triplexor with three inputs; (b) a
Triplexor locking Load 1, 2 or 3 as the first to be energized (Lead
Load); (c) a standard Duplexor with two inputs until system expansion
requires a third Load; or (d) a Duplexor locking Load 1 or 2 as the
first to be energized (Lead Load). Rotate the switch to the desired
function. Note: do not change the setting of this switch with power
applied to the unit.
8 Pin
(A1 & A1R suffix)
(continued on back)
(Continued)
5. Plug the product into the socket.
6. If power is lost & returns with more than just the LEAD Switch closed,
there is a fixed 10 second delay between energization of the LAG
output (Triplex & Duplex mode) & LAG2 output (Triplex mode only)
to prevent all Loads from coming on at the same time.
7. One of the Red LED's will be steady ON to indicate which Load will
be energized first; all will flash (3 in Triplex mode or 2 only in Duplex
mode) to indicate a switch out-of-sequence error.
Triplex Operation
All three switches are open and all loads are off. When the LEAD
Switch closes, it energizes Load 1. As long as the LEAD Switch
remains closed, Load 1 remains energized. If the LAG Switch closes,
Load 2 is energized. If the LAG2 Switch closes, it energizes Load 3.
Each load is turned off in sequence as the switches are opened. The
entire cycle is then repeated, but with Load 2 energized first followed
by Load 3 and then Load 1. NOTE: the power for all outputs is sup-
plied from the L connection, not through the input switches. NOTE:
in Duplex mode ("R" suffix), the LAG2 input & the Load 3 output are
non-functional.
Troubleshooting
If the unit fails to operate properly, check that all connections are
correct per the appropriate diagram. If you still need assistance,
please call us at 800-238-7474. Our technical support team is glad to
work with you to answer your questions.
Warranty
These products are warranted to be free from defects in workmanship
or material under normal service and use for a period of five (5) years
from date of manufacture.
Macromatic Industrial Controls Inc.
2201 Corporate Drive
For product information and technical support go to www.macromatic.
com/contact
901-0000-117
Warning
12 Pin
(A7R suffix)
Waukesha, WI 53189
(Continued)
5. Plug the product into the socket.
6. If power is lost & returns with more than just the LEAD Switch closed,
there is a fixed 10 second delay between energization of the LAG
output (Triplex & Duplex mode) & LAG2 output (Triplex mode only)
to prevent all Loads from coming on at the same time.
7. One of the Red LED's will be steady ON to indicate which Load will
be energized first; all will flash (3 in Triplex mode or 2 only in Duplex
mode) to indicate a switch out-of-sequence error.
Triplex Operation
All three switches are open and all loads are off. When the LEAD
Switch closes, it energizes Load 1. As long as the LEAD Switch
remains closed, Load 1 remains energized. If the LAG Switch closes,
Load 2 is energized. If the LAG2 Switch closes, it energizes Load 3.
Each load is turned off in sequence as the switches are opened. The
entire cycle is then repeated, but with Load 2 energized first followed
by Load 3 and then Load 1. NOTE: the power for all outputs is sup-
plied from the L connection, not through the input switches. NOTE:
in Duplex mode ("R" suffix), the LAG2 input & the Load 3 output are
non-functional.
Troubleshooting
If the unit fails to operate properly, check that all connections are
correct per the appropriate diagram. If you still need assistance,
please call us at 800-238-7474. Our technical support team is glad to
work with you to answer your questions.
Warranty
These products are warranted to be free from defects in workmanship
or material under normal service and use for a period of five (5) years
from date of manufacture.
Macromatic Industrial Controls Inc.
2201 Corporate Drive
For product information and technical support go to www.macromatic.
com/contact
installation instructions
ATP Triplex Alternating Relays
December 2020, Rev A
READ INSTRUCTIONS BEFORE INSTALLING OR OPERATING THIS DEVICE. KEEP
FOR FUTURE REFERENCE.
Potentially hazardous voltages are present. Turn off all power
supplying this equipment before connecting or disconnecting wiring.
Installation & Wiring
1. Mount the appropriate 8 or 12 pin socket in an enclosure.
2. Wire the socket per one of the diagrams below corresponding to
your product or as shown on the side of the product.
3. (No "R" suffix) Products without the 8-position rotary switch will
operate as a normal Triplexor with three inputs.
("R" suffix) Products with the optional 8-position rotary switch can
4.
be used as either: (a) a standard Triplexor with three inputs; (b) a
Triplexor locking Load 1, 2 or 3 as the first to be energized (Lead
Load); (c) a standard Duplexor with two inputs until system expansion
requires a third Load; or (d) a Duplexor locking Load 1 or 2 as the
first to be energized (Lead Load). Rotate the switch to the desired
function. Note: do not change the setting of this switch with power
applied to the unit.
8 Pin
(A1 & A1R suffix)
(continued on back)
Waukesha, WI 53189
901-0000-117
Warning
12 Pin
(A7R suffix)
