installation instructions

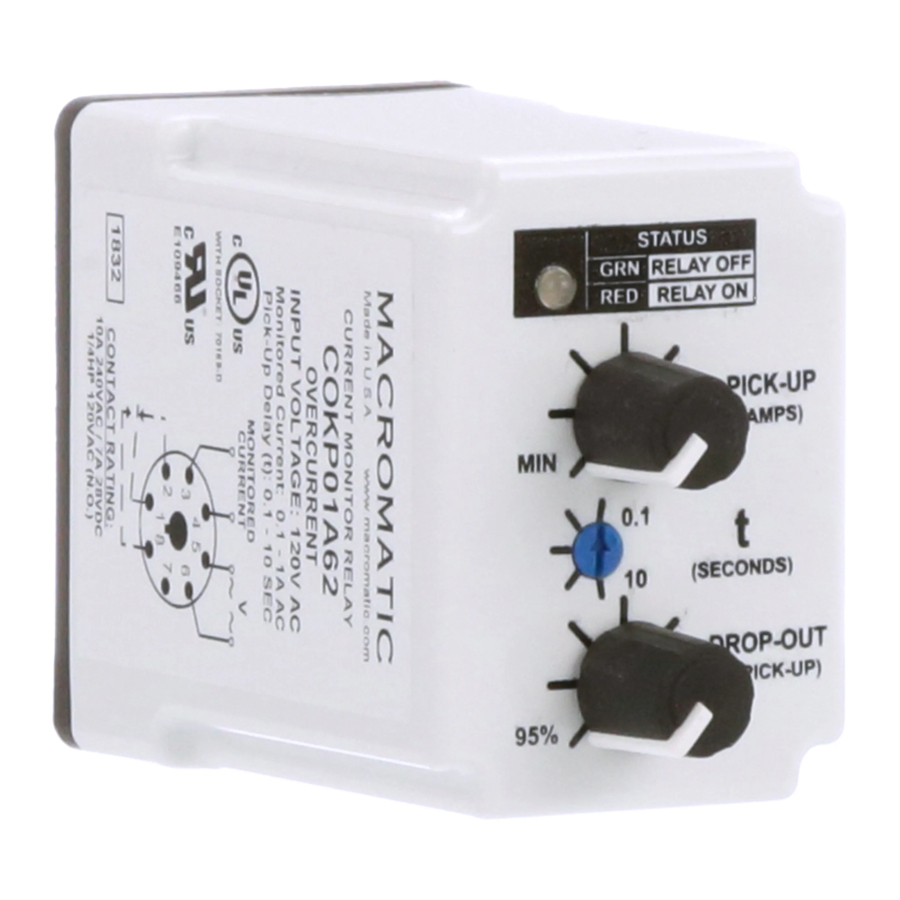

COKP Series
Current Sensing Relays
901-0000-331
December 2020, Rev A
DANGER!
Potentially hazardous voltages are present. Electrical shock can cause death or serious injury.
Installation should be done by qualified personnel following all National, State & Local Codes.
Présence de tensions potentiellement dangereuses. Une décharge électrique peut causer la mort ou des blessures graves.
L'installation devrait être effectuée par du personnel qualifié suivant tous les codes nationaux, provinciaux et locaux.
BE SURE TO REMOVE ALL POWER SUPPLYING THIS EQUIPMENT BEFORE CONNECTING OR DISCONNECTING WIRING.
READ INSTRUCTIONS BEFORE INSTALLING OR OPERATING THIS DEVICE. KEEP FOR FUTURE REFERENCE.
S'ASSURER DE SUPPRIMER TOUTE ALIMENTATION ÉLECTRIQUE DE CET ÉQUIPEMENT AVANT DE BRANCHER OU DE DÉBRANCHER LES
CÂBLAGES.
Installation & Wiring
Wiring
Mount the appropriate 8 pin octal socket (such as the Macromatic 70169-D or Custom Connector OT08-PC)
in a suitable enclosure. When making connections to the socket, make sure to match the terminal numbers
on the socket to the ones shown on the wiring diagram (the wiring diagram on the relay is the view looking
towards the bottom of the relay vs. the top of the socket). Use one or two #12-22 solid or stranded copper or
copper-clad aluminum conductors with terminals on Macromatic or Custom Connector sockets - a terminal
tightening torque of 12 in-lbs should be used.
See back page
