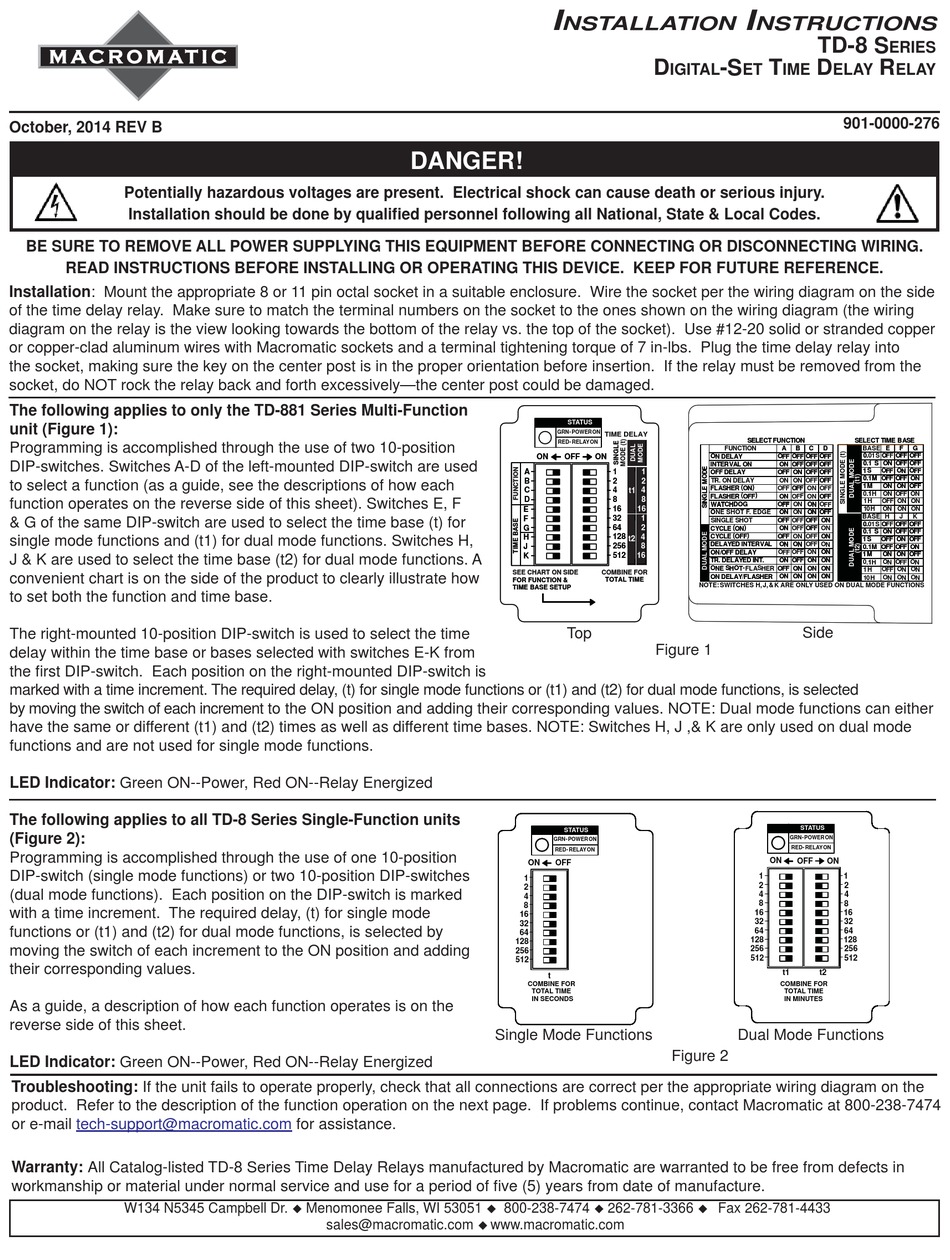

macromatic TD-8 Series Installation Instructions

October, 2014 REV B
Potentially hazardous voltages are present. Electrical shock can cause death or serious injury.
Installation should be done by qualifi ed personnel following all National, State & Local Codes.
BE SURE TO REMOVE ALL POWER SUPPLYING THIS EQUIPMENT BEFORE CONNECTING OR DISCONNECTING WIRING.
READ INSTRUCTIONS BEFORE INSTALLING OR OPERATING THIS DEVICE. KEEP FOR FUTURE REFERENCE.
Installation: Mount the appropriate 8 or 11 pin octal socket in a suitable enclosure. Wire the socket per the wiring diagram on the side
of the time delay relay. Make sure to match the terminal numbers on the socket to the ones shown on the wiring diagram (the wiring
diagram on the relay is the view looking towards the bottom of the relay vs. the top of the socket). Use #12-20 solid or stranded copper
or copper-clad aluminum wires with Macromatic sockets and a terminal tightening torque of 7 in-lbs. Plug the time delay relay into
the socket, making sure the key on the center post is in the proper orientation before insertion. If the relay must be removed from the
socket, do NOT rock the relay back and forth excessively—the center post could be damaged.
The following applies to only the TD-881 Series Multi-Function
unit (Figure 1):
Programming is accomplished through the use of two 10-position
DIP-switches. Switches A-D of the left-mounted DIP-switch are used
to select a function (as a guide, see the descriptions of how each
function operates on the reverse side of this sheet). Switches E, F
& G of the same DIP-switch are used to select the time base (t) for
single mode functions and (t1) for dual mode functions. Switches H,
J & K are used to select the time base (t2) for dual mode functions. A
convenient chart is on the side of the product to clearly illustrate how
to set both the function and time base.
The right-mounted 10-position DIP-switch is used to select the time
delay within the time base or bases selected with switches E-K from
the fi rst DIP-switch. Each position on the right-mounted DIP-switch is
marked with a time increment. The required delay, (t) for single mode functions or (t1) and (t2) for dual mode functions, is selected
by moving the switch of each increment to the ON position and adding their corresponding values. NOTE: Dual mode functions can either
have the same or different (t1) and (t2) times as well as different time bases. NOTE: Switches H, J ,& K are only used on dual mode
functions and are not used for single mode functions.
LED Indicator: Green ON--Power, Red ON--Relay Energized
The following applies to all TD-8 Series Single-Function units
(Figure 2):
Programming is accomplished through the use of one 10-position
DIP-switch (single mode functions) or two 10-position DIP-switches
(dual mode functions). Each position on the DIP-switch is marked
with a time increment. The required delay, (t) for single mode
functions or (t1) and (t2) for dual mode functions, is selected by
moving the switch of each increment to the ON position and adding
their corresponding values.
As a guide, a description of how each function operates is on the
reverse side of this sheet.
LED Indicator: Green ON--Power, Red ON--Relay Energized
Troubleshooting: If the unit fails to operate properly, check that all connections are correct per the appropriate wiring diagram on the
product. Refer to the description of the function operation on the next page. If problems continue, contact Macromatic at 800-238-7474
or e-mail tech-support@macromatic.com
Warranty: All Catalog-listed TD-8 Series Time Delay Relays manufactured by Macromatic are warranted to be free from defects in
workmanship or material under normal service and use for a period of fi ve (5) years from date of manufacture.
W134 N5345 Campbell Dr.
DANGER!
for assistance.
 Menomonee Falls, WI 53051
sales@macromatic.com
I
NSTALLATION
D
STATUS
GRN - POWER ON
TIME DELAY
RED - RELAY ON
ON ON OFF OFF ON ON
-
A A - 1 1 1 1
B B - - 2 2 2 2
C C - - 4 4 4 4
t1
-
D D - 8 8 8 8
- - 16 16 16 16
E E
- - 32 32 1 1
F F
- -
G G 64 64 2 2
-
- 128 128 4 4
H H
t2
- - 256 256 8 8
J J
- -
K K 512 512 16 16
SEE CHART ON SIDE SEE CHART ON SIDE COMBINE FOR COMBINE FOR
FOR FUNCTION & FOR FUNCTION & TOTAL TIME TOTAL TIME
TIME BASE SETUP TIME BASE SETUP
Top
Figure 1
STATUS
GRN - POWER ON
RED - RELAY ON
ON OFF
-
1
2 -
-
4
8 -
-
16
-
32
-
64
-
128
-
256
-
512
t
COMBINE FOR
TOTAL TIME
IN SECONDS
Single Mode Functions
 800-238-7474  262-781-3366
www.macromatic.com

I
NSTRUCTIONS
TD-8 S
-S T D
IGITAL ET IME ELAY
901-0000-276
SELECT FUNCTION SELECT FUNCTION
FUNCTION A A B B C C D D
ON DELAY ON DELAY OFF OFF OFF OFF OFF OFF OFF OFF
INTERVAL ON INTERVAL ON ON OFF OFF OFF ON OFF OFF OFF
OFF DELAY OFF DELAY OFF ON OFF OFF OFF ON OFF OFF
TR. ON DELAY I O N O N O FF OFF OFF
FLASHER ( ON ) FLASHER ( ON )
OFF OFF OFF O N O FF
FLASHER ( OFF ) FLASHER ( OFF )
ON O ON FF O N OFF OFF
WATCHDOG WATCHDOG OFF OFF O N ON O ON FF
O ONE SHOT F. EDGE ON ON O N ON ON OFF OFF
SINGLE SHOT OFF O OFF FF OFF ON OFF ON
CYCLE ( ON ) CYCLE ( ON )
ON O ON FF OFF O OFF N
CYCLE ( OFF ) CYCLE ( OFF )
OFF O OFF N O FF ON ON
DELAYED INTERVAL DELAYED INTERVAL ON ON O ON ON FF O N
ON/OFF DELAY ON/OFF DELAY O FF O FF O N ON ON
TR. DELAYED INT. TR. DELAYED INT. ON OFF ON ON ON OFF ON ON
ONE SHOT ONE SHOT-FLASHER OFF ON ON ON OFF ON ON ON
ON ON ON ON ON ON ON ON
ON DELAY/FLASHER ON DELAY FLASHER
NOTE: SWITCHES H, J, & K ARE ONLY USED ON DUAL MODE FUNCTIONS
Side
STATUS
GRN - POWER ON
RED - RELAY ON
ON OFF ON
- - 1
1
- - 2
2
- - 4
4
- - 8
8
16 - -
16
- - 32
32
- -
64 64
128 - -
128
- - 256
256
512 - -
512
t1 t2
COMBINE FOR
TOTAL TIME
IN MINUTES
Dual Mode Functions
Figure 2
 Fax 262-781-4433
ERIES
R
ELAY
SEL CT TIME BASE SELECT TIME BASE
BASE E E F F G G
0. 0. 1 0 S O O FF OFF OFF OFF OFF
0.1 S ON OFF OFF 0.1 S ON OFF OFF
1 S 1 S OFF ON OFF OFF ON OFF
0.1M OFF OFF ON 0.1M OFF OFF ON
ON ON OFF ON ON OFF
1M 1M
0.1H ON OFF ON 1
1H OFF ON ON
1 H ON ON ON
0
BASE H J K
0. 0. 1 0 S O O FF OFF OFF OFF OFF
0.1 S ON OFF OFF 0.1 S ON OFF OFF
1 S 1 S OFF ON OFF OFF ON OFF
0.1M OFF OFF ON 0.1M OFF OFF ON
1M 1M ON ON OFF ON ON OFF
0.1H ON OFF ON 1
1H OFF ON ON
1 H 0 ON ON ON
