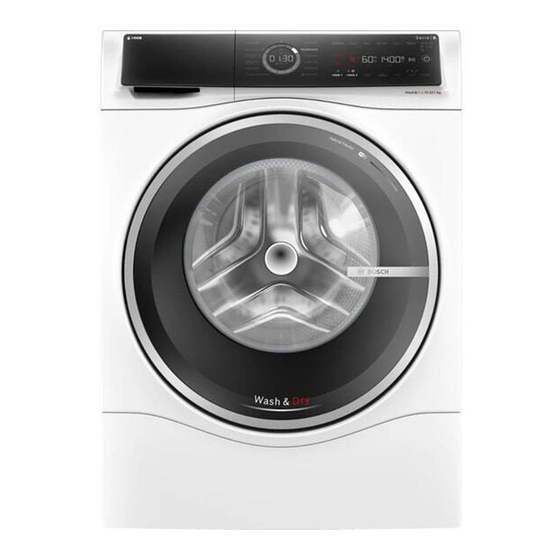

- Page 1 Washer dryer WNC254A0GR [en] User manual and installation instructions...
- Page 2 Further information and explanations are available online: Table of contents 1 Safety ........... 4 8 Buttons ........ 24 1.1 General information.... 4 9 Programmes ...... 27 1.2 Intended use...... 4 1.3 Restriction on user group.. 4 10 Accessories...... 31 1.4 Safe installation ...... 5 11 Laundry........ 31 1.5 Safe use ........
- Page 3 16 Intelligent dosing system .. 35 21.3 Using the appliance again .. 52 16.1 Pouring liquid detergent 21.4 Disposing of old appliance ... 53 and fabric softener into the dispensers ...... 35 22 Customer Service.... 53 22.1 Product number (E-Nr.), 16.2 Using the manual dosing production number (FD) compartment ......
- Page 4 en Safety 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡...
- Page 5 Safety en 1.4 Safe installation WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing. ▶...
- Page 6 en Safety ▶ If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted. WARNING ‒ Risk of injury! The heavy weight of the appliance may result in injury when lifted. ▶...
- Page 7 Safety en ▶ If the appliance or the power cord is damaged, immediately un- plug the power cord or switch off the fuse in the fuse box and turn off the water tap. ▶ Call customer services. → Page 53 An ingress of moisture can cause an electric shock. ▶...
- Page 8 en Safety ▶ Keep detergents and care products out of the reach of children. WARNING ‒ Risk of explosion! Highly flammable objects such as lighters or matches may ignite during the drying process. ▶ Remove all highly flammable objects from any pockets in your laundry before the drying process.
- Page 9 Safety en Reaching into the drum while it is still turning may cause hand in- juries. ▶ Wait for the drum to come to a complete stop before reaching inside. CAUTION ‒ Risk of scalding! When you wash at high temperatures, the detergent solution gets hot.
- Page 10 en Safety WARNING ‒ Risk of injury! The use of non-original spare parts and non-original accessories is dangerous. ▶ Only use the manufacturer's original spare parts and original ac- cessories. WARNING ‒ Risk of poisoning! Poisonous fumes may be given off if you use cleaning agents that contain solvents.
- Page 11 Preventing material damage en Make sure that the length of the ▶ Preventing material damage 2 Preventing material thread on the connection to the water tap is at least 10 mm. damage If the water pressure is too high or too low, the appliance may not be Preventing material damage ATTENTION! able to operate properly.
- Page 12 en Environmental protection and saving energy Remove all detergent residue, If you do not use the appliance for an ▶ spray residue or other residues im- extended period, it automatically mediately if they come into contact switches to standby mode. with the appliance. Installation and connection 4 Installation and con- Environmental protection and saving energy...
- Page 13 Installation and connection en erate properly, or this may result in ATTENTION! material damage or damage to the If residual water in the appliance appliance. freezes, this may cause damage to Do not operate the appliance with the appliance. ▶ incomplete or defective accessor- Do not install or operate this appli- ▶...
- Page 14 en Installation and connection Unscrew and remove all of Installation loca- Requirements the screws for the 4 transit bolts tion using a WAF 13 wrench. Against a wall Do not trap the power cord or the hoses between the wall and the appli- ance.
- Page 15 Installation and connection en Put on the 4 cover caps. Connect the water inlet hose to a tap (26.4 mm = 3/4"). Push the 4 cover caps downwards. Open the water tap carefully and check that the connection points are tight. Water outlet connection types This information is intended to help you to connect this appliance to the water outlet.
- Page 16 en Installation and connection 4.6 Aligning the appliance Sink Fix and secure the water outlet In order to reduce noise and vibra- hose with an el- tion and to prevent the appliance bow. from moving, align the appliance cor- → "Accessories", rectly. Page 31 Use a WAF 17 wrench to loosen the lock nuts in a clockwise direc- Plastic pipe with...
- Page 17 Before using for the first time en Use a WAF 17 wrench to tighten Pour approx. 1 litre of water into the lock nuts against the housing the manual dosing compartment. until they are hand-tight. Add washing powder containing In doing so, hold the foot tight and oxygen bleach to the manual dos- do not adjust its height.
- Page 18 en Familiarising yourself with your appliance Familiarising yourself with your appliance 6 Familiarising yourself with your appliance Familiarising yourself with your appliance 6.1 Appliance You can find an overview of the parts of your appliance here. On certain models, specific details such as the colour and shape may differ from those pictured.
- Page 19 Familiarising yourself with your appliance en Manual dosing compartment → "Using the manual dosing compartment", Page 36 / : Dispenser for fabric softener or liquid detergent → "Intelligent dosing system", Page 35 : Dispenser for liquid deter- gent → "Intelligent dosing system", Page 35 6.3 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.
- Page 20 en Familiarising yourself with your appliance tings by pressing the buttons. The ac- To display the additional buttons, tivated settings are highlighted briefly press Eπιπλέον. brightly on the display. ATTENTION! Pressing on the display with force a The display shows all additional may cause damage.
- Page 21 Display en Display 7 Display The display shows the current settings, options or relevant information. Display Example: Display Display Description 0:40 Expected programme duration or programme time re- maining in hours and minutes. Program end time → "Buttons", Page 24 Recommendation for the maximum load capacity for the selected program in kg.
- Page 22 en Display Display Description The "Blood" stain type is activated. The "Red wine" stain type is activated. The "Cooking fat/cooking oil" stain type is activated. Change the basic settings. → Page 39 Flashes: Drum cleaning is required. Run the Βαμβακερά 90 programme for cleaning and caring for the drum and the outer tub.
- Page 23 Display en Display Description ¡ Lights up: The door is locked. – To add laundry, the door can be unlocked. → "Adding laundry", Page 33 – To open the door, you can cancel the programme. → "Cancelling the washing programme", Page 33 ¡ Flashes: The door is not closed. ¡...
- Page 24 en Buttons Buttons 8 Buttons The selection of programme settings and options to change these depend on Buttons the programme that is set as well as the programme status. Button Selection Description (mains ¡ Switch on Switch on the appliance or put it in switch) standby mode.
- Page 25 Buttons en Button Selection Description Πρόπλυση ¡ Activate Activate or deactivate prewash, e.g. for washing heavily soiled laundry. ¡ Deactivate Note: If the intelligent dosing system is activated, the detergent will be dis- pensed automatically for the prewash and the main wash. If the intelligent dosing system is de- activated, place the detergent directly in the drum for the prewash and into...
- Page 26 en Buttons Button Selection Description Υγιεινή για ¡ Activate Activate or deactivate gentle pretreat- ευαίσθητα ment of dry laundry with hot air up to ¡ Deactivate 65 °C for increased hygiene de- mands. After the fabrics have been pretreated with hot air, they are washed at low temperatures.
- Page 27 Programmes en Programmes 9 Programmes Programmes Note: The laundry's care labels provide you with additional information on pro- gramme selection. Programme Description Max. Max. load load (kg) (kg) Dry- Wash- Βαμβακερά Wash hard-wearing items made from cotton or 10.0 linen. Also suitable as a short programme for nor- mally soiled laundry when you activate Speed Perfect.
- Page 28 en Programmes Programme Description Max. Max. load load (kg) (kg) Dry- Wash- Μάλλινα Hand- or machine-washable items that are made from wool or contain wool. To prevent the laundry from shrinking, the drum moves the items very gently with long pauses.
- Page 29 Programmes en Programme Description Max. Max. load load (kg) (kg) Dry- Wash- The degree of soiling and the type of fabric are automatically detected. The washing pro- cess is adapted. Note: The temperature and spin speed cannot be adjusted in this programme and are set automatically.
- Page 30 en Programmes Programme Description Max. Max. load load (kg) (kg) Dry- Wash- Tip: Energy- and time-optimised programme using hybrid technology. Programme setting: ¡ Max. 60 °C ¡ Max. 1400 rpm Speed Perfect activated Drying not possible...
- Page 31 Accessories en Accessories 10 Accessories Use original accessories. These have been made especially for your appliance. Accessories Order num- Water inlet hose ex- Extend the water inlet hose for cold water WMZ2381 tension or AquaStop (approx. 2.50 m). Fixing brackets Improves the stability of the appliance. WMZ2200 Elbow Secure the water outlet hose in place.
- Page 32 en Basic operation ¡ Do not use products containing Press the required programme. solvents, caustic agents or volatile → "Programmes", Page 27 substances ¡ Do not use chlorine bleach ¡ Do not use dyes regularly as fixing salt can damage stainless steel ¡ Do not use color-bleaching agents in the appliance ¡...
- Page 33 Basic operation en 13.4 Opening the door 13.6 Starting the programme Press on the edge of the door. Note: If the intelligent dosing system is activated, make sure that the dis- pensers have been filled → Page 35 and the basic dosage has been set → Page 36. Requirement: A programme is set.
- Page 34 en Dryness level The appliance door remains Wipe the rubber gasket dry and re- locked for safety reasons if the move any foreign objects. temperature and water levels are high. – If the temperature is high, start the Ξέβγαλμα programme. – If the water level is high, start the Στύψιμο...
- Page 35 Childproof lock en 14.1 Changing the dryness Intelligent dosing system 16 Intelligent dosing sys- level For some programmes, you can The appliance's intelligent dosing change the dryness level so that your Intelligent dosing system system is activated at the factory and laundry will be drier or more damp. automatically doses liquid detergent Set a washing and drying pro- and fabric softener for any pro-...
- Page 36 en Intelligent dosing system Open the lid and pour liquid deter- 16.3 Adapting the / dis- gent and fabric softener into penser the relevant dispensers → Page 18. / dispenser can dose fabric softener or liquid detergent . When it leaves the factory, the dis- penser is set for fabric softener.
- Page 37 Home Connect en Press and hold i-DOS 1 for approx. 17.1 Setting up the 3 seconds. Home Connect app a The display shows the set basic Install the Home Connect app on dosage amount. your mobile device. To adjust the setting, press Start the Home Connect app and Wait briefly to save the setting.
- Page 38 en Home Connect 17.4 Deactivating Wi-Fi on the 17.7 Remote start appliance Enable the appliance for remote start via the Home Connect app. Press and hold Απομακρυσμένη έναρξη for ap- Note prox. 3 seconds. Remote start will be deactivated in the following circumstances: Press Απομακρυσμένη έναρξη ¡...
- Page 39 Basic settings en ¡ Status of any previous reset to Set the volume of the signal factory settings. tone emitted when the but- tons are pressed: This initial registration prepares the 0 (off) to 4 (very loud) Home Connect functions for use and is only required when you want to Set the display brightness: use the Home Connect functions for...
- Page 40 en Cleaning and servicing 19.2 Cleaning the detergent Cleaning and servicing 19 Cleaning and servi- drawer cing If you want to replace the liquid de- To keep your appliance working effi- Cleaning and servicing tergent or fabric softener in the dis- ciently for a long time, it is important penser with another product or if the to clean and maintain it carefully.
- Page 41 Cleaning and servicing en Remove the pump unit. Clean the pump unit with a damp cloth. Unclip the detergent drawer cover and remove it. Clean the detergent drawer and the cover with a soft, damp cloth or hand shower. Empty the detergent drawer. Dry the detergent drawer, cover and pump unit and reinsert them.
- Page 42 en Cleaning and servicing Open and remove the mainten- ance flap. Clean the housing of the detergent drawer in the appliance. Slide a sufficiently large container under the opening. Push in the detergent drawer. 19.3 Cleaning the drain pump Take the drain hose out of the holder.
- Page 43 Cleaning and servicing en Cleaning the drain pump CAUTION - Risk of scalding! When you wash at high temperat- Requirement: The drain pump is ures, the detergent solution gets empty. → Page 42 hot. Since water may remain in the Do not touch the hot detergent ▶...
- Page 44 en Cleaning and servicing Ensure that both impellers can Insert and close the maintenance turn. flap. Insert the pump cap. 19.4 Cleaning the intake Ensure that the parts of the ‒ opening in the rubber pump cap are correctly as- sembled. gasket Regularly check the intake opening in the rubber gasket for any block- ages and clean the intake opening.
- Page 45 Troubleshooting en Troubleshooting 20 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- Troubleshooting ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Improper repairs are dangerous. Never make any technical modifications to the appliance or its features. ▶...
- Page 46 en Troubleshooting Fault Cause and troubleshooting E:10 -00 -10 -20 The pump for the intelligent dosing system is blocked. Clean the detergent drawer. → Page 40 If the fault persists, call customer service. → Page 53 Note: Until the fault is rectified, you can deactivate the intelligent dosing system and dose manually.
- Page 47 Troubleshooting en Fault Cause and troubleshooting All other error codes. Malfunction Restart the appliance. If the fault occurs again, disconnect the appliance from the power supply for at least 30 seconds. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. If the fault persists, call customer service.
- Page 48 en Troubleshooting Fault Cause and troubleshooting The display and but- Software fault. tons do not respond. To restart the appliance, press and hold for ap- ▶ proximately 5 seconds. Home Connect is not Different causes are possible. working properly. Reset the appliance network settings. → Page 38 Set up Home Connect again.
- Page 49 Troubleshooting en Fault Cause and troubleshooting The appliance is vi- Appliance is not correctly aligned. brating, 'wandering' Align the appliance. → Page 16 ▶ and making loud The appliance feet are not fixed. noises during the spin Secure the appliance's feet. → Page 16 ▶ cycle.
- Page 50 en Troubleshooting Fault Cause and troubleshooting Insufficient cleaning or The detergent in the dispenser is unsuitable or detergent residues on thickened. the laundry. Check whether the detergent is suitable. → Page 31 Check whether the detergent in the dispenser has thickened. If the detergent is unsuitable or has thickened, empty it out and clean the dispenser.
- Page 51 Troubleshooting en Fault Cause and troubleshooting The laundry is too Always select the highest possible spin speed for ▶ damp. the washing programme in question. Creasing. The selected programme is unsuitable for the type of fabric. Set a suitable programme. → Page 27 ▶...
- Page 52 en Transportation, storage and disposal 20.1 Emergency release 21.2 Inserting the transit bolts Releasing the door Secure the appliance before trans- Requirement: The drain pump is portation using transit bolts in order empty. → Page 42 to prevent transport damage. ATTENTION! Escaping water may Use a screwdriver to remove the 4 cause material damage.
- Page 53 Customer Service en 21.4 Disposing of old appli- Customer Service 22 Customer Service ance Function-relevant genuine spare parts Customer Service Valuable raw materials can be re- according to the corresponding Eco- used by recycling. design Order can be obtained from Customer Service for a period of at WARNING least 10 years from the date on Risk of harm to health!
- Page 54 en Customer Service Make a note of your appliance's de- tails and the Customer Service tele- phone number to find them again quickly.
- Page 55 Consumption values en Consumption values 23 Consumption values The following information is provided in accordance with the EU Ecodesign Consumption values Regulation. The values specified for programmes other than Eco 40-60 are only given as a guide and were determined in accordance with the applicable stand- ards EN60456 and EN62512.
- Page 56 en Technical data Programme Load Pro- Energy Water Max- Spin Resid- (kg) gramm con- con- imum speed e dura- sump- sump- temper- (rpm) mois- tion tion tion (l/ ature ture (hr:min (kWh/ cycle) (°C) 5 cycle) mins Μάλλινα 0:41 0.180 45.0 30.00...
- Page 57 Declaration of Conformity 25 Declaration of Con- A detailed Declaration of Conformity formity can be found online at www.bosch- home.co.uk among the additional BSH Hausgeräte GmbH hereby de- Declaration of Conformity documents on the product page for clares that the appliance with Home your appliance.
- Page 58 en Declaration of Conformity product number (E no.) which can be found on the rating plate. Alternat- ively, you can also find the model identifier in the first line of the UK En- ergy Label. Name and address of manufacturer BSH Hausgeräte GmbH, Carl-Wery- Strasse 34, 81739 München, Ger- many This statement of compliance is pre-...
