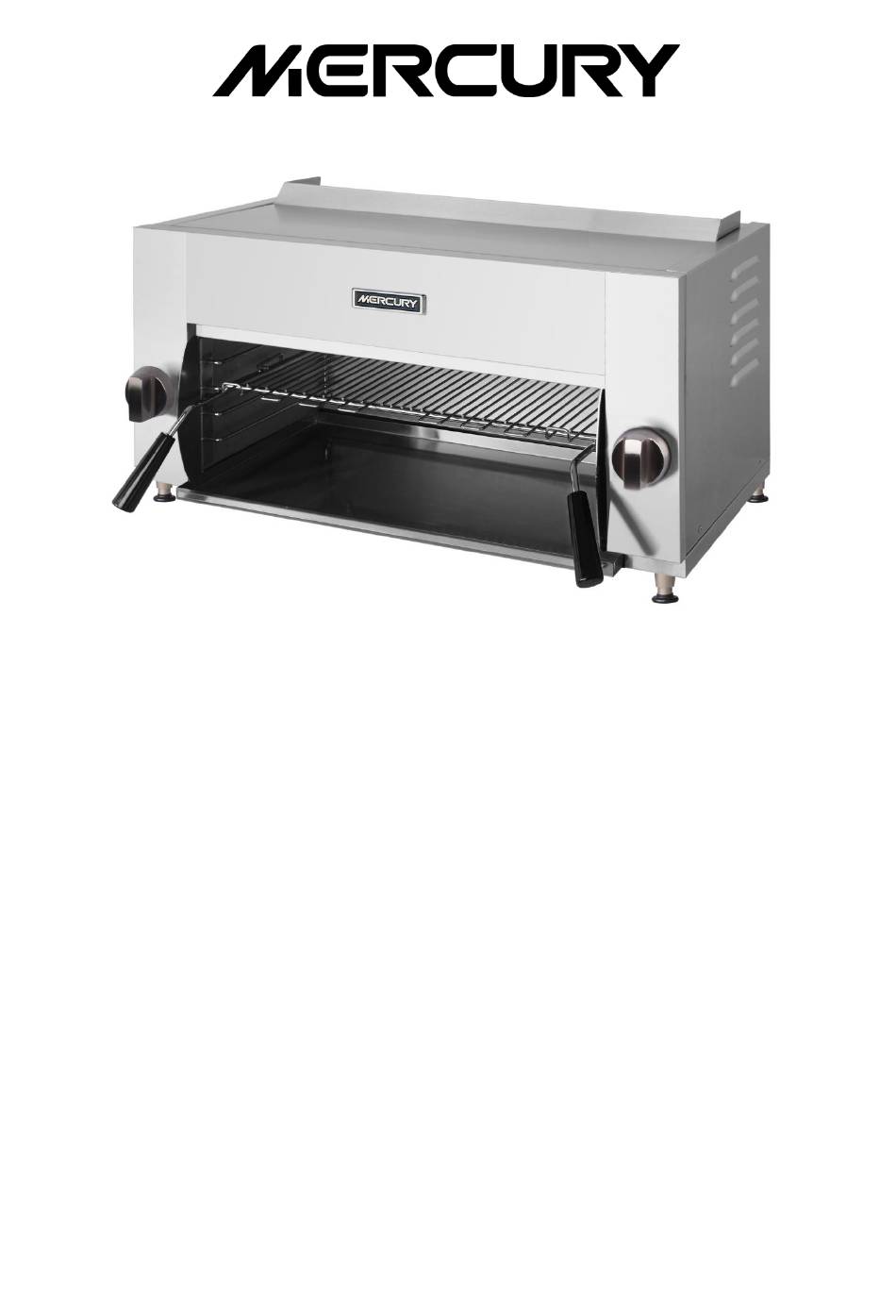

Mercury Gas Salamander
Model: MS-36-F
Installation and Operation Instructions
NOTICE: This manual contains important safety instructions which must be
strictly followed when using this equipment.
CAUTION: These models are designed, built, and sold for commercial use
only. If these models are positioned so the general public can use the
equipment, make sure that cautions, warnings, and operating instructions are
clearly posted near each unit so that anyone using the equipment will use it
correctly and not injure themselves or harm the equipment.
middleby.com.au

Advertisement

loading
Need help?

Need help?

Do you have a question about the MS-36-F and is the answer not in the manual?

Questions and answers

Summary of Contents for Mercury MS-36-F

  • Page 1 Mercury Gas Salamander Model: MS-36-F Installation and Operation Instructions NOTICE: This manual contains important safety instructions which must be strictly followed when using this equipment. CAUTION: These models are designed, built, and sold for commercial use only. If these models are positioned so the general public can use the...
  • Page 2 IMPORTANT FOR FUTURE REFERENCE Please complete this information and retain this manual for the life of the equipment. For Warranty Service and/or parts, this information is required. Model Number Serial Number Date Purchased WARNING: For your safety, do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliances.
  • Page 3 Installation and Operation Instructions Contents Introduction ..................... 4 Specifications ................... 5 General Pack Contents Gas Supply Requirements Dimensions ....................6 Installation ....................7 Installation Requirements Unpacking Location Clearances Assembly Gas Connection Commissioning Operation ....................12 Operation Guide Description of Controls Lighting the Main Burner Main burner air supply Cleaning and Maintenance ................14 Initial cleaning...
  • Page 4 Installation and Operation Instructions Introduction We are confident that you will be delighted with your MERCURY Gas Salamander, and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Gas Salamander, there are two important things you can do.
  • Page 5 Installation and Operation Instructions Specifications General Commercial gas salamander. Pack Contents The following is included: Thor Gas Salamander  1pcs racks  4pcs Feet (optional)  Instruction Manual  Wall Mounting Bracket, including:  -2 x 25mm Black Plastic Spacer. -2 x 3/8”...
  • Page 6 Installation and Operation Instructions Dimensions Dimensions for Gas Salamander Minimum clearance from grease filter - minimum 600mm - Refer AS/NZS5601 - Gas Installations Note: Gas Salamander rack can carry a load of up to: 15KG (33 lbf)
  • Page 7 Installation and Operation Instructions Installation Installation Requirements NOTE: • It is most important that this appliance is installed correctly and that operation is correct before use. Installation shall comply with local gas, health and safety requirements. • This appliance shall be installed with sufficient ventilation to prevent the occurrence of unacceptable concentrations of substances harmful to health.
  • Page 8 Installation and Operation Instructions Installation (continued) Assembly NOTE: • This appliance is assembled before delivery except feet and rack. • This appliance is fitted with adjustable feet to enable the appliance to be positioned securely and level. This should be carried out on completion of the gas connection. Refer to the ‘Gas Connection’...
  • Page 9 Installation and Operation Instructions Installation (continued) Clearances NOTE: Only non-combustible materials can be used in close proximity to this appliance. Combustible Surface Non Combustible Surface Left / Right Hand Side 100mm 25mm* 30mm Rear 50mm Top Clearance to: 200mm Extraction Hood 600mm Grease Arresting Filter** 750mm...
  • Page 10 Installation and Operation Instructions Installation (Continued) Wall Mounting (To Non-Combustible Wall Only) Fig. 1 1. Fix the wall mounting bracket to the wall with six screws, in such a position that the top of the bracket is level and at least 945 mm (38”) above any surface beneath the unit.
  • Page 11 Installation and Operation Instructions Gas Connection NOTE: ALL GAS FITTING MUST ONLY BE CARRIED OUT BY AN AUTHORISED PERSON. The Gas Salamanders do not require an electrical connection, as they function totally on the gas supply only. It is essential that the gas supply is correct for the appliance to be installed and that adequate supply pressure and volume are available.
  • Page 12 Installation and Operation Instructions Operation Operation Guide CAUTION: • THIS APPLIANCE IS FOR PROFESSIONAL USE AND IS ONLY TO BE USED BY QUALIFIED PEOPLE. • ONLY QUALIFIED SERVICE PERSONS ARE TO CARRY OUT INSTALLATION, SERVICING OR GAS CONVERSION OPERATIONS. • COMPONENTS HAVING ADJUSTMENTS PROTECTED (E.G.
  • Page 13 Installation and Operation Instructions Operation (Continued) CAUTION The space between the legs at the bottom admits combustion air. DO NOT BLOCK THIS SPACE. Do not permit fans to blow directly at the unit. Wherever possible, avoid open windows next to the units' sides or back.
  • Page 14 Installation and Operation Instructions Cleaning and Maintenance INITIAL CLEANING: Prior to operating your new salamander, thoroughly wash the exterior with a mild detergent or soap solution. Do not use abrasive cleaners, since this might damage the cabinet finish. If the stainless steel surfaces become discolored, scrub by rubbing only in the direction of the finished grain.
  • Page 15 Installation and Operation Instructions Adjustments Warning: Adjustments and service work may only be performed by a qualified technician who is experienced in, and knowledgeable with, the operation of commercial cooking equipment. However, to assure your confidence, contact your authorized service agency for reliable service, dependable advice and other assistance, and of genuine factory parts.
  • Page 16 Installation and Operation Instructions TROUBLESHOOTING Consult the following table: Problem Cause Remedy Ensure that the main gas supply to the unit is Main gas supply to unit is “OFF” “ON” Ensure that the gas line has enough gas Not enough gas pressure. pressure.
  • Page 17 Installation and Operation Instructions Explosion drawing...
  • Page 18 Installation and Operation Instructions Spare Parts List DESCRIPTION CODE Left Control panel 20710.6046 Right Control panel 20710.6347 20710.6346 Front cover Front insulation 20710.6204 Knob 20603.6015 Side bottom 20710.6044 Oil tray 20710.6111 20303.6010 Support assy 10208.6036 Safety valve 22201.6212 Main pipe assy Manifold assy 20710.6195 Right insulation...
  • Page 20 Under warranty period of the appliance, All the part must be replaced by authorized service provider which approved by Middleby, If not, the warranty may be void. NOTICE Any parts that aren’t made by MERCURY may void warranty. NOTICE Middleby and manufacturer of Middleby keep the right to modify the product.
