Page 2

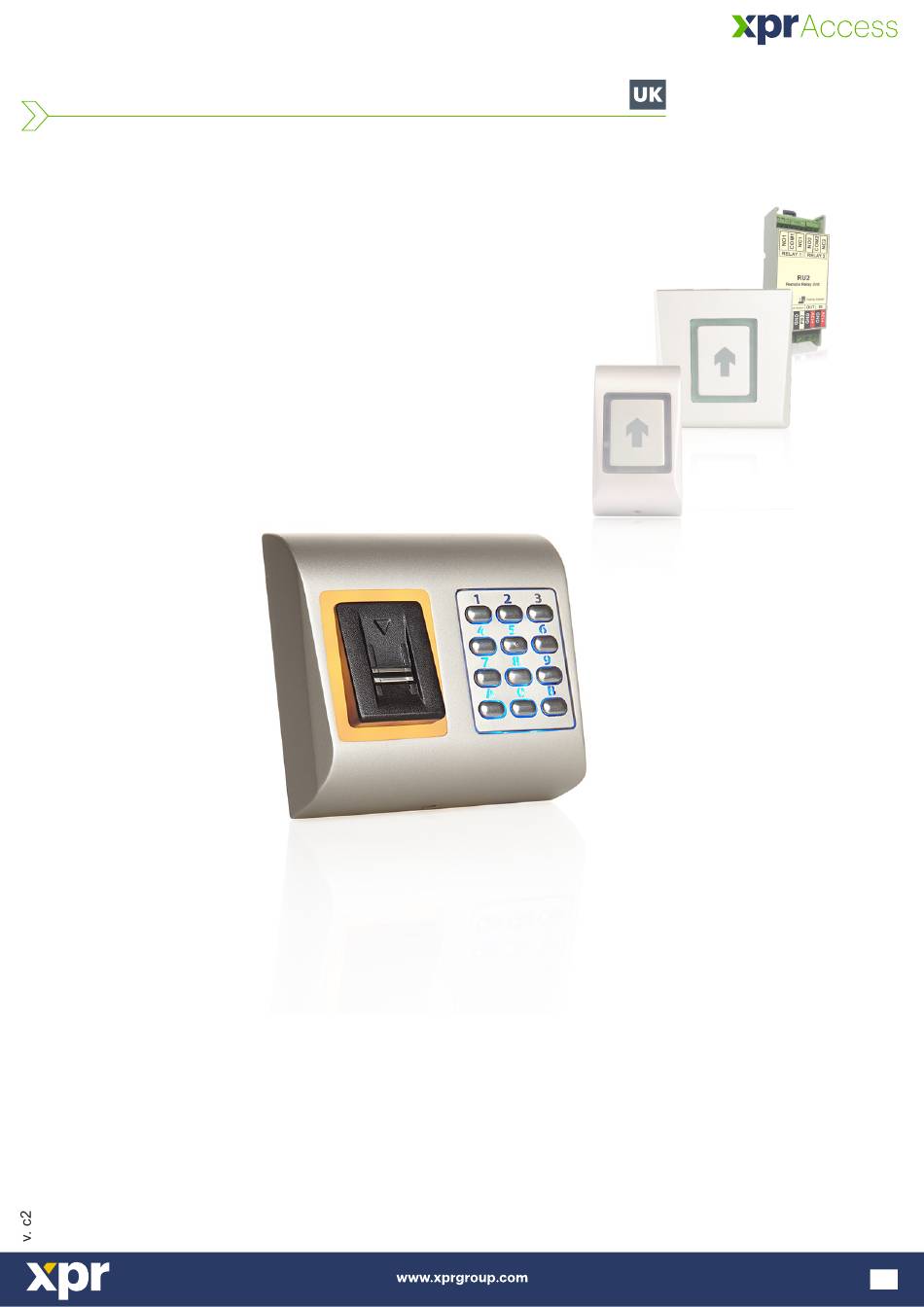

........... INTRODUCTION B100PAD-SA v2 is access control fingerprint reader designed for easy management of the users and configuration. The scanner is made with advanced capacitive sensing technology that provides some advantages over optical solutions like: - making almost impossible to make fake copy of the users fingers - same performance in the different light conditions...
Page 3
MOUNTING MCD-MINI Ø6.0 Cable 100 mm 94 mm Do not install the device and cabling close to a source of strong electro-magnetic fields like radio-transmitting antenna. Do not place the device near or above heating equipments. If cleaning, do not spray or splash water or other cleaning liquids but wipe it out with smooth cloth or towel. Do not let children touch the device without supervision.
Page 4
Orange Green A (RS485) Pink Orange B (RS485) Violet Gray Grey Yellow Relay Yellow (2A) White White Wiring B100PAD-SA v2 with magnetic lock 12VDC POWER SUPPLY Black Pink GND (PB) Violet Blue Green Orange Gray Yellow White 1N4001 Diode Electro Magnetic Lock...
Page 5
Wiring B100PAD-SA v2 with electric strike 12VDC POWER SUPPLY Black Pink GND (PB) Violet Blue Green Orange Gray Yellow White 1N4001 Diode Electric Strike RECOMMENDED SWIPING TECHNIQUE Follow the below instructions for correct finger swiping. Starting from the first finger joint, place the selected finger on the swipe sensor and move it evenly towards oneself in one steady movement.
Page 6
If secure installation is needed, the reader can be connected to remote relay unit at secured area, which also can play the role of request-to-exit push button. Follow the instructions bellow to pair(couple) both devices or refer to the Remote Relay’s Manual. Pairing B100PAD-SA v2 with DINRTT 12 VDC DINRTT 1.
Page 7
ADMINISTRATOR PROGRAMMING BY FINGER Use point fingers as Administrator and Installer. You can use the other fingers as access fingers. Administrator finger is enrolled at the end of the system installation. Initial enrollment of the Admin finger is described in installer manual. RIGHT LEFT ADD Finger Relay 1...
Page 8
DELETE ALL Fingers Action Finger Backlight Buzzer Sound Swipe Admin Finger 4 times short beep slow blinking short beep Wait 5 seconds slow blinking (until fast blinking) multiple beeps Swipe Admin Finger 2 times fast blinking CHANGE ADMIN Finger Action Finger Backlight Buzzer Sound...
Page 9
INSTALLER PROGRAMMING BY FINGER Set Relay 1 Time Action Finger Buzzer Sound Backlight Swipe Installer Finger 1 time short beep slow blinking short beep Wait 5 seconds (until fast blinking) Swipe the INSTALLER Finger beeps on 1 second fast blinking and start counting seconds Swipe the INSTALLER Finger to stop or wait 30 seconds to...
Page 10
Installer Programming block diagram Swipe the Installer Finger 1 to 4 times depending of the desired menu swipes swipe swipes swipes BACKLIGHT BUZZER RELAY 1 RELAY 2 ON/OFF ON/OFF Time Time (on board) (remote) Wait Wait Wait Wait 5 seconds 5 seconds 5 seconds 5 seconds...
Page 11
ADMINISTRATOR PROGRAMMING BY KEYPAD Note: Entering this menu is done by ENTER ADMIN CODE default: 1234+A admin PIN Code. You can not enter with Admin Finger. MENU Press 0A to exit the Menu DELETE ENROLL ENROLL DELETE Admin Finger Installer Finger User User or PIN Code...
Page 12
INSTALLER PROGRAMMING BY KEYPAD Note: Entering this menu is done by ENTER INSTALLER CODE installer PIN Code. You can not enter with Installer Finger. default: 5678+A Press 0A to exit the Menu MENU Buzzer Set Relay 1 Set Relay 2 Backlight ON/OFF TIME...
