XPROX
Introduction

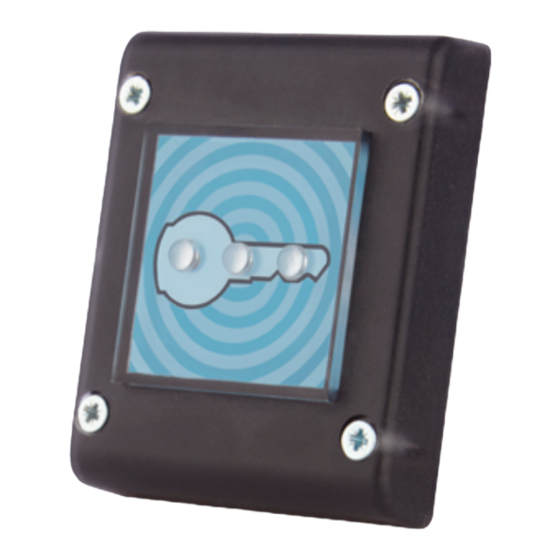

The XPROX is a compact Wiegand proximity reader designed to be integrated directly into door entry systems. It has exact
standard size dimensions to fit in any door entry panels. Provided in ABS finish and compact design, the XPROX is a robust and
reliable product for this type of application.
Features
- Multi-protocol compact slave proximity reader.
- Programmable features and protocol,with the use of the Multipro Programmer
- Ergonomically designed ABS housing.
- WIEGAND 26- 40-bit, CLOCK & DATA or CODIX compatible protocols.
- 8-10cm Read Range
- 125 kHz operating frequency.
- Reads EM4002 compatible tags and cards.
- Visual: Yellow LED, 2 Free tension LED's (Red & Green).
- Audible Internal buzzer
- 12V DC, Current Consumption: 30mA.
- Screw type terminal blocks for easy connection.
- IP65
INSTALLATION

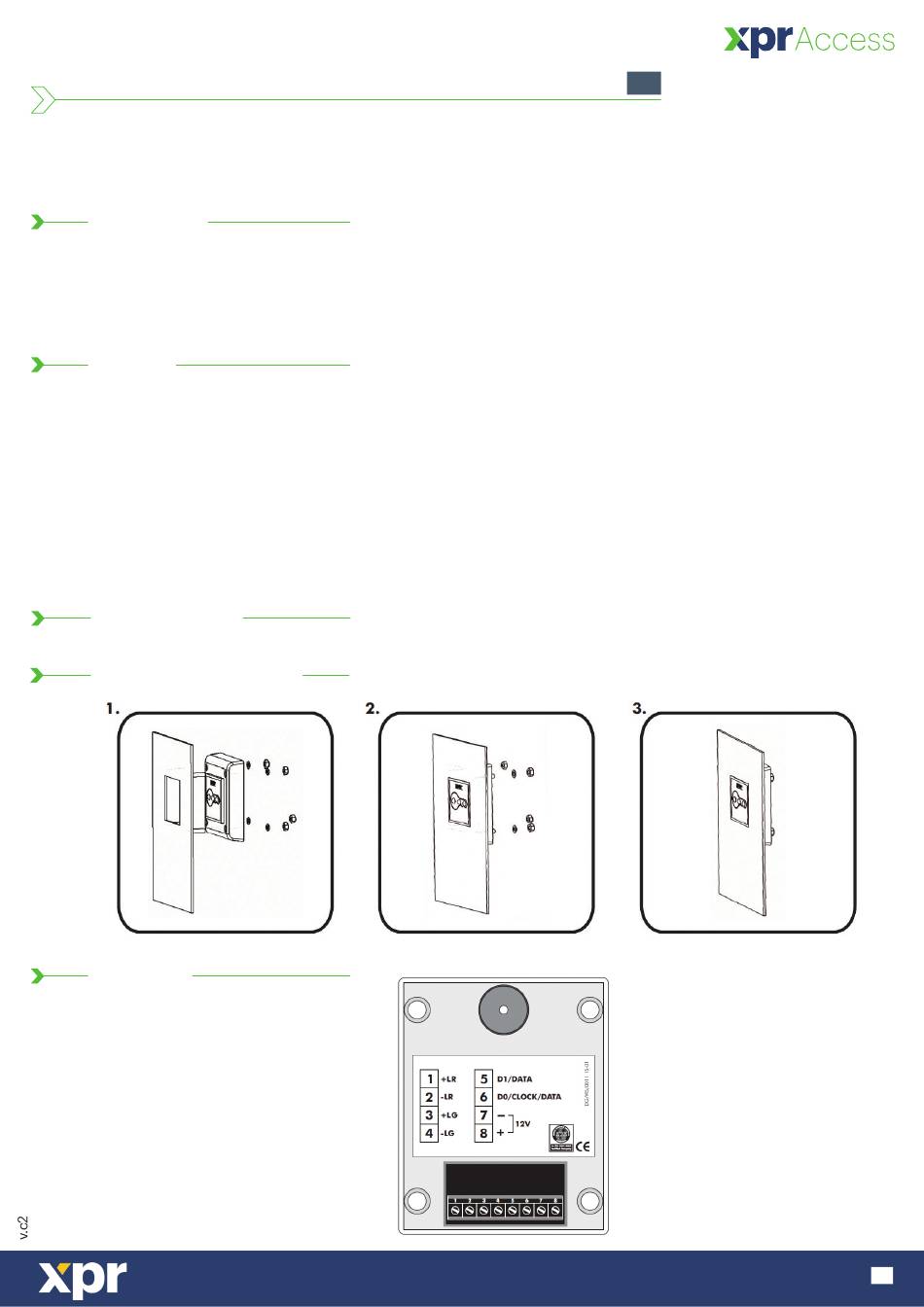

Mounting instructions
PCB View
Proximity Reader
www.xprgroup.com
EN
1
Advertisement
Related Manuals for XPR Access XPROX
Summary of Contents for XPR Access XPROX
- Page 1 The XPROX is a compact Wiegand proximity reader designed to be integrated directly into door entry systems. It has exact standard size dimensions to fit in any door entry panels. Provided in ABS finish and compact design, the XPROX is a robust and reliable product for this type of application.
- Page 2 Codix Connection XPROX EX5... DATA DATA Wiegand/ DataClock Connection XPROX DC(CC) D0/CL D0/CLOCK D1/DA D1/DATA Note: 1.Maximum cable length= 50 meters 2.Type of cable = AWG 18/20 Connecting Voltage Free LEDs DC Voltage DC Voltage IN 4001 12V DC 12V AC...
-
Page 3: Caractéristiques Générales
L’XPROX est un lecteur de proximité multi-protocoles compacte destinés à de nombreuses applications de contrôle d’accès. Son encombrement a été étudié afin de le rendre compatible avec un grand nombe de portiers vidéos. Facile à installer, l’XPROX est idéal pour les entrées d’immeubles. - Page 4 Raccordements Codix XPROX EX5... DATA DATA Raccordements Wiegand / Data/Clock XPROX DC(CC) D0/CL D0/CLOCK D1/DA D1/DATA Note: 1. Distance Maximum du Câble = 50 mètres 2. Type de Câble = AWG 18/20 Raccordement des Leds libres de potentiel Courant Continu...
-
Page 5: Instalación
El XPROX es un compacto lector de proximidad Wiegand, diseñado para integrar directamente en sistemas de intercomunicación o portería. De diseño compacto y acabado en ABS, el XPROX es un producto resistente y fiable para este tipo de aplicaciones. Características - Lector de proximidad multi-protocolo, compacto, en modo esclavo. - Page 6 Conexión Codix XPROX EX5... DATA DATA Conexión Wiegand/ DataClock XPROX DC(CC) D0/CL D0/CLOCK D1/DA D1/DATA Nota: 1. Longitud máxima del cable = 50 metros 2. Tipo de cable = AWG 18/20 Conexión de las LEDs libres de voltaje Voltaje CC...
-
Page 7: Montage
Der XPROX ist ein kompakter Wiegand RFID Leser, der aufgrund seiner Standardabmessungen eine einfache Installation direkt in Türspre- chanlagen ermöglicht. Dank der ABS Oberfläche und dem kompaktem Design, ist der XPROX ein roabuster und zuverlässiger Leser und ideal für diese Anwendung. - Page 8 CODIX Anschluss XPROX EX5... DATA DATA WIEGAND / CLOCK & DATA Anschluss XPROX DC(CC) D0/CL D0/CLOCK D1/DA D1/DATA Hinweis: 1. maximale Kabellänge = 50 Meter 2. Kabeltyp = AWG 18/20 Anschluss der potentialfreien LEDs Gleichstrom Wechselstromm IN 4001 12V DC...
- Page 9 XPROX Proximity Lezer Inleiding Eigenschappen - Multi-protocol compacte slave proximity lezer - Programmeerbare eigenschappen en protocol wanneer de VPC Multipro programmeerapparaat wordt gebruikt. - Ergonomisch ontworpen ABS behuizing - WIEGAND 26-40 bit, CLOCK & DATA of CODIX compatibele protocollen - 8-10cm leesafstand...
- Page 10 Codix Verbinding XPROX EX5... DATA DATA Wiegand / Data Clock Verbinding XPROX DC(CC) D0/CL D0/CLOCK D1/DA D1/DATA Belangrijk: 1. Maximumkabellengte = 50 meter 2. Type van kabel = AWG 18/20 Aansluiting Spanningsvrije LED’s DC Voltage DC Voltage IN 4001 12V DC...
