Space Seating 5500V Assembly Instructions

STEP 1
2
1
STEP 4
13
10 x3
4
6

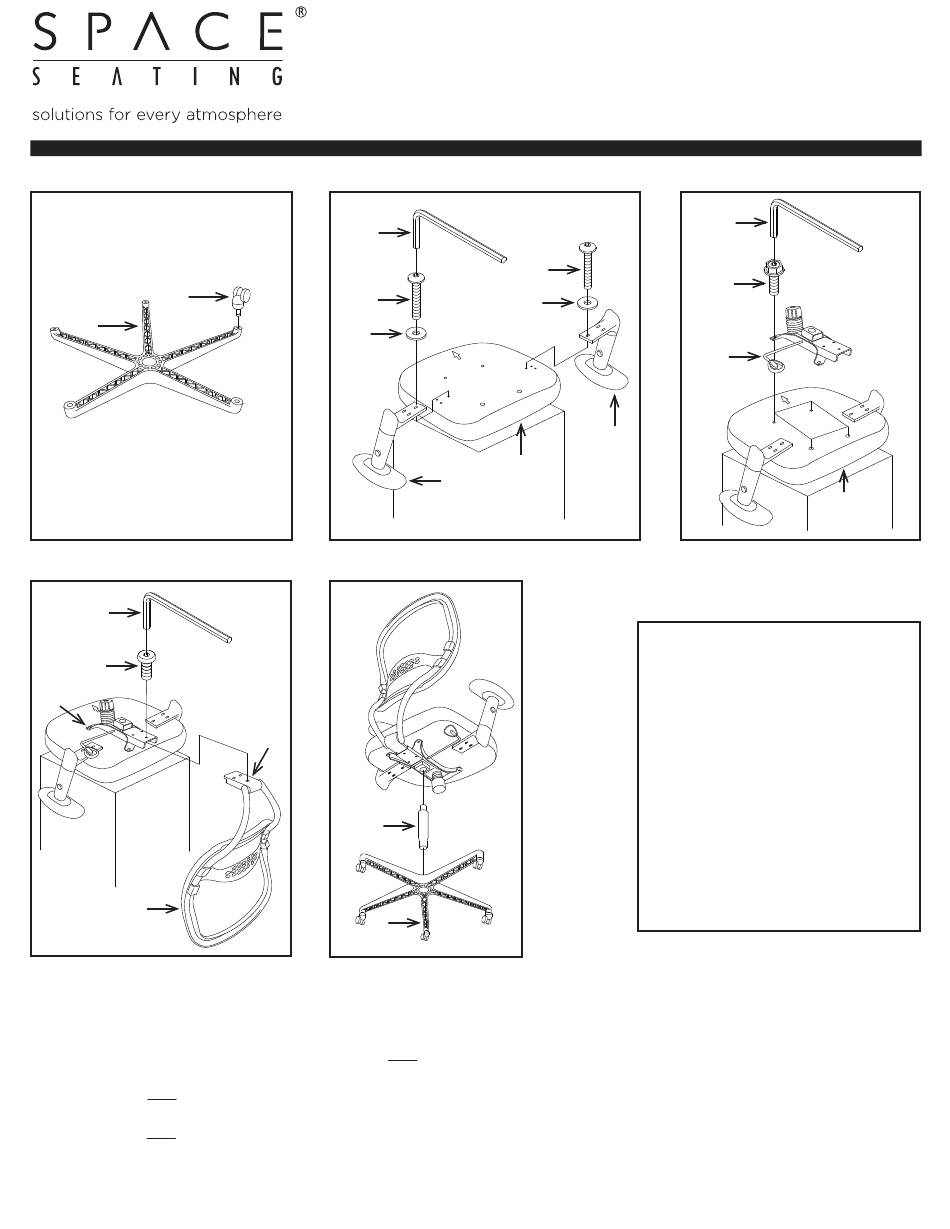

Remove all parts from carton, separate by part numbers indicated on parts list, and verify part quantities.
STEP 1 Insert five Casters (2) into Base (1), push hard until you feel or hear the Caster (2) snap into place.
STEP 2 Align holes of Arms (7L & 7R) with holes of Seat Cushion (5), secure Arms (7L & 7R) using three Arm Screws (8) and
three Flat Washers (9) for each arm, FULLY TIGHTEN ALL ARM SCREWS (8) USING ALLEN WRENCH (13).
STEP 3 Attach Seat Plate (4) to Seat Cushion (5) with the arrow towards the front of the chair, secure using four Seat Plate Screws (11),
FULLY TIGHTEN ALL SEAT PLATE SCREWS (11) USING ALLEN WRENCH (13).
STEP 4 Attach Back Support (12) to rear of Seat Plate (4) using three Back Support Screws (10),
FULLY TIGHTEN ALL BACK SUPPORT SCREWS (10) USING ALLEN WRENCH (13).
STEP 5 Insert Pneumatic Cylinder (3) into Base (1), place the assembled seat on top of Pneumatic Cylinder (3) and apply downward
pressure.
ATTENTION: MAKE SURE ALL SCREWS ARE FULLY TIGHTENED BEFORE USING CHAIR.
PROFESSIONAL MANAGER'S CHAIR
STEP 2
13
x5
x3
8
x3
9
STEP 5
12
3
1
5500V / 5500D
ASSEMBLY INSTRUCTIONS
x3
8
x3
9
7L
5
7R
STEP 3
13
x4
11
4
PART
1. Base . . . . . . . . . . . . . . . . . . . . 1
2. Casters . . . . . . . . . . . . . . . . . . 5
3. Pneumatic Cylinder . . . . . . . . . 1
4. Seat Plate . . . . . . . . . . . . . . . . 1
5. Seat Cushion . . . . . . . . . . . . . . 1
6. Back Assembly . . . . . . . . . . . . 1
7. Arms (7L & 7R) . . . . . . . . . . . . 2
8. Arm Screws . . . . . . . . . . . . . . . 6
9. Flat Washers . . . . . . . . . . . . . . 6
10. Back Support Screws . . . . . . 3
11. Seat Plate Screws . . . . . . . . 4
12. Back Support (pre-installed) . 1
13. Allen Wrench . . . . . . . . . . . . . 1
5
QTY
