Space Seating 5500V Operating Instructions

3
1
LIMITED WARRANTY
SPACE ® chairs are warranted* from the date of purchase against failure due to material and workmanship as follows:
• Lifetime on component parts including pneumatic cylinder, control mechanism, base and casters.
• 3 Years on upholstery fabric and foam against wear and deterioration.
• Leather is not warranted against routine scratching and scuffing, as leather is subject to minor blemishes in use.
*All warranties are limited to the original purchaser for normal commercial usage defined as a standard forty hour work week by persons weighing 250 lbs. or
less. This warranty will not cover labor, freight or damage from misuse, abuse, negligence, alteration, accident, vandalism, rusting, acts of nature or any other
event beyond the control of Office Star Products. The warranty does not cover cosmetic damage that may result from normal use. Liability for incidental or
consequential damages is excluded. The user assumes all risk of injury resulting from use of this product. When usage is more than 40 hours per week, a five
year warranty on all parts applies. Fabric is warranted for one year. This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state.
To make a warranty claim, contact Parts Department via e-mail parts@officestar.net, by Fax 1-909-930-5629, or toll free parts
number 1-800-950-7262, Monday through Friday 8:00 a.m. - 5:00 p.m. Pacific Time. Provide model number and description of the
problem and obtain confirmation number. At it's option Office Star Products will:
(a) Supply compatible components of current manufacture.
(b) Repair the customer's component.
It is the customer's responsibility to prepay freight on any components returned to the factory. Return freight on components
covered by warranty will be paid by Office Star Products.

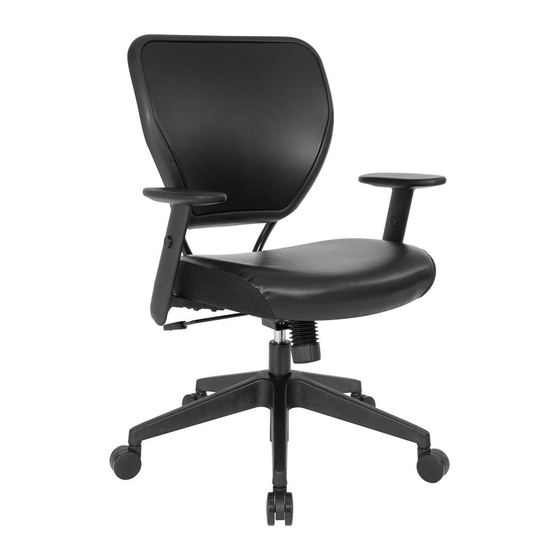

PROFESSIONAL MANAGER'S CHAIR
OPERATING INSTRUCTIONS

FEATURES

• PNEUMATIC SEAT HEIGHT ADJUSTMENT

NOTE: It is normal for chair to slightly lower under

• 2-TO-1 SYNCHRO TILT ADJUSTMENT

NOTE: Be careful not to loosen back tilt adjustment

• ARM HEIGHT ADJUSTMENT

2
WARNING
1. Use this product only one person at a time.
2. Do not use this chair unless all bolts screws and knobs
3. Check that all bolts screws and knobs are tight every
4. Do not overturn back tilt knob when decreasing tension.
5. Dispose of packing material properly. Do not use plastic
6. Do not use chair as a stepladder.
7. Use this chair for its intended purpose only.
8. Use mild detergent only for cleaning.
5500V
To raise seat remove pressure from seat and lift
lever (1). To lower seat height sit on chair and lift
lever (1).
body weight.
For individual comfort, this chair has been
equipped with an adjustment that will allow the
user to change the tension of the tilting feature.
Turn knob (2) clockwise to increase tension and
counter-clockwise to decrease or ease the
tension. To lock return chair to the upright
position, push lever (1) in. To unlock pull
lever (1) out.
knob completely.
To adjust arm height, push button (3) in to allow
the arms to move up or down freely. Release
button (3) once the desired height is reached.
are securely tightened.
three months or as needed.
cover as head covering. It may cause suffocation.
