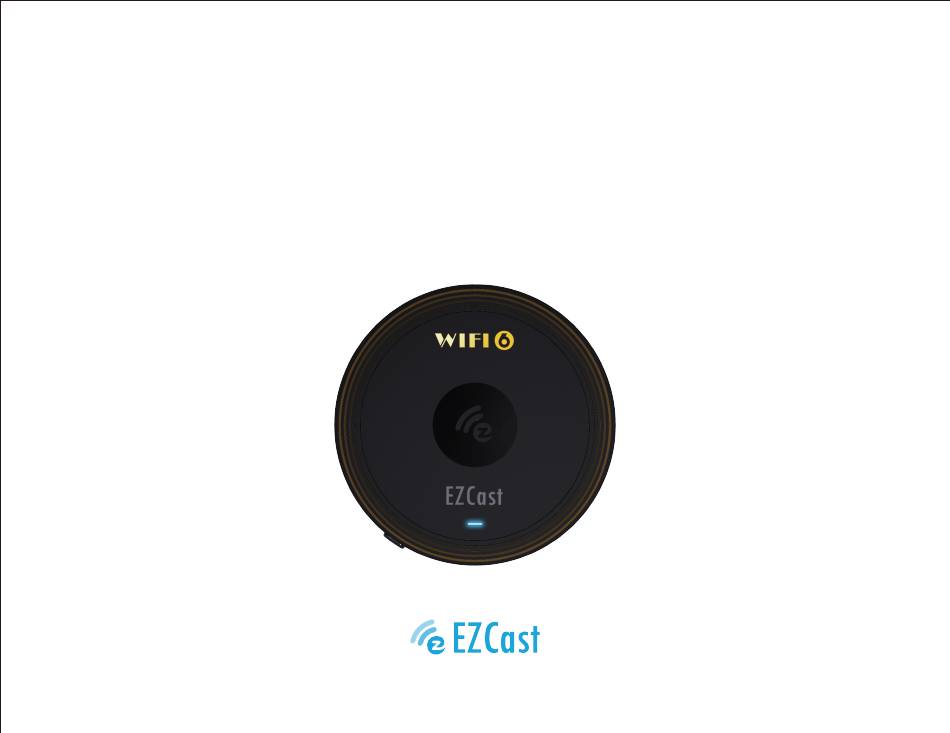

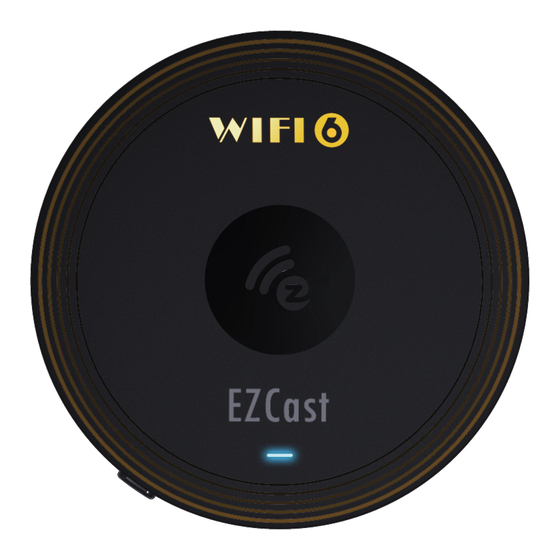

- Page 1 EZCast Ultra U2 Wireless Display Receiver Quick Start Guide Rev 1.0 Product information is subject to change without prior notice.
- Page 2 Please read this guide to install and setup your EZCast. Happy Casting! We'd Love to Hear from You! Thanks for choosing Ultra U2! Got a minute? Share your thoughts with us. Scan the QR code to take a quick survey.
- Page 3 Hardware Installation EZCast to power Plug the type-C cable to EZCast dongle, and power it up by connecting USB cable to an adapter (5V/2A). EZCast to TV Plug EZCast Ultra dongle into a HDMI port on TV. HDMI 5V/2A type C...
- Page 4 Cast form App This mode supports Android/Windows/iOS/macOS and requires downloading the EZCast App to connect the U2 to the network. It also supports casting from the EZCast App as well as casting functions like DLNA, Google Home, YouTube TV, etc.
- Page 5 Peer to Peer Mirroring Screen mirroring for Android Mirror to EZCast using Miracast if your Android devices support Smart View on Samsung, Multi-screen on Huawei, Multi-screen Interaction on OPPO, or etc. Samsung Huawei OPPO Vivo Cast to EZCastU2-12345678 Smart View...
- Page 6 Windows Extend/ Mirroring Press the 'Windows key' and 'K' simultaneously, and select EZCastU2-xxxxxxxx from the available display devices. You can also press the 'Windows key' and 'P' to change the display settings to extend the screen. Available Display EZCastU2-12345678 macOS Extend/ Mirroring Click the icon in the top bar on your computer and select to mirror or extend the display to EZCastU2-xxxxxxxx.
- Page 7 SSID to ensure a proper connection to EZCast. Connect to Wi-Fi (1) Connect to EZCast. If it doesn't open Wi-Fi settings automatically, tap the icon to access settings. (2) Select your home Wi-Fi, enter the password, and click "Next."...
- Page 8 Steps: Choose device name: EZCastU2-xxxxxxxx > Cast my screen > Cast screen Make sure that EZCast Ultra U2 and your device are both connected to same WiFi. Please use 5GHz WiFi, instead of 2.4GHz, which provides higher speed connection and better performance for Google Home mirroring.
- Page 9 Miracast Mirror to EZCast using Miracast if your Android devices support Smart View on Samsung, Multi-screen on Huawei, Multi-screen Interaction on OPPO, or etc. Samsung Huawei OPPO Vivo Cast to EZCastU2-12345678 Smart View Multi-screen Multi-screen Screen mirroring Interaction Screen Mirroring for iOS Swipe and click Screen Mirroring, and choose EZCastU2-xxxxxxxx.
- Page 10 (1) Click WiFi list from your laptop and connect to your EZCastU2-xxxxxxxx by entering password on TV screen. EZCastU2-12345678 Mon 09:30 AM 2021/03/01 (2) Launch EZCast application and find your EZCast device. Click Settings icon on the left side of SSID, select Internet, and connect to your Wi-Fi. EZCastU2-12345678 Mirror Extend...
- Page 11 Click icon on the top bar and select EZCastU2-xxxxxxxx to mirror. Mirror/ Extend After mirroring the screen to Ultra U2, you can also select "Use as a separate display" to extend the screen to the monitor 100% Fri 09:30 AM...
- Page 12 ©2019 Actions Microelectronics Co., Ltd. All right reserved. EZCast are trademarks of Actions Microelectronic Co., Ltd., registered in US, Europe, and other countries. Other product and company names mentioned herein may be trademarks other respective companies. MIC 警語 Note: 5G band (W52) indoor use only.
- Page 13 Product informations Model EZcast Ultra U2 Network 802.11ax 2.4/5GHz HDMI 3840x2160/60p, Display Output 4096x2196/24p, 1920x1080/60p EZCast, EZAir, DLNA, Miracast, Function Google Home, Airplay P2P, Youtube TV Android/ iOS/ Windows/ Support OS macOS/ ChromeOS Color Black Power DC 5V/2A Learn More Visit https://www.EZCast.com...
