- Page 1 Full HD Wireless Display Receiver Model Name: EZCast CS2 Version 0.90 03/12/2020...
- Page 2 Revision History This document contains confidential proprietary information and is the property of Actions Microelectronics. The contents of this document may not be disclosed to unauthorized persons without the written consent of Actions Microelectronics. Date Reason for Changes 1 0.90 2020/03/12 draft release...
-
Page 3: Table Of Contents
Contents 1.0 INTRODUCTION .......................... 1 1.1 B ............................. 1 RIEF 1.2 P ........................1 RODUCT EATURE ........................... 2 NSTALLATION 2.0 REQUIREMENTS ......................... 2 2.1 H ......................2 ARDWARE PECIFICATION 2.1.1 Main Component ........................2 2.1.2 Hardware Interface ........................ 2 2.1.3 LED Indicator......................... 2 2.1.4 Electrical Characteristic ...................... -
Page 4: Introduction

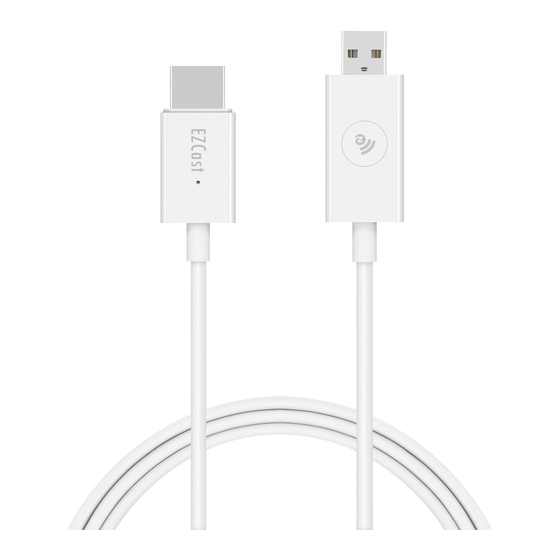

1.0 Introduction 1.1 Brief This document provides an overview of the requirements for the EZCast CS2. EZCast CS2 is a Full HD wireless display receiver. It integrates powerful video decoder and dual band 2.4Ghz/5Ghz Wi-Fi module with high sensitivity antennas to provide high-performance video streaming effect. -
Page 5: Installation
AliGenie smart speaker (天貓精靈) Mi AI speaker (小愛同學) 1.3 Installation EZCast CS2 to power: Connect the USB port to power (DC 5V/1A) EZCast CS2 to TV: Connect to the HDMI port of your TV/Projector/Monitor Connect to network: Connect to network wirelessly 2.0 Requirements... -
Page 6: Mechanical Requirements
2.2 Mechanical Requirements 2.2.1 Dimension 2.2.2 Package Specification Feature Detailed Description 600mm (Without Plug) 2.2.2.1 Length 22mm 2.2.2.2 Width 11mm 2.2.2.3 Height 24g 2.2.2.4 Weight 2.3 Environmental Requirements Feature Detailed Description 2.3.1 Operating Temperature The product is capable of continuous reliable Conditions operation when operating in ambient temperature of 0 ℃... -
Page 7: Certification Requirements
ROHS 2.4.2 Other © 2019 Actions Microelectronics Co., Ltd. All right reserved. EZCast is the trademark of Actions Microelectronic Co., Ltd., registered in China and other countries. Other product and company names mentioned herein may be trademarks other respective companies.
