- Page 1 4K Wireless Display Receiver Model Name: EZCast 2 Version 0.90 03/24/2020...
- Page 2 Revision History This document contains confidential proprietary information and is the property of Actions Microelectronics. The contents of this document may not be disclosed to unauthorized persons without the written consent of Actions Microelectronics. Date Reason for Changes 1 0.90 2020/03/24 draft release...
-
Page 3: Table Of Contents
1.3 I ................................2 NSTALLATION 2.0 REQUIREMENTS ......................... 2 2.1 H ............................2 ARDWARE PECIFICATION 2.1.1 Main Component ..............................2 2.1.2 Hardware Interface............................... 2 2.1.3 LED Indicator ............................... 2 2.1.4 Electrical Characteristic ............................3 2.2 M ............................3 ECHANICAL EQUIREMENTS 2.2.1 Dimension ................................ -
Page 4: Introduction

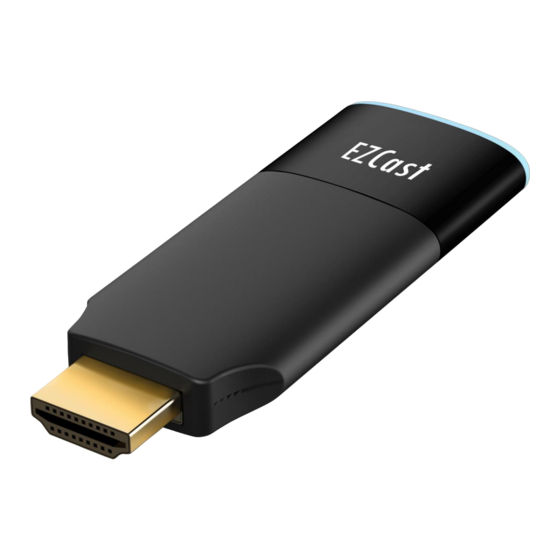

1.0 Introduction 1.1 Brief This document provides an overview of the requirements for the EZCast 2. EZCast 2 is a 4K wireless display receiver. It integrates powerful video decoder and dual band 2.4Ghz/5Ghz Wi-Fi module with high sensitivity antennas to provide high-performance video streaming effect. -
Page 5: Installation
AliGenie smart speaker (天貓精靈) Mi AI speaker (小愛同學) 1.3 Installation EZCast 2 to power: Connect the micro USB port to power and Wi-Fi module EZCast 2 to TV: Connect to the HDMI port of your TV/Projector/Monitor Connect to network: Connect to network wirelessly 2.0 Requirements... -
Page 6: Electrical Characteristic
2.1.4 Electrical Characteristic Feature Detailed Description DC 5V/1A 2.1.4.1 Power Input 1.5W 2.1.4.2 Power Consumption 2.2 Mechanical Requirements 2.2.1 Dimension 2.2.2 Package Specification Feature Detailed Description 76mm 2.2.2.1 Length 28mm 2.2.2.2 Width 9mm 2.2.2.3 Height ... -
Page 7: Certification Requirements
ROHS 2.4.2 Other © 2019 Actions Microelectronics Co., Ltd. All right reserved. EZCast is the trademark of Actions Microelectronic Co., Ltd., registered in China and other countries. Other product and company names mentioned herein may be trademarks other respective companies.
