Eldat Format 55 STH01 Manual

STH01 Temperature humidity sensor Format 55
EN
Model
transmission
LED
STH01EN5001A01
Technical details
Frequency: 868.30 MHz
Radiated power: 0.41 mW
Modulation: FSK
Coding: Easywave neo
Range: free-field: approx. 150 m
buildings: approx. 30 m
Power supply: 1x 3 V-battery, CR2032
Current consumption: max. 20 mA
Standby current: approx. 1.1 µA
Measuring range humidity: 20% to 80% RH ±5 % RH
Measuring range temperature: 0 °C to +60 °C ±1 °C
Measured value transmission: every 10 min or
at button operation
Operating temperature: -20 °C to +60 °C
Dimensions (w/l/h):
Cover 55/55/9.0 mm
Mounting plate 71/71/1.8 mm
Cover frame 80/80/9.4 mm
Weight: 49 g (incl. battery and
cover frame)
A

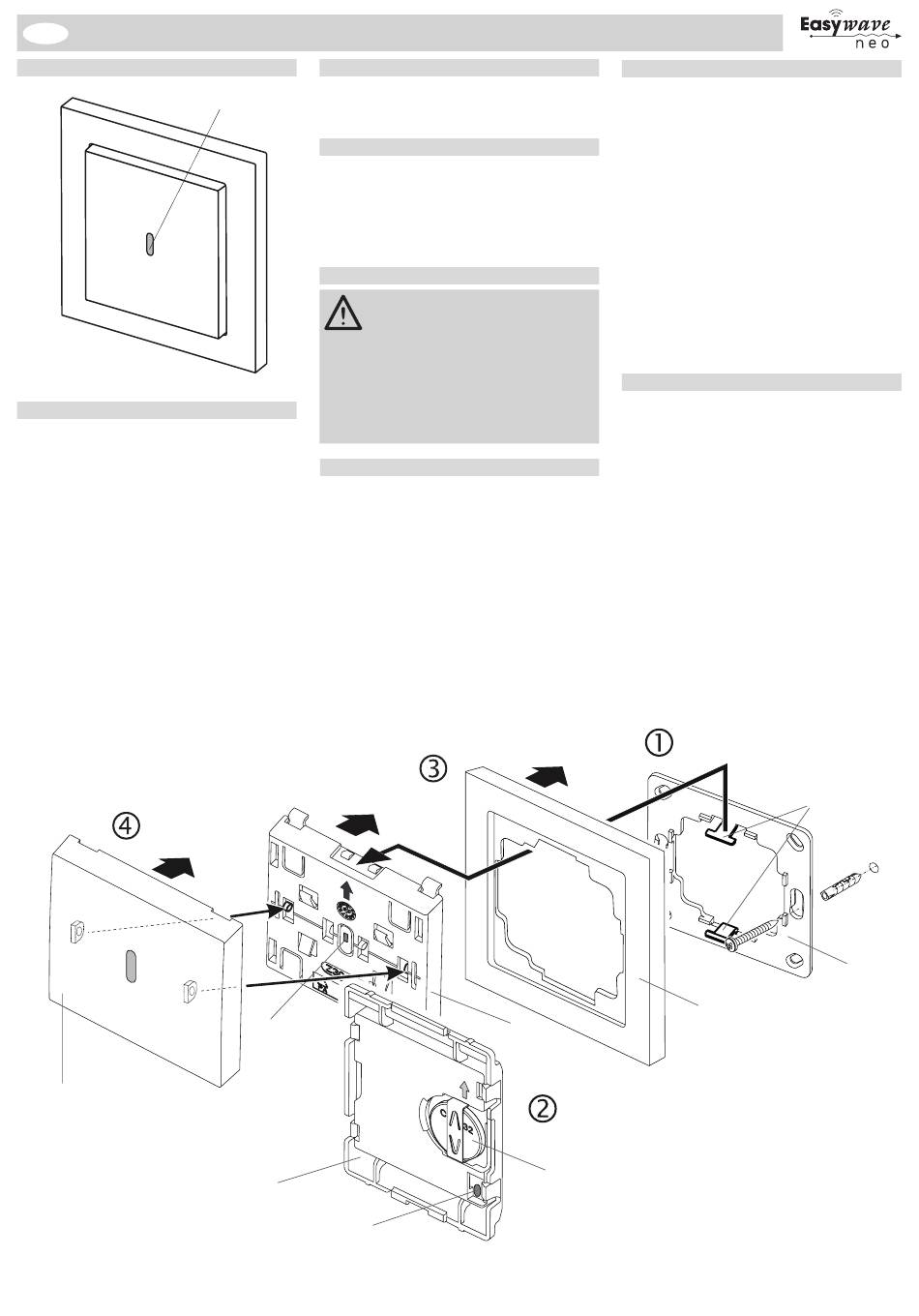

figure 1
Scope of delivery
Transmission module, battery CR2032,
mounting plate, cover frame, adhesive pad,
operating instructions
Intended use
The radio sensor may only be used to measure
the ambient temperature and humidity and to
transmit these values to an ELDAT smart home
server.
The manufacturer shall not be liable for any da-
mage caused by improper or non-intended use!
Safety instructions
Please read the operating instructions
carefully before using the device!
- Also read the operating instructions for the
devices to be controlled!
- Do not modify the devices!
- Have faulty devices checked by the manu-
facturer!
- Keep the batteries away from children!
Function
The temperature humidity sensor STH01 mea-
sures the temperature and relative humidity (RH)
cyclically and sends these values to a compatible
ELDAT smart home server.
After inserting the battery, the sensor is immedia-
tely ready for operation and the current measured
values are transmitted via a radio telegram.
The current values are automatically transmitted
every 10 minutes. The current values can also be
sent manually by pressing the front button. The
transmission LED lights up briefly during each
transmission.
The sensor can be mounted in most cover frames
with cut-out dimensions of 55x55mm.
G
B2
PTx
Start-Up
1. Screw or stick the mounting plate to the instal-
lation site.
Attention! Make sure there is no interference
with the wireless connection. Do not mount
the device in a distribution box, in metal cas-
ings, in direct proximity to large metal objects,
on the floor or close to it.
2. Insert the battery (C) into the transmission
module (B2). The positive pole has to be
visible!
3. Place the cover frame (D) onto the mounting
plate (E) and snap the transmission module
(B) onto the catches (F) on top and bottom.
The arrow on the sensor module has to point
upwards.
4. Snap the rocker (A) onto the transmission
module (B).
Programming the transmission code
To program the sensor into the Smarthome ser-
ver, please follow the instructions given in the
app.
As soon as you are prompted to do so, press the
rear learning button PTx to send the program-
ming telegram.
You can then press the front button (A) to trans-
mit the current measured values.
B1
C
F
E
D
A Rocker
B1 Transmission module front
B2 Transmission module back
PTx
Learning button
C Battery CR2032
*)
D Cover frame
E Mounting plate
F
Catches
G Transmission LED
*)
If necessary, the cover frame can be re-
placed with frames from other manufac-
turers with a cutout size of 55x55 mm.
