Homedics eLounger EL-200 Manual

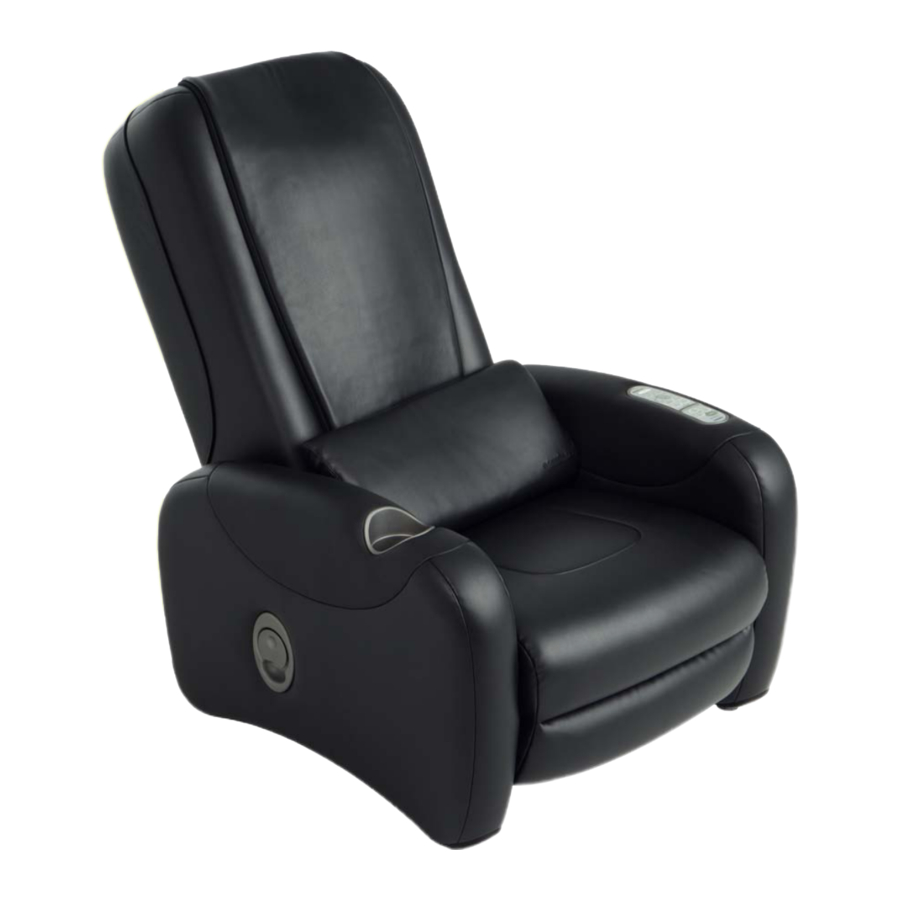

Device Overview

Assembly Instructions

Setting up your massage chair is easy to do. Your massage chair is almost completely assembled. After carefully removing all the contents from the packaging, inspect the chair and its components to make sure everything has been received.

Components:

• Chair back
• Chair seat
• Seat cushion
• Lumbar/Headrest pillow
  ^*Removable softening pad currently in the backrest.

Step 1: Attaching the Seat Cushion

• First, clip the ties holding the power cord to the back ofthe seat frame.
• Next, attach the seat cushion to the seat by placing the cushion fully in the seat and lining up the fabric fasteners. There is one fastener strip in the seat and the second wraps around the back edge.

Step 2: Attach the back of the chair to the seat

• First, locate the 2 cords that are attached to the left sideof chair seat (power cord and output jack) and make sure they exit from the rear of the seat as shown in Figure 1

  Figure 1
• Next you will need to place the chair back into the seat. Pick up the chair back with the zipper side facing the front of the chair and lower the back into the seat so that the knobs on either side of the back (Fig. 2) lock into the latches in the chair seat (Fig. 1). The latches are marked with bright green paint.

  Figure 2
• The back will click into place and will sit evenly in theseat. Once the back is sitting evenly in the chair seat, confirm that the back and seat are attached correctly by sitting in the chair and pulling the recline lever on the right side of the chair (Fig. 3). The chair should recline easily.

  Figure 3

NOTE: If the back does not appear even or the chair does not recline easily, then you may have engaged the latches on only one side. To correct this you will need to release the back as noted below and begin Step 2 again.

Step 3: Connect the power source

• First, securely connect the output jack that is located on the left rear of the chair seat to the input jack (Fig. 1) in the lower left rear of the chair back (Fig. 4).

  Figure 4
  Be sure that the output jack is inserted with the word "Up" facing upwards. When inserted correctly, the third or middle horizontal line on the connector will meet the edge of the input jack (Fig. 4).
• Plug the power cord into a grounded 120-volt outlet. This product is equipped with a grounded plug and should only be used with the appropriate outlet. Once all pieces of the massage chair are in place and the main power line is plugged in, you may turn the power switch on (Fig. 5).

  Figure 5
• The eLounger contains a pass-through electrical outlet with a maximum wattage of 300W as a convenience feature (Fig. 5). NOTE: This outlet is an added convenience for use with items such as the coordinating massaging ottoman, a laptop, lamp or similar device. It will not power the chair.

Removing the Back from the Seat

To remove the chair back from the seat:

• First, turn off the main power switch and unplug the unit. Then remove the output jack from the chair back.
• Locate the levers along both sides of the rear of the chair seat (Fig. 6).

  Figure 6
• Push both at once and lean the chair back forward to release it from the seat. Tip: Use your body or shoulder to lean against the back as you depress the levers.
• To reconnect the back to the seat, repeat Step 2.

Enjoying Your Chair and General Use

Choosing a Location

It is important to choose a location that will allow you to best enjoy the chair's benefits. The following is required for the massage chair:

• The chair back should be approximately 1 foot from thenearest object to recline fully.
• An electrical outlet that is a maximum of 8 feet from the chair.

In addition, we would suggest you consider the following for your massage chair location:

• Choose a low traffic area so you can create a peacefulenvironment when getting your massage.
• Choose a location in your home that makes you feel themost comfortable and relaxed, but is also convenient.
• Adjustable lighting near the chair allows you to create the right setting for your mood.

Moving Your Chair

Once you have selected the location for your chair, you can easily move it with the convenient wheels located on the rear of the chair (Fig. 7).

Figure 7

To move your chair, stand behind the chair and tilt it backwards until the wheels are engaged. Then simply push your chair to the location you want. When you are lowering the front of the chair in the spot you want it, be careful not to drop it too hard or fast, as it may cause damage to your floors.

Turning On Your Chair

The eLounger massage chair has a master power switch that must be in the "on" position in order to work. Once you have plugged the chair power cord into the electrical outlet, turn on the master power switch located on the back of the chair (Fig. 8). Within the control panel, the green "e" in eLounger and the red LED below it will illuminate to confirm that the chair has power.

Figure 8

Reclining Your Chair

You can adjust the backrest angle to recline up to approximately 160 degrees. Reclining the backrest increases the intensity of the massage, and also repositions the body so that the massage range along your back and neck is changed. Typically, the further you recline, the further the massage will reach in the shoulder and neck area.

Recline

To recline the backrest using the manual control, lift the lever on the right side of the chair seat (Fig. 3) and lean back.
When you are in the desired position, release the lever.
When you are ready to raise the backrest, pull the lever up again and lean forward. The hydraulic gas system will raise the backrest for you.

NOTE: In order to avoid strain and potential injury to your back, never attempt to get in or out of the massage chair with the backrest reclined.

Adjusting the Cushions

There are two adjustable cushions that are included with your chair: the backrest softening pad and the lumbar/ headrest pillow.

THE BACKREST SOFTENING PAD

Your massage chair comes with a backrest softening pad. It is recommended that you have this softening pad installed for the most comfort while just sitting in the chair. In addition, it is recommended that you use the softening pad while getting a massage until your body is "used to" the intensity of the massage. Once you are comfortable with it, you may want to increase the intensity of the massage by removing the softening pad. This will allow you to experience a deeper, massage.

To install the softening pad:

• Lift the flap at the top of the chair to expose the ends of the zippers (Fig 9) and unzip each side.

  Figure 9
• Locate the inside pocket that holds the softening pad (Fig.10).

  Figure 10

  Simply insert or remove the softening pad (Fig. 11) from this pocket.

  Figure 11
• Close the zippers and the top flap.

THE LUMBAR/HEADREST PAD

The lumbar/headrest pillow is provided for customized comfort. You may adjust its location to fit your needs. For example, you can support your head and neck or your lumbar area.

ADDITIONAL CUSHIONS

You may add additional cushioning to the chair with your own pillows. Keep in mind that the more cushioning you add, the less you will be able to feel the massage.

Cup Holder

As an added convenience feature, the eLounger includes a cup holder in the right armrest that will hold many types of containers. To help maintain cleanliness, there is a removable insert. A soft, damp cloth is recommended for cleaning.

Please see an additional information on care and use for the eLounger.

Control Panel Overview

1. Demo - To activate a brief pre-programmed course of the massage functions.
2. Full Back - To activate a preset massage program for the entire back.
3. Upper Back - To activate a preset massage program for the upper section of the back.
4. Lower Back - To activate a preset massage program for the lower section of the back.
5. Rolling - To activate the rolling function.
6. Kneading - To activate the kneading function.
7. Tapping - To activate the tapping function.
8. Kneading+Tapping - To activate the kneading+tapping function.
9. Partial - To focus the massage in a partial range (approx. 4") for rolling, kneading, tapping & kneading+tapping.
10. Spot - To focus the massage in one spot for kneading, tapping & kneading+tapping.
11. Adjust Up - To adjust the massage roller during partial & spot functions.
12. Adjust Down - To adjust the massage roller during partial & spot functions.
13. Tapping Intensity - To adjust the intensity of the massage during tapping & kneading+tapping.
14. Width - To adjust the width of the massage during rolling and tapping.
15. Stop - To stop the massage action
16. Power Indicators - The green "e" in eLounger will illuminate when the recliner is powered on
17. Ready Light - The red LED will illuminate to indicate that the recliner is powered and ready to use

Master Control/Indicators

Power Indicator

The green LED in the "e" in eLounger will be illuminated when the unit has power. Unlike the Ready Light, it does not change with any function, but simply indicates that the recliner has power.

Ready Light

This LED will be illuminated when the unit has power and is available for use but is not currently active (it has power but is currently stopped). You may press and activate any of the program or manual massage function buttons. Once a massage function is activated, the Ready Light will no longer be illuminated, but the LED corresponding to the active massage function will instead be illuminated.

NOTE: the Ready Light will blink when the Stop function has been pressed and the mechanism is parking and is not available for use.

Stop

Press this button to stop the massage action. This will also cause the unit to "park" or return to its highest position. While the mechanism is parking, the red LED in the Ready Light will blink. Once it has parked, the Ready Light will return to solid red, indicating the unit is once again ready for use.

NOTE: Once turned off, do not attempt to turn the massage system back on until the massage has been fully disengaged (stopped at the top of the backrest) and the Ready Light is no longer blinking.

Programmed Massage Sessions

The programmed massage options have been designed to closely emulate an actual massage session by combining different massage functions in various sequences. Each session, with the exception of the brief Demo program, lasts approximately 15 minutes and is designed to deliver a massage that meets your specific need.

To activate a massage program, check that power is turned on and simply press the desired program button. The corresponding LED will illuminate to confirm your selection.

Full Back

Designed to cover the full range of the eLounger's motion with a combination of all functions.

Upper Back

This session focuses on the upper back area with a combination of functions.

NOTE: Prior to the massage, make sure to adjust the position of the backrest to ensure shoulder massage is being done on area and the intensity you need.

Lower Back

This massage session focuses on the lower back area with a combination of functions.

NOTE: Prior to the massage, make sure to adjust the position of the backrest to ensure lower back massage is being done on area and the intensity you need.

Demo

The demonstration button is an approximately 3 minute program to give you a quick idea of how the eLounger functions feel and to familiarize yourself with the chair. You might also find that this short program is great for when you don't have a lot of time.

Manual Massage Functions

The massage programs provided will usually meet your needs, and are the easiest way to enjoy your massage chair. However, there may be times when you want to customize the type and length of a massage using the manual control functions. The manual controls allow you to:

• To concentrate on a particular spot.
• Adjust the intensity and width of the massage on your back to adjust to your body frame
• Choose a massage function you like best

To activate a manual massage function, check that power is turned on and simply press the desired function button. The corresponding LED will illuminate to confirm your selection.

Rolling

Rolling moves the rollers along the side of the back, gently massaging with a pressing motion up and down the full length of the back.

Kneading

Kneading combines a circular motion while moving up and down the back.

Tapping

Tapping combines a rapid back and forth tapping along the back while moving up and down the full length of the back.

Kneading+Tapping

Kneading+Tapping combines the circular motion of Kneading with Tapping while moving up and down the back.

Adjustable Functions in Manual Massage

These functions are available when one of the Manual Massage Functions is active. To activate one of these functions, simply press the desired button while in a manual massage function. The corresponding LED will illuminate to confirm your selection.

Spot

A stationary version of 3 of the manual massage functions, which can be adjusted up and down with the Up/Down controls. Spot stops the massage in the location in which it was pressed and focuses the massage action in that place.
Available with: Kneading, Tapping, and Kneading+Tapping.

NOTE: By definition, Rolling, which moves up and down, is not available in Spot. However, Rolling can be focused to a specific area with the Partial function. See below.

Partial

A partial range version of all the manual massage functions, which can be adjusted up and down with the Up/Down controls. Partial stops the massage action in the location in which it was pressed and then works approximately a 4" range up and down.
Available with: Rolling, Kneading, Tapping, and Kneading+Tapping.

Up/Down

Available with the Spot and Partial functions, the Up/Down button adjusts the location of the massage to a specific position along the back. To move the massage location up or down, press and hold the respective button until you have reached the desired location. When you release the button, the massage location will be set.
Available with: Spot and Partial Massage

Tapping Intensity

Adjusts the intensity of the Tapping functions between Low (L) and High (H). The LED light indicates the intensity level. To change the intensity level, simply press the button.
Available with: Tapping and Kneading+Tapping

Width

Adjusts the location of the massage rollers in Rolling and Tapping with 3 setting options. Width control allows you to change the position of the massage rollers so that you can customize the massage. The LED light indicates the width setting. To adjust the width of the massage rollers, simply press the button. Repeat until you have reached the desired setting.
Available with: Rolling and Tapping

Automatic Shut Off

The eLounger has been designed for convenience and safety. As a special precaution against falling asleep while using the unit or leaving the unit on while it is still in operation, we've programmed it to automatically shut off after 20 minutes. This special feature should not be considered as a substitute for OFF. Always remember to turn your unit off when not in use.

NOTE: If you do not use the eLounger for a period of time (for instance, while you are away on vacation) it is recommended that you turn off the master power switch and unplug the chair.

Product Care & Maintenance

To Clean

• Disconnect the recliner from power source before cleaning.
• A soft, damp cloth may be used for the recliner. When cleaning the controller or around the power switch, use a dry cloth only.
• Dust may be removed from the backrest or armrest with a vacuum.
• Do not use abrasive cleaners, brushes, gasoline, kerosene, polish or paint thinner to clean.
• The cushions are not machine washable. Do not immerse in liquids to clean.

To Store

• Avoid contact with sharp edges or pointed objects, which might damage/puncturethe fabric.
• Do not store near heat or open flame. Do not leave this product exposed to direct sunlight for long periods of time. This may cause fading.
• It is recommended that the recliner be covered when not in use for long periods of time.
• It is suggested that the power cord be coiled and the unit kept in an area free of dustand moisture if not in use for long periods of time.

Other General Care & Use Guidelines

• Foreign objects should not be inserted between the massage nodes or the unit housing.
• The mechanics of the product are specially designed and constructed to be maintenance free. No periodic lubrication or servicing is required.

Specifications

Model Number	EL-200
Operating Voltage	120V
Power Consumption	100W max
Massage Rollers	4
Massage Functions Pre-Programmed	Rolling, Kneading, Tapping, Kneading+Tapping
Massage Sessions	4
Adjustable Functions	Spot /Partial Location, Intensity, Width
Recline Angle	Approx. 110 – 160 degrees
Recline Type	Manual
Auto Timer Shut Off	20 minutes
Chair Dimensions	29" W x 40"L x 37"H (not reclined) 29"W x 52"L x 26"H (fully reclined)
Chair Weight	Approx. 81 lbs.
Cover Fabric Material	Synthetic Leather
Warranty	1 year limited
Pass Through Outlet	200W max
Fuse	2.5A 250V

*Specifications are subject to change without prior notice.

Troubleshooting

Problem	Probable Cause(s)	Suggested Solution
Massage action does not start.	No massage function button was pressed.	Press one of the massage function buttons to start manual or programmed massage.
	The power cord is not plugged in.	Plug the power cord into a 120-volt AC outlet.
	The power switch on the chair is not turned on.	Turn the power switch to on.
Desired massage action does not start.	The correct massage function button was not pressed.	When pressing the massage function buttons, watch the LED's on the control. They will indicate the active function.
	The massage function button was pressed too quickly after the last button.	Wait several seconds and press the desired function again.
Massage rollers stop while in action.	The fuse has failed.	Check the fuse to the right of the main power switch. Replace if needed with a standard 2.5A 250V fuse. (Figure 5)
	The self-contained safety device may stop the action if the chair has operated for an excessive period of time.	Turn the main power switch to off, unplug the chair and wait 30 minutes before restarting.
Massage action does not stop after normal 20 minute auto shut off cycle.	Additional press of massage function button could have restarted another massage cycle.	Press the Stop button.
Power Indicators are illuminated on control panel but massage functions will not activate.		Turn off power with main power switch on the chair back. Wait 15 seconds and turn the switch back on.
Unable to recline.	An object may be in the way of the backrest.	Check to make sure there is a clear path for the backrest.

Consumer Service

In the unlikely event that your chair malfunctions or requires repair, please contact HoMedics Consumer Relations at 800-466-3342 or cservice@homedics.com between the hours of 8:30AM and 5:00PM EST for assistance.

HoMedics
3000 Pontiac Trail
Commerce Township, MI
48390

Consumer Relations
e-mail:
cservice@homedics.com
phone: 800-466-3342

IMPORTANT SAFEGUARDS

WHEN USING ELECTRICAL PRODUCTS, ESPECIALLY WHEN CHILDREN ARE PRESENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:

READ ALL INSTRUCTIONS BEFORE USING

TO REDUCE THE RISK OF ELECTROCUTION:

• Always unplug the appliance from the electrical outlet immediately after using andbefore cleaning.
• DO NOT reach for an appliance that has fallen into water. Unplug it immediately.
• Do not use while bathing or showering.

TO REDUCE THE RISK OF BURNS, ELECTROCUTION, FIRE OR INJURY TO PERSONS:

• An appliance should never be left unattended when plugged in. Unplug from outletwhen not in use and before putting on or taking off parts or attachments.
• Close supervision is necessary when this appliance is used by, on or near children, invalids or disabled persons.
• Use this appliance only for its intended use as described in this manual. Do not useattachments not recommended by HoMedics; specifically any attachments not provided with the unit.
• NEVER operate this appliance if it has a damaged cord or plug, if it is not workingproperly, if it has been dropped or damaged, or dropped into water. Return it to HoMedics Service Center for examination and repair.
• NEVER use pins or other metallic fasteners with this appliance.
• Keep cord away from heated surfaces.
• NEVER block the air openings of the appliance. Keep air openings free of lint, hair, etc.
• NEVER use while sleeping or fall asleep while using the massager.
• NEVER drop or insert any object into any opening.
• DO NOT operate where aerosol (spray) products are being used or where oxygen isbeing administered.
• Connect this appliance to a properly grounded outlet only. See Grounding Instructions.
• DO NOT operate under a blanket or pillow. Excessive heating can occur and causefire, electrocution or injury to persons.
• DO NOT carry this appliance by supply cord or use cord as handle.
• To disconnect, turn all controls to the "off" position, then remove plug from outlet.
• This appliance is designed for household use only.
• This appliance is designed for personal, non-professional use only. This applianceshould be used only for personal, non-professional uses. Any other use will void warranty.

SAVE THESE INSTRUCTIONS

Grounding Instructions

This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for the electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product - if it will not fit the outlet, you may temporarily use an adaptor (such as the one shown in Figure B) until you have a proper outlet (such as the one shown in Figure C) installed by a qualified electrician.

Figure C

This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in Figure A.

Figure A

A temporary adapter that looks like the adapter illustrated in Figure B

Figure B

may be used to connect this plug to a 2-pole receptacle as shown in Figure D if a properly grounded outlet is not available.

Figure D

The temporary adapter should be used only until a properly grounded outlet Figure C can be installed by a qualified electrician.
The tab for grounding screw Figure B extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal screw. See Figures D and E.

Figure E

Please read all instructions carefully before operating.

• This product is not intended for medical use. It is intended only to provide a luxurious massage.
• If you have any concerns regarding your health consultyour doctor before using this product.
• Those with the following conditions should consult theirphysician prior to using this massage chair:
  1. Malignant tumor
  2. Heart Disease
  3. Pregnancy
  4. Conditions requiring rest
  5. Back Disease or back trouble from an injury or accident.
  6. Diabetes
• Individuals with pacemakers should consult a doctorbefore use.
• Never leave the appliance unattended, especially if childrenare present.
• Never cover the appliance when it is in operation.
• Do not use this product for more than 20 minutes at a time.
• Extensive use could lead to the products excessive heatingand shorter life. Should this occur, discontinue use and allow the unit to cool before operating.
• Never use this product directly on swollen or inflamedareas or skin eruptions.
• Do not use this product as a substitute for medical attention.
• This product should never be used by any individual suffering from any physical ailment that would limit the user's capacity to operate the controls.
• This product should never be used by any individual suffering from any ailments that would limit or altogether inhibit the user's capacity to feel or have any sensation in the body part that the product is being used on.
• If you detect a malfunction or any other abnormal conditionin the operation of your chair, turn off the power immediately and disconnect the power cord from the outlet.
• Should you have a power failure, turn the power switchto the OFF position.
• If the chair has gotten wet or liquid is spilled near themain power switch, turn the chair off, unplug it from the wall socket and call HoMedics Consumer Relations.
• Do not use the massager while standing on a damp flooror when any part of the body is in contact with plumbing or any similar ground.
• Do not use unit if noise above normal sound is heard.

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Homedics eLounger EL-200 Manual
