GE SB 48-I N NEON FLEX LED SOLDIER
A
D
B
C
Step 3
82004LO
NHL Model No.

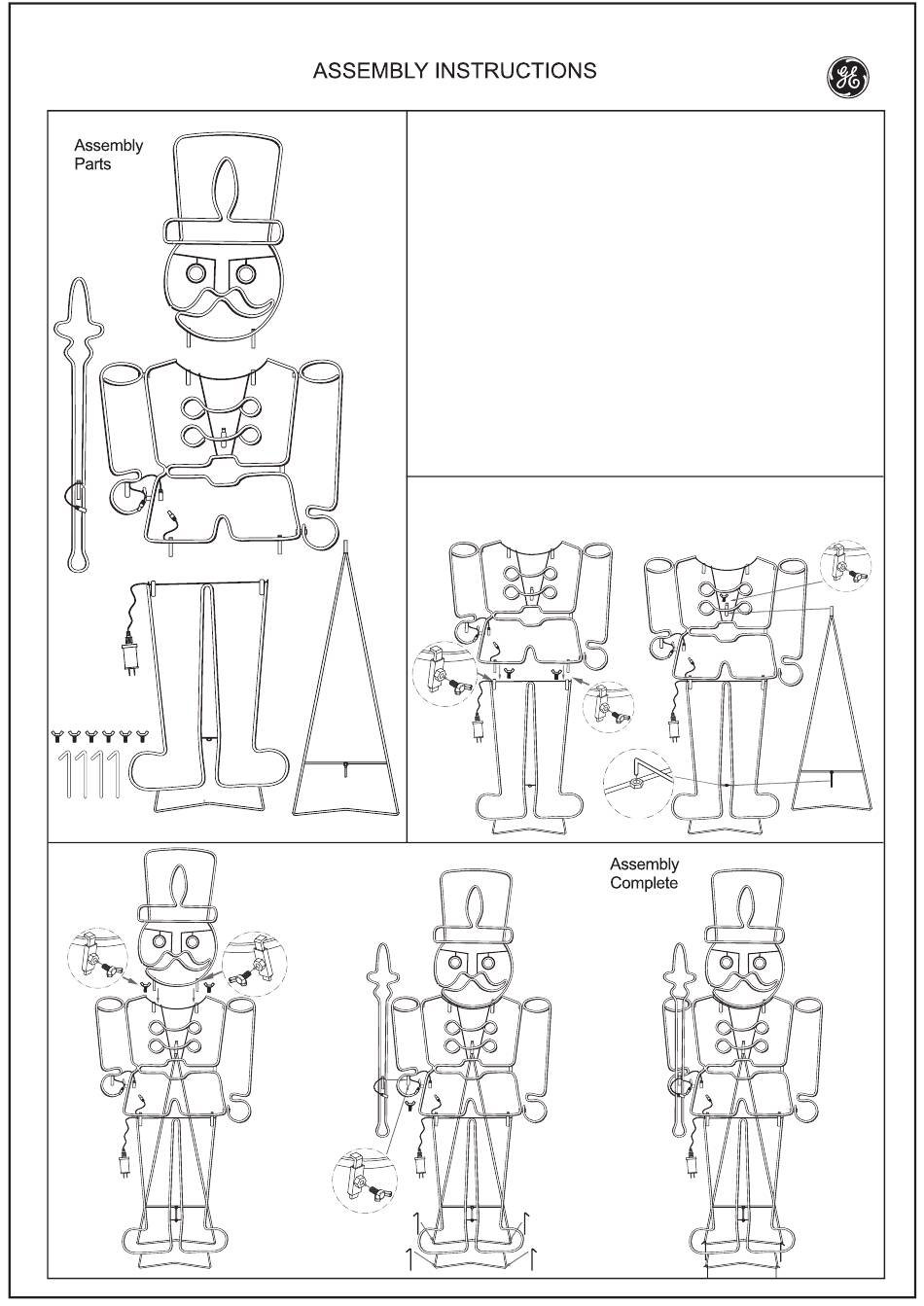

Step 1:
Insert part B into C according to the figure, and tighten the
screw to lock. Connect the male and female power cables.
Step 2:
Insert B into part E according to the figure, and tighten the
screw to lock. Insert the hook into the hole.
Step 3:
Insert part A into B according to the figure, and tighten the
screw to lock. Connect the male and female power cables.
Step 4:
Insert part D into B according to the figure, and tighten the
screw to lock. Connect the male and female power cables.
Fix the four stakes at E and C according to the figure.
Step 1
E
Step 4
Step 2
