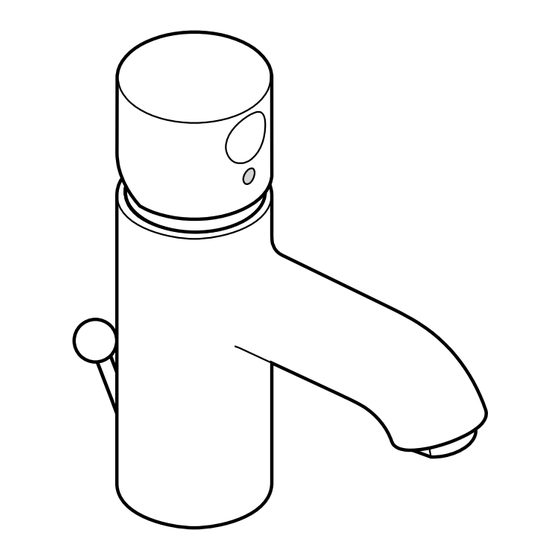

- Page 1 Installation Instructions / Warranty 38000XX1 38200XX1...
- Page 2 38000XX1 3800XX1 Technical Information / Données techniques / Datos tecnicos Recommended water Pression d’eau recommandée Presión recomendada 15 - 75 psi pressure en servicio Max. water pressure Pression d’eau maximum Presión en servicio max. 145 psi Recommended hot Température recommandée Temperatura recomen- 120°...
-
Page 3: Installation Considerations
Installation Considerations • For best results, Hansgrohe recommends that • Keep this booklet and the receipt (or other this unit be installed by a licensed, profes- proof of date and place of purchase) for sional plumber. this product in a safe place. The receipt is required should it be necessary to request •... - Page 4 English Installation Place the faucet and sealing ring on the mounting surface. Install the friction washer, metal washer and mounting nut. Tighten the mounting nut by hand. Tighten the tensioning screws. Install the drain pull rod. Connect the hot and cold supply lines to the stops. Use two wrenches to insure that supply hoses do not twist.
- Page 5 Français Español Installation Instalación Placez le robinet et l’anneau d’étanchéité sur la Coloque el grifo y el aro de sellado sobre la surface de montage. superficie de montaje. Installez la rondelle en fibre, la rondelle métal- Instale la arandela de fibra, la arandela metálica lique et l’écrou de montage.
- Page 6 English Install the pop-up drain Remove the plunger. Unscrew the flange from the tee. Unscrew the tailpiece from the tee. Wrap the tailpiece threads with Teflon tape. Install the tailpiece on the tee. Install the sealing gasket on the flange. Rest the flange in the sink outlet.
- Page 7 Français Español Installez l’obturateur à clapet Instale el tapón elevable Retirez le plongeur. Retire el émbolo. Dévissez la collerette du raccord en T. Desenrosque la brida del tubo en “T”. Dévissez la queue du raccord en T. Desenrosque la alcachofa del tubo en “T”. Enveloppez les filets de la queue avec du ruban Envuelva las roscas de la alcachofa con cinta de de Téflon.
- Page 8 English Set the High Temperature Limit Stop (optional) Lift the handle (1). Use a 4 mm Allen wrench to push the screw cover into the handle (2). Use the 4mm Allen wrench to loosen the handle screw 4 complete revolutions (3). Remove the handle (4).
- Page 9 Français Español Réglage de la butée limite Ajuste el tope de límite de alta d’eau chaude (en option) temperatura (opcional) Poussez le cache-vis dans la poignée à l’aide Levante el mando (1). d’une clé hexagonale de 4 mm (2). Utilice una llave inglesa de 4 mm Allen para em- Desserrez la vis de la poignée (4 tours complets) pujar la cobertura de tornillo en el mando (2).
- Page 10 Replacement Parts / Pièces détachées / Repuestos 38090XX0 96338000 96395XX0 96461000 96321001 92730000 92620XX0 13085XX0 13185XX0 97548000 13961000 XX = colors / couleurs / acabados 00 = chrome 82 = brushed nickel...
- Page 11 Cleaning Recommendation for Hansgrohe Products Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the market with regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when cleaning. Cleaning Materials for Faucets and Showers Acids are a necessary ingredient of cleaning materials for removing lime, however please pay attention to the following points when cleaning faucets and showers:...
- Page 12 Recommandations pour le nettoyage des produits Hansgrohe Les robinetteries modernes de lavabo, de cuisine et de douche utilisent des matériaux très différents pour répondre aux besoins du marché en termes de conception et de fonctionnalité. Certaines règles de base doivent être respectées lors du nettoyage de ces produits afin d’éviter de les endommager ou d’avoir à...
- Page 13 Recomendación de limpieza para los productos de Hansgrohe Hoy en día, las griferías de baño y de cocina así como duchas modernas se componen de materiales muy distintos para satisfacer las exigencias del mercado respecto al diseño y la funcionalidad. Para evitar daños reclamaciones hay que tener en cuenta ciertos aspectos tanto en el uso como en su limpieza posterior.
-
Page 14: Limited Lifetime Consumer Warranty
Limited Lifetime Consumer Warranty This product has been manufactured and tested to the highest quality standards by Hansgrohe, Inc. (“Hansgrohe”). This warranty is limited to Hansgrohe products which are purchased by a consumer in the United States after March 1, 1996, and installed in either the United States or Canada. - Page 15 Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from State to State. You may be required by law to give us a reasonable opportunity to correct or cure any failure to comply before you can bring any action in court against us under the Magnuson-Moss Warranty Act.
- Page 16 Hansgrohe, Inc. • 10 Bluegrass Lakes Parkway • Alpharetta, GA 3000 Tel. 0-30-880 • Fax 0-30-88 www.hansgrohe-usa.com...
