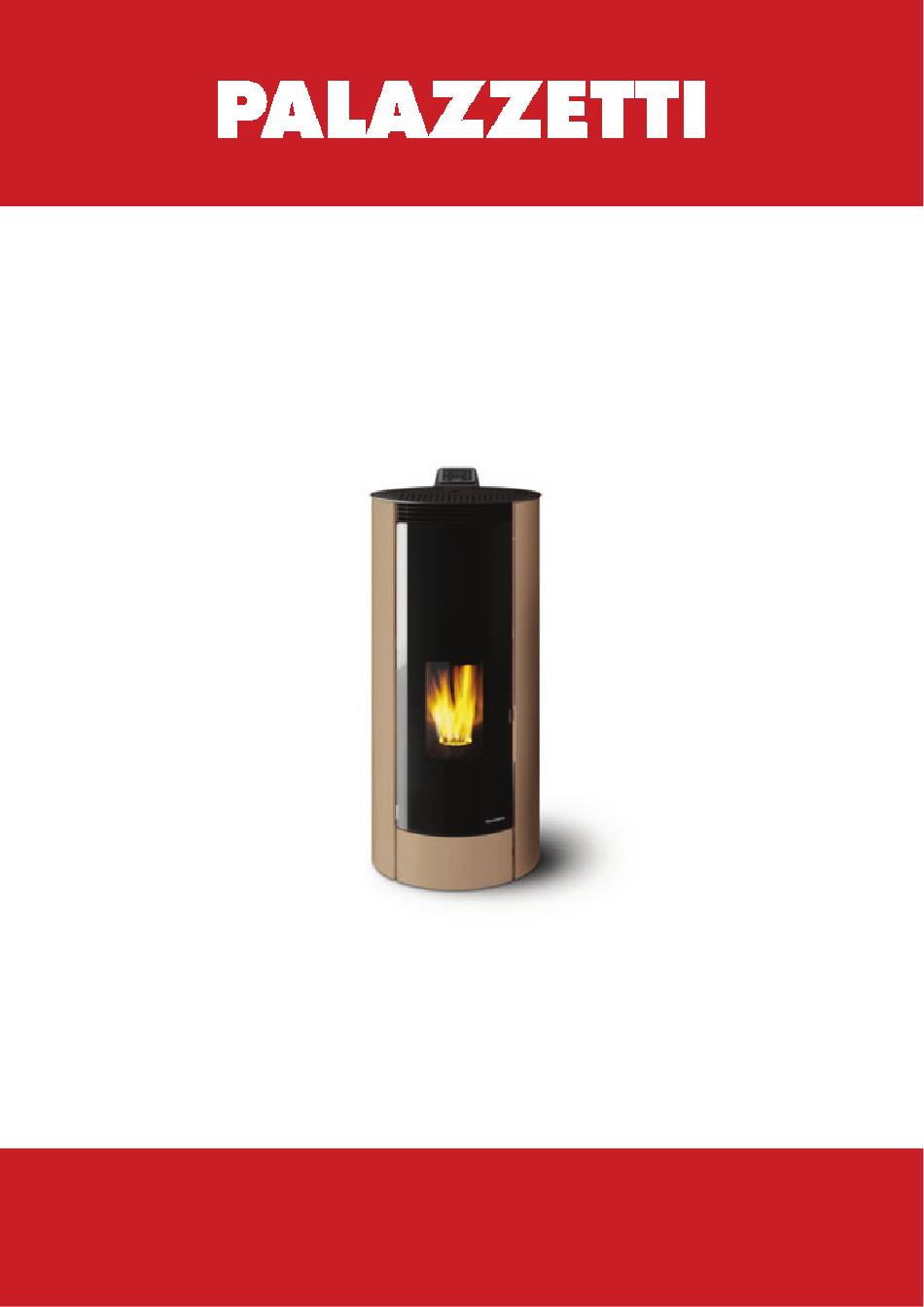

- Page 1 AUSTRALIA MELITA INSTALLATION MANUAL Palazzetti Australia Unit 1, 57-59 Cameron St, Cranbourne, VIC, 3977 Phone: (03) 5995 000 - Email: enquiries@palazzetti.com.au - Web: palazzetti.com.au...
- Page 2 ECOFIRE MELITA ® ECOFIRE NINA ® MANUALE DI INSTALLAZIONE E MANUTENZIONE Il presente manuale è parte integrante del prodotto. Si raccomanda di leggere attentamente le istruzioni prima dell’installazione, manutenzione o utilizzo del prodotto. Istruzioni originali INSTALLATION AND MAINTENANCE MANUAL This manual is an integral part of the product. Read the instructions carefully before installing, servicing or operating the product.
- Page 3 ITALIANO ENGLISH DEUTSCH FRANÇAIS ESPAÑOL TABLE OF CONTENTS User and Installer Installer 1 GENERAL INTRODUCTION Symbols Intended use Purpose and content of the manual Preservation of the manual Update of this manual Overview Compliance Responsibility of the manufacturer Technical assistance and maintenance 1.10 Spare parts 1.11 Serial plate...
- Page 4 5 HANDLING AND TRANSPORTATION Transportation 5.2 Checking the floor where the appliance will be placed 6 PREPARING THE PLACE OF INSTALLATION General considerations 6.2 Safety Precautions 6.3 Place of installation 6.4 Combustion air 6.5 Flue gas fitting 6.6 Roof exhaust with traditional fireplace 7 INSTALLATION General considerations 7.2 Levelling of the appliance...
- Page 5 Palazzetti specialised personnel. The installation manual is an integral part of the appliance. Palazzetti reserves the right to change specifi- cations and technical and/or functional charac- Deterioration or loss teristics of the product at any time without prior If needed, request an additional copy from notice.
- Page 6 Responsibility for the works carried out for the in- stallation of the appliance cannot be considered The following harmonised standards and/or reg- to be taken on by Palazzetti; it is and remains the ulations have been applied: responsibility of the installer, who is responsible...
- Page 7 1.12 Delivery of the appliance maintenance The appliance is delivered perfectly packaged and fixed to a wooden platform which allows Palazzetti has a dense network of service centres handling it using fork lift trucks and/or other with specialised, trained and skilled technicians. means.
- Page 8 SAFETY WARNING Do not carry out on-the-fly electrical connections with temporary or uninsu- lated cables. Warnings for the installer Check that the earthing of the electri- Observe the prescriptions contained in cal system is efficient. this manual. Before starting the assembly or dis- The instructions for assembly assembly phases of the appliance, and disassembly of the appli-...
- Page 9 ITALIANO ENGLISH DEUTSCH FRANÇAIS ESPAÑOL 2.2 Warnings for technical 2.3 Warnings for users maintenance personnel To ensure correct use of the product Maintenance operations must be car- and electronic appliances connected ried out only by authorised and quali- thereto and to prevent accidents, it is important to always follow the instruc- fied personnel.
- Page 10 Do not use the appliance as an anchor responsible must not be carried out by unsupervised children. support of any kind. Before performing any type of opera- It is prohibited to use the product as a tion, the user or whoever is operating ladder or support structure.
- Page 11 ITALIANO ENGLISH DEUTSCH FRANÇAIS ESPAÑOL operation. Any type of unauthorised handling or replacement with non-original spare It is prohibited to insert other types parts shall place the safety of the opera- of fuels in the tank other than wood tor at risk and relieve the manufacturer pellets.
- Page 12 FUEL CHARACTERISTICS 3.2 Pellet storage Pellets must be kept in a dry place, not Fuel characteristics too cold and the bags must be kept sealed. The pellet (Fig. 2) is a compound made from various types of wood pressed together with mechanical procedures in compliance with envi- It is advisable to keep a number of bags of pellets ronment protection regulations, and it is the only...
- Page 13 ITALIANO ENGLISH DEUTSCH FRANÇAIS ESPAÑOL BECOMING FAMILIAR WITH THE PRODUCT Description MELITA NINA Fig. 3 Opening handle Aesthetic door Aesthetic door glass Technical door glass Fire box technical door Ash drawer Burn pot Pellet hopper Tank lid Display Display 004778851 - 24/02/2022...
- Page 14 Fig. 4 Room sensor Power switch Power cable Manual reset thermostat Flue gas pipe Combustion air inlet RJ11 connector 004778851 - 24/02/2022...
- Page 15 ITALIANO ENGLISH DEUTSCH FRANÇAIS ESPAÑOL 4.2 Dimensions MELITA Ø 60 combustion air inlet Ø 80 flue gas outlet 141,8 Dimensions in mm Fig. 5 004778851 - 24/02/2022...
- Page 16 NINA Ø 60 combustion air inlet Ø 80 flue gas outlet 141,8 Dimensions in mm Fig. 6 004778851 - 24/02/2022...
- Page 17 ITALIANO ENGLISH DEUTSCH FRANÇAIS ESPAÑOL 4.3 Technical features MELITA 6 MELITA 8 NINA 6 NINA 8 MELITA - NINA Overall thermal power (output) Yield 92,3 92,3 87,7 Flue gas temperature °C 85,8 167,9 85,8 224,5 Flue gas flow rate 3,47 3,47 Hourly fuel consumption kg/h...
- Page 18 4.4 Serial plate Palazzetti Lelio S.p.A. - via Roveredo 103 - 33080 Porcia (PN) Combustibile Pellet Potenza termica max introdotta PImax Potenza termica min introdotta PImin Potenza termica nominale Pmax Potenza termica ridotta Pmin Rendimento alla potenza nominale EFFmax Rendimento alla potenza ridotta...
- Page 19 ITALIANO ENGLISH DEUTSCH FRANÇAIS ESPAÑOL 4.5 Wiring diagram t° t° UI / F01/02 +VIO RE SAFETY ~220 - 240 Vac BROWN BLUE comb * Solo nei modelli ventilatore con condensatore * Only in models with a condenser room fan. ~220÷240 004726703 - 19/10/2020 150 mm Fig.
- Page 20 HANDLING AND • Removal of the transport pallet TRANSPORTATION Disposal can be entrusted to a third party, provid- ed only companies authorised for the recovery and elimination of the materials in question are The appliance is delivered complete with all the used.
- Page 21 ITALIANO ENGLISH DEUTSCH FRANÇAIS ESPAÑOL PREPARING THE PLACE During lifting, avoid jerking or abrupt movements. Pay attention to overbalancing. OF INSTALLATION 5.2 Checking the floor where the General considerations appliance will be placed The following paragraphs contain some guide- Check the load capacity of the floor slab. lines to be followed to obtain the maximum If a floor is not suitable for supporting the efficiency of the product purchased and to...
- Page 22 Fig. 12 Model Fig. 13 MELITA NINA Set up the electricity supply line to arrive near the appliance for the connection of the power cable. Floors made of flammable material such as wood, parquet, linoleum, laminate or floors covered with carpets must be protected by a fireproof base under the appliance that also protects the front during cleaning from any falling burning residues.
- Page 23 ITALIANO ENGLISH DEUTSCH FRANÇAIS ESPAÑOL 6.4 Combustion air The appliance, during its operation, requires combustion air. The inflow of combustion air can be obtained in the following ways: • it can come directly from outside with direct connection to the combustion chamber (Fig. 14).
- Page 24 The flue gas fitting MUST NOT BE connected: If one or more extraction fans (extrac- • to a chimney used by other generators (boilers, tor hoods) are present and operating stoves, fireplaces, etc..); in the installation room, combustion malfunctions may occur due to lack of •...
- Page 25 ITALIANO ENGLISH DEUTSCH FRANÇAIS ESPAÑOL 6.6 Roof exhaust with traditional If the chimney has a larger section, it fireplace must be “intubated” with a suitably in- sulated steel pipe (with diameter suita- The chimney for the evacuation of flue gases ble for the route) (Fig.
- Page 26 INSTALLATION 7.3 Electrical connection Simply connect the appliance to the electrical General considerations system using the supplied plug (Fig. 21). In the following paragraphs some indications The electrical connection (plug) must be easily are provided to be respected in order to obtain accessible after appliance installation as well.
- Page 27 ITALIANO ENGLISH DEUTSCH FRANÇAIS ESPAÑOL INITIAL CONFIGURATION Depending on the type of installation it is necessary to set up the ideal configuration for correct operation. Configuration 1 - Room sensor Room temperature probe Fig. 22 The appliance modulates the power according to Configuration 1 is the default configu- the room temperature read by the room probe ration for this appliance.
- Page 28 FIRST IGNITION 9.2 First start up During the first ignition of the stove, The first ignition must be carried out make sure the rooms are properly ven- by the installer. tilated as unpleasant odours or fumes may be generated due to the evapo- ration or drying of certain materials Pellet loading used.
- Page 29 ITALIANO ENGLISH DEUTSCH FRANÇAIS ESPAÑOL 10 MAINTENANCE Cleaning can be carried out by the user. Maintenance operations must be performed by an authorised technical assistance centre. Before performing any maintenance operation, take the following precautions: • Ensure that all appliance parts are cold. •...
- Page 30 10.3 Ordinary maintenance cleaning program 10.3.1 Ordinary cleaning (User) EVERY TIME THE APPLIANCE IS EVERY WEEK TURNED ON Burn pot (Fig. 26) Ash drawer/compartment (Fig. 27) Glass (Fig. 28) Fan grille 10.3.2 Ordinary maintenance (certified technical service centre) 1 YEAR (*) Door and burn pot seals Smoke collector (Fig.
- Page 31 ITALIANO ENGLISH DEUTSCH FRANÇAIS ESPAÑOL 10.4 Ordinary cleaning 10.4.1 Cleaning the inside of the firebox Daily or before each ignition, it is necessary to check that the burn pot is clean to ensure the free flow of combustion air from the holes of the burn pot itself.
- Page 32 10.5 Ordinary maintenance 10.5.2 Door safety In order to guarantee the correct and safe 10.5.1 Maintenance of flue manifold operation of the fire box door, it is necessary to lubricate the springs of the closing mechanism, After cleaning the burn pot, remove it from which may be located at the hinges (A) or at the its housing and clean the space where it is door closing latch (B).
- Page 33 ITALIANO ENGLISH DEUTSCH FRANÇAIS ESPAÑOL 10.5.4 Appliance maintenance To be carried out at least once a year, or every time the appliance signals maintenance request. During the maintenance operation, the techni- cian must: • clean the flue gas transit area thoroughly and completely;...
- Page 34 11 DEMOLITION AND DISPOSAL Any liability for damage to people and animals The demolition and disposal of the appliance are always falls on the owner. Upon demolition, the the sole liability and responsibility of the owner EC marking, this manual and other documents who must act in compliance with the laws in relating to this appliance must be destroyed.
