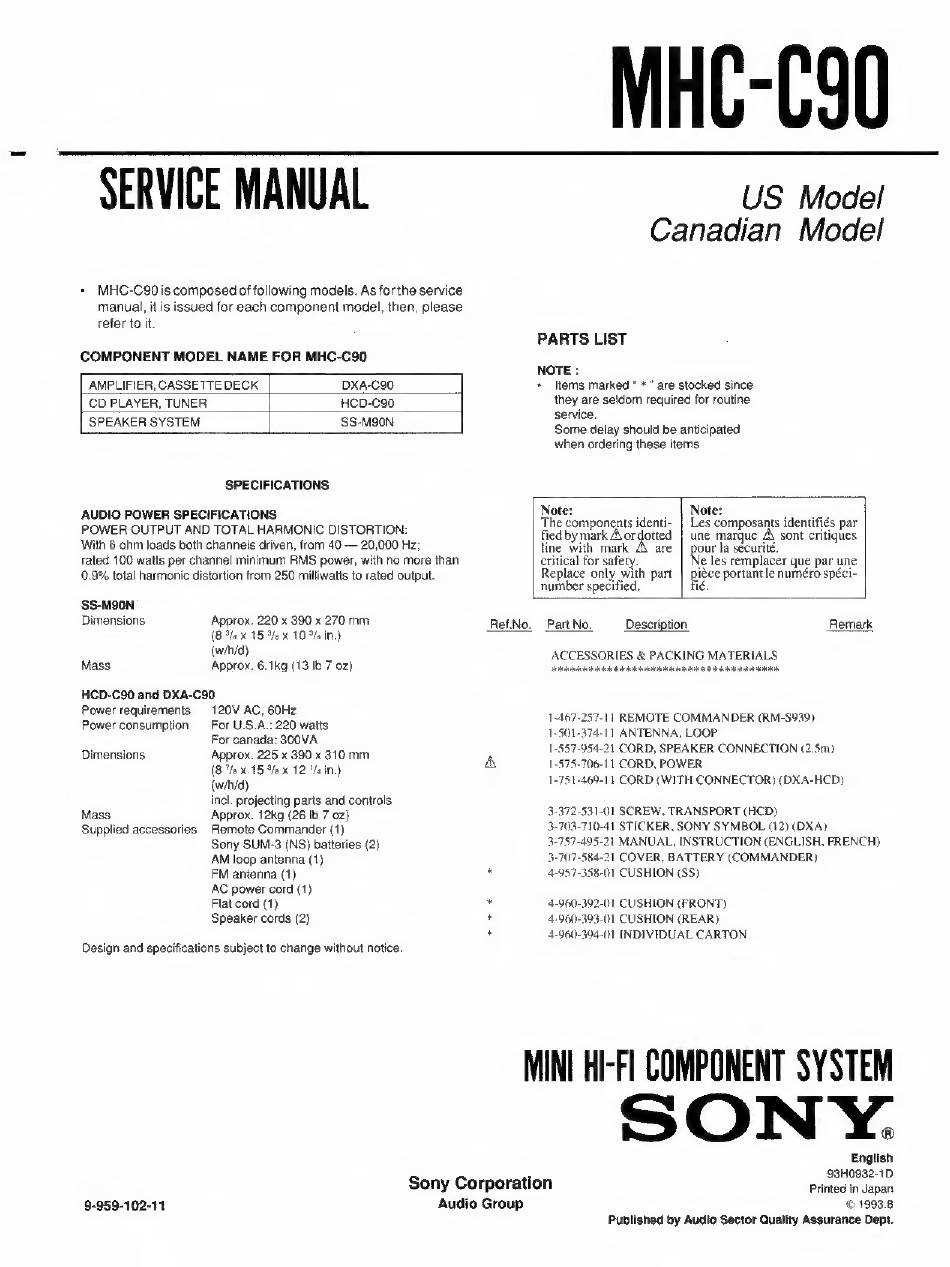

MHC-C90
SERVICE MANUAL US Model
Canadian Model
+ MHC-C90 is composed of following models. As forthe service
manual, it is issued for each component model, then, please
refer to it
PARTS LIST
COMPONENT MODEL NAME FOR MHC-C90
NOTE :
AMPLIFIER, CASSETTE DECK DXA-C90 + Items marked " *" are stocked since
CD PLAYER, TUNER HCD-C90 they are seldom required for routine
' =| service
SREAKERISYSTEM SS-Me0N Some delay should be anticipated
when ordering these items
SPECIFICATIONS
AUDIO. ROWER. SPECINCATIONS. a components identi- Les compass identifiés par
POMER CLIPET AND WOTALTARMONIE UST TON fied by mark Aordotted | une margue 4\ sont critiques
With 6 ohm loads both channels driven, from 40 — 20,000 Hz; line with mark A\ are | pour la securité.
rated 100 watts per channel minimum RMS power, with no more than Xe les remplacer que par une
0.9% total harmonic distortion from 250 milliwatts to rated output. Replace only with part | piece portant le numéro spéci-
number specifi
SS-M90N ff Ae 7 7
Dimensions Approx. 220 x 390 x 270 mm RefNo. PartNo. Description Remark
(8 Je x 15 Me x 10 %s in.)
(wihid) ACCESSORIES & PACKING MATERIALS
Mass Approx. 6.1kg (13 Ib 7 02) FiiaeneaeeeeaRnanrseaKe
HCD-C90 and DXA-C90
Power requirements 120V AC, 60Hz
Power consumption For U.S.A.: 220 watts
For canada: 300VA
Dimensions Approx. 225 x 390 x 310 mm rn
(8 "le x 15 "fe x 12 "/cin.)
1-467-257-11 REMOTE COMMANDER (RM-S939)
1-501-374-11 ANTENNA, LOOP,
1-557-954-21 CORD, SPEAKER CONNECTION (2.5m)
1-575-706-11 CORD, POWER
(witva) 1-751-469-11 CORD (WITH CONNECTOR) (DXA-HCD)
incl. projecting parts and controls
Mass Approx. 12kg (26 lb 7 oz) 31-01 SCREW, TRANSPORT (HCD)
Supplied accessories Remote Commander (1) 3-103-710-41 STICKER, SONY SYMBOL (12) (DXA)
Sony SUM-3 (NS) batteries (2) 3-757-495-21 MANUAL, INSTRUCTION (ENGLISH, FRENCH)
'AM loop antenna (1) 3-707-584-21 COVER, BATTERY (COMMANDER)
FM antenna (1) * 4-957-358-01 CUSHION (SS)
'AC power cord (1)
Flat cord (1) * 4-960-392-01 CUSHION (FRONT)
Speaker cords (2) * 4-960-393-01 CUSHION (REAR)
* 4-960-394-01 INDIVIDUAL CARTON
Design and specifications subject to change without notice.
MINI HI-FI COMPONENT SYSTEM
English
f 93H0932-1D
Sony Corporation Printed in Japan
9-959-102-11 Audio Group © 1993.8
Published by Audio Sector Quality Assurance Dept.
