1. TOP COVER
2. BOTTOM CHASSIS
3. OPTIONAL POWER SUPPLY
4. 8CM FANS
5. 4BAYS-3.5"/1BAY-2.5"DRIVE CAGE
6. 2BAYS-2.5"DRIVE CAGE
7. FRONT PANEL IO AND INDICATORS
8. RACK HANDLES

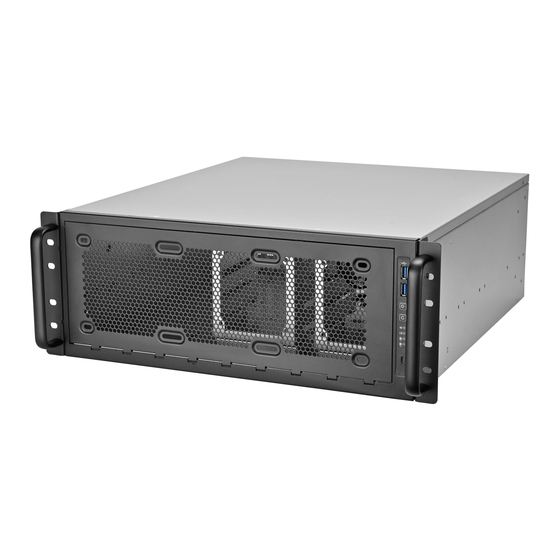

RM45-360
User manual
www.silverstonetek.com
Accessories Content
Motherboard
Motherboard /
PSU Screw
Standoff
5.25" Device Screw
Installation Guide
1. Removing the top cover
5.25" Guide Rail
5.25" Ventilation
5.25" Bezel
Screws
Bezel
1. Release 2-screws of the top cover on each side
2. Push the top cover backward about 1" and lift it off the chassi
5.25" Guide Rail x9 CRPS Cover
3.5" HDD
2.5" SSD
5.25 VENTILATION
Fan Extension
BEZEL
Cable
1
4
5
3
7
2
6
Front panel
1. USB 3 TYPE-A x2 ports
2. POWER ON LED
3. HDD ACTIVITY LED
4. LAN1 LED
5. LAN2 LED
6. USB3 TYPE-C
2.
4bays-3.5"/1bays-2.5" HDD cage and cooling fan assembly How to remove the drive cage :
1. Loose 2 screw and lift off the drive cage.
2. Once hard drive assembled, secure the drive cage back with the same 2-screws.
1
2
3
4
5
6
7
8
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SilverStone RM45-360
Summary of Contents for SilverStone RM45-360

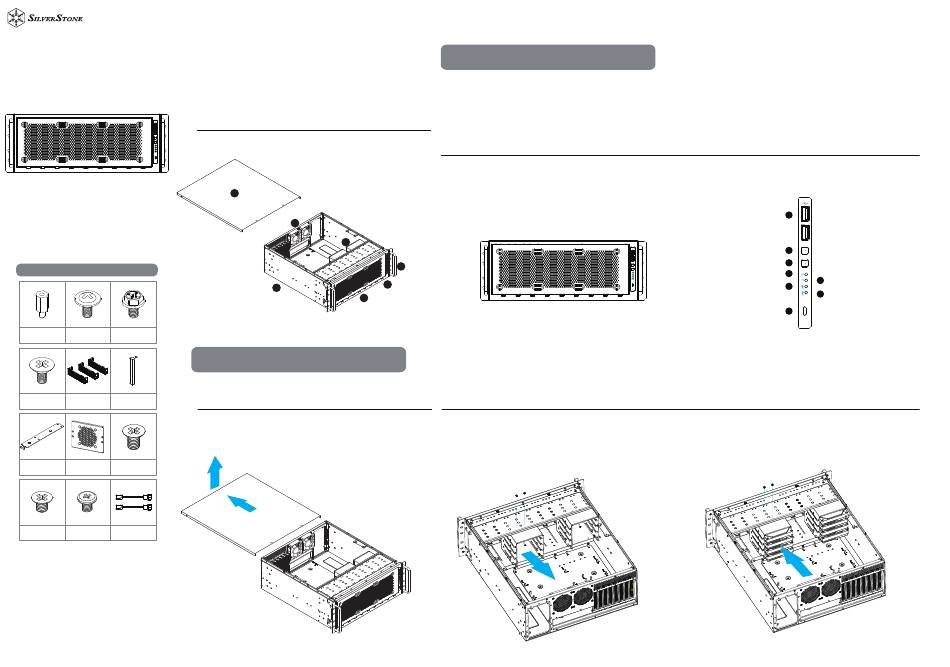

- Page 1 1. USB 3 TYPE-A x2 ports 7. FRONT PANEL IO AND INDICATORS 2. POWER ON LED 8. RACK HANDLES 3. HDD ACTIVITY LED 4. LAN1 LED 5. LAN2 LED 6. USB3 TYPE-C RM45-360 User manual www.silverstonetek.com Accessories Content Motherboard Motherboard / PSU Screw Standoff 5.25"...
- Page 2 3. 2.5”SSD/3.5”HDD devices assembly 2bays-2.5”SSD cage assembly 4. Install motherboard 1. Place the SSD/HDD in the drive bay 1. Insert the 2.5”SSD in the drive bay. 1. Put the motherboard into the case. Optional cooling fan assembly : 2. Secure SSD/HDD with screws 2.
- Page 3 6. 5.25" ODD installation 3.Secure the screws at the end of the 2U Redundant PSU. 1. Remove the front 360mm radiator bracket. 4.Place and secure the ventilation cover above the powe supply. 5.When installing a 2U Redundant PSU, remove the original bracket at the rear and replace with the extended bracket. Limitation 1.
- Page 4 Warranty terms & conditions within 30 days of purchase, after 30 days, customers need to initiate RMA procedure with SilverStone Technology in USA by first downloading the “USA RMA form for end-users”...
