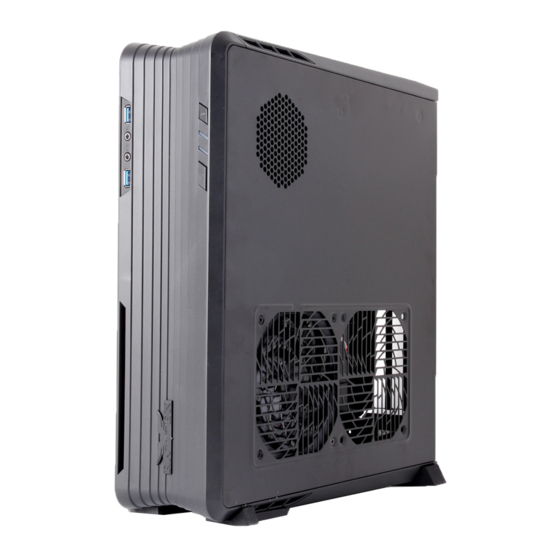

SilverStone RVZ01-E Manual
  1. Manuals
  2. Brands
  3. SilverStone Manuals
  4. Enclosure
  5. RVZ01-E
  6. Manual

SilverStone RVZ01-E Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
RVZ01-E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RVZ01-E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SilverStone RVZ01-E

Summary of Contents for SilverStone RVZ01-E

  • Page 1 RVZ01-E...

  • Page 3: Table Of Contents

    The following manual and guides were carefully prepared by the RAVEN engineering team to help you maximize the potential of your SilverStone product. Please keep this manual for future reference when upgrading or performing maintenance on your system. A copy of this manual can also be downloaded from our website at: http://www.silverstonetek.com...

  • Page 4: Specifications

    * 2.5” drive on center bracket may be difficult or impossible to install due to power supply cable interference, we recommend using 140mm deep or shorter modular power supply with flat cables. * Maximum length for power supply is 150mm but we recommend 140mm deep power supply due to varying connector locations and the unique structure of RVZ01-E.

  • Page 5: Disassemble Chart

    Disassemble Chart 2.5” HDD X2 2.5” HDD X1 FAN FILTER X1 HDD CAGE 2.5” HDD X1 TOP COVER FAN FILTER X2 12015 FAN X1 12015 FAN X1 MINI-ITX (OPTION) USB 3.0 + SPK + MIC POWER BUTTON POWER LED HDD LED POWER CAGE RESET BUTTON ATX PSU (OPTION)
  • Page 6 Disassemble Chart FRONT BACK...

  • Page 7: Installation Guide

    lnstallation Guide Ослабьте два винта на задней Unscrew the screws from the rear панели корпуса и снимите верхнюю of the chassis then remove the top крышку. cover. 섀시 후면에 있는 두 개의 나사를 Lösen Sie die beiden Schrauben 푼 다음 상단 커버를 분리합니다. von der Rückseite des Gehäuses, entfernen Sie dann die obere Abdeckung.
  • Page 8 lnstallation Guide Unscrew the screws from PSU Отвинтите винт кронштейна bracket then remove it. блока питания и извлеките его. PSU 케이스의 나사를 풀어 케이스를 Lösen Sie zum Abnehmen die 분리합니다. Schraube an der Netzteilhalterung. Dévissez les vis du support du bloc PSUケージのネジを緩めて取...
  • Page 9 If you want to use SilverStone Если вы собираетесь использовать lnstallation Guide NT06-PRO or other similar CPU SilverStone NT06-PRO или аналогичную cooler, please relocate the top panel систему охлаждения процессора, 120mm fan to the bottom vent near переставьте 120-мм вентилятор с...
  • Page 10 lnstallation Guide We recommend at this point На этом этапе мы рекомендуем connecting all the necessary подключить к системной плате все cables including the SATA cables необходимые кабели, включая to the motherboard. кабели SATA. Wir empfehlen, an diesem Punkt alle 이...
  • Page 11 lnstallation Guide Place the PSU bracket on top of the Установите кронштейн блока chassis then connect the power cord питания в верхней части корпуса и to the PSU. подключите кабель питания к блоку питания. PSU 브래킷을 섀시 상단에 위치시킨 Bringen Sie die Netzteilhalterung im 후...
  • Page 12 Remove expansion slot cover and Снимите крышку слота расширения и lnstallation Guide install graphics card into the graphics установите графическую карту на card support bracket. кронштейн крепления графической карты. Entfernen Sie die Abdeckung des 확장 슬롯 커버를 벗기고 그래픽 카드를 Erweiterungssteckplatzes und 그래픽...
  • Page 13 lnstallation Guide Install 2.5”HDD/SSD onto the Установите 2,5-дюймовый жесткий graphics card support bracket. или твердотельный диск через слот на крепежный кронштейн графической карты. Installieren Sie eine 2,5-Zoll- 2.5”HDD/SSD 방식 를 그래픽 카드 Festplatte/SSD an der 지지 브래킷에 설치합니다. Grafikkartenhalterung. Installez le lecteur de DD/SSD 2.5"HDD/SSDをグラフ・サポートブ...
  • Page 14 lnstallation Guide Make sure all the cables are Проверьте правильность properly connected. подключения всех кабелей. Achten Sie darauf, dass sämtliche 모든 케이블이 제대로 연결되었는지 Kabel richtig angeschlossen sind. 확인하십시오. Vérifier que tous les câbles sont 全てのケーブルが確実に接続されて correctement branchés. いることを確認します。 Asegúrese de que todos los cables 確定所有線材都已正確的安裝...
  • Page 15 lnstallation Guide В зависимости от ваших требований или предпочтений Depending on requirement or preference, adhere four rubber установите четыре резиновых стойки для использования в stands for horizontal use or install the rubber pads for vertical горизонтальном положении или четыре резиновых прокладки use.

  • Page 16: Connector Definition

    Connector definition (1) Front Panel Connectors Guide: Front panel connector installation no polarity, so they can be connected in any orientation A.Power switch and reset switch installation guide: Please refer to the motherboard manuals for the motherboard’s “Front Panel Connector” or “System Panel Connector” pin definitio Power switch and reset switch have no polarity, so they can be connected in any orientation.
  • Page 17 Connector definition (1) Front Panel Connectors B:LED indicators installation guide Please refer to the motherboard manuals for the motherboard’s “Front Panel Connector ” or “System Panel Connector” pin definition.; the white/black wires are negative while other colors are positive wires. The Power LED wires are separate pins for compatibility with different motherboard pin definition so please make sure they are connected in the right polarity by referring to your motherboard manual.
  • Page 18 A continuación tiene la definición de pines de los conectores frontales de E/S, también debe consultar el manual de su placa base para c omprobar la referencia de los pines para E/S frontales. Los conectores de E/S de SilverStone son de bloque para simplificar la instalación.

  • Page 19: Component Size Iimitations

    Component size limitations The RVZ01-E can accommodate all standard size components and even some that are out of spec, please refer to the following guidelines for component selection and future upgrade considerations. (1) CPU cooler height limitation A.Height limitation: The RVZ01-E has 83mm height limitation for CPU cooler.
  • Page 20 140 mm de profondeur avec des câbles plats, tels que le SilverStone ST75F-PT. La profundidad máxima para una fuente de alimentación PS/2 (ATX) estándar en la RVZ01-E es de 150mm, pero la instalación de una fuente de alimentación con 150mm de profundidad obligará a sacrificar un espacio de dispositivo de 2,5” y no quedará espacio para conectar cables tras la instalación.
  • Page 21 RVZ01-E può supportare schede grafiche da 13” (330 mm) di livello consumer. Vi preghiamo di contattarci se si trova una scheda che non si adatta. Корпус RVZ01-E допускает установку 13-дюймовых (330 мм) графических карт. Если ваша карта не устанавливается, свяжитесь с нами.
  • Page 22 Component size limitations (3) Graphics card/expansion card length limitation B. Width limitation (iii) (ii) (i) The standard width for graphics card is 4.38”. (11.12cm) (ii) With the graphics card holder installed, the maximum allowable width for graphics card is 5.16”. (13.11cm) (iii) Without the graphics card holder, the maximum allowable width for graphics card is up to 5.88”.
  • Page 23 Component size limitations (3) Graphics card/expansion card length limitation C. Thickness limitation (ii) (iii) (i)Calculated from the bottom of the graphics card PCB to the top, the total thickness limitation is 68mm. (ii)With the standard 34.8mm-thick dual slot graphics card installed, the maximum thickness of the fans is 32mm. (iii)The thickness of the components on the back of the graphics card is limited to 3mm in the area supported by the graphics card holder;...
  • Page 24 (i)Ограничение по толщине от нижнего до верхнего края печатной платы составляет 68 мм. (ii)При установке стандартной двусторонней графической карты толщиной 34,8 мм максимальная толщина вентиляторов составляет 32 мм. (iii)Толщина компонентов на задней части графической карты имеет ограничение 3 мм в месте установки на кронштейн крепления, ограничение...

  • Page 25: Optimal Thermal Performance Layout

    Optimal Thermal Performance Layout (1) To improve thermal performance, we recommend using SilverStone NT06-PRO CPU cooler. NT06-PRO A. The NT06-PRO must be installed rearward on motherboard such as ASUS P8Z77-I DELUXE. Please install cooler with caution for this type of configuration.
  • Page 26 Optimal Thermal Performance Layout (1) To improve thermal performance, we recommend using SilverStone NT06-PRO CPU cooler. B.The CPU socket on Z87 motherboard is closer to the edge. We recommend installing NT06-PRO toward left side. B.Der CPU-Sockel am Z87-Motherboard befindet sich näher am Rand. Wir empfehlen, den NT06-PRO nach links ausgerichtet zu installieren.
  • Page 27 Optimal Thermal Performance Layout (1) To improve thermal performance, we recommend using SilverStone NT06-PRO CPU cooler. C. Intel reference Mini-ITX motherboard layout has CPU socket next to PCI Express slot, NT06-PRO should have no installation problems with this layout. C. Das Intel Mini-ITX-Motherboard-Layout hat den CPU-Sockel neben dem PCI-Express-Steckplatz; der NT06-PRO sollte keine Installationsprobleme mit diesem Layout haben.
  • Page 28 RVZ01-E, no detectamos ninguna diferencia de rendimiento entre las diferentes orientaciones cuando se usó un CPU basado en LGA 115X 95W. Si está preocupado por la orientación de los tubos isotérmicos, la RVZ01-E se puede colocar de forma vertical u horizontal para eliminar este problema potencial.
  • Page 29 Optimal Thermal Performance Layout (2) If you use a high-end graphics card, the pre-installed case fan on the bottom vent below graphics card should provide plenty of cooling for them. If you use graphics card with omni-direction or open air cooler, we recommend having two case fans on the bottom vents. Wenn Sie eine Grafikkarte mit omnidirektionalem und Open-Air-Kühler verwenden, empfehlen wir zwei Gehäuselüfter an den unteren Belüftungsöffnungen.
  • Page 30 B. Lorsque vous utilisez le boîtier horizontalement, veuillez vous assurer d'installer les pieds de caoutchouc en bas. A. Ya que la mayoría de las aberturas están situadas en la parte inferior, situar la RVZ01-E verticalmente provocará que la temperatura sea mejor que en posición horizontal.
  • Page 31 La SilverStone TD03-SLIM es compatible con la RVZ01-E como opción si es necesario un refrigerador líquido todo en uno (AIO). TD03-SLIM di SilverStone è compatibile con RVZ01-E come opzione se è necessario un dispositivo di raffreddamento a liquido tutto in uno (AIO).
  • Page 32 Optimal Thermal Performance Layout (5) Cable routing There is some space between the front panel and the side of the graphics card reserved for the cable routing. Es befindet sich zur Kabelführung etwas Platz zwischen der Frontblende und der Seite der Grafikkarte. Il y a un certain espace entre le panneau avant et le côté...

  • Page 33: Maintenance And Upgrade

    (1) Fan filter removal guide The RVZ01-E’s positive air pressure design is an effective configuration that will reduce dust buildup inside the case. Small air particles or lint will accumulate over time on intake filters instead of on the components inside the case. To maintain excellent cooling performance for years to come, we recommend cleaning all fan filters regularly every three months or half a year(depending on your environment).
  • Page 34 на впускных фильтрах, а не на компонентах, находящихся внутри корпуса. Для поддержания превосходного охлаждения компонентов в корпусе RVZ01-E в течение многих лет рекомендуется регулярно очищать все фильтры вентиляторов: раз в 3 месяца или раз в полгода (в зависимости от условий окружающей среды). В корпусе RVZ01-E установлены сверхтонкие магнитные фильтры (модель: FF123), которые...
  • Page 35 Fan removal guide Сняв верхнюю крышку, можно The fan on the top cover can be демонтировать установленный dismounted after removing the на ней вентилятор top cover 상단 커버에 있는 팬은 상단 커버를 Der Lüfter an der oberen Blende 벗긴 후 탈거할 수 있습니다 kann nach Entfernung der oberen Blende abgenommen werden Le ventilateur sur le couvercle...

  • Page 36: Protect Your Computer

    Note: Cable security lock is not included with RVZ01-E A lock and cable can be purchased on the market for use with the Kensington security slot located on rear of RVZ01-E to prevent removal of the entire computer or top cover.

  • Page 37: Q&A

    Q: Le RVZ01-E convient-il au Sugo Pack? R: Oui, avec en plus de la place! Q: Est-ce que le NT06-PRO peut être utilisé sans ventilateur dans le RVZ01-E ? R: Cela n'est pas recommandé. Q: Tout est installé correctement, pourquoi est-ce que rien ne démarre ? R: Si votre PSU dispose d’un commutateur de CA, assurez-vous que le commutateur est en position “ON”.

  • Page 38: Warranty Information

    Replacement product will be warranted for remainder of the warranty period or thirty days, whichever is longer. All products should be sent back to the place of purchase if it is within 30 days of purchase, after 30 days, customers need to initiate RMA procedure with SilverStone Technology in USA by first downloading the “USA RMA form for end-users”...
  • Page 40 G11226130...
