FlashBack-4G
Ovation Systems Ltd.
Springfield Barn
London Road
Milton Common
Oxfordshire
OX9 2JY
UK
Tel: +44 1844 279 638
Fax: +44 1844 279 071
Email:
support@ovation.co.uk
Web:
www.ovation.co.uk
Version: 3.0-Rel2
FB4 firmware V3.0 or higher.
FlashBack-4G
4G & 5G Modem Modules
User Guide
Ovation Systems Ltd
www.ovation.co.uk
User Guide
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ovation Systems FlashBack-4G
Summary of Contents for Ovation Systems FlashBack-4G
- Page 1 User Guide FlashBack-4G FlashBack-4G 4G & 5G Modem Modules User Guide Ovation Systems Ltd. Springfield Barn London Road Milton Common Oxfordshire OX9 2JY Tel: +44 1844 279 638 Fax: +44 1844 279 071 Email: support@ovation.co.uk Web: www.ovation.co.uk Version: 3.0-Rel2 Ovation Systems Ltd Page 1 FB4 firmware V3.0 or higher.
- Page 2 Setting up the SMS Text Function ..................19 SMS on Events ........................20 SMS on Triggers ........................21 Send FB4G SMS Commands ....................22 Advanced Text Commands ....................24 Encrypting SMS Texts ......................25 Version: 3.0-Rel2 Ovation Systems Ltd Page 2 FB4 firmware V3.0 or higher. www.ovation.co.uk...
- Page 3 When operating FlashBack-4 with the 4G modem, the recommended DC input range is 9 to 30V. 1.1 Support / Firmware Upgrades Ovation Systems hosts a secure website with the latest software, firmware updates, user guides etc at www.ovation2.co.uk . Please email support@ovation.co.uk...

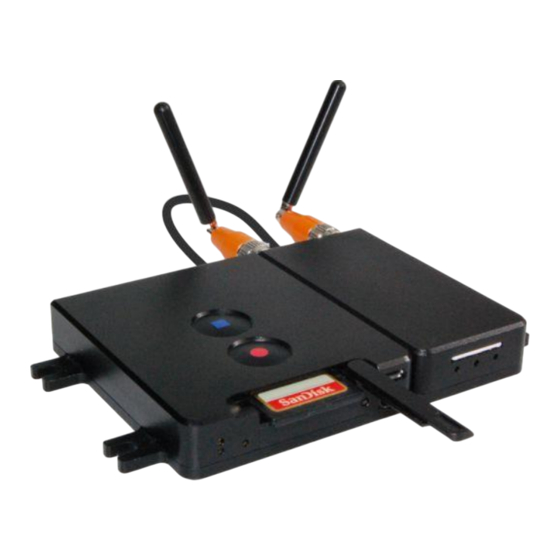

- Page 4 1.2 Modem Options & Frequency Bands 1.3 Product Variants The FlashBack-4G modem is supplied in two forms: the FlashBack-4 DVR combined with the modem module on one baseplate, or the standalone modem module for upgrading existing FlashBack-4 hardware. The part numbers are:...
- Page 5 The 5G modem upgrade does not significantly increase cellular data rates, as upload speed is limited to around 5 Mbps by the FlashBack-4. However, this option does offer better worldwide coverage, including band 14, with the one unit. Version: 3.0-Rel2 Ovation Systems Ltd Page 5 FB4 firmware V3.0 or higher. www.ovation.co.uk...
- Page 6 4G LTE frequencies. Verizon CDMA services are not supported (see section 1.5 below). • Operation with Sprint is not supported. NB► Due to the slow data rates available at 2G, FlashBack-4G only supports 3G and 4G connections. 1.5 Verizon Operation FlashBack-4G PLS8-X modems with a serial number of 1315 or higher, running V1.6.203...
- Page 7 The units are then connected together with the 50mm loop cable or 0.5 metre IC1C-6027 shielded extension cable available from Ovation Systems. Version: 3.0-Rel2 Ovation Systems Ltd Page 7 FB4 firmware V3.0 or higher.
- Page 8 5919 (US), FB4G- 5937 (Europe), FB4G- 6082 (World, inc Band Figure 6: 5G modem FB4G-6199: 5G modem module factory upgrade. FB4G-6219: 5G modem module upgrade kit for an existing. Version: 3.0-Rel2 Ovation Systems Ltd Page 8 FB4 firmware V3.0 or higher. www.ovation.co.uk...
- Page 9 Better signal coverage is achieved by using external antennas with SMA connectors which should be used where possible. There are wide variety of suppliers such as Mobile Mark and Taoglas (see https://www.mobilemark.com/product- category/cellular-iot-m2m/compact-cellular-m2m/ https://www.taoglas.com/product-category/external- antennas/cellular-external-antennas/ Version: 3.0-Rel2 Ovation Systems Ltd Page 9 FB4 firmware V3.0 or higher. www.ovation.co.uk...
- Page 10 FlashBack-4G 2.2 Inserting the SIM Card FlashBack-4G uses a standard SIM card which is inserted with the following orientation. Push into the slot until a “click” is felt / heard. The SIM is removed by first pushing the card forward (into the unit) to disengage the SIM card from the holder.
- Page 11 2.4 Expected Current Consumption When recording and streaming over a 3G or 4G link, FlashBack-4G draws between 450 to 600mA from a 12V supply depending upon the connection. The average current draw is around 500mA (6 Watts) plus any current draw from the connected camera(s) which typically adds 100 to 200mA.
- Page 12 3.1 Entering the SIM APN Before a cellular connection can be made, a number of parameters have to be entered into the FlashBack-4G. These include the SIM card APN, username and password and, if used, the connection server information. A list of SIM APNs, usernames and passwords for most of the world’s GSM operators TIP►...
- Page 13 Figure 11: 4G modem setup webpage TIP► Ovation Systems host a Remote Server for testing and demonstration which simplifies the connection when using standard, non-fixed IP, data SIMs. Please refer to the FlashBack-4 Reference Guide for more information.
- Page 14 • Connection via VayTek’s CrossFire video management server. Please refer to the FlashBack-4 Reference Guide for more information. With the correct parameters installed, the FlashBack-4G is available by entering the URL into your browser. The following examples are for a FlashBack-4/4G with serial number “1234”.
- Page 15 *NB: If no server connection has been configured under Network > Remote Server of the FlashBack-4 web interface, then the Server status LED will be off, even if the FB-4G is streaming (eg to VLC). Version: 3.0-Rel2 Ovation Systems Ltd Page 15 FB4 firmware V3.0 or higher. www.ovation.co.uk...
- Page 16 FlashBack-4G 4.2 Network Connection Status LED / Echo Server By default, the FB-4 uses an Ovation Systems echo server to verify the internet connection and correctly set the "Network Connection" status LED. The echo server address is set in the “4G Modem” section of the “Network” tab. If you are connecting via the Ovation Server, these server connections are used in preference to the echo server as soon as a connection has been established.
- Page 17 Good performance. Table 1: Q value definition NB► The higher the Q number the less power the unit will need to transmit, resulting in improved battery life. Version: 3.0-Rel2 Ovation Systems Ltd Page 17 FB4 firmware V3.0 or higher. www.ovation.co.uk...
- Page 18 Figure 3) and enabled via the “Server / 4G modem setup” page of the SD card Wizard or the Network > 4G Modem section of the webpage interface. Version: 3.0-Rel2 Ovation Systems Ltd Page 18 FB4 firmware V3.0 or higher.
- Page 19 SMS Password is used to check commands are from a valid source, see section 5.4 below. The example below shows a UK phone number setup to receive texts on Admin alerts and trigger events. Figure 14: SMS Text Setup Version: 3.0-Rel2 Ovation Systems Ltd Page 19 FB4 firmware V3.0 or higher. www.ovation.co.uk...
- Page 20 User Guide FlashBack-4G 5.2 SMS on Events When enabled, FlashBack-4G sends texts on events such as “record start” to the admin or user groups for the numbers listed. An example of a “User” event is shown on the right. The unit name is entered via the “Device Name”...
- Page 21 SMS by disabling the record cell. Figure 15: SMS on motion detection In the next example, FlashBack-4G has been named “OSL Demo1” (by “System” > “Device name”) and setup to send a text as soon as the unit detects a mechanical shake. For example, this setup can be used to indicate when a unit has been tampered with or when a vehicle starts moving.
- Page 22 “stunning” the 4G and Wi-Fi interfaces by SMS text. The default “stun” time is one hour, which is adjusted in the |Network| > |Network General| web page tab. Version: 3.0-Rel2 Ovation Systems Ltd Page 22 FB4 firmware V3.0 or higher. www.ovation.co.uk...
- Page 23 Stun (temporarily disable) the set rf_stun=now ADMIN Wi-Fi & 4G to the unit for pre- set time. Version: 3.0-Rel2 Ovation Systems Ltd Page 23 FB4 firmware V3.0 or higher. www.ovation.co.uk...
- Page 24 Please contact support@ovation.co.uk for a full list of OEM commands, specific to the FB-4G version of firmware being used. Figure 18: Example of OEM “Get” Command Version: 3.0-Rel2 Ovation Systems Ltd Page 24 FB4 firmware V3.0 or higher. www.ovation.co.uk...
- Page 25 FlashBack-4G 5.6 Encrypting SMS Texts If required, FlashBack-4G can optionally encrypt the SMS texts which are then decoded by and webpage browser application that will run on any PC, tablet or smartphone (see the next section below regarding setup with iOS).
- Page 26 3. Select the “SMS Decrypt” file and then tap the Share button to send to another app. 4. Scroll across to "More..." and choose Edge. 5. Select ‘Open in Microsoft Edge’ Version: 3.0-Rel2 Ovation Systems Ltd Page 26 FB4 firmware V3.0 or higher. www.ovation.co.uk...
