Parklio™ Chain
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Chain and is the answer not in the manual?

Questions and answers

Related Manuals for Parklio Chain

Summary of Contents for Parklio Chain

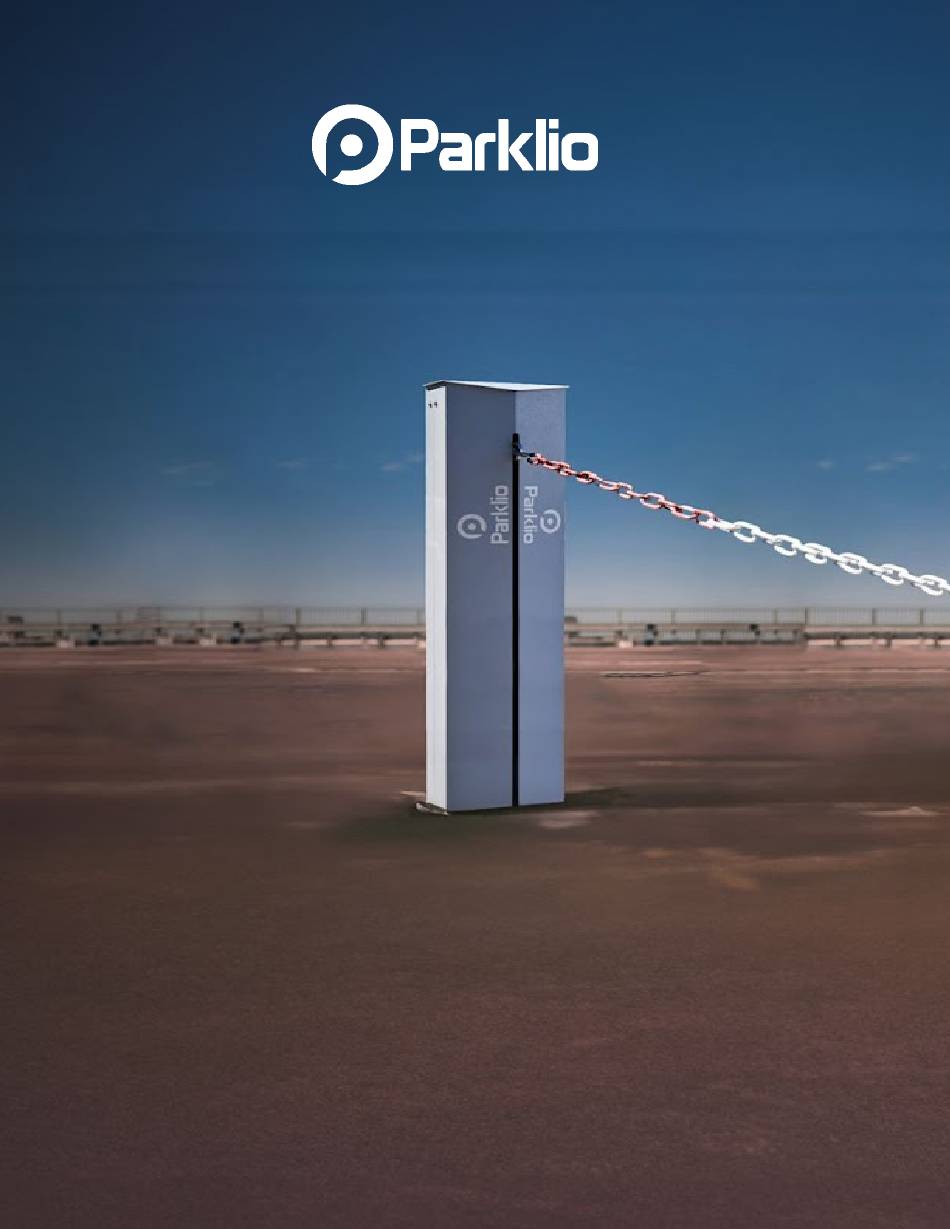

  • Page 1 Parklio™ Chain USER MANUAL...

  • Page 2: Table Of Contents

    4. Installation ......................17 4.1. Packaging Contents ..................17 4.2. Unpacking the Product ................... 17 4.3. Installation of the Standard Chain Barrier Model .......... 18 4.4. Installation of the Solar Chain Barrier Model ..........21 4.4.1 Technical specification ................22 4.4.2.
  • Page 3 7.2. Register and Login ..................46 7.3. Adding the Chain .................... 47 7.4. Connecting to the Chain ................. 49 7.5. Opening and Closing the Chain ..............55 7.6. Chain Settings and Information ..............55 7.6.1. Change the Device Name ..............56 7.6.2.

  • Page 4: Foreword

    To ensure you have the most up-to-date information, we kindly request that you visit our official website regularly. Attention! • Read the user manual and technical sheet before installing and using the Parklio Chain. • Always follow the safety instructions.

  • Page 5: Overview

    20 meters, it can effectively cover wide entrances, making it a versatile solution for parking facilities of all sizes. 1.2. Features Explore the remarkable capabilities of the Parklio Chain in this section, where we highlight its advanced features: Key Features: ➔...
  • Page 6 Parklio chain barrier. ➔ Compatibility with ANPR: The chain integrates with automatic number plate recognition systems. ➔ Durable Design: Built for longevity and low maintenance.

  • Page 7: Warnings And General Precautions

    ANY DAMAGE OR INJURY TO PEOPLE OR THINGS CAUSED BY IMPROPER USE OR WRONG INSTALLATION. THE CHAIN WAS MADE IN ACCORDANCE WITH ALL IMPORTANT SAFETY CRITERIA AND STANDARDS. CHILDREN, PERSONS WITH DISABLED PHYSICAL, MOTOR, OR PERSONAL EQUALITY, AND RELATED PEOPLE WITHOUT PREVIOUS EXPERIENCE OR KNOWLEDGE SHOULD NOT USE THE CHAIN WITHOUT THE REQUIRED HELP AND SUPERVISION.

  • Page 8: Safety Instructions

    2.1. Safety Instructions Do not use the chain barrier if you have not read and understood the operating instructions. If you have any questions, please contact our technical support or sales department for further explanations. WARNING! Incorrect installation may cause severe damage or injury. Read the instructions carefully before installing the product.
  • Page 9 Parklio is not liable for the incorrect use of this product or another use other than the one for which it was designed. Before installing the product, make sure it is in perfect condition. Disconnect the mains electrical power before performing any work. Also disconnect any buffer batteries used.

  • Page 10: Installation Warnings

    Always have instructions on hand. Ignoring use instructions, as well as inappropriate installation and use of the chain may result in chain damage or user injury. Parklio is not liable if the safety standards were not taken into account when installing the equipment to be automated or for any deformation that may occur to it.
  • Page 11 Use only insulated tools that are approved for working on electrical installations. Never touch uninsulated cable ends. For the solar model of the chain, it's important to note that a single photovoltaic module can produce DC voltages greater than 30 volts when exposed to direct sunlight.
  • Page 12 Always use the same type of module within a particular photovoltaic system. The provided battery, for the solar model of the chain barrier, is fragile; please handle it with care. Do not expose the battery to direct heat.
  • Page 13 The installer of the product must provide a means for cable strain relief to prevent the transmission of stress to the connections. ➔ In addition to this manual, refer to the photovoltaic panel manual for detailed instructions and to the battery manual for scheduled maintenance cycles. _______________________________________________________________________ www.parklio.com info@parklio.com +385977247276...

  • Page 14: Product Description

    3. Product Description This section will describe all the components a chain barrier is made of. 3.1. Product Components Overview 1. Post 2. Gear motor with encoder 3. Control unit 4. Auto-blocking nut M10 5. Washer 20x10 6. Backing plate 7.

  • Page 15: Dimensions

    3.2. Dimensions All measurements are expressed in mm unless otherwise indicated. _______________________________________________________________________ www.parklio.com info@parklio.com +385977247276...

  • Page 16: Technical Characteristics

    Power 170 W Duty cycle Intensive use Operating temperature -20ºC to +60ºC / -4ºF to +140ºF Chain maximum length 20 M / 65.6 ft Available chain lengths 4 - 20 M / 13.1ft - 65.6 ft Weight 46 KG /...

  • Page 17: Installation

    1 x Solar Kit (included only with the SOLAR MODEL) ➔ 1 x User manual If any of the parts are incorrect, missing, or damaged, contact your Parklio™ dealer. Keep the cardboard package, including the original packing materials, in case you need to return the product for repair.

  • Page 18: Unpacking The Product

    The area should be free of obstructions that could interfere with the chain's movement. Verify that the foundation where the chain barrier will be installed is completely flat, clean, and level. The foundation must be prepared according to standard working methods to guarantee stability and proper operation.
  • Page 19 This section will guide you through the installation process of the Standard Chain Barrier. It includes step-by-step instructions to ensure correct placement and assembly of the posts, base, and chain components. Preliminary controls before starting the installation 1. Check the stability and solidity of the area where the columns will be fixed to ensure a firm foundation.
  • Page 20 STEP 3. Pass the cable conduits through the central opening of the base plate and verify the base’s stability. STEP 4. Unscrew the 8 screws [10] and remove the front cover [8] and rear cover [9] of the chain posts. STEP 5. Position the chain post structures onto the base plate. _______________________________________________________________________ www.parklio.com info@parklio.com...

  • Page 21: Installation Of The Solar Chain Barrier Model

    STEP 6. Secure the chain posts to the base plate using the 4 washers [5] and 4 nuts [4]. Tighten the nuts securely. STEP 7. Reattach the front covers [8] of both chain posts using the screws removed earlier. STEP 8. Attach the chain to the appropriate holes on both posts, ensuring it is aligned...

  • Page 22: Technical Specification

    The Parklio Solar Kit includes: ➔ 2 x Photovoltaic panels ➔ 1 x Junction box The Junction box comes prewired and includes: ➔ A battery charger module ➔ 2 x 12V 12Ah or 22Ah batteries (depending on customer order) ➔...
  • Page 23 -40 °C to 85 °C / -40°F to 185°F DEGREE OF PROTECTION IP65 545 mmx 668 mm x 25 mm / DIMENSIONS 21.5 in x 26.3 in x 1.0 in WEIGHT 4.0 kg / 8.8 lbs _______________________________________________________________________ www.parklio.com info@parklio.com +385977247276...

  • Page 24: Photovoltaic Module Mounting

    Do not lift the module by grasping the module’s junction box or electrical leads. ➔ Do not stand, step on, or drop the module. Also, prevent any objects from falling on the module. ➔ To avoid glass breakage, do not place any heavy objects on the module. _______________________________________________________________________ www.parklio.com info@parklio.com +385977247276...
  • Page 25 Do not attempt to drill holes in the glass surface of the modules, as this action will void the warranty. Do not drill additional mounting holes in the frame of the module, as this action _______________________________________________________________________ www.parklio.com info@parklio.com +385977247276...
  • Page 26 For standard installations, modules should be firmly fixed to the mount using four designated points. In scenarios expecting higher wind or snow loads, additional mounting points should be utilized, as detailed in the accompanying diagram. Load calculations are left to the system designers or installers. _______________________________________________________________________ www.parklio.com info@parklio.com +385977247276...
  • Page 27 The roof installation of solar modules may affect the fireproofing of the house construction. The modules are rated fire Class C and are suitable for mounting over a class A roof. To avoid accidents, do not install modules on a roof or building during strong winds. _______________________________________________________________________ www.parklio.com info@parklio.com +385977247276...
  • Page 28 Pole Mount When installing a module on a pole, choose a pole and module mounting structure that will withstand anticipated winds for the area. _______________________________________________________________________ www.parklio.com info@parklio.com +385977247276...
  • Page 29 fitted with a flat washer, then a split lock washer, and finally a nut to secure the entire assembly, as shown. The recommended torque of M3 or M5 screw assemblies is 0.8 NM or 1.5 N. _______________________________________________________________________ www.parklio.com info@parklio.com +385977247276...

  • Page 30: Junction Box Mounting

    / AWG 10 cable for connecting the PV panels in series and to the junction box. For connecting the Lad output to the Parklio chain barrier, it is recommended to use at least 2.5m m2 / AWG 14 wire. The wire diameter may vary depending on the installation distance of the PV panels to the Junction box and the Junction box to the Parklio chain.
  • Page 31 Torque the battery, load, and PV connections at 0.75 Nm. The Parklio Solar kit comes with pre-wired batteries and charging circuitry. The installer must connect the PV panels to the Junction box, the load output to the Parklio chain, and ground the Junction Box and PV.
  • Page 32 _______________________________________________________________________ www.parklio.com info@parklio.com +385977247276...
  • Page 33 Before connecting the Junction box make sure the Solar disconnect switch, the Battery switch, and the Output circuit breaker are in the disconnected position. _______________________________________________________________________ www.parklio.com info@parklio.com +385977247276...
  • Page 34 SOLAR + input of the junction box. Connect the Load of the Junction box to the Parklio Chain Barrier. After all connections are made, inspect the connections, then turn on the Battery disconnect switch.
  • Page 35 When using the Solar kit, disconnect the power transformer from the POWER terminals on the control board. The Solar kit replaces the power transformer. Connect the Solar Kit LOAD output from the Junction Box to the Parklio Chain POWER input on the control board. _______________________________________________________________________ www.parklio.com info@parklio.com...
  • Page 36 (GFPD). The system electrical negative should be bonded through a GFPD to earth ground at one (and only one) location. When a ground fault is indicated, battery terminals and connected circuits may be un-grounded and hazardous. _______________________________________________________________________ www.parklio.com info@parklio.com +385977247276...

  • Page 37: Autonomy And Battery Life

    From that point onward, the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week. 4.5. Connecting of the Safety Joint STEP 1. Position the breaking joint in the designated location, ensuring the parts are correctly aligned and ready for connection. _______________________________________________________________________ www.parklio.com info@parklio.com +385977247276...
  • Page 38 STEP 2. Place the screws TCEI M8x25 INOX into the appropriate holes and tighten them firmly to secure the joint in place. STEP 3. Check the connection for stability and ensure the safety joint is securely fastened. Verify that the joint allows for proper movement without obstruction. _______________________________________________________________________ www.parklio.com info@parklio.com +385977247276...

  • Page 39: Configuration

    4.6. Configuration The Chain Barrier Control Unit is specifically designed to operate the chain barrier with a 24V DC motor. It includes multiple safety features, such as monitoring the motor's power consumption and speed, which ensures rapid activation of the anti-squeezing protection system.
  • Page 40 The diagram also highlights the torque threshold adjustment, radio connector, and manual selector lever for switching between automatic and manual operation. Three buttons are used for function configuration: yellow for Function 1, blue for Function 2, and red for Function 3. _______________________________________________________________________ www.parklio.com info@parklio.com +385977247276...

  • Page 41: Electrical Connections

    5. Electrical Connections _______________________________________________________________________ www.parklio.com info@parklio.com +385977247276...

  • Page 42: Activating And Modifying Control Functions

    To enable setting mode and start the learning process, follow these steps: 1. Raise the chain to its upper position (fully closed). 2. Press and hold the red button on the control unit.
  • Page 43 To exit the setting mode, move the selector lever Sw1 to the manual position and wait 1-2 seconds. Then, return the selector lever to the automatic position. The control unit will exit learning mode and prepare itself for normal operation. 6. The following functions are available for configuration: _______________________________________________________________________ www.parklio.com info@parklio.com +385977247276...
  • Page 44 Multi-user function : During the chain's opening phase, all other commands are ignored. Once the chain is fully open (lowered), it can be closed using the step-by-step command or automatic re-closure. During the closing phase, if a step-by-step command is given, the chain will stop and reverse its movement.

  • Page 45: Controlling The Chain

    7. Controlling the Chain This section provides detailed instructions on how to connect the mobile application with the Parklio Chain and how to control the Chain using the free Parklio Connect mobile application. Please note that internet connectivity is required for the chain's first connection and setup.

  • Page 46: Register And Login

    7.2. Register and Login To use Parklio Connect App the user needs to be logged in. Users have the choice to log in using their existing Google or Apple accounts, or they can create and utilize a Parklio account with their email.

  • Page 47: Adding The Chain

    If you haven’t added any devices, your board will be empty, and it will say “ No devices yet." To add a chain to the account, tap the Add devices button on the dashboard. The Add Parking product screen appears, and the smartphone scans for nearby Parklio devices.
  • Page 48 This step should be done in close proximity to the Parklio device being added. Grayed-out devices represent Parklio devices that are already set up. When the scanning is complete, select the device to add from the list of available devices. In the example screenshot, by clicking on Chain CH1G0JA the application starts the process of setting up the chain.

  • Page 49: Connecting To The Chain

    That completes the setting up process. 7.4. Connecting to the Chain On the Dashboard list of devices, tap on the Chain to which you want to connect. _______________________________________________________________________ www.parklio.com info@parklio.com +385977247276...
  • Page 50 After a successful connection, the screen will show the Chain status: Chain status message on the screen Meaning & actions required TAP TO OPEN CHAIN Indicates the Chain is closed SWIPE TO CLOSE CHAIN Indicates the Chain is open CHAIN CLOSING...
  • Page 51 Indicates that the product is missing the generic CHARACTERISTIC NOT FOUND. communication characteristic. Ensure that this is a valid Parklio Chain. Reconnect to the device and try again. NOTIFICATION FAIL The Bluetooth adapter was not able to subscribe to the bluetooth notifications.
  • Page 52 Restart App. Restart Mobile Device. TIME NOT SET Indicates that the clock on the Parklio Device is not set; this can lead to Guest Keys not working correctly and devices showing errors when trying to operate. Connect to the device using the admin account and wait for the App to finish connecting to the device and setting the...
  • Page 53 Indicates that the device master key has been restarted and a new one was not set. Add the device using the Parklio Connect App and reconnect to the device. UNSIGNED STATUS Indicates that the status was unsigned by the device.
  • Page 54 LOCATION SERVICE OFFLINE The location service has been turned off. Ensure that the device Location is turned on and that the Parklio Connect app all the location permissions CONNECTION FAIL Indicates that the device failed to connect. Retry the connection.

  • Page 55: Opening And Closing The Chain

    By tapping the button in the center of the main screen the Chainwill open or close. 7.6. Chain Settings and Information On the list of your devices tap the Chain icon and scroll down the screen until the section GENERAL SETTINGS. Here you can change the device name, view device information like the firmware version and ID and reboot the device.

  • Page 56: Change The Device Name

    7.6.1. Change the Device Name Parklio devices allow the user to change their name, so they can be more easily identified. To change the device name, tap on the Name in the general settings. Change the name of the device and tap ��. The new name will now be displayed.
  • Page 57 A key may be shared with multiple users, and multiple keys may be sent to one user. In order to share a key, tap the Share Icon on the main Chain screen. Enter the user's email address to share the key, or select from the list of previously shared users. Then, tap on the button SHARE KEY.

  • Page 58: Key Blocking

    7.6.3. Key Blocking You can use the Parklio Connect application to remove access from a user who shared a key if necessary. To use this feature, an internet connection is required. It is not required to be connected to a Chain via Bluetooth.

  • Page 59: Removing The Chain

    Block or Cancel. 7.6.4. Removing the Chain Navigate to the device list, select the Chain icon, then scroll down to the bottom to see the Remove icon. Upon tapping the remove option, a new screen will appear prompting you to confirm whether you wish to remove the device or cancel the request.

  • Page 60: Chain Key Reset

    7.6.5. Chain Key Reset The Chain digital key is set once the Chain is added to a user account. This key can only be removed by resetting it. The reset is done by pressing and holding the Reset button for 3 seconds, until the green LED lights up.
  • Page 61 Resetting the Chain digital key will cause all the shared guest keys and the owner key to be unusable. It will be necessary to resend all guest keys individually. _______________________________________________________________________ www.parklio.com info@parklio.com +385977247276...

  • Page 62: Cleaning And Maintenance

    2. Clean and grease the guide internally. 3. Inspect for worn parts and replace them if necessary. 4. Lubricate the internal transmission chain. 5. Check and tighten all fixation nuts. 6. Inspect the electrical connections to ensure they are secure.

  • Page 63: Troubleshooting

    You cannot manage to The chain is not Close the chain (in manual). If the chain enter into the remote completely closed (UP) was closed, set selector S1 to manual, control learning phase. wait 1 second and reset it to automatic.
  • Page 64 You cannot manage to The chain is not Close the chain (in manual). If the chain enter into the completely closed (UP) was closed, set selector S1 to manual, opening/closure wait 1 second and reset it to automatic.

  • Page 65: Disposal Of The Device

    For solar chain systems, ensure that photovoltaic panels, batteries, and associated components are disposed of in accordance with specific regulations for electronic and hazardous waste. Batteries may contain substances that are harmful to the environment and require disposal at certified recycling facilities.

  • Page 66: Declaration Of Conformity

    EN 60335-1 ● EN 55014-1 ● EN 55014-2 ● EN 61000-3-2 ● EN 61000-3-3 ● Parklio d.o.o. declares, the control board follows the directive 95/05/EC (R&TTE). _______________________________________________________________________ www.parklio.com info@parklio.com +385977247276...
