Parklio Barrier User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

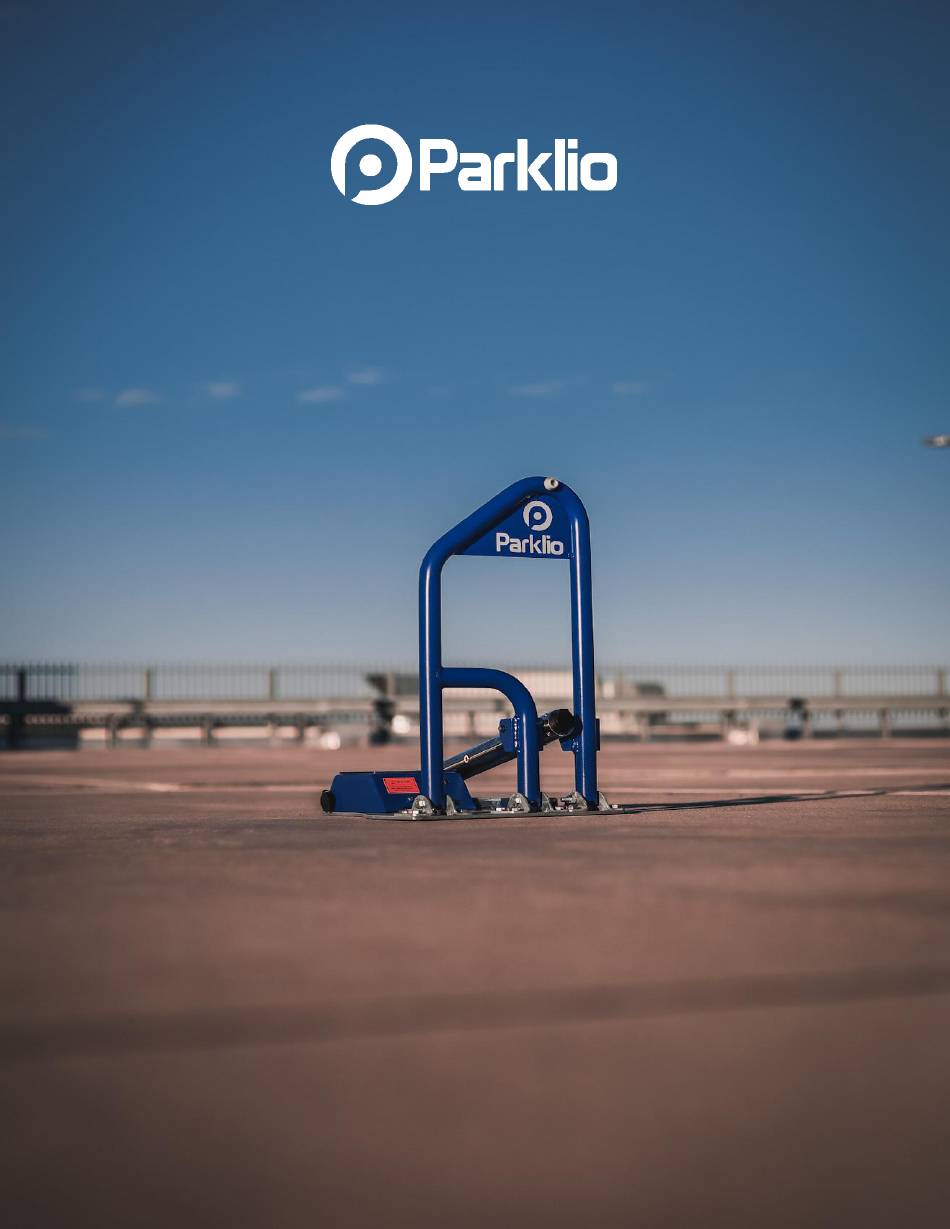

Parklio™ Barrier
USER MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Parklio Barrier

Summary of Contents for Parklio Barrier

  • Page 1 Parklio™ Barrier USER MANUAL...

  • Page 2: Table Of Contents

    3.4. Technical Characteristics................18 4. Installation......................20 4.1. Packaging Contents..................20 4.2. Unpacking the Product...................21 4.4. Positioning the Barrier for Installation............23 4.5. Installation of AC-Powered Barrier Model.............24 4.5.1 Mounting the Base..................26 4.5.2. Installing the Power Supply..............28 4.5.3. Connecting the Power................31 4.5.4.
  • Page 3 5. Parking Barrier Accessories................. 36 5.1. Parklio Keyfob User Manual................37 5.1.1. Package Contents..................37 5.1.2. Keyfob Overview..................38 5.1.3. Technical Specification................39 5.1.4. Controlling the barrier with Keyfob............40 5.2. Gateway User manual..................41 5.2.1. Package Contents..................42 5.2.2. Gateway Overview................. 43 5.2.3. Technical specification................46 5.2.4.
  • Page 4 6. Controlling the Barrier..................89 6.1 Installing the Application................89 6.2. Registration and Login..................90 6.3. Adding the barrier to Your Account............... 91 6.4. Connecting to the barrier................92 6.5. Opening and Closing the barrier..............93 6.6. Barrier Settings and Information..............95 ___________________________________________________________________________ www.parklio.com...
  • Page 5 6.7. Barrier Key Reset..................103 6.8. Manual Barrier Control.................104 7. Cleaning and maintenance.................106 7.1. Cleaning the laser sensor................106 7.2. Cleaning the inside of the barrier cover............107 7.3. Cleaning the barrier exterior................107 7.4. Replacing the Safety Pin................107 8. Disposal of the device..................108 9.

  • Page 6: Foreword

    To ensure you have the most up-to-date information, we kindly request that you visit our official website regularly. Attention! • Read the user manual and technical sheet before installing and using the Parklio Smart Parking Barrier. • Always follow the safety instructions.

  • Page 7: Overview

    1.1. Overview The Parklio Smart Parking Barrier is designed to secure parking spaces and enable smartphone-controlled access. Suitable for diverse settings, the barrier safeguards valuable parking spots. It seamlessly integrates with other smart systems, offers manual control alongside remote operation, and includes safety features like a breakable pin.
  • Page 8 Location Navigation: Utilize the Parklio Connect app for direct navigation to the ➔ parking barrier's location, helping visitors locate designated spots. Easy Installation: The smart parking barrier follows a plug-and-play approach, ➔ simplifying installation without additional configuration. Quality Assurance: Parklio Barrier holds CE, ROHS, and FCC certificates, ➔...

  • Page 9: Warnings And General Precautions

    CRITERIA AND STANDARDS. CHILDREN, PERSONS WITH DISABLED PHYSICAL, MOTOR, OR PERSONAL EQUALITY, AND RELATED PEOPLE WITHOUT PREVIOUS EXPERIENCE OR KNOWLEDGE SHOULD NOT USE THE BARRIER WITHOUT THE REQUIRED HELP AND SUPERVISION. EXCEPTION: DEVICE USE UNDER ADEQUATE SUPERVISION, IF THEY HAVE RECEIVED SAFETY INSTRUCTIONS AND TRAINING, OR IF THEY HAVE BEEN INFORMED ABOUT THE DANGER CAUSED BY IMPROPER USE.

  • Page 10: Safety Instructions

    2.1. Safety Instructions Do not use the barrier if you have not read and understood the operating instructions. Check that all of the elements listed in these instructions are still within the original package before using the barrier for the first time.

  • Page 11: Installation Warnings

    The upstream electric system must adhere to current laws and regulations. Install the product only in non-explosive surroundings and atmospheres; the presence of flammable gases or vapors poses a major safety risk. The barrier must be exclusively installed on a hard, flat concrete floor. ___________________________________________________________________________ www.parklio.com info@parklio.com...

  • Page 12: Product Description

    3. Product Description This section provides a complete description of the Smart Parking Barrier's physical characteristics and technical specifications. 3.1. Product Components Overview ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...
  • Page 13 1. Control Unit Electronic 2. Battery Pack 3. Laser Sensor Assembly 4. Mounting Holes 5. Cable Hole ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...
  • Page 14 The control unit houses the BLE radio and is in charge of regulating the Barrier. It is linked to the actuator, the laser sensor, and the battery. ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...
  • Page 15 The Parklio™ Battery Pack is a portable power source for the Parklio Smart Parking Barrier. Parklio Barriers support the use of Parklio Battery Packs and Parklio Double Battery Packs. For enhanced sustainability and cost-efficiency, the barrier incorporates an integrated solar panel. This panel plays a significant role in increasing the battery's autonomy, offering an environmentally friendly and efficient energy solution for the automated...
  • Page 16 There is an error during charging. Stop charging immediately. The barrier uses a safety pin to connect the actuator to the barrier arch. The pin serves as a safety measure to safeguard the barrier from excessive force and allows for manual operation by removing it and lowering the barrier.

  • Page 17: Dimensions

    3.3. Dimensions *The dimensions depicted in the image are presented in millimeters. ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...

  • Page 18: Technical Characteristics

    Technical parameters may vary without prior notice due to product quality improvements Parameter Value Dimensions (barrier opened): 918 mm x 331 mm x 70 mm / 36.14 in x 13.03 in x 2.76 in Dimensions (barrier closed): 453 mm x 331 mm x 517 mm / 17.83 in x 13.03 in x 20.35 in...
  • Page 19 One magnetic sensor and one Class 1 laser sensor for detecting vehicle presence Protection and coatings: Cold dip galvanized and lacquered, powder coated Stainless steel Please refer to the technical sheet for a complete list of technical features. ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...

  • Page 20: Installation

    ➔ 1 x User manual ➔ If any of the parts are incorrect, missing, or damaged, contact your Parklio™ dealer. Keep the cardboard package, including the original packing materials, in case you need to return the product for repair. ___________________________________________________________________________ www.parklio.com...

  • Page 21: Unpacking The Product

    After opening the package, remove the smaller box and lift the barrier arch to remove the safety pin. Pull the barrier out of the box by gripping it by the base with both hands. To prevent damage, never remove the barrier from the box by pulling on the barrier arch.
  • Page 22 Fully insert the safety pin and slightly rotate it while depressing the lock. Close the lock with the cover. After that install Parklio Connect app as described in section 7 of the user manual and test the barrier by extending it and lowering it.

  • Page 23: Positioning The Barrier For Installation

    4.4. Positioning the Barrier for Installation The graphic below is just a suggestion on where to position the barrier. We do not condition the user's setup; however, for optimum barrier operation, we suggest positioning it in such a way that the parked car covers the whole barrier while the barrier is in the open position.

  • Page 24: Installation Of Ac-Powered Barrier Model

    Maximum cable length is 25 m. Use a 1.5 mm cross-section cable for power delivery to the barrier. Each barrier must be fed by its own power supply and by a separate cable. One supply cannot be used for multiple barriers.
  • Page 25 Do not attempt to secure the Parklio Barrier in any other way than described in this user manual because any different kind of securing the barrier (ex. like fixing it to the ground with concrete) can cause problems for the moving parts of the barrier.

  • Page 26: Mounting The Base

    4.5.1 Mounting the Base The below steps only apply if you are installing the barrier on a hard concrete surface. If installing the barrier on different surfaces, please advise the manufacturer of the best practices and tools for installation. STEP 1. Position the barrier in accordance with the above instructions.
  • Page 27 STEP 3. Drill the holes for the anchor screws. Clear the holes of any dust. Tip: You can skip marking the holes and use the barrier base as the template. Make sure that the barrier base doesn't move while you drill, so you don't damage it.

  • Page 28: Installing The Power Supply

    Connect the power supply + and - terminals to the cable leading to the barriers. STEP 1. Bring the necessary infrastructure to the barrier. Feed the supply cable through the barrier base. STEP 2. The barrier is provided with an adapter cable for connecting it to the constant supply. Disassemble the adapter. ___________________________________________________________________________ www.parklio.com...
  • Page 29 STEP 3. Insert the power cable and connect it as shown. The supply is polarity sensitive; use caution when connecting the cable to the power supply and connector. Maintain the same polarity on the connector and the power supply ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...
  • Page 30 STEP 4. Assemble the connector. STEP 5. Connect the power supply to the cable running to the barrier. ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...

  • Page 31: Connecting The Power

    STEP 6. Connect the power supply to the electric line. Disconnect all power while installing the barrier power supply. Make sure the electric installation is adequately protected and installed according to the laws in force. STEP 7. Turn on the power. The LED on the power supply should power on indicating that the supply is functioning.

  • Page 32: Final Steps

    4.5.4. Final steps After connecting the power supply, perform the initial setup of the barrier through the mobile application as described in this manual (Chapter 7). Lower the barrier cover and lock it. The barrier is ready for use. 4.6. Installation of Standard Barrier Model Within this section of the user manual, you'll find comprehensive instructions for...

  • Page 33: Mounting The Base

    STEP 3. Drill the holes for the anchor screws. Clear the holes of any dust. Tip: You can skip marking the holes and use the Barrier base as the template. Make sure that the Barrier base doesn't move while you drill, so you don't damage it.
  • Page 34 STEP 4. Place the barrier and align the mounting holes with the drilled spots. Insert the anchor screws by tapping them with a mallet. STEP 5. Tighten the anchor screws with a socket wrench. ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...

  • Page 35: Inserting The Battery

    4.6.2 Inserting the Battery To install the battery pack, align the Parklio Battery Pack with the Control Unit and attach it to the Barrier base using the velcro joint on the bottom of the battery pack and on the barrier.

  • Page 36: Parking Barrier Accessories

    5. Parking Barrier Accessories This section provides an overview of a range of meticulously designed accessories that cater to various aspects of barrier functionality, security, and customization. Each accessory is designed to complement the Parklio Parking Barrier's advanced features, offering you the flexibility to tailor your parking protection to your unique preferences and needs.

  • Page 37: Parklio Keyfob User Manual

    5.1. Parklio Keyfob User Manual This manual provides comprehensive information about the Parklio Keyfob, a compact remote device designed to simplify the control of your parking barrier. By replacing the need for a smartphone app, the Parklio Keyfob offers a convenient alternative for effortlessly managing your parking barrier.

  • Page 38: Keyfob Overview

    Error connecting to the device 3 blink Keyfob not programmed or the key of the Barrier is reset In the "operating" mode, each press of the button on the Parklio Keyfob will switch the state of the protection device. ___________________________________________________________________________ www.parklio.com...

  • Page 39: Technical Specification

    1.38 in x 2.36 in x 0.47 in Weight 16g Including battery / 0.56 oz Including battery Wireless connectivity Ble 4.0+ Frequency range 2.402GHz - 2.480GHz Receiver sensitivity -96dBm Colour black Max. supported devices max. 1 device may be programmed ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...

  • Page 40: Controlling The Barrier With Keyfob

    In addition to the complimentary Parklio Connect mobile application, control over Parklio products is achievable using the Parklio Keyfob remote device. However, it's important to note that the Keyfob necessitates the initial setup of the barrier through the Parklio Connect application, as explained in Chapter 7.2.7. Setting up the Keyfob.

  • Page 41: Gateway User Manual

    5.2. Gateway User manual Within this manual, you will gain insight into the Parklio™ Gateway, a pivotal component in the Parklio ecosystem. The Gateway serves as an intermediary connecting your Parklio™ Parking Barriers with remote control functionality. Its primary role involves facilitating data exchange and communication between the Barrier products while providing real-time updates on parking space occupancy.

  • Page 42: Package Contents

    5.2.1. Package Contents The product package contains the following items: If any of the parts are incorrect, missing, or damaged, please contact Parklio support. Keep the original packaging in case you need to return the product. NOTE: RJ45 connector for the Ethernet port is not provided The wall plugs and screws are not provided.

  • Page 43: Gateway Overview

    5.2.2. Gateway Overview NOTE: The Parklio Gateway does not have PoE capability. ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...
  • Page 44 The rear side of the Gateway features a label displaying the gateway's UUID (Unique ID / Serial Number), which serves as an identifier for the unit. This serial number plays a vital role in incorporating the gateway into your user account and gaining access to the gateway's web user interface. ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...
  • Page 45 Alongside the UUID and MAC address, these labels also store the passwords for the gateway's web interface. It is recommended to retain these labels for potential future use. ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...

  • Page 46: Technical Specification

    26.46 oz 4 status LED’s 10/100BASE-T with waterproof connector Wireless connectivity BLE LTE with 3G/2G fallback Software upgrades Yes, automatic update checking via web Antenna interface Internal BT and 4G/3G/2G antennas Color Lava and white grey ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...

  • Page 47: Installation

    61000-6-2 EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-8 EN 61000-4-11 EN 61000-3-3 (1) Parklio™ Gateway power supply input is protected with a 0.5 A 250 VAC fuse. The fuse is not user-replaceable. Please refer to the technical sheet for a complete list of technical features.
  • Page 48 Keep the Parklio™ Gateway and other Parklio™ devices as free of obstacles as possible - each wall or ceiling restricts your Gateway range by 1 to 30 meters (3 to 90 feet). The Gateway is completely waterproof and resistant to external conditions, with operating temperature resistance in the range from -20 °C to...

  • Page 49: Wall Mount

    STEP 1. Drill the top center hole. Use an electric drill with a 6mm masonry bit to drill the hole at the desired spot. NOTE: The drill bit size may vary depending on the type of wall plug used. ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...
  • Page 50 NOTE: Make sure to use wall plugs intended for the type of wall or surface you are installing the gateway on. STEP 3. Unscrew the bottom cover of the Parklio Gateway and remove it. STEP 4. Hang the Parklio™ Gateway onto the mounted bolt.
  • Page 51 STEP 5. Mark the two holes initially positioned under the removed cover. STEP 6. Remove the Gateway and drill the previously marked holes. Place the wall plugs into the drilled holes. STEP 7. Hang the Gateway back onto the first screw. ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...
  • Page 52 STEP 8. Tighten the screw into the wall plugs. STEP 9. Place the plastic cover back. STEP 10. Screw the bottom of the Parklio Gateway so that the plastic cover is fixed. ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...

  • Page 53: Pole Mount

    STEP 1. Position the pole mount holder so that the holes of the pole mount holder coincide with the holes on the back of the Parklio™ Gateway. Use the screwdriver and the provided M4 screws to fix the pole mount holder.

  • Page 54: Power Connector

    The mains power supply must be protected by a differential magneto-thermal switch complying with the law provision in force. Before proceeding, ensure that the mains supply is disconnected. Subsequently, follow the steps outlined below: ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...
  • Page 55 STEP 1. Strip the cable. STEP 2. Unscrew the provided power connector. STEP 3. Pull the previously stripped cable through the power connector. ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...
  • Page 56 STEP 5. Tighten the all three parts of the power connectors. STEP 6. Push the power connector into the power socket on the connection board and turn it clockwise to fix it. ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...

  • Page 57: Ethernet Connector

    It is recommended to use a cable with a minimum of Cat5e rating for Ethernet. If the gateway is provided with a SIM card this step is optional. Parklio can embed a SIM card into the Gateway to enable connection to the Parklio server via 4G/3G/2G mobile network.
  • Page 58 STEP 4. Strip the colored wires and organize them in the proper way. Use a crimping tool to crimp the RJ45 connector. STEP 5. Tighten the Ethernet connector parts through which the Ethernet cable is routed. ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...

  • Page 59: Gateway Setup

    fix it. 5.2.7. Gateway Setup Your Parklio gateways are factory-set with DHCP enabled, which allows them to configure their IP addresses, default gateways, and DNS settings. For your specific installation site's network connectivity, customer configuration is necessary. Detailed instructions for this process can be found in the Network Configuration chapter.

  • Page 60: Powering On

    Power LED will turn on. Hardware Reboot The button on the panel of the Parklio Gateway is dual purpose. To reboot the Gateway press and hold the button until the button LED turns off or in the PMS choose a Gateway that you wish to reboot by clicking on it and go to System Control and click on reboot.
  • Page 61 "Add parking product" screen, and your smartphone initiates a scan for nearby Gateways. Ensure you are in close proximity to the specific Parklio device you are adding during this step. Note: The recommended sequence is to add the Gateway first, followed by other devices.
  • Page 62 'Y' followed by the gateway's UUID. For instance, if the UUID is "xyelnESI0WBX," the device will be labeled as "YxyelnESI0WBX." Upon a successful setup, the device will be visible under the "+ Add Gateway" button within the designated parking lot. ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...

  • Page 63: Unassigning The Gateway

    Unassigning the Gateway To move the Gateway to a new lot or Parklio account, it must first be disconnected from the present account. The Gateway is originally unassigned and does not have a specific parking lot. However, it's important to note that the Gateway cannot be assigned to a new lot before it has been unassigned from its previous association.
  • Page 64 Unassigning from the Parklio PMS ➔ If the Gateway is added to a Parklio PMS account it can be unassigned via the PMS interface. Login into the Parklio PMS and select the parking lot with the Gateway you wish to unassign.

  • Page 65: Web Interface

    5.2.8. Web Interface The Parklio Gateway has a built-in web interface for managing gateway settings. By default, the unit is set to acquire an IP address from a DHCP server. The Gateway's hostname will be denoted as PGATE_UUID, with UUID representing the gateway's unique identifier.

  • Page 66: Dashboard

    In the gateway settings tab on the web interface it is possible to manually update the gateways firmware if required. To update the gateway browse to the firmware update file provided by Parklio and click on Upload file. Gateway Information [4]: ➔...

  • Page 67: Network

    The Network tab is used to set up the Gateways IP address (in case a static network is used), APN configuration (in case a SIM card is used) and the NTP configuration in order to set the NTP server. ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...
  • Page 68 When installing the SIM card make sure to disconnect the Gateway from the power! 2. Set the Name, APN, MCC and MNC for the SIM card 3. Click on Submit and remove the ethernet cable when the Gateway starts to Reboot. ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...
  • Page 69 1. Change the server address 2. Submit the changes 3. Reboot the Gateway Note: The Gateway can be rebooted through the interface, PMS or by pressing and holding the Reset button until the light turns OFF. ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...

  • Page 70: I/O Board User Manual

    5.3. I/O Board User Manual The I/O Board simplifies the process of connecting your parking barrier to a variety of devices and systems while simultaneously collecting real-time parking barrier statuses, offering insight into their operational state – whether open or closed.

  • Page 71: I/O Board Overview

    Smartphones and other devices scan QR codes, which the I/O board interprets to grant or deny access. Push buttons ➔ The I/O board lowers the barrier when a push button is pressed. ANPR cameras ➔ The I/O Board efficiently regulates admission by collecting and analyzing license plate numbers from ANPR cameras.

  • Page 72: Smart Home & Smart Buildings Integration

    Smart Home & Smart Buildings Integration The I/O Board provides the capability to centrally control the barrier from a single location, whether within your home, office or any other building. This feature offers exceptional convenience by eliminating the need to physically approach the barrier to grant entry or exit.

  • Page 73: I/O Board Setup

    CLOSE IN (5 and 7) Close command input If the contacts are closed the Barrier will move up (close). The Barrier will remain closed as long as the contacts are closed. OPEN IN (5 and 8) Open command input If the contacts are closed the Barrier will move down (open).

  • Page 74: Double Battery Pack User Manual

    Battery Pack, an advanced power solution designed to enhance the longevity and convenience of your parking barrier. With its rechargeable double-capacity battery, the Parklio Barrier can last up to a year on a single charge, significantly extending the operational life of your barrier.

  • Page 75: Double Battery Pack Overview

    5.4.2. Double Battery Pack Overview The Double Battery Pack is designed to optimize the lifespan of your barrier. By adhering to these charging guidelines, you can ensure long-lasting and reliable power: Charge with Double Battery Charger Only: To maintain peak performance and safety, always charge the Double Battery using the charger delivered for this purpose in the Double Battery Pack box.

  • Page 76: Inserting The Double Battery Pack

    5.4.4. Inserting the Double Battery Pack To install the double battery pack, align the Double Battery Pack with the Control Unit and attach it to the barrier base using the velcro joint on the bottom of the battery pack and on the barrier.

  • Page 77: Constant Power Supply Module User Manual

    ➔ 1 x User Manual ➔ If any of the parts are incorrect, missing, or damaged, contact your Parklio™ dealer. Keep the cardboard package, including the original packing materials, in case you need to return the product for repair. 5.5.2. Constant Power Supply Module Overview The Constant Power Supply Module comes equipped with an external AC/DC power supply.
  • Page 78 Key Features Stable Power Source: The Constant Power Supply Module guarantees a continuous and reliable power source for your barrier, eliminating the need for frequent battery replacements. Adjustable Voltage: You have the flexibility to fine-tune the voltage output within the range of 10.2V to 13.4V to accommodate various barrier models and operational...

  • Page 79: Technical Specification

    Do not attempt to power multiple barriers with a single supply, as it may compromise their operation. Voltage Limit: It is crucial to ensure that the voltage supplied to the barrier never exceeds 11V. Exceeding this limit can result in damage to the barrier system.

  • Page 80: Installing Constant Power Supply Module

    You can find a comprehensive and detailed explanation of the installation procedure for the Constant Power Supply Module in Chapter 4.5, which specifically focuses on the installation of the AC-powered Barrier Model. This chapter provides step-by-step guidance to ensure a thorough understanding of the installation process.

  • Page 81: Extension User Manual

    5.6. Extension User Manual This user manual is your thorough guide to utilizing the Barrier Extension to improve the visibility and safety of the barrier in your parking area. In the following sections, we will provide you with comprehensive instructions on how to efficiently and seamlessly install the extension, ensuring it's securely attached to...

  • Page 82: Extension Overview

    field of vision. Key Features Built to Last: Produced with the same high standards as the Parklio™ barriers, the extension accessory is durable and fully compatible, ensuring a long-lasting addition to your parking barrier.

  • Page 83: Technical Specification

    5.6.3. Technical Specification ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...

  • Page 84: Installing Barrier Extension

    ➔ STEP 1. Examine the package contents for completeness. STEP 2. Inspect for any damage to the components. STEP 3. Align the extension pole as illustrated. (Ensure that when facing the barrier, the flag is oriented to the left.) ___________________________________________________________________________ www.parklio.com...
  • Page 85 STEP 4. Fasten the assembly using the provided bolts and nuts. ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...

  • Page 86: Security Post User Manual

    ➔ 1 x User Manual ➔ If any of the parts are incorrect, missing, or damaged, contact your Parklio™ dealer. Keep the cardboard package, including the original packing materials, in case you need to return the product for repair. 5.7.2. Security Post Overview Installing rubber security posts is an efficient way to enhance the safety of your...

  • Page 87: Technical Specification

    Value Model UT2519 Material Plastic Height 750 mm / 29.53 in Top-base Φ 80 /200 mmm / 3.15 in / 7.87 in Weight 0,9 kg ±0,1 / 1.98 lbs ±0.22 lbs Colour #314E82 with reflective stripes ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...

  • Page 88: Installing Security Post

    5.6.4. Installing Security Post Before beginning the installation process, make sure you have all the necessary tools and materials. Here’s a list of what you’ll need, in addition to the contents of the Parklio safety post package : Rubber mallet or sledgehammer ➔...

  • Page 89: Controlling The Barrier

    6. Controlling the Barrier This section explains how to connect the mobile application to the barrier and how to control the barrier using the free Parklio Connect mobile application. Please note that internet connectivity is required for the barrier's first connection and setup.

  • Page 90: Registration And Login

    To use Parklio Connect the user needs to be logged in. App users can log in using their existing Google or Apple accounts, or alternatively, they can create and use a Parklio account with their email address. To login via Google simply press the Sign in with Google button.

  • Page 91: Adding The Barrier To Your Account

    After logging in, the dashboard will display all of your Parklio devices. To add a barrier to the account press the + button on the top right corner of the dashboard. The “Add Parking product” screen opens and the smartphone starts ___________________________________________________________________________ www.parklio.com...

  • Page 92: Connecting To The Barrier

    6.4. Connecting to the barrier It is necessary to connect to the barrier in order to operate it, see its status, and alter its settings. This is done by going to the Dashboard and clicking on the barrier to which you want to connect.

  • Page 93: Opening And Closing The Barrier

    Opening and closing the barrier is possible only when the user is connected to the barrier and while the barrier is in the EXTENDED or LOWERED state. By clicking the button in the center of the main screen the barrier will lower or extend. ___________________________________________________________________________ www.parklio.com...
  • Page 94 If the Barrier detects that the vehicle is parked too close to or above the Barrier, the message CAR ON TOP will be displayed. In this case, it is possible to raise the Barrier by clicking on the car icon and pressing FORCED WORK in the dialog box. Only the administrator/owner of the Barrier can do this.

  • Page 95: Barrier Settings And Information

    It is also possible to use Force Lower and Force Extend from the Device Settings menu. 6.6. Barrier Settings and Information Clicking the gear icon in the top right of the Barrier screen will bring up the Barrier settings. In the settings screen it is possible to view battery status, device information like the firmware version and ID, set the auto/close option, and use the force extend...

  • Page 96: Auto Close Settings

    The auto-close feature enables automatic Barrier closing when the vehicle parked over the Barrier departs. A set of sensors on the Barrier detects the presence of a vehicle. The auto-close function is activated once the car remains parked over the open Barrier for more than 60 seconds.

  • Page 97: Key Sharing And Blocking

    A key may be shared to multiple users and multiple keys may be sent to one user. In order to share a key press the Share Key button on the main Barrier screen. Then enter the email of the user to whom the key will be shared or choose from the list of previously shared users.
  • Page 98 View all shared Digital Keys at the bottom of the screen. All keys shared for the selected Barrier are displayed. To block a certain user click on the Block button next to the user. Share keys can also be viewed from the Device Settings screen by clicking on Shared Digital Keys.

  • Page 99: Updating The Barrier

    Barrier settings is shown if an update is available. When updating the Barrier make sure there is no vehicle located on top of the Barrier. Please stay close to the Barrier for the whole duration of the update.

  • Page 100: Battery Status

    Start. Stay close to the device while the update is downloading. 6.2.5. Battery Status Barrier battery status is displayed in 5 levels with the battery icon at the top of the Barrier settings. Each level corresponds to roughly 25% of the battery charge.

  • Page 101: Removing The Product

    6.2.6. Removing the product In order to remove the Barrier from your account or to delete a key that was shared to you enter the Device Settings screen and press the garbage can icon. A confirmation will pop up, press Yes.
  • Page 102 Direct Bluetooth connection with the Barrier is not required for programming the Keyfob. Once your Barrier is configured in Parklio Connect APp, follow these steps to program the Keyfob from the Device Settings menu: Access the Device Settings menu of the device you want to control with the ➔...

  • Page 103: Barrier Key Reset

    6.7. Barrier Key Reset The Barrier digital key is set once the Barrier is added to a user account. This key can only be removed by resetting it. The reset is done by pressing and holding the Reset button for 3 seconds until the green LED lights up.

  • Page 104: Manual Barrier Control

    Resetting the Barrier digital key will cause all the shared guest keys and the owner key to be unusable. It will be necessary to resend all guest keys individually. 6.8. Manual Barrier Control To manually open the barrier, unlock the safety pin lock using the provided key, afterer that remove the safety pin while holding the barrier arch and actuator in place.
  • Page 105 ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...

  • Page 106: Cleaning And Maintenance

    Prior to initiating any cleaning or maintenance procedures for the device, it is essential to disconnect the power supply. Children should not clean nor maintain the barrier without proper supervision. 7.1. Cleaning the laser sensor Continued use of the device may result in the accumulation of dirt particles, mud, water stains, and other impurities that can obstruct the laser sensor's view.

  • Page 107: Cleaning The Inside Of The Barrier Cover

    7.2. Cleaning the inside of the barrier cover The inside of the barrier cover should only be cleaned with a clean dry cloth and a dust brush. 7.3. Cleaning the barrier exterior The outside of the barrier may be cleaned with water, and in the case of bigger stains with a detergent without abrasive properties.

  • Page 108: Disposal Of The Device

    Take this product to a suitable collection point for electrical and electronic equipment recycling. Take out the worn battery from the barrier and dispose of it at a suitable place. The proper way of disposing of the barrier will help you to prevent possible negative consequences and impacts on the environment and human health that could occur in the event of improper disposal of the barrier.

  • Page 109: Declaration Of Conformity To Emc, Lvd And Erm Directives

    9. Declaration of Conformity to EMC, LVD and ERM Directives ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...

  • Page 110: Declaration Of Conformity To Fcc

    Consult the dealer or an experienced radio or TV technician for help. ➔ Changes or modifications to this product not authorized by the manufacturer could void the electromagnetic compatibility (EMC) and wireless compliance and negate your authority to operate the product. ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...
  • Page 111 This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...

  • Page 112: Declaration Of Conformity To Ised

    Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. ___________________________________________________________________________ www.parklio.com info@parklio.com +385977247276...
