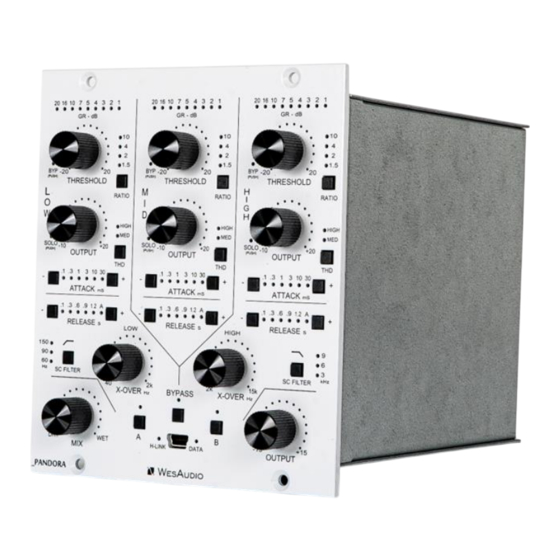

WesAudio PANDORA User Manual

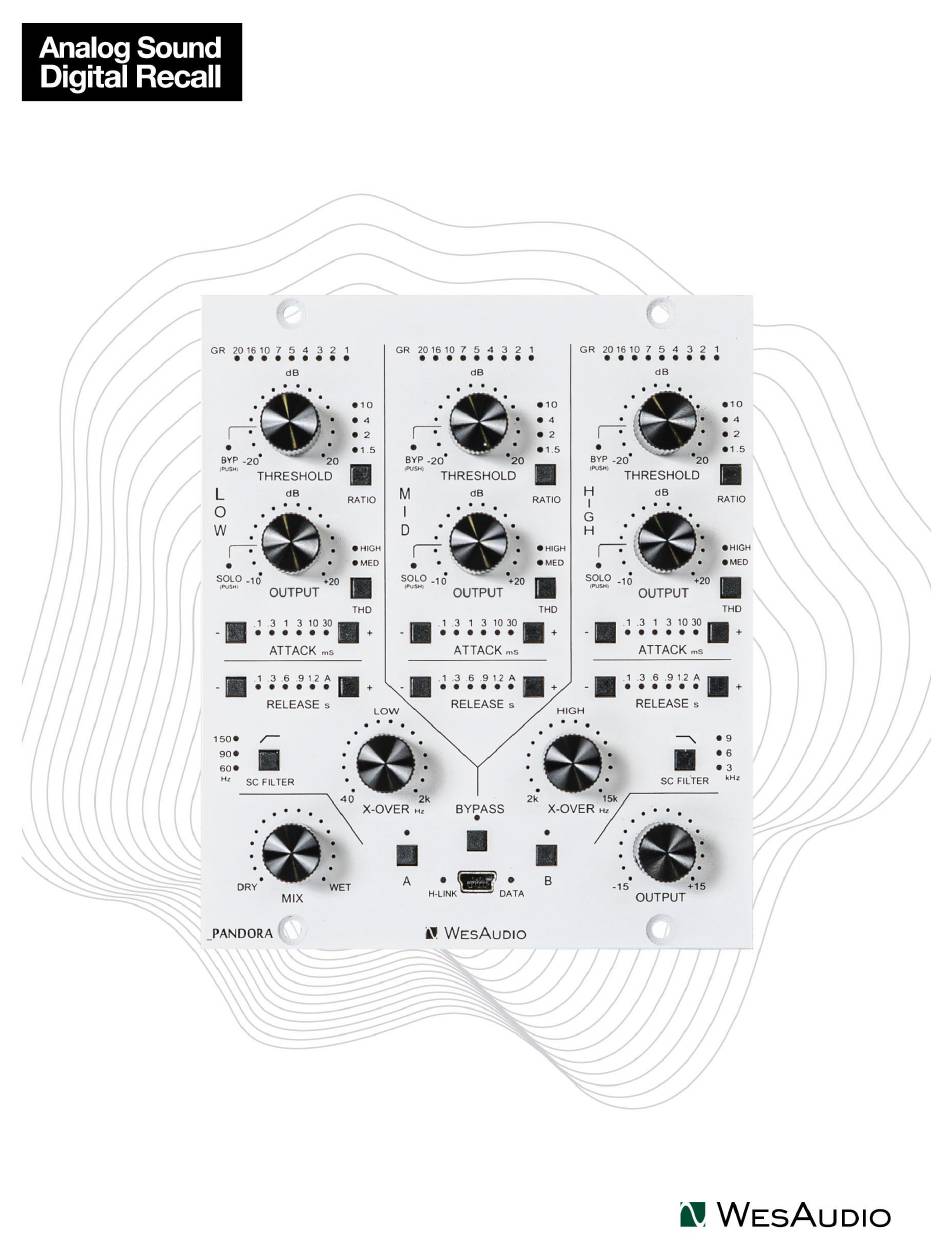

Analog sound digital recall
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the PANDORA and is the answer not in the manual?

Questions and answers

Related Manuals for WesAudio PANDORA

Summary of Contents for WesAudio PANDORA

  • Page 2 WESAUDIO 10/29/24 _PANDORA USER MANUAL REV1 www.WesAudio.com User manual Copyright 2024 by WesAudio...
  • Page 3 WESAUDIO 10/29/24 _PANDORA USER MANUAL REV1 Thank You for the purchase of Stereo Multiband Compressor with digital recall With kind regards Radoslaw Wesolowski and Michal Weglicki...
  • Page 4 WESAUDIO 10/29/24 _PANDORA USER MANUAL REV1 For years, multiband compressors have been revered for their ability to finely control dynamic ranges across different frequencies, shaping the balance and punch of countless iconic productions. _Pandora takes this to the next level, delivering an unparalleled analog compression experience seamlessly integrated with modern digital recall and automation.
  • Page 5 WESAUDIO 10/29/24 _PANDORA USER MANUAL REV1 TABLE OF CONTENTS Overview ..............................7 Main Features ............................7 Hardware ..............................9 3.1 Specification ............................. 9 3.2 Installation and Compatibility ......................... 10 3.3 3 Slots Stereo Module ..........................12 3.4 Front Panel and Main Functions ......................13 Analog Processing ...........................
  • Page 6 WESAUDIO 10/29/24 _PANDORA USER MANUAL REV1 7.2 Metering ..............................29 Hookup Diagrams ............................ 30 8.1 Hookup Diagram – Analog Cables With _TITAN ..................30 8.2 Hookup Diagram – _CALYPSO and _TITAN .................... 31 8.3 Hookup Diagram – 500 Series Chassis ....................32 8.4 Other examples ............................
  • Page 7 WESAUDIO 10/29/24 _PANDORA USER MANUAL REV1 _PANDORA is a fully analog unit with digital control, ensuring that all audio processing is handled exclusively through analog components. The digital aspect of the device is dedicated to configuring settings, enabling features like digital recall and remote control.
  • Page 8 WESAUDIO 10/29/24 _PANDORA USER MANUAL REV1 • Accurate Metering: Gain reduction metering on both the hardware and plugin for each band, with input metering for each band in the plugin. • Analog Automation: Supports analog automation within DAWs for seamless integration.
  • Page 9 WESAUDIO 10/29/24 _PANDORA USER MANUAL REV1 This chapter will go through all analog features and explain all hardware aspects of _PANDORA. Frequency response 20Hz-20kHz (0.2dB) THD+N (WET) 0.009% (1kHz,0dBu) THD+N (DRY) 0.005% (1kHz,0dBu) Input impedance 10kohm Output impedance < 100ohm...
  • Page 10 An API™ 500 Series compatible rack • _TITAN or any other ng500 compatible chassis, WesAudio's _PANDORA module isn't standalone; it needs power from the rack system to function. When unpacking, check for any damage caused during shipping. If there's a problem, contact your dealer immediately!
  • Page 11 _PANDORA USER MANUAL REV1 500 series compatibility note: Each WesAudio device within the ng500 (Next Generation 500 series) lineup comes with a unique connector. This specialized connector serves as an extension to the standard 500 series, enabling your device to be controlled and recalled using the specialized GCon protocol. For instance, this connector allows compatibility with the _Titan 500 series 10-slot frame.
  • Page 12 WESAUDIO 10/29/24 _PANDORA USER MANUAL REV1 _PANDORA occupies 3 slots in the 500 series format due to its extensive feature set. The 3-slot design allows for easy access to all parameters and convenient control over its features. However, despite occupying 3 slots, the unit provides purely stereo processing.
  • Page 13 WESAUDIO 10/29/24 _PANDORA USER MANUAL REV1...
  • Page 14 WESAUDIO 10/29/24 _PANDORA USER MANUAL REV1 LOW, MID, and HIGH Band (points 1-7 apply to each band): 1. Gain Reduction (GR) Meter: Displays the amount of gain reduction applied to each band, giving visual feedback on the compressor’s performance. 2. Threshold: Sets the compression start point, adjustable from -20 to +20dB. Any signal above this threshold will be compressed based on the chosen ratio.
  • Page 15 WESAUDIO 10/29/24 _PANDORA USER MANUAL REV1 Analog multiband VCA compression offers a distinctive sound that combines precision with warmth, making it a favorite for dynamic control in a wide range of audio applications. By dividing the audio signal into multiple frequency bands, this type of compression allows each band to be processed independently, ensuring that low, mid, and high frequencies can be compressed without interfering with each other.
  • Page 16 WESAUDIO 10/29/24 _PANDORA USER MANUAL REV1 Each band features an OUTPUT control with a range of -10 dB to +20 dB, allowing for precise sculpting of the signal, even without applying any gain reduction. This flexibility enables you to adjust the volume of each band individually, providing a distinctive level of control similar to an equalizer.
  • Page 17 WESAUDIO 10/29/24 _PANDORA USER MANUAL REV1 The WesAudio software package is accessible for download to all purchasers of the corresponding hardware unit at https://www.wesaudio.com/download For information on supported plugin types and platforms, please refer to the provided link. To initiate the installation of the WesAudio software package, navigate to https://www.wesaudio.com/download...
  • Page 18 If you encounter any issues during the installation process, please reach out to our support team at support@wesaudio.com, and we will respond promptly to assist you. Below is a common issue along with suggestions that might help in diagnosing the problem: •...
  • Page 19 The GCon Manager is a versatile application designed for configuration management across compatible devices. It is located within the Application folder data: • For OSX: Access it at “/Applications/WesAudio/GConManager.” • For WINDOWS: Find it in the folder chosen during the installation phase, typically “c:/Program Files x86/WesAudio/GConManager.exe”...
  • Page 20 WESAUDIO 10/29/24 _PANDORA USER MANUAL REV1 Each device communicates its firmware version to your workstation, establishing compatibility between your host application and the connected device. To verify the firmware version or perform an upgrade, please use the GConManager _CONFIG application.
  • Page 21 WESAUDIO 10/29/24 _PANDORA USER MANUAL REV1 To update the firmware, navigate to the GConManager UPGRADE section and press the “Start” button. This starts the update process for any modules that do not have the latest firmware version.
  • Page 22 In essence, _ PANDORA DAW plugin integration marries the rich, analog sound quality with the precision and versatility of digital control. This not only amplifies the functionality of _ PANDORA but also elevates the music production process, offering unprecedented control and flexibility in a traditionally...
  • Page 23 WESAUDIO 10/29/24 _PANDORA USER MANUAL REV1 The _PANDORA plug-in extends comprehensive control over all parameters of the unit, ensuring seamless integration into any digital audio workstation (DAW) environment. Designed to be versatile and accessible, it supports all common plug-in standards, including VST2, VST3, AU (Audio Units), and AAX, making it compatible with a wide range of software platforms.
  • Page 24 WESAUDIO 10/29/24 _PANDORA USER MANUAL REV1 can’t process two independent tracks on each channel simultaneously – like kick and snare for example. However, it is entirely possible to work with only one mono channel at a time.
  • Page 25 WESAUDIO 10/29/24 _PANDORA USER MANUAL REV1...
  • Page 26 WESAUDIO 10/29/24 _PANDORA USER MANUAL REV1 For detailed explanations of each control and its functionality, users are encouraged to consult the chapter titled "Front Panel Functions." This section provides comprehensive insights into how to interact with the _PANDORA, whether you're adjusting parameters on the physical unit or via the plug-in.
  • Page 27 WESAUDIO 10/29/24 _PANDORA USER MANUAL REV1 22. Ratio: Sets the amount of compression applied once the signal exceeds the threshold, determining how much the input signal is reduced. Switches between 1.5/2/4/10. 23. Attack: Defines how quickly the compressor responds to signals exceeding the threshold, affecting how tightly the effect grabs transients.
  • Page 28 WESAUDIO 10/29/24 _PANDORA USER MANUAL REV1 In terms of parameter storage: The _PANDORA unit offers TWO distinct quick-access presets, selectable via the A/B buttons . In contrast, the _PANDORA plugin supports saving an UNLIMITED number of configurations. Each preset within the plugin provides three rapid configuration changes, labeled A/B/C per bank ID.
  • Page 29 WESAUDIO 10/29/24 _PANDORA USER MANUAL REV1 The _PANDORA unit features an analog Gain Reduction (GR) meter that provides real-time visual feedback on the amount of compression being applied. This meter is essential for monitoring the dynamics of your signal, allowing you to see how much gain reduction is occurring as you adjust the compressor’s settings.
  • Page 30 WESAUDIO 10/29/24 _PANDORA USER MANUAL REV1 Below chapter shows possible hookup of the WesAudio devices and audio interface. Audio interface OUTs to _TITAN INs _TITAN OUTs to Audio Interface INs Control and Recall of the units (*) PLUG-IN which controls...
  • Page 31 WESAUDIO 10/29/24 _PANDORA USER MANUAL REV1 ADAT I/O - _CALYPSO in _TITAN chassis converts and distributes analog signal internally in the chassis Control and Recall of the units (*) PLUG-IN which controls hardware unit Computer to Audio Interface connection (USB/TB etc.) (*) Please note that the _TITAN Ethernet connection does not require a direct connection to a PC or Mac.
  • Page 32 WESAUDIO 10/29/24 _PANDORA USER MANUAL REV1 Audio interface OUTs to 500 chassis INs 500 series chassis OUTs to Audio Interface INs Each module USB socket needs to be connected either directly or via USB HUB PLUG-IN which controls hardware unit Computer to Audio Interface connection (USB/TB etc.)
  • Page 33 10/29/24 _PANDORA USER MANUAL REV1 Please note that all WesAudio units, despite their digital recall and control capabilities, remain fully analog and can be utilized at any stage of the production process, including recording and post-processing. For instance, like any other units, WesAudio modules can be seamlessly integrated during tracking.
  • Page 34 No Sound Output or Signal Loss • Unexpected Distortion • Thumping or Low-End Artifacts • Inconsistent Compression • • No Response to DAW Automation • Excessive Heat Please visit the WesAudio FAQ site https://wesaudio.com/faq/ for detailed troubleshooting steps and solutions.
  • Page 35 WESAUDIO 10/29/24 _PANDORA USER MANUAL REV1 GCon is a high-speed communication protocol developed to enable complete management and recall of analog devices. It's important to note that GCon is solely focused on device control and management; it does not facilitate the transfer of audio signals. This protocol is instrumental in bridging the gap between analog warmth and digital convenience, allowing users to enjoy the best of both worlds without compromising on sound quality or control flexibility.
  • Page 36 10/29/24 _PANDORA USER MANUAL REV1 WesAudio is committed to delivering products of the highest quality, designed for durable and reliable performance over many years, assuming proper care, usage, transport, and storage. Our products come with a two-year warranty covering defects in parts and workmanship from the original date of purchase.
